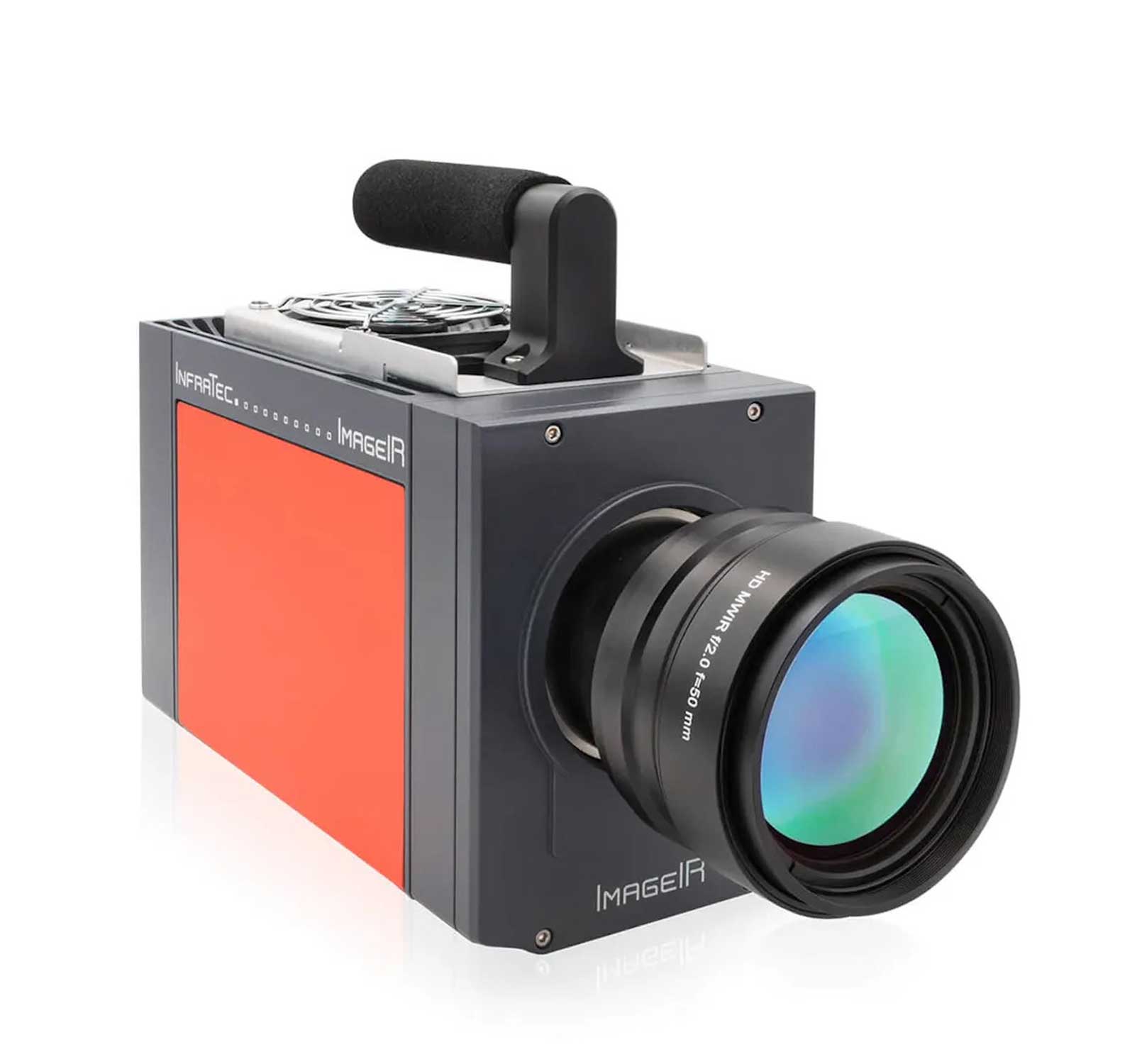

ImageIR® 8300 hs Series
High-speed Thermography in VGA Format
High-speed thermography with full resolution
Our ImageIR® 8300 hs infrared camera sets new standards due to the combination of the image format of (640 × 512) IR pixels with the exceptionally high frame rate of 1,105 Hz. It enables thermographic images of excellent quality, even of extremely fast-moving objects or highly dynamic thermal processes. Thus, the moment that matters is reliably captured, displayed in high resolution and precisely thermally measured. Radiometric image data is transferred directly to a standard notebook for control and analysis tasks via an industry-standard 10 GigE interface using loss-free, intelligent real-time compression.
 |
Detector Format
Large detector enables highest sensivity |
 |
IR-Frame Rate
Analysis of extreme temperature changes and gradients in full frame |
 |
Measurement Accuracy
Highly accurate and repeatable measurements |
 |
Thermal Resolution
Precise detection of smallest temperature differences |
 |
10 GigE Interface
High-speed, long-distance interference proof data transmission |
 |
Pitch Dimension
Precise measurement of low temperatures and very fast integration times |
| Spectral range | InSb: (1.5 ... 5.5) µm, T2SLS: (1.5 … 6) µm |
|---|---|
| Pitch | 25 µm |
| Detector | T2SLS or InSb |
| Detector format (IR pixels) | (640 x 512) |
| Image recording principle | Snapshot |
| Readout mode | IWR |
| Aperture ratio | f/2.0 |
| Detector cooling | Stirling cooler; HOT Long-Life (T2SLS) |
| Temperature measuring range | (-40 … 1,700) °C, up to 3,000 °C* |
| Measurement accuracy | ± 1 °C or ± 1 % |
| Temperature resolution @ 30 °C | Better than 0.02 K |
| Frame rate (full / half / quarter / sub frame) | Up to 1,105/1,957/3,731/30,330 Hz |
| Window mode | Yes |
| Focus | Manually, motorised or automatically* |
| Dynamic range | Up to 14 bit |
| Integration time | (0.5 … 20,000) µs |
| Rotating aperture wheel and filter wheel* | Up to 7 positions (Label: Rotating aperture wheel and filter wheel) |
| Interfaces | 10 GigE, HDMI* |
| Trigger | 4 IN / 2 OUT, TTL |
| Analog signals*, IRIG-B* | 2 IN / 2 OUT, yes |
| Tripod adapter | 1/4" and 3/8" photo thread, 2 x M5 |
| Power supply | 24 V DC, wide-range power supply (100 ... 240) V AC |
| Storage temperature | (-40 ... 70) °C |
| Operation temperature | (-20 ... 40) °C |
| Protection degree | IP54, IEC 60529 |
| Dimensions/Weight | (235 × 120 × 160) mm; 4.0 kg (without lens) |
| Further functions | HighSense* |
| Analysis and evaluation software | IRBIS® 3, IRBIS® 3 view, IRBIS® 3 plus*, IRBIS® 3 professional*, IRBIS® 3 control*, IRBIS® 3 online*, IRBIS® 3 process*, IRBIS® 3 active*, IRBIS® 3 mosaic*, IRBIS® 3 vision* |
