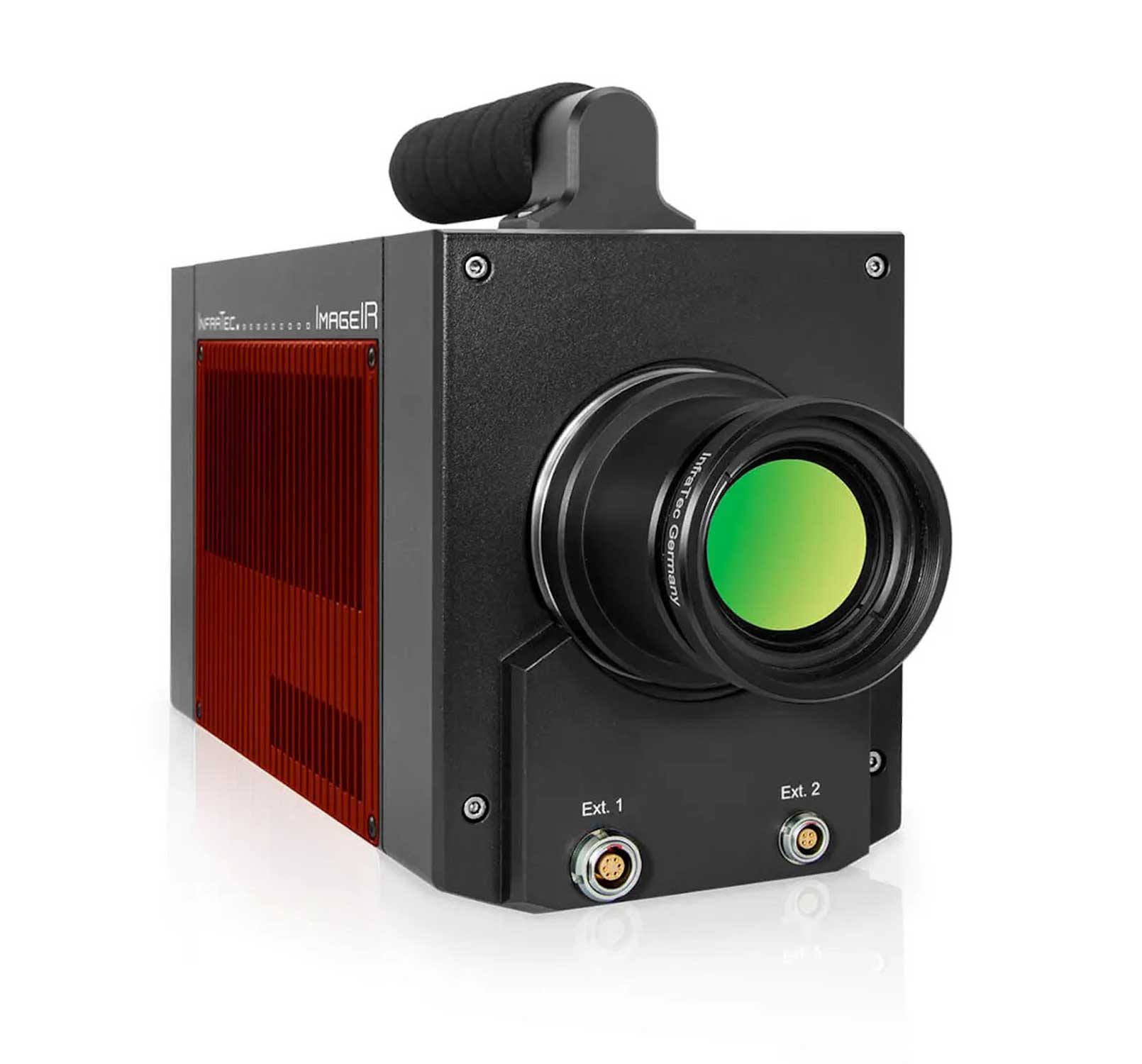

High-end Thermographic Camera with HD Image Quality
The benefits of the ImageIR® 9400 infrared camera are clearly based on its versatility. Especially users looking for a cooled camera with a high geometrical resolution will find an excellent solution with this model.
This camera model is the ideal measurement system for users whose measurement task requires a particularly high geometric resolution. The cooled focal plane array photon detector has (1,280 × 1,024) IR pixels and can increase the image format up to
(2,560 × 2,048) IR pixels with the optional opto-mechanical MicroScan. Each single one of these 5.2 Megapixels in the image re-presents a real temperature measurement value. This allows the finest structures to be recorded and analysed without gaps and
simultaneously on large or distant measurement objects
 |
Detector Format
Efficient measurement of smallest structures on large-scale objects |
 |
MicroScan
(2.560 × 2.048) IR pixels by genuine camera hardware |
 |
IR-Frame Rate
Analysis of extreme temperature changes and gradients in full frame |
 |
Measurement Accuracy
Precise and highly repeatable measurements |
 |
10 GigE Interface
High-speed, long-distance interference proof data transmission |
 |
HighSense
Flexible setting of temperature measurement ranges/integration times beyond calibration ranges |
 |
Motor Focus
Precise, fast and remotely controllable; including multiple autofocus functions |
| Spectral range | (1.5... 5.5) µm |
|---|---|
| Pitch | 10 µm |
| Detector format (IR pixels) | (1,280 x 1,024) |
| Image format with opto-mechanical MicroScan (IR pixels) | (2,560 × 2,048) |
| Image recording principle | Snapshot |
| Readout mode | ITR / IWR |
| Aperture ratio | f/2.2 or f/3.0 |
| Detector cooling | Stirling cooler |
| Temperature measuring range | (-40 ... 1,500) °C (up to 3,000 °C)* |
| Measurement accuracy | ± 1 °C or ± 1 % |
| Temperature resolution @ 30 °C | 0.03 K |
| Frame rate (full / half / quarter / sub frame) | Up to 180 / 342 / 622 / 2.601 Hz |
| Window mode | Yes |
| Focus | Manually, motorised or automatically* |
| Dynamic range | Up to 16 bit |
| Integration time | (0.5 … 20,000) µs |
| Rotating filter wheel* | Up to 7 positions |
| Rotating aperture wheel* | Up to 5 positions |
| Interfaces | 10 GigE, HDMI*, GigE, CamLink |
| Trigger | 4 IN / 2 OUT, TTL |
| Analog signals*, IRIG-B* | 3 IN / 2 OUT, yes |
| Tripod adapter | 1/4" and 3/8" photo thread, 2 x M5 |
| Power supply | 24 V DC, wide-range power supply (100 ... 240) V AC |
| Storage temperature | (-40 ... 70) °C |
| Operation temperature | (-20 ... 50) °C |
| Protection degree | IP54, IEC 60529 |
| Dimensions/Weight | (241 × 123 × 160) mm*; 4.3 kg (without lens) |
| Further functions | Multi Integration Time*, HighSense* |
| Analysis and evaluation software | IRBIS® 3, IRBIS® 3 view, IRBIS® 3 plus*, IRBIS® 3 professional*, IRBIS® 3 control*, IRBIS® 3 online*, IRBIS® 3 process*, IRBIS® 3 active*, IRBIS® 3 mosaic*, IRBIS® 3 vision* |
