Metrology & Metallurgy Metallography Equipments Abrasive Machine RACM-80

Abrasive Machine RACM-80 - View 80

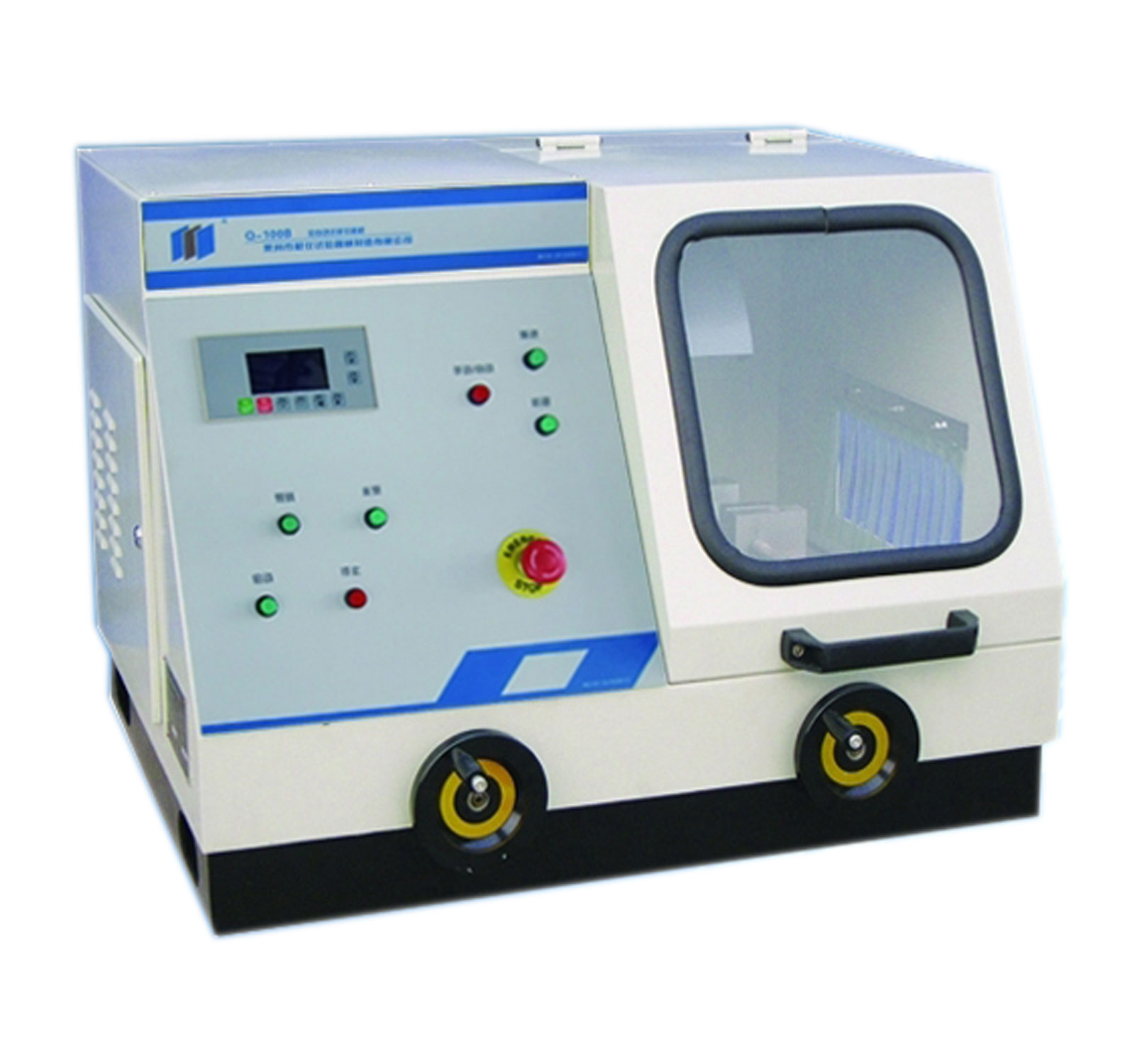

Abrasive Machine

RACM-80

This metallographic specimen cutting machine is equipped with big cutting chamber and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. It is an ideal metallographic specimen preparation equipment to be used in factories, colleges and research institutes.

  • The machine can preset the cutting speed according to different specimens, this will improve the cutting performance and quality of specimen.
  • Re-circulating cooling system help to cool down the specimen during cutting process, to avoid burning damage to the organization.
  • The machine can be operated in manual cutting mode or automatic cutting mode.
  • Various cutting data can be displayed on high definition backlight type LCD screen.
  • Delay cutting (for large and hard specimen) and continuous cutting (for small and soft specimen) can be selected.
  • Automatic withdraw function after cutting is finished.
  • Equipped with 60 L Cooling liquid water tank.
    •
    Display LCD with high resolution back lit dot matrix
    Max. cutting diameter Ø80mm
    Main shaft rotating speed 2100 rpm
    Cutting wheel dimensions 350 x 2.5 x 32mm
    Max. moving travel 125mm
    Motor power 2.2KW
    Power supply 380V, 50Hz, three phases

    As we are continuously improving & developing our products, this website may not be updated with the latest advancements. For complete and updated specifications, please ask for our latest brochures.
