Optical Microscopes Educational Microscopes RXL-5 Series

Advanced Student & Clinical Microscope

RXL-5

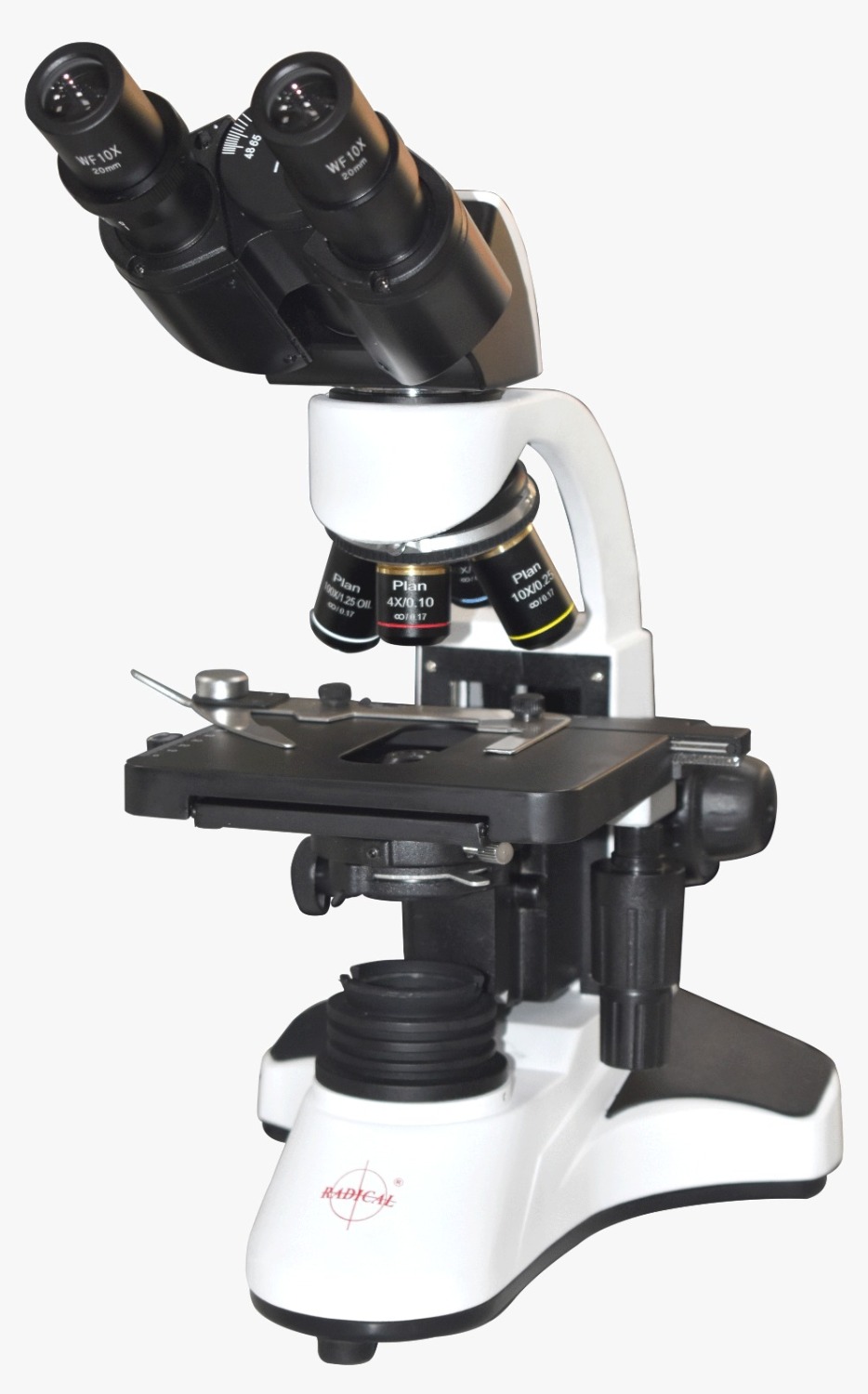

The Advanced Student & Clinical Microscope RXL-5 by Radical Scientific is designed for high-precision observation in schools, colleges, laboratories, and medical institutions. As one of the leading Advanced Student & Clinical Microscope manufacturers and exporters in India, Radical Scientific offers superior quality microscopes with an infinite colour corrected optical system for clear and sharp imaging. The microscope features Koehler halogen / LED illumination with battery backup, ensuring bright and uniform light. It is equipped with a rackless & refocusing stage for smooth operation and 20mm diopter eyepiece for comfortable viewing. This advanced model is ideal for educational, clinical, and research applications, ensuring durability, accuracy, and long-lasting performance

BRIGHTFIELD
DARKFIELD
FLUORESCENCE
PHASE CONTRAST
Body Rugged, Single die cast, ergonomic design, touch point treated
Optical system Infinite optical system(IOS), colour corrected(CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated)
Koehler's Illumination Fixed/Koehler halogen/LED, intensity adjustable, battery backup, auto cut-off, illumination mirror

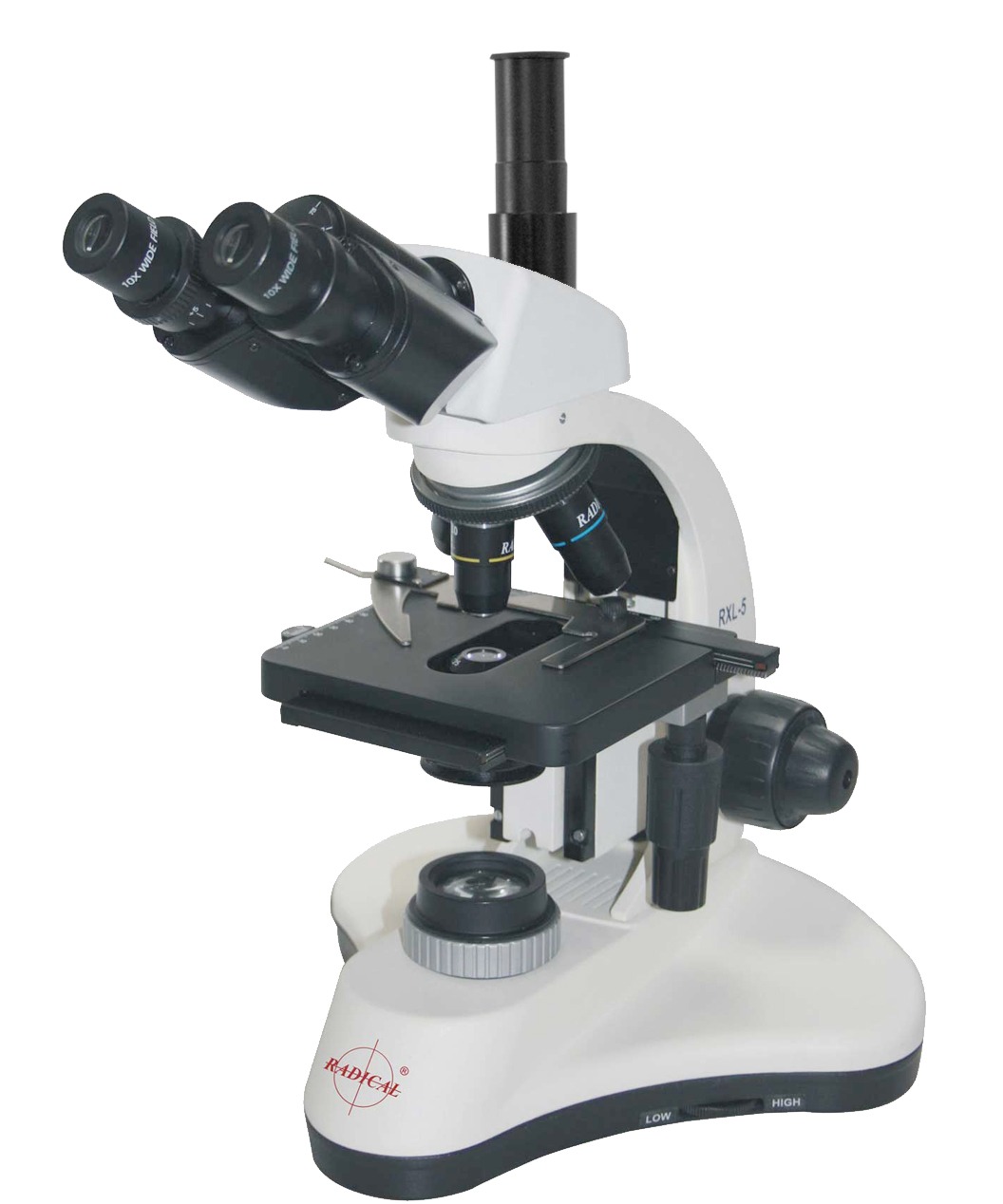

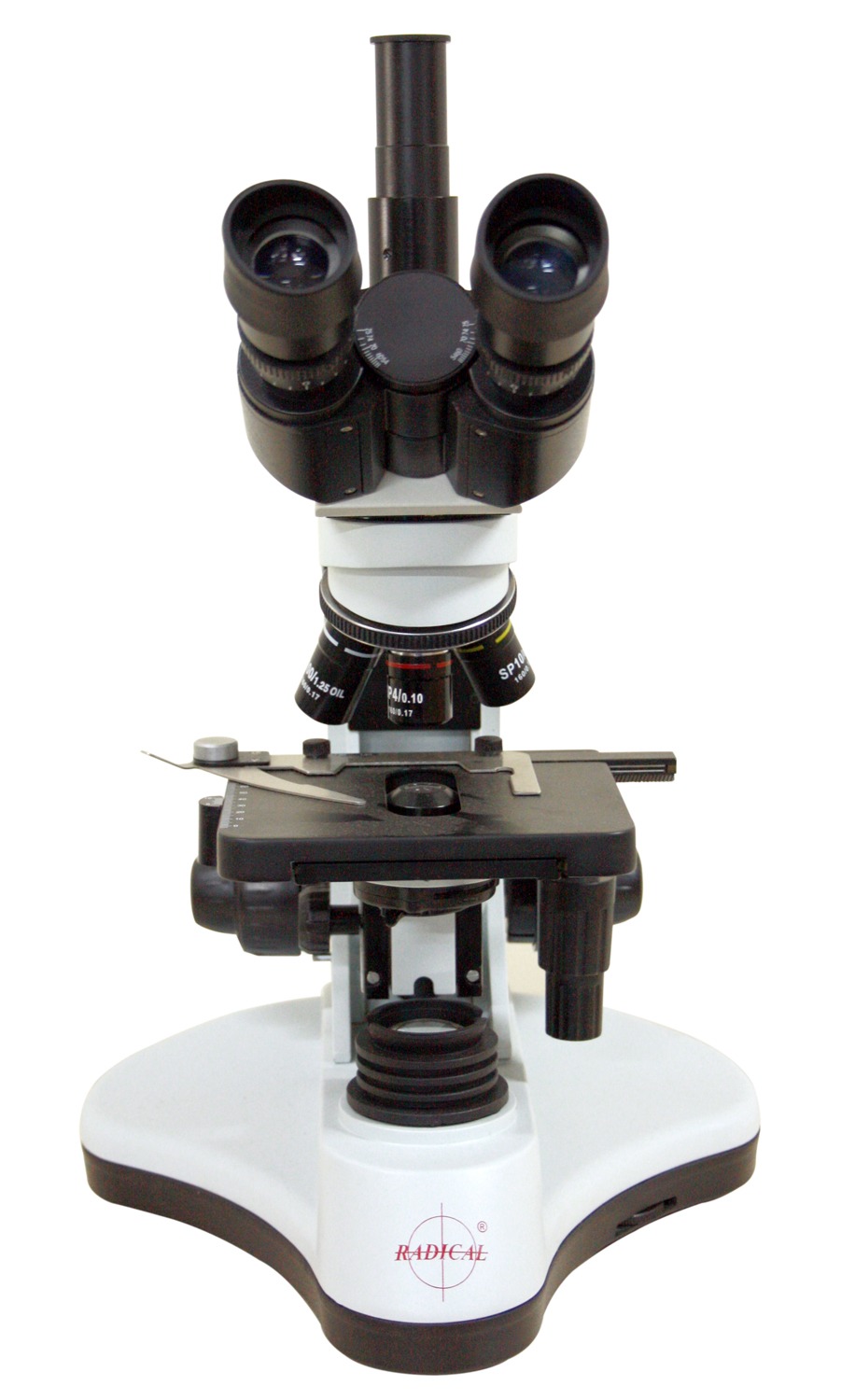

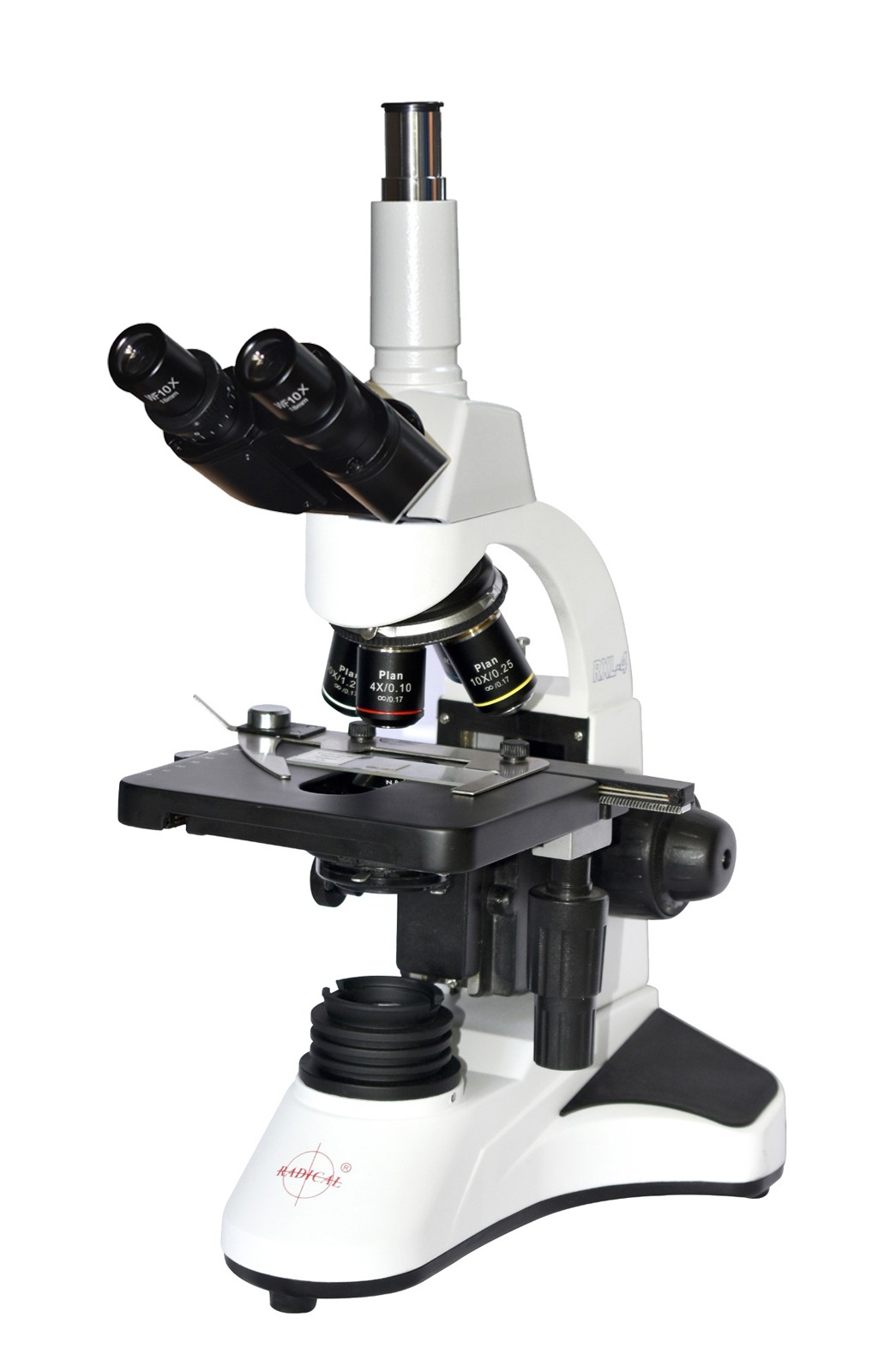

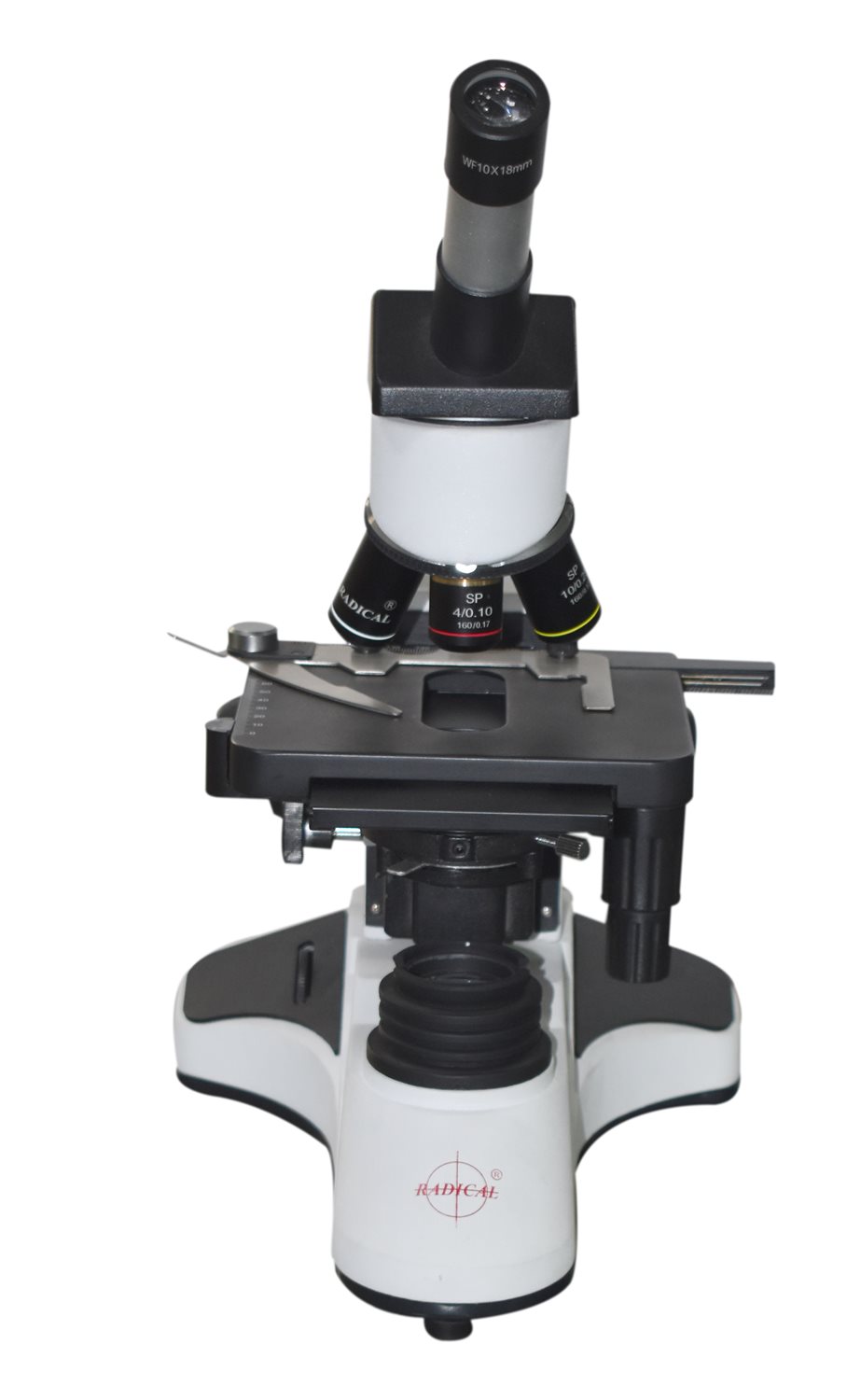

Viewing Head Monocular/Binocular/Trinocular
Nosepiece Quadruple/Quintuple with ball-bearing, rubber/metal grip & click stop
Eyepiece Extra wide field with diopter adjustment
Objectives DIN Semi Plan/PLAN Infinite Achromatic
Mechanical Stage Rackless, refocusing, right/left hand control, hard coated surface, double layer, single/double slide holder,low position coaxial movement
Condenser Abbe with iris diaphragm & filter slot. Brightfiled, darkfiled, phase.
Focusing Coaxial (low position), both side, Coarse & Fine with tension control & upper limit stopper
Power Supply 90V-240V/50Hz AC SMPS/transformer inbuilt voltage stabilization
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RX5MB Rugged, sturdy single mold aluminium die cast sturdy stand having extended base for handrest & greater stability, with acid resistant texture painted, corrosion proof, acid proof, stain proof, heat proof, anti-rust material, epoxy powder coated, ergonomic design, interchangeable, touch point treated, hinged door at base for easy & quick replacement of bulb/LED, intensity controller & on/off switch, rubber feet, fuse at back, extended base for enhanced stability & control.
Optical System RX5OSi Universal high contrast infinity corrected optical system, having optical & microscope body corrected for colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), focal length 200mm, strain free, anti-reflection coated prism, coated optical system, colour coded objectives, vacuum coated prism, flat image over the entire FOV with no curvature of field, uniformly centered, interchangeable & parfocal length: 45mm, parallelism of optical axis coverage within 5 minutes
Koehler's Illumination RX5H20 Halogen 6V -20W (life 2000 hrs.)
Viewing Head RX5BST Binocular inclined at 30°, siedentopf head, rotatable through 360°, IPD-from 47-75, diopter adjustment (with scale marking) on one or both eyepiece upto 50mm adjustable viewing height
Nosepiece RX5-5N Inward/reverse angle tilted, precise quintuple revolving on multiple ball bearing, click stop mechanism, rubber grip.
Eyepiece RX5EP1020 Paired, high eye-point, WF 10X, FOV-20mm, focusable, multilayered coated, high quality, good contrast, abresion free, aplantic, anti-fungas, precentered, lockable, with foldable eyeguard, colour compensated, eyepiece with pointer, diopter adjustment on one (left)/both eyepiece. Flat image over the entire FOV with no curvation of field, fixed to prevent damage/loss when moved.
Mechanical Stage RX5MS Rectangular right/left hand low drive coaxial colour coded knob control, horizontal, hard coating, double slide holder, stage size 140×130mm, rack & pinion X-Y movement 80-50mm on wire with stainless steel holder, vernier marking on stage
Objectives RX5AC04i 4X, N.A. 0.10, W.D. 30mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
  RX5AC10i 10X, N.A. 0.25, W.D. 20mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
  RX5AC40i 40X, N.A. 0.65, W.D. 0.65mm, plan achromatic, infinite, parfocal & precentered, spring loaded, unbreakable container for storage
  RX5AC100i 100X, N.A. 1.25, W.D. 0.20mm, plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
Focusing RXF25 Both side, Co-axial, pre-focusing knob, tension control, upper limit stopper, high sensitivity focus drive with 0.25 mm per revolution, fine adjustment 2.5µm/Div, coarse movement 25mm, total movement range
Condenser RABC Sub stage abbe N.A. 1.25 condenser with aspheric lens (light relay) for brightfield with colour coded, uniform illumination for entire FOV, separate vertical movement from focussing (rack & pinion movement on metal guide) with aperture iris diaphragm focusable with snap in frosted blue and removable filter holder (pull-in/pull-out optional), slot for DF and phase slider
Power Supply RSMPS620 6V-20W SMPS based, wide operating voltage range, 90V-240V, 50/60Hz
Accessories RCC Cleaning cloth
RVC vinyl cover
RIO Immersion oil (10ml)
RCLP C-clamp for tension adjustment
RA3K Allen keys
RF5A Fuses - 2 no's
MANUAL Instruction manual
WARRANTY Warranty card
RBF Blue Filter upto 45mm (frosted & Plain)
RPC Power Cord (country Specific)
Wooden Box
Lead Free and Arsenic-free Eco-glass for optics such as lenses and prisms
Lens cleaning solution (100 ml)
Two spare LED/ Halogen bulbs (6V, 20W)
One anti-static cleaning brush
Lens tissue paper 2 boxes
Fixing belt for transpotation
Pointer for Teaching/demonstration
Bulb (6V - 20W)
  • Body
    • Part Name Part Code Description
      Body RX5MBEX Rugged, sturdy single aluminium die cast, window in arm, rigid frame, ergonomic design, acid resistant texture painted, anti-rust material, anti mould, touch point treated, intensity controller & on/off switch, rubber feet
  • Condenser
    • Condenser RCDF Abbe N.A. 1.25 for darkfield, separate movement from focussing (rack & pinion)
        RCDFD Abbe N.A. 0.9 (dry) for darkfield, separate movement from focussing (rack & pinion)
        RABC-1 Abbe N.A. 0.9/1.25 Condenser with aspheric lens (light relay) for brightfield, uniform illumination for entire FOV, separate vertical movement from focusing (rack & pinion movement on metal guide) with (aperture) iris diaphragm focusable with snap in frosted blue and removable filter holder (pull-in/pull-out optional), slot for DF and phase slider.
        RCPH-SL Abbe N.A. 1.25 for phase (sliding type) for 10x & 40x, separate movement from focussing (rack & pinion), filter holder & aperture diaphragm
        RCPH-TR Abbe N.A. 1.25 for phase (turret type), separate movement from focussing (rack & pinion), filter holder
      Upgrade   Fluorescence (2 filter), polarising, darkfiled, phase contrast
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Eyepiece
    • Eyepiece RX5EP0510 WF 5X, FOV-10mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
      RX5EP0514 Pair, WF 5X, FOV-14mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable dioptric adjustable quality, good contrast, abresion free, aplantic, lockable
        RX5EP1018 Paired, high eye-point, WF 10X, FOV-18mm, focusable, graduated eyepieces, multilayered coated, high quality, good contrast, anti-fungal, abresion free, aplantic, lockable, with diopter adjustment on left/Right eyepiece, foldable eyeguard
        RX5EP1018M High eye-point, WF 10X, FOV-18mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX5EP1018P High eye-point, WF 10X, FOV-18mm, pointer, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX5EP1020M High eye-point, WF 10X, FOV-20mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX5EP1020P High eye-point, WF 10X, FOV-20mm, pointer, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable with foldable eyeguard
        RX5EP1020R Paired, high eye-point with eyepiece reticule, WF 10X, FOV-20mm, focusable, multilayered coated, high quality, good contrast, abresion free, aplantic, precentered.
        RX5EP1022  Paired, high eye-point, WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX5EP1022M High eye-point, WF 10X, FOV-22mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX5EP1022P High eye-point, WF 10X, FOV-22mm, pointer, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX5EP1515 Paired, high eye-point, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX5EP2010 Paired, high eye-point, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX5EP-0509 Paired, high eye-point, WF 5X, FOV-9mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RX5EP-C Cutomized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles
        RX5ECUP Eyecups (pair)
  • Focusing
    • Focusing RXF40 Both side, Co-axial, pre-focusing knob, tension control, upper limit stopper, high sensitivity focus drive with 0.4 mm per revolution/rotation, fine adjustment 4µm/Div, coarse movement 18mm.

      RXF10 Both side, Co-axial, pre-focusing knob, tension control, upper limit stopper, high sensitivity focus drive with 0.10 mm per revolution, fine adjustment 1.0µm/Div, coarse movement 25mm, total movement range
      RXF10C Both side, Co-axial, pre-focusing knob, tension control, upper limit stopper, high sensitivity focus drive with 0.10 mm per revolution, fine adjustment 1.0µm (0.001mm)/Div, coarse movement 20mm, total movement range
      RXF20 Both side, Co-axial, coarse & fine focusing knob, tension control, upper limit stopper, high sensitivity focus drive with 0.20 mm per revoluation, fine adjustment 2µm/Div, coarse movement 25mm, ball drive system for smooth & jerk free movement of viewing tube.
      RXF20a Co-axial, coarse & fine focusing knob, tension control, upper limit stopper, high sensitivity focus drive with 0.20mm per revolution, fine adjustment 13mm, fine 0.002/Div, coarse focus range 20mm, with tension control ball bearing mechanism.
      RXF20B Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.20 mm per revoluation, fine adjustment 2µm/Div (2 micrometer stroke), coarse movement stroke 25mm, ball drive system and brass metal gears for smooth operation
      RXF30 Both side, Co-axial, coarse & fine focusing knob, tension control, upper limit stopper, high sensitivity focus drive with 0.30 mm per revoluation, fine adjustment 3µm/Div.
  • Immersion Oil
    • Immersion Oil RIO25 High quality immersion oil 25ml
        RIO100 High quality immersion oil 100ml
  • Koehler's Illumination
    • Koehler's Illumination RX5L5WL5 Uniform colour white LED 5W life 50000 hrs., lumens equivalent 6V-20W, constant colour temperature 6300K, on/off switch, inbuilt intensity controller, uniform illumination in entire FOV, automatic voltage surge protection, design of housing of light source to prevent dispersion of light & inbuilt filter to protect the body from heating.
        RX5L3WL6i Uniform colour LED 3W life upto 15000 hrs., lumens equivalent 6V-20W, colour temperature 6300K, inbuilt intensity controller, uniform illumination in entire FOV inbuilt rechargeable dry battery 2-3 hrs battery backup.

      RX5H30 Halogen 6V-30W, life 2000 hrs.
        RX5LBB Internal/external lithium ion battery backup from 2-12 hours for LED with charger
        RX5L0.5WL3 Transmitted, LED 0.5W, life 30000 hrs., lumens equivalent 6V-20W, inbuilt intensity controller
        RX5L1WL3 Transmitted, LED 1W, life 30000 hrs., lumens equivalent 6V-20W, inbulit intensity controller
        RX5L1WL3-BB Transmitted, LED 1W, life 65,000 hrs., lumens equivalent 6V-20W, colour temperature 6300K, on/off switch inbulit intensity controller with lithium-ion battery backup of 15 hours for LED compatible power supply.
        RX5L3WL3 Transmitted, LED 3W, life 30000 hrs., lumens equivalent 6V-20W, inbulit intensity controller
        RX5L5WL3 Uniform colour LED 5W, life 30000 hrs., lumens equivalent 6V-30W, inbuilt intensity controller
        RX5L3WL6 Uniform colour LED 3W life upto 65000 hrs., lumens equivalent 6V-20W, colour temperature 6300K, inbuilt intensity controller, uniform illumination in entire FOV inbuilt 6-8 hrs battery backup.
        RX5L3WL6X-LED Uniform colour X-LED 3W (white) life 65000 hrs., lumens equivalent 6V-20W, inbuilt intensity controller, colour temperature 6300K
        RX5L3WL8 Uniform colour LED 3W life 82000 hrs., lumens equivalent 6V-20W, inbulit intensity controller
        RX5L5WL6 Uniform colour LED 5W life 65000 hrs., lumens equivalent 6V-30W, inbulit intensity controller
        RX5L5WL8 Uniform colour LED 5W life 82000 hrs., lumens equivalent 6V-30W, inbulit intensity controller
        RX5L-C Extra long life LED upto 1,00,000 hrs 3W/5W, inbulit intensity controller
        RX5BBSOL Solar power battery charger
        RX5MIRR Concave daylight mirror
        RX5ACUT Auto-cutoff
        RX5KOH Kohler illumination attachment for LED or halogen
  • Mechanical Stage
    • Mechanical Stage RX5MS-L Rectangular, Double layer mechanical sliding stage, right/left hand low drive coaxial control, horizontal, hard coating, with stainless steel double slide holder, anti-scratch surface, stage size 150×135mm, rack & pinion X-Y movement 75-30mm on wire, belt drive, vernier marking 0.1mm on x-y axis.
        RX5MS-C4 Rectangular/Square right hand low drive coaxial colour coded knob control, horizontal, rack & pinion, vernier marking on stage,double layer, hard ceramimc coating, scratch resistance, double plate movement on ball bearing, chemical resistant, double slide holder, stage size-120x132mm X-Y 76x30mm,coaxial low height controls.

      RX4MS-C40 Rectangular right/left hand low drive coaxial colour coded knob control, horizontal, hard coating, double slide holder, stage size 140×140mm, rack & pinion X-Y movement 60-30mm with stainless steel holder, vernier marking on stage, lockable.
      RX5MS-A Rectangular right/left hand low drive coaxial control, horizontal, hard coating, double slide holder, X-Y Movement stopper, stage size 140×132mm, rack & pinion X-Y movement 76-52mm on wire with stainless steel holder, vernier marking on stage
      RX5MS-A1 Double plate, Rectangular right hand low drive stage control, horizontal, hard coating low positioned coaxial knobs, soft feel & fluid movement with stainless steel double slide holder removeable, stage size 135×125mm, anti-scratch paint, X-Y traverse movement 75-50mm, precision 0.2mm.
      RX5MS-A2 Double plate, Rectangular right hand low drive stage control, horizontal, hard coating low positioned coaxial knobs, soft feel & fluid movement with stainless steel Single/double slide holder removeable, stage size 135×124mm, anti-scratch paint, X-Y traverse movement 76-50mm, precision 0.2mm.
      RX5MS-B Rectangular/Square right/left hand low drive coaxial stage colour coded knob control, horizontal, rack & pinion, double layer, hard ceramimc coating, scratch resistance, double plate movement on ball bearing, chemical resistant, double slide holder, stage size-125x110mm, X-Y movement 70x32mm, belt drive in X direction, vernier min. accuracy 0.1mm, coaxial low height controls.
      RX5MS-C Rectangular/Square right/left hand low drive coaxial colour coded knob control, horizontal, rack & pinion, vernier marking on stage, double layer, hard ceramimc coating, scratch resistance, double plate movement on ball bearing, chemical resistant, double slide holder, stage size-customized as per requirement, X-Y movement-customized as per requirement, coaxial low height controls.
        RX5MS-C1 Rectangular right/left hand low drive coaxial colour coded knob control, horizontal, hard coating, double slide holder, stage size 145×125mm, rack & pinion X-Y movement 80-50mm on wire with stainless steel holder, vernier marking on stage
        RX5MS-C2 Rectangular right/left hand low drive coaxial control, horizontal, hard coating, double slide holder, anti-scratch surface, stage size 233×147mm, rack & pinion X-Y movement 78-54mm on wire (belt drive in X direction) with stainless steel holder, vernier marking 0.1mm on two axis
        RX5MS-C3 Rectangular right/left hand low drive coaxial colour coded knob control, horizontal, hard coating, Single/double slide holder, stage size 125×140mm, rack & pinion X-Y movement 50-76mm on wire with stainless steel holder, vernier marking on stage
        RX5MS-D Rectangular/Square right/left hand low drive coaxial control, horizontal, hard coating, double slide holder, X-Y Movement stopper, stage size 120×120mm, rack & pinion X-Y movement 75-50mm on wire with stainless steel holder, vernier marking on stage.
        RX5MSi Rectangular right/left hand low drive coaxial colour coded knob control, horizontal, hard coating, double slide holder, stage size 140×130mm, rack & pinion X-Y movement 76-30mm on wire with stainless steel holder, vernier marking on stage.
        RX5MS-i Rectangular right hand low , drive coaxial control, horizontal, hard coating, double slide holder, stage size 142×135mm, rack & pinion X-Y movement 76 x 50mm with stainless steel holder, vernier marking on stage, movement on ball bearings
        RX5MS-R Rackless, rectangular right/left hand control, hard ceramimc coating, single/double slide holder, stage size-customized as per requirement, rack & pinion, X-Y movement-customized as per requirement, focus lock provision
        RX5MS-Ra Rackless, right/left hand low drive control, hard coating, double slide holder, stage size 145×135mm, X-Y movement 80-50mm on wire with stainless steel holder, vernier marking on stage.
        RX5MS-EX Rackless, rectangular right/left hand control, hard ceramimc coating, double slide holder, stage size 140x135mm, rack & pinion X-Y movement 76-50mm on wire with stainless steel holder.
        RX5MS-XL Rectangular right/left hand low drive coaxial control, horizontal, hard coating anodized, double slide holder, stage size 200x1600mm, rack & pinion X-Y movement 80-55mm on wire with stainless steel holder.
        RX5SM-D Rectangular right hand low drive coaxial colour-coded knob control, rounded edges, horizontal, hard coating, scratch resistance, double slide holder, stage size 140×140mm, rack & pinion X-Y movement 75x25mm with stainless steel holder, vernier marking on stage.
        Rectangular right/left hand low drive coaxial colour-coded knob control, horizontal, hard coating, double slide holder, stage size 140×140mm, rack & pinion X-Y movement 75x45mm on wire with stainless steel holder, vernier marking on stage.
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • Nosepiece
    • Nosepiece RX5-4N Backward/Inward tilted, fixed precise quadruple revolving on multiple ball bearing, for smooth & accurate alignment, click stop mechanism, rubber grip for easy rotation, Extra port is fitted with dust proof metallic/ebonite cap.
      RX5-5FN Forward angle, fixed precise quintuple revolving on multiple ball bearing, click stop mechanism, rubber grip.
  • Objectives
    • Plan Achromatic Objectives RXAC04io 4X, N.A. 0.10, W.D. 30mm, plan achromatic, parfocal & precentered, unbreakable container for storage
      RX5AC04ib 4X, N.A. 0.1, W.D. 18.5mm, plan achromatic, parfocal & precentered
      RX5AC04ic 4X, N.A. 0.01, W.D. 6.50mm, achromatic, finite, parfocal & precentered, unbreakable container for storage.
      RX5AC04is 4X, N.A. 0.10, W.D. 15.5mm, plan achromatic, unbreakable container for storage
      RXAC10ic 10X, N.A. 0.25, W.D. 5.6mm, achromatic, finite, parfocal & precentered, unbreakable container for storage.
      RXAC10io 10X, N.A. 0.25, W.D. 20mm, plan achromatic, parfocal & precentered, unbreakable container for storage
      RX5AC10ib 10X, N.A. 0.25, W.D. 10.6mm, plan achromatic, parfocal & precentered
      RX5AC10is 10X, N.A. 0.25, W.D. 7mm plan achromatic, unbreakable container for storage
        RX5AC20io 20X, N.A. 0.25, W.D. 6.4mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX5AC40ib 40X, N.A. 0.65, W.D. 0.6mm, plan achromatic parfocal & precentered, spring loaded
        RX5AC40ic 40X, N.A. 0.65, W.D. 0.71mm, plan achromatic, infinite, parfocal & precentered, spring loaded, unbreakable container for storage
        RX5AC60i 60X, N.A. 0.8, W.D. 0.2mm, plan achromatic, infinite, parfocal & precentered, spring loaded, unbreakable container for storage
        RX5AC100i 100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
        RX5AC100ic 100X, N.A. 1.25, W.D. 0.13mm, achromatic, finite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage.
        RX5AC100is 100X, N.A. 1.25, W.D. 0.14mm, plan achromatic, oil immered, spring loaded, unbreakable container for storage
      Plan Apochromat Objective RX5APAO-04 4X, N.A. 0.2, W.D. 20mm, plan Apochromat, unbreakable container for storage
        RX5APAO-10 10X, N.A. 0.45, W.D. 4.0mm, plan Apochromat, unbreakable container for storage
        RX5APAO-40 40X, N.A. 0.95, W.D. 0.14mm, spring loaded, plan Apochromat, unbreakable container for storage
        RX5APAO-100L 100X, N.A. 1.25, W.D. 0.29mm,oil, spring loaded, plan Apochromat, unbreakable container for storage
      Phase Plan Achromatic Objective RX5AC10PH 10X, N.A. 0.25, W.D. 10.6mm, phase plan achromatic, parfocal & precentered, unbreakable container for storage
        RX5AC40PH 40X, N.A. 0.65, W.D. 0.65mm, phase plan achromatic, parfocal & precentered, spring loaded, unbreakable container for storage
        RX5AC20iPH 20X, N.A. 2.1, W.D. 2.1mm, phase plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX5AC60iPH 60X, N.A. 0.80, W.D. 0.30mm, phase plan achromatic, infinite, parfocal & precentered, spring loaded, unbreakable container for storage
        RX5AC63iPH 63X, N.A. 0.84, W.D. 0.28mm, phase plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
      Semi Plan Objective RX5SPF04 4X, N.A. 0.10, W.D. 30mm, semi plan, finite, wide field, parfocal & precentered, unbreakable container for storage
        RX5SPF10 10X, N.A. 0.25, W.D. 6.1mm, semi plan, finite, wide field, parfocal & precentered, unbreakable container for storage
        RX5SPF40 40X, N.A. 0.65, W.D. 0.65mm, semi plan, finite, wide field, parfocal & precentered, spring loaded, unbreakable container for storage
        RX5SPF100 100X, N.A. 1.25, W.D. 0.18mm, semi plan, finite, wide field, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
      DIN Plan Objective RX5PL04DI 4X, N.A. 0.10, W.D. 30mm, DIN plan, finite, parfocal & precentered, unbreakable container for storage
        RX5PL10DI 10X, N.A. 0.25, W.D. 6.10mm, DIN  plan, finite, parfocal & precentered, unbreakable container for storage
        RX5PL20DI 20X, N.A. 0.4, W.D. 2.10mm, DIN  plan, finite, parfocal & precentered, unbreakable container for storage
        RX5PL40DI 40X, N.A. 0.65, W.D. 0.65mm, DIN  plan, finite, parfocal & precentered, unbreakable container for storage
        RX5PL60DI 60X, N.A. 0.80, W.D. 0.30mm, DIN  plan, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX5PL63DI 63X, N.A. 0.84, W.D. 0.28mm, DIN  plan, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX5PL100DI 100X, N.A.1.25, W.D. 0.18mm, DIN  plan, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
      DIN Plan Achromatic Objectives RX5PL04DIN 4X, N.A. 0.10, W.D. 30mm, DIN plan achromatic, parfocal & precentered
      RX5PL10DIN 10X, N.A. 0.25, W.D. 6.10mm, DIN plan achromatic, parfocal & precentered
      RX5PL40DIN 40X, N.A. 0.65, W.D. 0.65mm, DIN plan achromatic, parfocal & precentered, spring loaded
      RX5PL100DIN 100X, N.A.1.25, W.D. 0.18mm, DIN plan achromatic, parfocal & precentered, oil immered, spring loaded
      DIN Semi Plan Objective RX5SP04 4X, N.A. 0.10, W.D. 30mm, DIN semi plan, finite, parfocal & precentered, unbreakable container for storage
        RX5SP10 10X, N.A. 0.25, W.D. 6.1mm, DIN semi plan, finite, parfocal & precentered, unbreakable container for storage
        RX5SP20 20X, N.A. 0.4mm, W.D. 2.1mm, DIN semi plan, finite, parfocal & precentered, unbreakable container for storage
        RX5SP40 40X, N.A. 0.65, W.D. 0.65mm, DIN semi plan, finite, parfocal & precentered, spring loaded, unbreakable container for storage
        RX5SP60 60X, N.A. 0.80, W.D. 0.30mm, DIN semi plan, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX5SP63 63X, N.A. 0.84, W.D. 0.28mm, DIN semi plan, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX5SP100 100X, N.A. 1.25, W.D. 0.18mm, DIN semi plan, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
      DIN Semi Plan Infinite Objective RX5SP04i 4X, N.A. 0.10, W.D. 30mm, DIN semi plan, infinite, parfocal & precentered, unbreakable container for storage
        RX5SP10i 10X, N.A. 0.25, W.D. 6.1mm, DIN semi plan, infinite, parfocal & precentered, unbreakable container for storage
        RX5SP40i 40X, N.A. 0.65, W.D. 0.65mm, DIN semi plan, infinite, parfocal & precentered, spring loaded, unbreakable container for storage
        RX5SP100i 100X, N.A. 1.25, W.D. 0.18mm, DIN semi plan, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
      Darkfield Objective RX5ACDF100i Darkfield 100X, N.A 0.36-1.25, W.D 0.18mm, DIN  plan, infinity corrected with iris diaphragm, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
  • Power supply
    • Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RSMPS630 6V-30W SMPS based, wide voltage range, 90V-240V, 50/60Hz
        RPSLED Integrated SMPS based, LED power supply, wide voltage range, 90V-265V, 50/60Hz
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
        RSTYRO Standard Styrofoam packing
  • Viewing Head
    • Viewing Head RX5MH45 Monocular inclined at 45°, rotatable through 360°
        RX5MH30 Monocular inclined at 30°, rotatable through 360°
        RX5BSL Binocular inclined at 30°, sliding head, rotatable through 360°, IPD - from 47-75, diopter adjustment on one or both eyepiece
        RX5BSD Binocular inclined at 45°, siedentopf/sliding head, rotatable through 360°, IPD - from 47-75, diopter adjustment on one or both eyepiece upto 50mm adjustable viewing height
        RX5BSD-1 Binocular observation head inclined at 30° ergonomic binocular tube, swivelling sidentopf head, rotatable through 360°, IPD - from 48-75mm, diopter adjustment on one or both eyepiece ±5, upto 50mm adjustable viewing height.
        RX5BSD30 Binocular inclined at 30°, siedentopf head, IPD-from 50-70, diopter adjustment on one or both eyepieces, upto 50mm adjustable viewing height.
        RX5BSD45 Binocular inclined at 45°, siedentopf/sliding head, rotatable through 360°, IPD-from 54-74, diopter adjustment on one or both eyepiece upto 50mm adjustable viewing height.
        RX5BSTEX Binocular inclined at 30°, siedentopf head, rotatable through 360°, IPD-from 50-75, diopter adjustment (with scale marking) on one or both eyepiece, upto 50mm adjustable viewing height
        RX5BST-C Binocular inclined at 30°, siedentopf head, rotatable through 360°, IPD-customized as per requirement, diopter adjustment on one or both eyepiece, eyepoint adjustment 50mm
        RX5TSL-C Trinocular inclined at 45°, sliding head, rotatable through 360°, IPD -customized, diopter adjustment on one or both eyepiece, port for camera attachment
        RX5TST-C Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - customized, diopter adjustment on one or both eyepiece, port for camera attachment
        RX5TST30 Trinocular inclined at 30°, siedentopf/sliding head, rotatable through 360°, IPD - from 47-75, diopter adjustment on one or both eyepiece, port for camera attachment splitting ratio 50:50 with FOV upto 22mm. With an additional built-in fixing screw prevents tube from failing off, eyepoint height adjustment 65mm.
        RX5TST-C30 Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - customized, diopter adjustment on one or both eyepiece, port for camera attachment
        RX5LDigi Binocular digital head inclined at 30°, swiveling siedentopf head, rotatable through 360° with built-in 3.14 million pixels CMOS Camera sensor with USB 2.0 output
Heating Stage RHS50 Biotherm heating stage
Filters  RGF Green plane or frosted
Slider RX5DFC Darkfield Slider
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution

As we are continuously improving & developing our products, this website may not be updated with the latest advancements. However, we try our best to update it with the latest information.
For complete and updated specifications, please ask for our latest brochures.
