Optical Microscopes Laboratory Clinical Microscopes RTC-7 Series

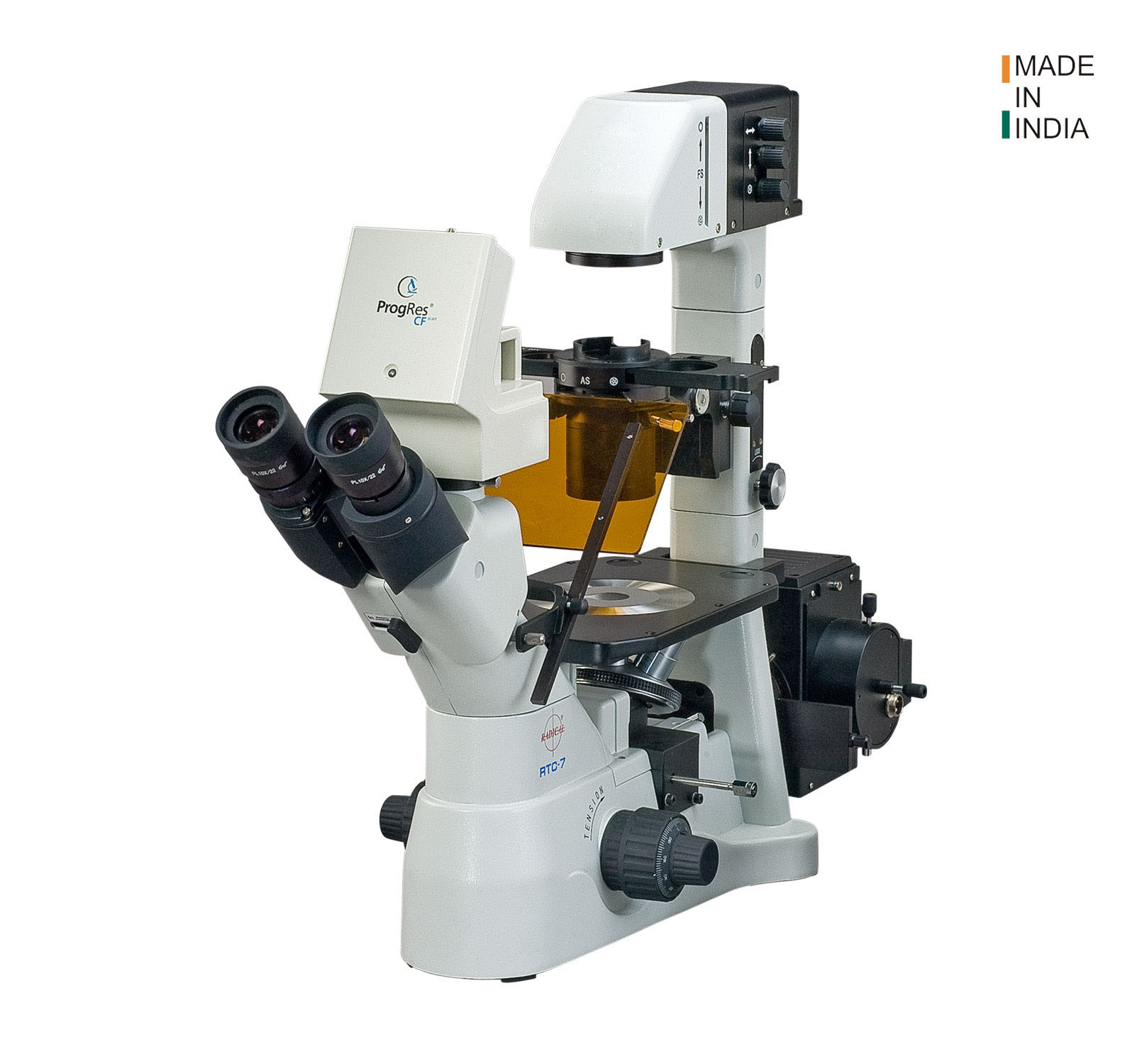

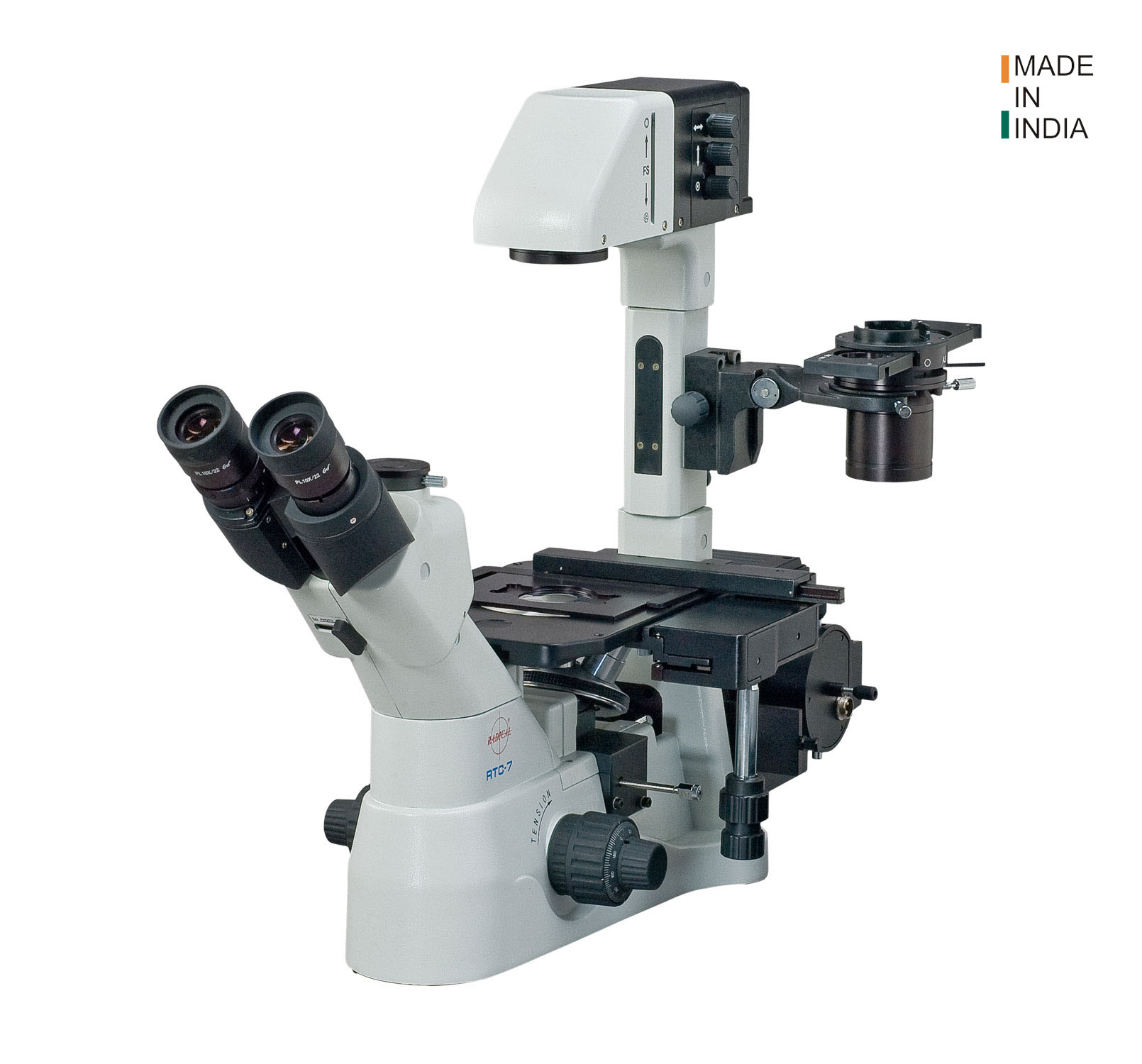

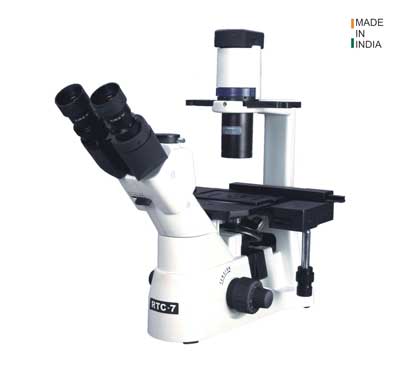

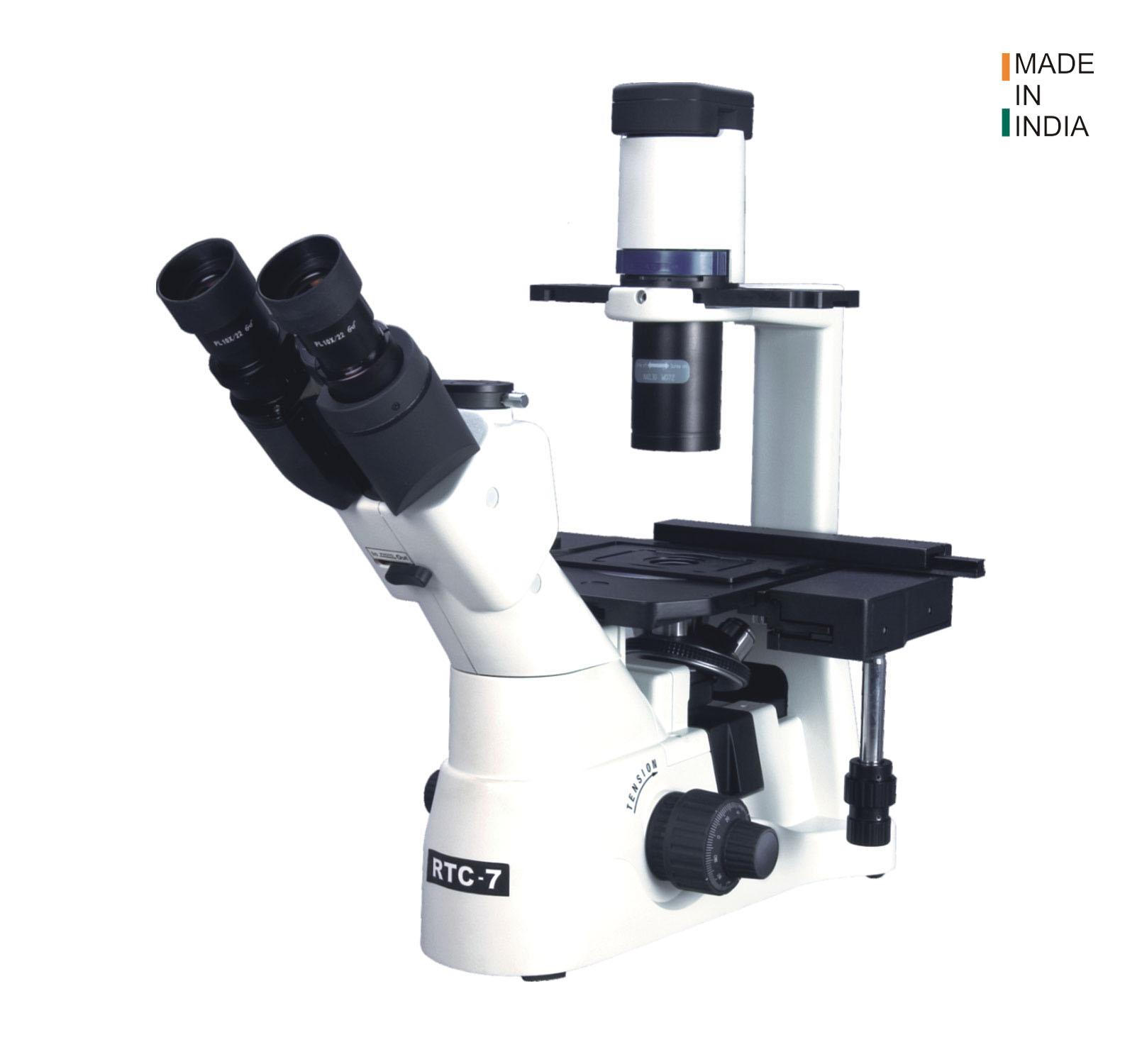

Inverted Medical Biological Microscope

RTC-7

RTC-7 Series is equipped with high-performance optics, ergonomic design, and LED illumination, it is ideal for cell culture, micromanipulation, documentation of immunostained specimens, and routine live cell examinations. Microscope features high-quality Phase contrast, excellent modulation contrast and brilliant fluorescence. Die Cast body is robust, stable , plenty of space to work with tools, long working distances/swing out condenser to accommodate large culture flasks and a stable cool illumination make work at the microscope easy and convenient.

BRIGHTFIELD
FLUORESCENCE
PHASE CONTRAST
Body Rugged, ergonomic design, touch point treated
Optical system Universal infinity corrected (IOS), colour corrected (CCIS), aberration corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated)
Illumination Kohler`s Halogen/LED, intensity adjustable, battery backup, auto cut-off
Viewing Head Ergonomic siedentopf Binocular with camera port
Mechanical Stage Fixed stage with 3 point support, hard coated surface, multiple stage insert, detachable travelling stage with right/left hand control, low position coaxial movement
Objectives LWD infinity Semi Plan/Plan/Flotar/S-APO/APO objectives
Condenser Swingout/LWD with iris diaphragm & filter slot. brightfield, phase contrast
Nosepiece Quintuple/Sextuple with ball-bearing, rubber/metal grip & click stop
Eyepiece Extra wide field, high point with diopter adjustment
Focusing Feather touch ultra precise coaxial both side, coarse & fine with tension control & upper limit stopper
Motorized Z-axis motorized focusing
Power Supply 90V-240V/50Hz AC (SMPS)
Microscopy Techniques Brightfield, fluorescence, phase contrast
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RT7-MB Rugged, aluminium die cast, ergonomic design, touch point treated, acid resistant texture painted, skin friendly, spherical collector lens,intensity controller & on/off switch, auto cut off, rubber feet
Optical system RT7iOS Universal infinity corrected, optical system, colour corrected, aberration corrected, anti-fungal, Anti-reflection coated, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parcentered infinity optical with tube lens 1x, Best in class of objectives best optical performance from UV to NRI, maximum S/N ratio and best optical performance from UV to near infrared, suitable for bright field, phase/fluorescence/DIC/Emboss/Plastic etc.
Koheler`s Illumination RT7L5WL3 ECO illumination 5W LED Life 30,000 hrs, equivalent to 100W halogen, colour temperature 4000k, suitable for brightfield, phase
Viewing Head RT7BST45 Binocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 48-76
Nosepiece RT74N Inward tilted, precise quadruple nosepiece revolving on multiple ball bearing, click stop mechanism for smooth and accurate alignment, having ribbed grip for easy rotation
Eyepiece RT7EP1022 Paired, high eye point WF 10X, FOV-22mm, multilayered coated, dia 30mm, antifungal coated, high quality, good contrast, abrresion free, aplanatic, precentered, diopter adjustment on one (left)/both eyepiece (±5mm) with fixing screw, eye glass compatible with rubber eye guard
Mechanical Stage RT74MS Rectangular, triple plate, hard coated surface, fixed size 250(X)x165(Y)mm, attachable mechanical stage:120(X) x78(Y), (auxiliary stage 70mmx180mm) with low drive co-axial control, X-Y movement 50mm x 40mm with co-axial low position stage movement knob, with glass insert, accepts different types of micro- testplate, glass slide holder & culture flask holder, upto 190mm, terasaki holder, acrylic plate ring, glass/metal stage insert, universal holder for holding all types of plates, 2/24/38/54/96mm petri dishes, & lifting type micro-plate holder, side extensions.
Objectives RT704i 4X, N.A. 0.13, W.D 22mm, infinity, long working distance, plan achromatic, unbreakable container for storage
  RT710i 10X, N.A. 0.3, W.D 7.94mm, infinity, long working distance, plan achromatic, unbreakable container for storage
  RT720i 20X, N.A. 0.45, W.D 7.66mm, infinity, long working distance, plan achromatic, unbreakable container for storage
  RT740i 40X, N.A. 0.65, W.D 3.71mm, infinity, long working distance, plan achromatic, cover glass 1.2mm, unbreakable container for storage
  RT740CC 40x, N.A.0.6, W.D.2.6mm, plan infinity achromatic, 1.2mm cover glass correction, spring loaded, unbreakable container for storage
Phase slider RT7PHSL Pre-centered phase slider for 4X/10X, 20X/40X, empty position for bright field
Focusing RXF2.0 Co-axial, coarse & fine on both side, coarse range-9mm, fine precision 2µm, coarse stroke 37.7mm, tension control adjustable, upper limit stopper
Condenser RABC Extra long working distance abbe condenser N.A. 0.3, dismountable, working distance 72mm, with field & aperture diaphragm, filter holder, pull out filter socket, quickly detachable, removeable to extend the working distance upto 195mm, suitable for 2X to 100X objectives.
Power supply RSMPS620 Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz
Accessories RT7FLTLBD LBD color temperature change filter（φ45mm）
  RT7FLTGRN IF550 green interference filter（φ45mm）
  RCC Cleaning cloth
  RVC Vinyl cover
  RA3K Allen keys
  RF5A Fuses - 2 no's
  MANUAL Instruction manual
  WARRANTY Warranty card
  RBF Blue Filter (frosted & Plain)
  RPC Power Cord (country Specific)
  • Koheler's Illumination
    • Part Name Part Code Description
      Koheler's Illumination RT7H20 Halogen 12V-20W, life 2000 hrs with spherical collector lens, intensity controller.
      RT7H30 Halogen 6V -30W, life 2000 hrs.
      RT7H1230 Halogen Bulb 12 volt 30 Watt. Life 2000 hrs.
      RT7L3WL-3 ECO illumination LED 3W,life 30000 hrs, lumens upto 5200k equivalent to 6V-30W halogen, iris diaphragm for full Kohler illumination.
      RT7L3WL3 ECO illumination LED 3W,life 30000 hrs, lumens upto 5200k equivalent to 50W halogen
      RT7LBB Battery backup from 2-12 hours for LED (internal/external)
      RT7L5WL2.8 ECO illumination 2.8W LED Life 30,000 hrs, equivalent to 100W halogen, colour temperature 4000k, suitable for brightfield, phase contrast.
      RT7L5WL3 ECO illumination LED 5W, life 30000 hrs, lumens upto 5200k equivalent to 100W halogen
      RT7ACUT Intelligent ECO infrared sensing system
      RT7L3WL6 ECO illumination LED 3W life 65000 hrs., lumens upto 5200k equivalent to 50W halogen
      RT7L3WL6F ECO illumination LED 3W life 65000 hrs., lumens upto 5200k equivalent to 50W halogen, with intensity controller & Filter Holder, built in filter, with micro prism filter (fly eye lens) for uniform illumination in entire FOV.
      RT7L3WL8 ECO illumination LED 3W life 82000 hrs., lumens upto 5200k equivalent to 50W halogen
      RT7L5WL6 ECO illumination Scientific grade LED cool white light 5W life 65000 hrs., lumens upto 5200k equivalent to 100W halogen, with intensity controller & Filter Holder, built in filter, with micro prism filter (fly eye lens) for uniform illumination in entire FOV.
      RT7L5WL6F ECO illumination scientific grade LED cool white light 5W life 65000 hrs., lumens upto 4000k equivalent to 100W halogen, suitable for bright field, phase/DIC/Emboss/Plastic/Hoffman etc.
      RT7L5WL8 ECO illumination LED 5W life 82000 hrs., lumens upto 5200k equivalent to 100W halogen
      RT7L8WL6 ECO illumination white LED 8W X-LED life 65000 hrs., lumens upto 6300k equivalent to 100W halogen intensity controller & aperture diaphragm.
      RT7L8WL6i ECO illumination white LED 8W, life 65000 hrs., lumens upto 6300k equivalent to 100W halogen, intensity controller & aperture diaphragm.
      RT7L10WL3 ECO illumination 10W LED life 30,000 hrs, equivalent to 100W halogen, suitable for bright field, phase
      RT7L15WL6 ECO illumination 15W LED life 65,000 hrs, equivalent to 100W halogen, suitable for bright field, phase.
      RT7L-C Extra long life LED upto 1,00,000 hrs 3W/5W Lumens upto 5200k
      RT7SOLAR Solar power battery charger for LED
  • Fluorescence Attachment
    • Fluorescence Attachment RT7FL4100 100W Hg life 300hrs, 4 position slider structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, with standard B, G & UV filter, easy to change (push & click) other filters on demand with compatible power supply
      RT7FL4100m 100W mercury/metal Halide fluorescence lamp house life 300hrs, 4 position slider structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, with standard B&G filter, easy to change (push & click) other filters on demand with compatible power supply, burner & ND Filters and UV Shield Plate.
      RT7LED4FCOOL LED cooled fibre fluorescence lamp house, 4 position slider structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, with standard B&G filter, easy to change (push & click) other filters on demand with compatible power supply
      RT7LED4LED/M Turret 4 position (3+1), Mercury/LED Fluorescence Lamp House, life hrs. 25,000. The exciting light spectrum range is 360nm-700nm. Illumination is controlled through digital power supply with time display unit & trigger. 0 pixel shift technology, noise terminator mechanism.
      RT7LED4-X Turret 4 position (3+1), X-cite mini+ LED Fluorescence Lamp House, life hrs. 25,000. The exciting light spectrum range is 360nm-700nm. Illumination is controlled through digital power supply with time display unit & trigger. 0 pixel shift technology, noise terminator mechanism, suitable from DAPI to Cy5.
      RT7FL4120 120W, cooled fibre, mercury/metal Halide fluorescence lamp house, 4 position sliding structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, easy to change (push & click), with standard B, G & UV filter, other filters on demand with compatible power supply
      RT7FL4130 130W cooled fibre, mercury/metal Halide fluorescence lamp house, 4 position sliding structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, easy to change (push & click), with standard B, G & UV filter, other filters on demand with compatible power supply
      RT7FL4200 200W cooled fibre, mercury/metal Halide, fluorescence lamp house, 4 position sliding structure with high position filter including 1 for brightfield, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, easy to change (push & click), with standard B, G & UV filter, other filters on demand with compatible power supply
      RT7NX9FL4LED4M100 4 Position slider/turret with White LED fluorescence lamp house, Covers UV and visible light spectrum 350nm~740nm Long life span 30000 hrs, Stable & adjustable brightness Digital touch screen shows light intensity.
      RT7FL-5 Turret 5 Position Filter Holder. 5W LED fluorescence lamp house, life hrs. 30,000, built in fly-eye lens, Individual channels LED light source takes use of 4 high power LED lamp, centre adjustable filed diaphragm and 3 holes filter slot for reflected illumination, providing high brightness and uniform brightness without lamp shadow, each channel light intensity can be controlled separately and support TTL electric frequency pulse mode trigger. Digital screen touchable control panel works for users to continuously adjust light intensity and choose different lighting mode, easy to change (push & click), 0 pixel shift technology, noise terminator mechanism
  • Viewing Head
    • Viewing Head RT7TST-C Trinocular inclined at 45°, siedentopf head, rotatable through 100-50-2P 360°, IPD - from 50-75, diopter adjustment on both eyepiece, port for camera attachment, 2 position splitting ratio 100(EP):0(camera) & 50(EP):50(camera).
      RT7TST-CC Integrated trinocular port siedentopf head, inclined at 45°, rotatable through 360°, IPD - from 50-80, diopter adjustment on both eyepieces, splitting ratio 50(EP):50(camera)
        RT7TST-C50 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 48-76, upto 50mm adjustable viewing height diopter, adjustment on both eyepieces, port for camera attachment, splitting ratio 50(EP):50(camera)
      RT7TST-C80 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 20(EP):80(camera)
      RT7TST-C100 Trinocular inclined at 40°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 100(EP):0(camera) & 0(EP):100(camera)
      RT7TST-C100C Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 54-75, diopter adjustment on one/both eyepieces, port for camera attachment, splitting ratio 100(EP):0(camera) & 0(EP):100(camera) FOV upto 25mm.
      RT7TST-C100i Trinocular inclined at 45°, siedentopf head, having 30mm dia ocular, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 100(EP):0(camera) & 0(EP):100(camera) adjustable viewing height
      RT7TST-C100-50 Trinocular inclined at 30°/45°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 100(EP):0(camera) & 50(EP):50(camera)
      RT7TST-C10080 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on one/both eyepiece, port for camera attachment, splitting ratio 100(EP):0(camera) & 80(EP):20(camera)/20(EP):80(camera).
  • Nosepiece
    • Nosepiece RT7-5N Inward tilted, Precise Quintuple revolving on multiple ball bearing, click stop mechanism for smooth and accurate alignment, having ribbed grip for easy rotation.
  • Eyepiece
    • Eyepiece RT7EP1020M WF 10X, FOV-20mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RT7EP1020P WF 10X, FOV-20mm, pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RT7EP1020 Paired, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment on both eyepieces (±5mm), with rubber eye cups.
      RT7EP1022M WF 10X, FOV-22mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RT7EP1022P WF 10X, FOV-22mm, pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RT7EP1025  Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RT7EP1025M WF 10X, FOV-25mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RT7EP1025P WF 10X, FOV-25mm, pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RT7EP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RT7EP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RT7EP-C Customized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticules
      RT7ECUP Eyecups (pair)
  • Mechanical Stage
    • Mechanical Stage RT7MS-RK Rackless, rectangular right/left hand control, horizontal, hard ceramic coating, double slide holder, stage size - customized as per requirement, X-Y movement - customized as per requirement
        RT74MSc Rectangular, triple plate, hard coated surface, fixed size 250(X)x160(Y)mm, attachable mechanical stage:120(X) x78(Y), (auxiliary stage 70mmx180mm) with low drive co-axial control, X-Y movement 50mm x 40mm with co-axial low position stage movement knob, with glass insert, accepts different types of micro- testplate, glass slide holder & culture flask holder upto 190mm, terasaki holder, acrylic plate ring, glass/metal stage insert, universal holder for holding all types of plates, 2/24/38/54/96mm petri dishes, & lifting type micro-plate holder, side extensions.
        RT74MS-B Rectangular, triple plate, hard coated surface, fixed size 250(X)x165(Y)mm, attachable mechanical stage:120(X) x78(Y), (auxiliary stage 70mmx180mm) with low drive co-axial control, X-Y movement 118mm x 80mm with co-axial low position stage movement knob, with glass insert, accepts different types of micro-test plate, glass slide holder & culture flask holder, upto 190mm, terasaki holder, acrylic plate ring, glass/metal stage insert, universal holder for holding all types of plates, 2/24/38/54 /96mm petri dishes, & lifting type micro-plate holder, side extensions.
        RT74MS-C Rectangular, triple plate, stage size - customized as per requirement, X-Y movement - customized as per requirement, accepts all types of micro-test plate, petri-dish plates, glass slide holder & culture flask holder, universal holder for holding all types of plates
        RT74MS-1 Rectangular, triple plate, fixed size 250(X)x230(Y)mm, attachable mechanical stage:120(X) x78(Y), (auxiliary stage 70mm x180mm) with low position right hand X-Y handle co-axial control, X-Y movement 110mm x74mm with co-axial low position stage movement knob, with glass insert holder 76x26mm, accepts different types of micro-testplate, & lifting type micro-plate holder, glass slide holder & culture flask holder, acrylic plate ring, glass/metal stage insert with 25/30mm, terasaki holder, hole (φ35mm), multiwell holder with 65mm petridish, universal cell culture dish holder for holding all types of plates, 2/24/35/38/54/96mm petri dishes, side extensions.
        RT74MS-2 Rectangular, triple plate, fixed size 210(X)x241(Y)mm, attachable mechanical stage:120(X) x78(Y), (auxiliary stage 70mmx180mm) with low drive co-axial control, X-Y movement 128mm x80mm with co-axial low position stage movement knob, with glass insert holder 76 x 26mm, accepts different types of micro-test plate, glass slide holder & culture flask holder, acrylic plate ring, glass/metal stage insert, universal cell culture dish holder for holding all types of plates, 2/24/35/38/54/65/96mm petri dishes, side extensions, round slide size Ø110mm.
        RT74MS-3 Rectangular, triple plate, hard coated surface, fixed size 200(X)x260(Y)mm, attachable mechanical stage:110(X) x70(Y), (auxiliary stage 70mmx180mm) with low drive co-axial control, left/right hand control, X-Y movement 50mm x 40mm with co-axial low position stage movement knob, with glass insert, accepts different types of micro- test plate (96 well micro plate) & lifting type micro-plate holder, glass slide holder & culture flask holder, terasaki holder, acrylic plate ring, glass/metal stage insert, universal holder for holding all types of plates, 2/24/38/54/65/96mm petri dishes, side extensions.
        RT74MS-4 Rectangular, triple plate, hard coated surface, fixed size 200(X)x252(Y)mm, attachable mechanical stage:110(X) x74(Y), (auxiliary stage 70mmx180mm) with low drive co-axial control, X-Y handle, right hand control, X-Y movement 50mm x 40mm with co-axial low position stage movement knob, with glass insert, accepts different types of micro- test plate (96 well micro plate) & lifting type micro-plate holder, glass slide holder, petri dish holder, culture/tissue flask holder, upto 190mm, terasaki holder, acrylic plate ring, glass/metal stage insert with 50mm, universal holder for holding all types of plates, 2/24/38/54/65/96mm petri dishes, side extensions..
  • Condenser
    • Condenser RABC-SW Abbe condenser N.A. 0.3, dismountable W.D. 75mm with 3 position slide for PH10x/20, PH40, centerable annulus/phase ring & centring telescope.
      Bracket can be remove from optical path to accommodate large flask (upto 190mm W.D)
        RABC-PH Abbe condenser N.A. 0.3, dismountable W.D. 75mm with 3 position slide for PH10x/20, PH40, centerable annulus/phase ring & centring telescope.
        RABC-PH1 Abbe condenser N.A. 0.3, dismountable W.D. 80mm with phase slide for PH10x/20, PH40, centerable annulus/phase ring & centring telescope.
        RABC LWD Abbe condenser N.A. 0.3, dismountable to increase W.D to 150mm, working distance 72mm
        RABC-0.40 Removable condenser N.A. 0.40, working distance 52mm, slot for phase slider.
        RABC-0.45 Abbe condenser N.A. 0.45, dismountable, working distance 51mm
        RABC-1 Abbe condenser N.A. 0.30, dismountable, working distance 72mm, with field diaphragm, Aperture diaphragm (Diaphragm blade, manual, open/close system), pull out filter socket, quickly detachable, removeable to extend the working distance upto 195mm.
  • Objectives
    • Objectives RT704c 4X, N.A. 0.10, W.D 18mm, infinity, long working distance, plan achromatic
      RT704CLWD Long working distance, plan achromatic 4X, N.A. 0.1, W.D 18mm.
      RT705i 5X, N.A. 0.16, W.D. 26mm, infinity, long working distance, plan LWD
      RT710CLWD Long working distance, plan achromatic 10X, N.A. 0.25, W.D 10mm
      RT720CLWD Long working distance, plan achromatic 20X,N.A.0.4,W.D 5.1mm
      RT740CLWD Long working distance, plan achromatic 40X, N.A 0.6, W.D 2.6mm, cover slip 1.2mm
        RT7PL60c LWD 60X, N.A 0.75, W.D 0.30mm, plan achromatic, infinite, parfocal & precentered, spring loaded
        RT7PL60i LWD 60X, N.A 0.70, W.D 0.30mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
      RT7PL100i LWD 100X, N.A. 0.74, W.D. 0.28mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
      Phase Objectives RT7PH4i LWD PH4X, N.A. 0.13, W.D. 17mm, phase, plan achromatic, infinite, unbreakable container for storage
      RT7PH10i LWD PH10X, N.A. 0.25, W.D. 8.80mm, phase plan achromatic, infinite, unbreakable container for storage
      RT7PH10ic LWD PH10X, N.A. 0.25, W.D. 7.94mm, phase plan achromatic, infinite
      RT7PH10C LWD PH10X, N.A. 0.25, W.D. 10mm, phase plan achromatic, infinite, unbreakable container for storage
      RT7P10PH Infinite plan phase achromatic PH10X, N.A. 0.25, W.D. 10mm
      RT7P20PH Infinite plan phase achromatic PH20X, N.A. 0.4, W.D. 5.1mm,
      RT7P40PH Infinite plan phase achromatic PH40X, N.A. 0.6, W.D. 0.35mm, cover slip 1.2mm, spring loaded.
      RT7PH20 LWD PH20X, N.A.0.40, W.D.5.1mm, phase plan achromatic, infinite, unbreakable container for storage
      RT7PH20a LWD PH20X, N.A. 0.4, W.D. 1.1mm, phase plan achromatic, infinite
      RT7PH20i LWD PH20X, N.A. 0.45, W.D. 7.66mm, phase plan achromatic, infinite, unbreakable container for storage
      RT7PH20ic LWD PH20X, N.A. 0.40, W.D. 7.66mm, phase plan achromatic, infinite
      RT7PH20c LWD PH20X, N.A. 0.40, W.D. 3.2mm, phase plan achromatic, infinite, unbreakable container for storage
      RT7PH40 LWD 40x, N.A.0.60, W.D.2.6mm, phase plan achromatic, infinite, spring loaded, unbreakable container for storage
      RT7PH40a LWD PH40X, N.A. 0.55, W.D. 2.1mm, phase plan achromatic, infinite, spring loaded
      RT7PH40i LWD PH40X, N.A. 0.65, W.D. 3.71mm, phase plan achromatic, infinite, spring loaded, unbreakable container for storage
      RT7PH40c LWD PH40X, N.A. 0.55, W.D. 2.2mm, phase plan achromatic, infinite, spring loaded, unbreakable container for storage
      RT7PH40ic LWD PH40X, N.A. 0.60, W.D. 3.71mm, phase plan achromatic, infinite, spring loaded.
      RT7PH40icg 40x, N.A.0.6, W.D.2.6mm, plan infinity achromat phase, 1.2mm cover glass correction, spring loaded, unbreakable container for storage
      RT7PH60i LWD PH60X, N.A. 0.80, W.D. 0.30mm, phase plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
      SEMI APO Objectives RT7SAPO04i LWD 4X, N.A. 0.16, W.D. 13.0mm, SAPO, infinite, unbreakable container for storage
      RT7SAPO10i LWD 10X, N.A. 0.40, W.D. 3.1mm, SAPO, infinite, unbreakable container for storage
      RT7SAPO20i LWD 20X, N.A. 0.75, W.D. 0.6mm, SAPO, infinite, unbreakable container for storage
      RT7SAPO40i LWD 40X, N.A. 0.95, W.D. 0.18mm, SAPO,  infinite, spring loaded, unbreakable container for storage
      RT7SAPO60i LWD 60X oil, N.A. 1.35, W.D. 0.15mm,SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
      RT7SAPO100i LWD 100X oil, N.A. 1.40, W.D. 0.13mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
      SEMI APO Objectives Phase RT7SAPO10i-PH LWD 10X, Phase,  N.A. 0.40, W.D. 3.1mm, SAPO, infinite, unbreakable container for storage
        RT7SAPO20i-PH LWD 20X, Phase, N.A. 0.75, W.D. 0.6mm, SAPO,  infinite, unbreakable container for storage
        RT7SAPO40i-PH LWD 40X, Phase, N.A. 0.95, W.D. 0.18mm, SAPO,  infinite, spring loaded, unbreakable container for storage
        RT7SAPO60i-PH LWD60X oil, Phase, N.A. 1.35, W.D. 0.15mm,SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RT7SAPO100i-PH 100X oil, Phase, N.A. 1.40, W.D. 0.13mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage.
          Please click for More Objectives...
  • Focusing
    • Focusing RT7F1.0 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.10 mm per revaluation, fine adjustment 1µm/div.
      RT7F2.0 Co-axial, coarse & fine, vertical movement 20mm, tension control, upper limit stopper, high sensitivity focus drive with 0.20 mm per revaluation, fine adjustment 2.0µm/div, coarse stroke 36.8mm
      RT7F2.0A Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.20 mm per revaluation, fine adjustment 2.0µm/div, coarse stroke 25mm.
        RT7F2.5 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.25 mm per revaluation, fine adjustment 2.5µm/div, coarse stroke customized with 35.6mm to 37.7mm
        RT7F2.5-1 Manual, co-axial, coarse & fine, coarse range-36.8mm, fine precision 2.5µm, fine 0.3mm per rotation, stroke 20mm (Up 18.5mm, down 1.5mm), focal point upto 18.5mm from the stage surface, Tension control.
  • Slider
    • Slider RT7PH20SL Phase slider ring for 20X, centrable, with two handle
      RT7PH40SL Phase slider ring for 4X-40X, centrable, with two handle
      RT7PHSL-3P Phase slider ring for 10/20, 40X & 100X, centrable, with two handle
      RT7DFSL Darkfield slider, centrable, with two handle
      RT7PHSL-C Phase slider ring for 10-20 & 40X, with two handle
  • Power supply
    • Power supply RTF620 Integrated 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RTF630 Integrated 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RSMPS630 Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz
  • Immersion oil
    • Immersion oil RIO Immersion oil (10ml)
        RIO100 High quality immersion oil 100ml
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Packing
    • Packing RABX Aluminum box with separate container for accessories, lock & key, carrying handle
      RSTYRO Standard styrofoam packing
  • Holders
    • Holders RT7GPLATE Glass plate
      RT7MPLATE-K Metal  plate (kidney hole)
      RT7PETRHOL65 Petridish Holder 65mm
      RT7PETRHOL90 Petridish Holder 90mm
      RT7MPLATE Holder for Test Tubes & heamocytometer
      RT7RULERS Mechanical mobile ruler, moving range120(X)*78(Y)mm
      RT7EXTPLATE stage extension plate
      RT7PDHOLD φ35 Petri dish holder
      RT7SLHOLD Slides holder(φ54 and 26.5x76.5)
      RT7TERAHOLD Slides holder(φ54 and 26.5x76.5)
Accessories Shield Contrast shield for room light blocking
CFL light source, FL shutter, FL shield stop, FL mirror unit, umbra shield, 3 Mirror unit (UV, B & G), Umbra shield to prevent room light.
Blue & Green Filter (frosted & Plain)
50mm insert plate hole, ND Slider & UV Shield
Heating Stage RHS50 Biotherm heating stage
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution
Hoffman Kit RT7HFKIT 10x, 20x, 40x hoffman condenser, special objective
Phase Accessories RT7CTELE Centering telescop φ30

As we are continuously improving & developing our products, this website may not be updated with the latest advancements. However, we try our best to update it with the latest information.
For complete and updated specifications, please ask for our latest brochures.
