Optical Microscopes Educational Microscopes RXL-3 Series

Advanced Educational Biological Microscope

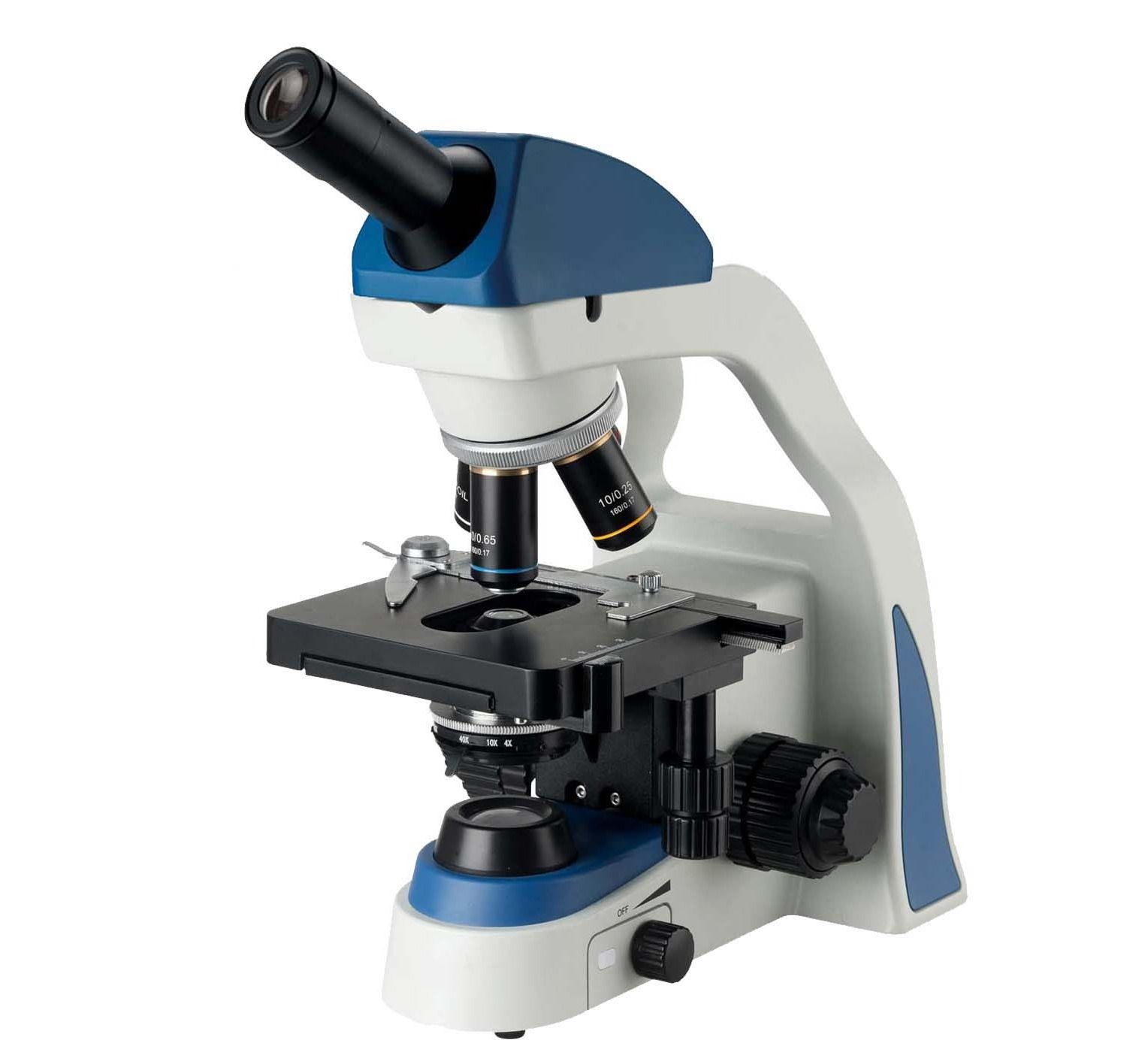

RXL-3

RXL-3 series Education microscopes are manufactured using best quality achromatic objectives, high point eyepieces & with coaxial focusing. The optical system is antifungal treated. Microscope field is illuminated with halogen lamp or optionally can be upgraded to LED (with battery backup).

BRIGHTFIELD
DARKFIELD
PHASE CONTRAST
Body Rugged, single die cast, ergonomic design, touch point treated
Optical system Achromatic optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated)
Illumination Halogen or LED with Battery backup, illumination mirror
Viewing Head Monocular, Binocular, Trinocular & Digital head
Nosepiece Quadruple/Quintuple with multiple ball-bearing, rubber/metal grip & click stop
Eyepiece Extra wide field with diopter adjustment
Objectives DIN Semi Plan/plan finite/infinite achromatic
Mechanical Stage Right/left hand control, hard coated surface, double layer, single/double slide holder,low position coaxial movement
Condenser Abbe with iris diaphragm & filter slot brightfiled, darkfiled, phase.
Focusing Coaxial (low position), both side, coarse & fine with tension control & upper limit stopper
Certification EU CE, ISI, ISO, TUV
Part name Part Code Description
Body RX3MB Rugged, robust, single aluminium die cast, ergonomic design, window in arm, hand rest for comfortable prolonged use. metalic parts with antirust, antibacterial, corrosion-proof & stain-proof coating, acid resistant texture paint, touch point treated, intensity controller & on/off switch, inbuilt light source, rubber feet.
Optical system RX3OS Achromatic infinity optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), anti-reflected coated, lead free optical glass, colour coded objectives
Koheler Illumination RX3H20 Halogen 6V -20W (life 2000 hrs.) for uniform illumination
Viewing Head RX3BSL Binocular inclined at 30°, siedentopf head, with locking mechanism for eyepieces, right diopter adjustment: ±5; interpupillary distance range: 0-75mm
Nosepiece RX3-4N Parcentered & parfocal, inward tilted, precise quadruple revolving on multiple ball bearing, with postive click stop
Eyepiece RX3EP1018 Paired, WF 10X, FOV-18mm, multilayered coated, high quality, good contrast, abresion free, aplantic, anti-fungal & anti-mould treated, precentered, lockable, (single eyepiece in case of monocular head) with rubber gaurd, diaptore adjustment on eyepiece.
Mechanical Stage RX3MS Rectangular right/left hand low drive control, hard coating, steel single/double slide holder, stage size 115mmX125mm, X-Y movement 75-50mm(graduated with verier) on stainless steel ball
Objectives RX3AC04 4X, N.A. 0.10, W.D. 30mm, DIN/JIS achromatic, parfocal & precentered, unbreakable container for storage
  RX3AC10 10X, N.A. 0.25, W.D. 6.1mm, DIN/JIS achromatic, parfocal & precentered, unbreakable container for storage
  RX3AC40 40X, N.A. 0.65, W.D. 0.65mm, DIN/JIS achromatic, spring loaded, parfocal & precentered, unbreakable container for storage
  RX3AC100 100X, N.A. 1.25, W.D. 0.18, DIN/JIS achromatic, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
Focusing RXF25 Co-axial, focusing knob, tension control, upper limit stopper, 25mm stroke high sensitivity focus drive with 0.25 mm per revoluation, fine adjustment 2.5µm/Div.
Condenser RABC Abbe N.A. 1.25 for BF, aspheric lens, separate movement from focusing (rack & pinion) with adjustable iris diaphragm, snap-in filter holder, built-in base illumination, filter holder.
Power supply RSMPS620 SMPS based, wide voltage range, 90V-240V, 50/60Hz
Accessories RCC Cleaning cloth
  RVC Vinyl cover
  RIO Immersion oil (10ml)
  RA3K Allen key
  RF5A Fuses - 2 no's
  MANUAL Instruction manual
  WARRANTY Warranty card
  RBF Blue Filter (frosted & Plain)
  RPC Power Cord (country Specific)
  Lamp (LED), Mirror Unit (Plano Concave) with miror holder attachment
  • Optical System
    • Part name Part Code Description
      Optical System RX3OSi Universal infinite optical system, achromatic optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives
  • Illumination
    • Illumination RX3H30 Halogen 6V -30W, life 2000 hrs.
        RX3L3WH3 Uniform colour, ECO-LED 3W, life 30000 hrs., lumens equivalent 6V-20W, battery backup
        RX3LBB Battery backup from 2-12 hours for LED (internal/external)
        RX3L5WH3 Uniform colour LED 5W, life 30000 hrs., Lumens equivalent 6V-30W
        RX3ACUT Auto-cutoff
        RX3L3WH6 Uniform colour LED 3W life 65000 hrs., lumens equivalent 6V-20W
        RX3L3WH8 Uniform colour LED 3W life 82000 hrs., lumens equivalent 6V-20W
        RX3L5WH6 Uniform colour LED 5W life 65000 hrs., lumens equivalent 6V-30W
        RX3L5WH8 Uniform colour LED 5W life 82000 hrs., lumens equivalent 6V-30W
        RX3L-C Uniform colour LED 3.3W, 3V extra long life 1, 00,000 hrs. lumens equivalent 6V-20W with intensity controller.
        RX3BBSOL Solar power battery charger
        RX3MIR Concave day light mirror
  • Viewing Head
    • Viewing Head RX3MH45 Monocular inclined at 45°, rotatable through 360°
        RX3MH30 Monocular inclined at 30°, rotatable through 360°
        RX3BST30 Binocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on one or both eyepiece.
        RX3TSL-C Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD-customized, diopter adjustment on one or both eyepiece, port for camera attachment
        RX3TST-C Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD-customized, diopter adjustment on one or both eyepiece, port for camera attachment
  • Nosepiece
    • Nosepiece RX3-5N Outward tilted, precise quintuple revolving on multiple ball bearing
  • Eyepiece
    • Eyepiece RX3EP0509 Paired, Huygens 5X, multilayered coated, high quality, good contrast, abrasion free, aplanatic, anti-reflection coated, anti-fungal & anti-mould treated, precentered, lockable
        RX3EP1018M  WF 10X, FOV-18mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX3EP1018P WF 10X, FOV-18mm, pointer, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX3EP1020 Paired, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX3EP1020M WF 10X, FOV-20mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX3EP1020P WF 10X, FOV-20mm, pointer, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX3EP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX3EP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
        RX3EP-C Customized Eye-piece of 5X/10x/12x/15x/16x/20x with or without reticles
        RX3ECUP Eyecups (pair)
  • Mechanical Stage
    • Mechanical Stage RX3MS-C Rectangular right/left hand low drive control, hard ceramic coating, double slide holder, stage size-customized as per requirement, X-Y movement - customized as per requirement on stainless steel ball.
        RX3MS-RC Rackless, rectangular right/left hand low drive control, hard ceramic coating, double slide holder, stage size-customized as per requirement, X-Y movement - customized as per requirement on stainless steel ball.
  • Objectives
    • DIN Achromatic RX3AC20 20X, N.A. 2.1, W.D. 2.1mm, DIN achromatic, finite, parfocal & precentered, unbreakable container for storage
        RX3AC60 60X, N.A. 0.80, W.D. 0.30mm, DIN achromatic, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX3AC63 63X, N.A. 0.84, W.D. 0.28mm, DIN achromatic, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
      DIN Plan Achromatic RX3P04 4X, N.A. 0.10, W.D. 30mm, DIN plan achromatic, finite, parfocal & precentered, unbreakable container for storage
        RX3P10 10X, N.A. 0.25, W.D. 6.10mm, DIN plan achromatic, finite, parfocal & precentered, unbreakable container for storage
        RX3P20 20X, N.A. 0.4, W.D. 2.10mm, DIN plan achromatic, finite, parfocal & precentered, unbreakable container for storage
        RX3P40 40X, N.A. 0.65, W.D. 0.65mm, DIN plan achromatic, finite, parfocal & precentered, unbreakable container for storage
        RX3P60 60X, N.A. 0.80, W.D. 0.30mm, DIN plan achromatic, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX3P63 63X, N.A. 0.84, W.D. 0.28mm, DIN plan achromatic, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX3P100 100X, N.A. 1.25, W.D. 0.18mm, DIN plan achromatic, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
      DIN Plan Achromatic Infinite RX3P04i 4X, N.A. 0.10, W.D. 30mm, DIN plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX3P10i 10X, N.A. 0.25, W.D. 0.61mm, DIN plan achromatic,infinite, parfocal & precentered, unbreakable container for storage
        RX3P20i 20X, N.A. 0.40, W.D. 2.10mm, DIN plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX3P40i 40X, N.A. 0.65, W.D. 0.65mm, DIN plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX3P60i 60X, N.A. 0.80, W.D. 0.30mm, DIN plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX3P63i 63X, N.A. 0.84, W.D. 0.28, DIN plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX3P100i 100X, N.A. 1.25, W.D. 0.18, DIN plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
          Infinity corrected, anti-fungal coated, long barrel, plan-achromatic objectives, precentered & parfocal
      DIN Semi Plan RX3SP04 4X, N.A. 0.10, W.D. 30mm, DIN Semi plan, finite, parfocal & precentered, unbreakable container for storage
        RX3SP10 10X, N.A. 0.25, W.D. 6.1mm, DIN Semi plan, finite, parfocal & precentered, unbreakable container for storage
        RX3SP20 20X, N.A. 0.4mm, W.D. 2.1mm, DIN Semi plan, finite, parfocal & precentered, unbreakable container for storage
        RX3SP40 40X, N.A. 0.65, W.D. 0.65mm, DIN Semi plan, finite, parfocal & precentered, unbreakable container for storage
        RX3SP60 60X, N.A. 0.80, W.D. 0.30mm, DIN Semi plan, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX3SP63 63X, N.A. 0.84, W.D. 0.28mm, DIN Semi plan, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
        RX3SP100 100X, N.A. 1.25, W.D. 0.18mm, DIN Semi plan, finite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
      Imported Plan infinity Achromatic RX3AC04j 4X, N.A. 0.10, W.D. 30mm, plan infinity achromatic, parfocal & precentered unbreakable container for storage
        RX3AC10j 10X, N.A. 0.25, W.D. 6.1mm, plan infinity achromatic, parfocal & precentered unbreakable container for storage
        RX3AC40j 40X, N.A. 0.65, W.D. 0.65mm, plan infinity achromatic, spring loaded, parfocal & precentered, unbreakable container for storage
        RX3AC100j 100X, N.A. 1.25, W.D. 0.18, plan infinity achromatic, parfocal & precentered oil immered, spring loaded, unbreakable container for storage
      Plan Achromatic RX3AC04ex 4X, N.A. 0.10, W.D. 30mm, plan achromatic, parfocal & precentered unbreakable container for storage
        RX3AC10ex 10X, N.A. 0.25, W.D. 6.1mm, plan achromatic, parfocal & precentered unbreakable container for storage
        RX3AC40ex 40X, N.A. 0.65, W.D. 0.65mm, plan achromatic, spring loaded, parfocal & precentered, unbreakable container for storage
        RX3AC100ex 100X, N.A. 1.25, W.D. 0.18, plan achromatic, parfocal & precentered oil immered, spring loaded, unbreakable container for storage
      Darkfield Objective RX3PACDF100 DF 100X, N.A. 1.25, W.D. 0.18, DIN plan achromatic with iris diaphragm, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
  • Focusing
    • Focusing RXF20 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.20 mm per revolution, fine adjustment 2.0µm/Div.
  • Condenser
    • Condenser RCDF Abbe N.A. 1.25 for darkfield, oil, separate movement from focussing (rack & pinion)
        RCPH-SL Abbe N.A. 1.25 for phase (sliding type), separate movement from focussing (rack & pinion), filter holder
        RCPH-TR Abbe N.A. 1.25 for phase (turret type), separate movement from focussing (rack & pinion), filter holder
  • Power supply
    • Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RSMPS630 SMPS based, wide voltage range, 90V-240V, 50/60Hz
        RPSLED LED power supply, wide voltage range, 90V-240V, 50/60Hz
  • Micrometer slide/Calibration
    • Micrometer slide/Calibration RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Standard Styrofoam packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
        RSTYRO Standard Styrofoam packing
Filters RGF Green plane or frosted
Immersion oil RIO100 High quality immersion oil 100ml
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, lens cleaning solution

As we are continuously improving & developing our products, this website may not be updated with the latest advancements. However, we try our best to update it with the latest information.
For complete and updated specifications, please ask for our latest brochures.
