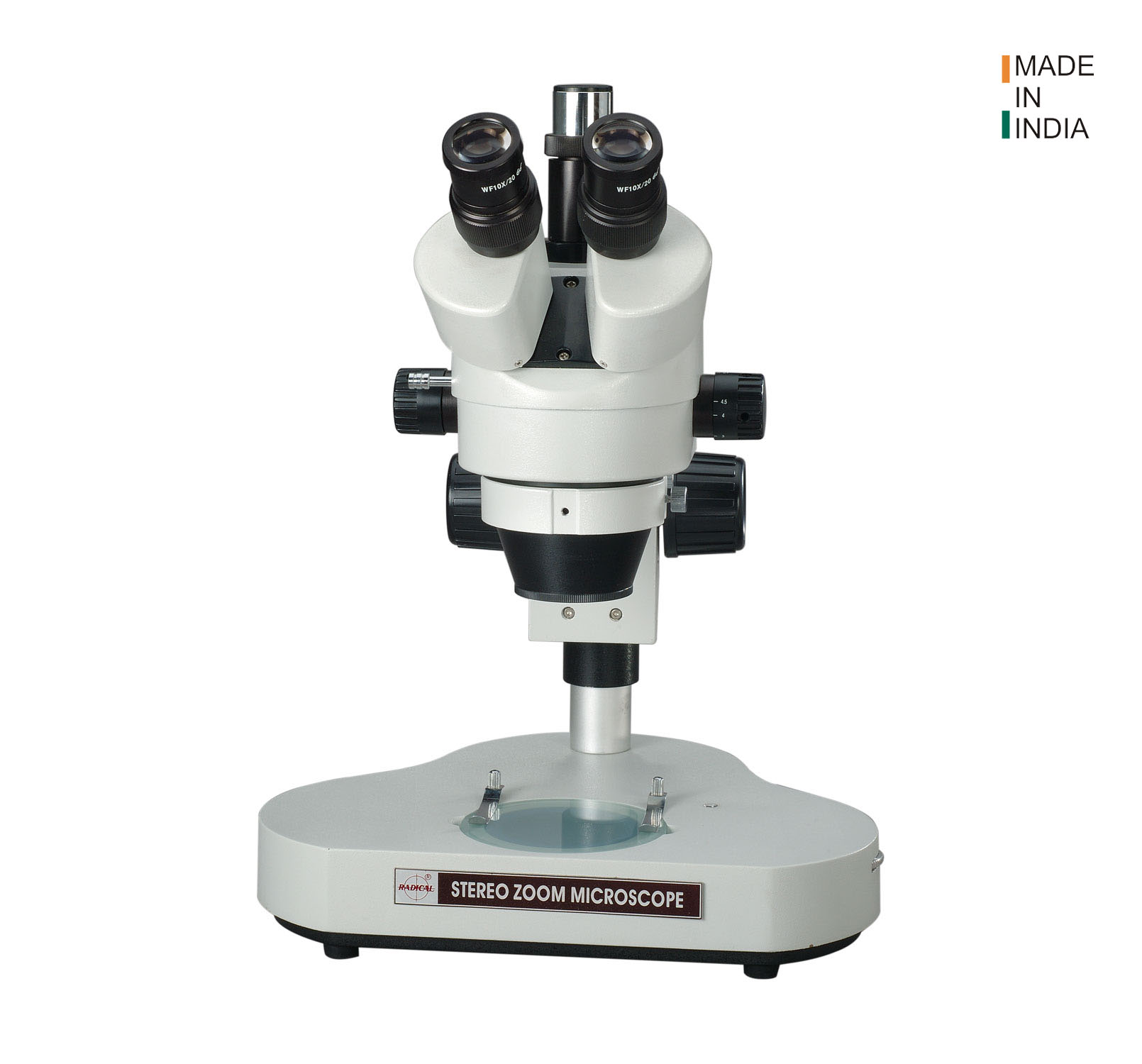

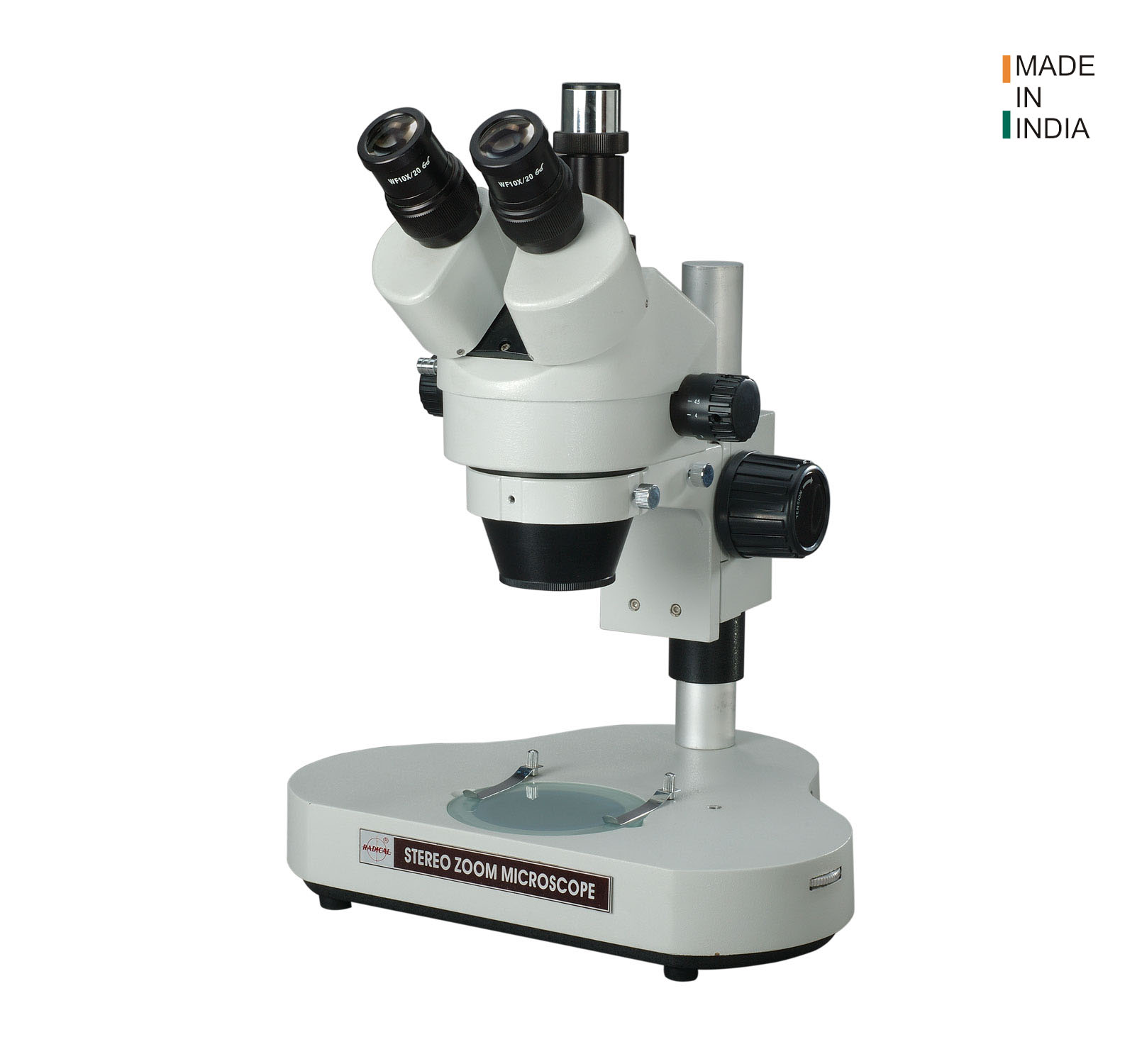

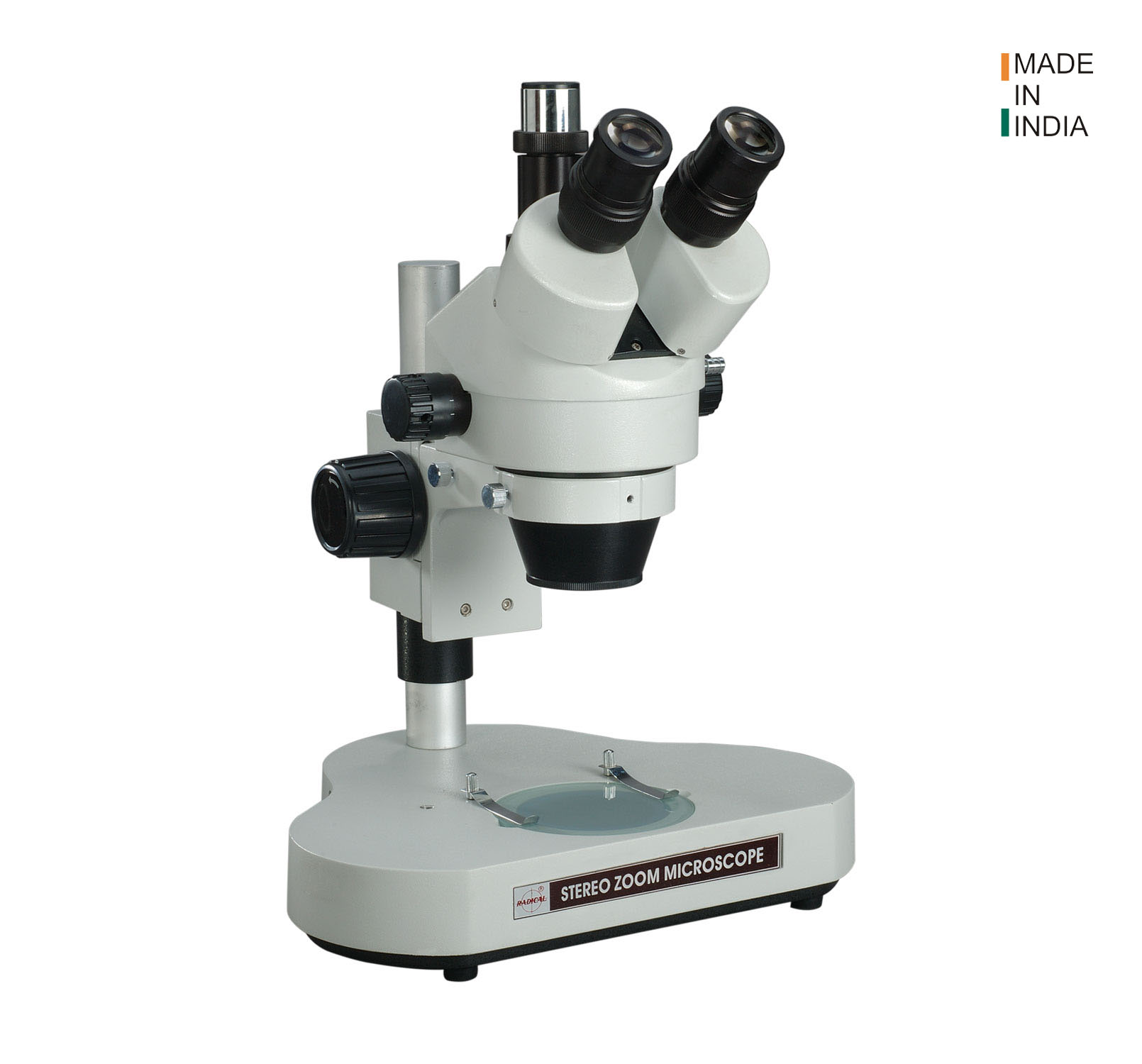

Stereo Zoom Microscope
RSM-8/9
RSM-8/9 Series models are highly professional, extremely robust stereo microscopes which are easy to use with zoom function which can be operated from both sides Due to its nature, column supports, as well as the integrated dimmable LED/halogen with reflected and transmitted light. Furthermore it offers precise resolution, extra large visual field and is completely colour true. These models are ideally suited for use in the quality control department, assembly and repair workstations in the electronics and semiconductor industries as well as in biological laboratories and in research.
BRIGHTFIELD
|
DARKFIELD
|
MODULATION CONTRAST
|
| Optical system | Greenough zoom lenses |
|---|---|
| Illumination | LED/halogen/fluorescent transmitted & reflected |
| Viewing Head | 45° inclined 360° rotatable |
| Stage | Large stage with handrest |
| Objectives | Long working distance |
| Zoom | Continuous |
| Stand | With two step focusing, universal, customized |
| Eyepiece | Wide field with dioptric adjustment |
| Resolution | 225 Lp/mm @ 45X |
| Microscopy Techniques | Polarizing, Darkfield, oblique illumination |
| Certification | EU CE, ISI, ISO, TUV |
| Part Name | Part Code | Description |
|---|---|---|
| Body | RSM9MB | Plain focusing stand, rugged, ergonomic design, touch point treated, anti mould, anti electrostatic, acid resistant texture painted, rubber feet & stage clips. |
| Optical System | RSM9GOS | Greenough Optical System (convergence angle-10°) with high depth of view, lead free optics |
| Total Magnifications | RSM9TX | 3.5x to 160x (using different combinations of Eyepeice, zoom lens & aux. objectives) |
| Standard Zoom Lens | RSM9ZL | 0.7X to 4.5X continously zoom with steps of 0.7x, 0.8X, 1X, 1.5X,2X, 3X, 4X & 4.5X |
| Zoom ratio | RSM9ZR | 1:6.4 |
| Eyepeices | RSM9EP1020 | Paired, WF 10X, FOV-20mm, high point, multilayered coated, high quality, good contrast, aberration free, aplanatic, lockable, rubber eyecups |
| Head | RSM9HT45 | Trinocular head, 45° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom, top port for attaching camera with 50:50 splitting |
| Focussing | RSM9FOC | Plain focusing by pillar clamp, working distance 115mm, Coarse focusing by pillar clamp and fine focusing by rack and pinion, rod and pole made of Stainless steel |
| Illumination | RSM9LED | 3W LED (transmitted and reflected), separate intensity controller & on/off switch |
| Accessories | RCC | Cleaning cloth |
| RVC | Vinyl cover | |
| MANUAL | Instruction manual | |
| WARRANTY | Warranty card | |
| RPC | Power Cord (Country Specific) |
| Focusing | RSM8FOC | Plain focussing, working distance 115mm, stroke upto 50mm, Coarse focusing by pillar clamp and fine focusing by rack and pinion, tension adjustable, rod and pole made of Stainless steel. |
|---|---|---|
| Cleaning Kit | RCLEAN | Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution |
| Important Note | The above codes of RSM series will be changed to RSM-8 & RSM-9 respectively. All the specifications will remain same except zoom range/ratio |
