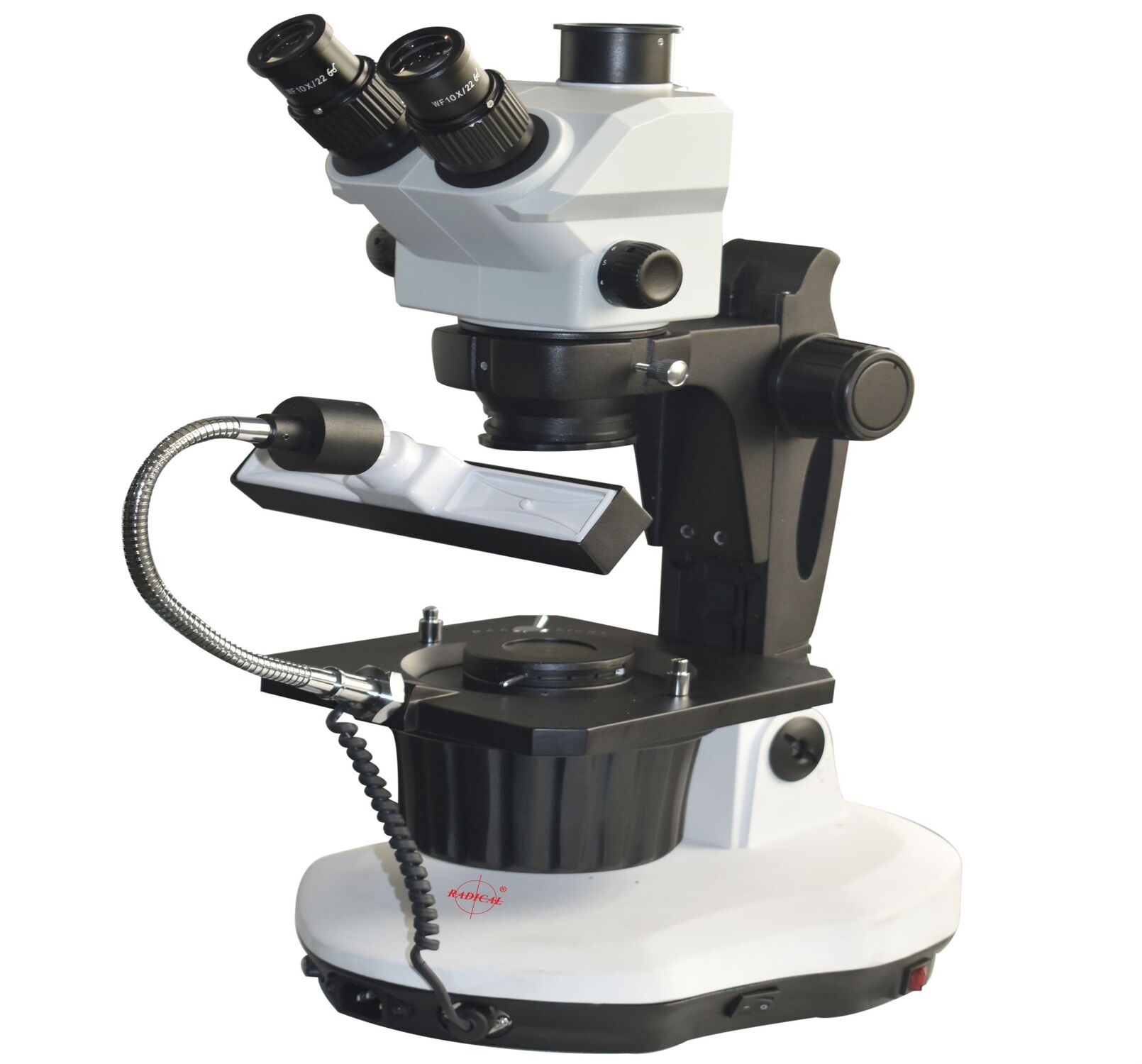

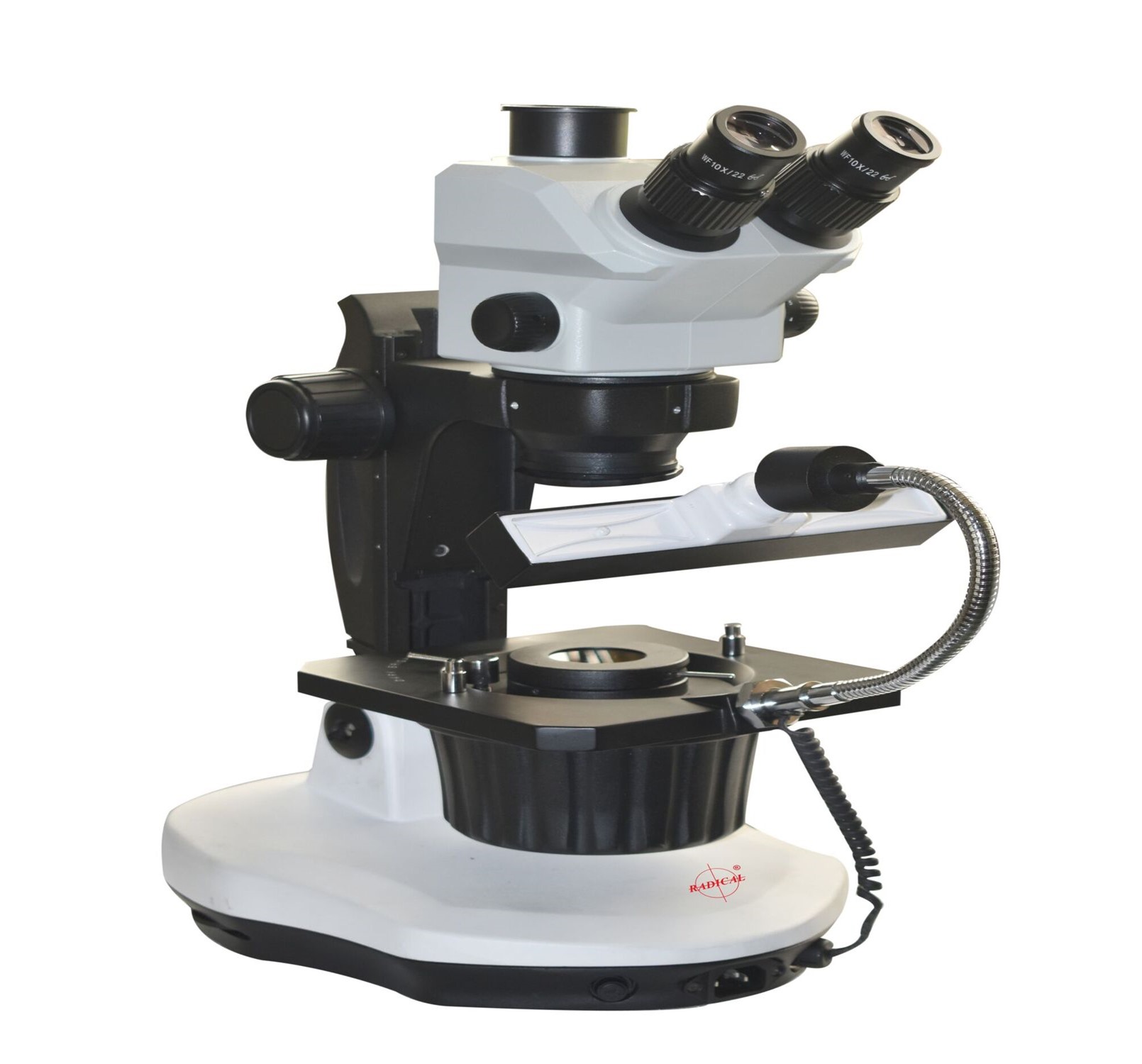

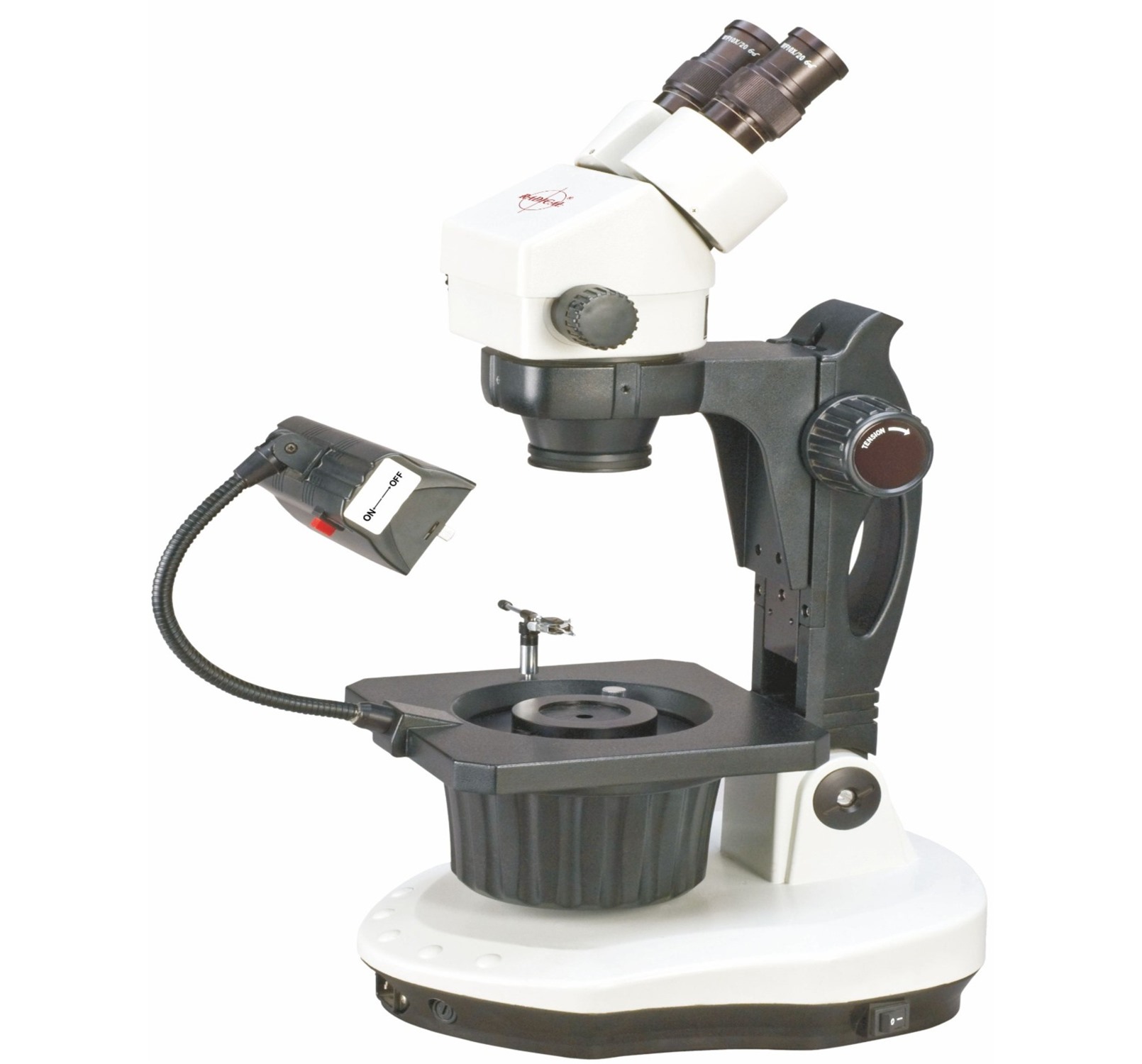

Gemological Microscope
RGM-8
Gemological Swivel Binocular Microscope is used to distinguish between genuine and imitation gems, to inspect surface inclusions, to judge production of origin and to inspect polishing. It is also used to exhibit & explain to the customers at jewellery shop. The Microscope is provided with transmitted and flourescent incident light system. These Microscope have earned the reputation for having excellent optics, rugged dependability, versatility & economy.
The Microscope share a unique substage brightfield and darkfield illuminator, an adjustable epi-illuminator and a gem clamp for unsurpassed versatility in a wide range of scientific and industrial applications.
BRIGHTFIELD
|
DARKFIELD
|
POLARIZING
|
| Optical system | Greenough zoom lenses |
|---|---|
| Illumination | LED/halogen/fluorescent transmitted & reflected |
| Viewing Head | 45° inclined 360° rotatable |
| Stage | Large stage with hand rest |
| Objectives | Long working distance |
| Zoom | Continuous |
| Stand | Tilting with two steps focusing |
| Eyepiece | Wide field with dioptric adjustment |
| Resolution | 225 Lp/mm @ 45X |
| Microscopy Techniques | Polarizing, Darkfield, oblique illumination |
| Certification | EU CE, ISI, ISO, TUV |
| Part Name | Part Code | Description |
|---|---|---|
| Body | RGM8MB | Plain focusing stand, rugged, ergonomic design, touch point treated, acid resistant texture painted, rubber feet |
| Optical System | RGM8GiOS | Greenough Optical System |
| Total Magnifications | RGM8TX | 3.5x to 180x (using different combinations of eyepiece, zoom lens & aux. Objectives) |
| Standard Zoom Lens | RGM8ZL | 0.7X to 4.5X continuously zoom with steps of 0.7x, 0.8X, 1X, 1.5X,2X, 3X, 4X & 4.5X |
| Zoom ratio | RGM8ZR | 1:6.4 |
| Eyepieces | RGM81020 | Paired, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable |
| Head | RGM8HB45 | Binocular head, 45° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom |
| focusing | RGM8FOC | Plain focusing, working distance 100mm |
| Transmitted Illumination | RGM8TLH30 | 6V/30W halogen bulb, intensity controller & ON/OFF switch, diverted light system (darkfield effect) with iris diaphragm |
| Accessories | RGM8GCLAMP | Steel wire & plan jewelry clamp |
| RCC | Cleaning cloth | |
| RVC | Vinyl cover | |
| MANUAL | Instruction manual | |
| WARRANTY | Warranty card | |
| RPC | Power Cord (Country Specific) |
| Mechanical stage | RGM8STAGE | Stage, X-Y movement, ball guide, 180X155X26mm, travel 35X30mm, size 185X140mm |
|---|---|---|
| Cleaning Kit | RCLEAN | Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution |
