Optical Microscopes Industrial Microscopes RXLr-4Pol Series

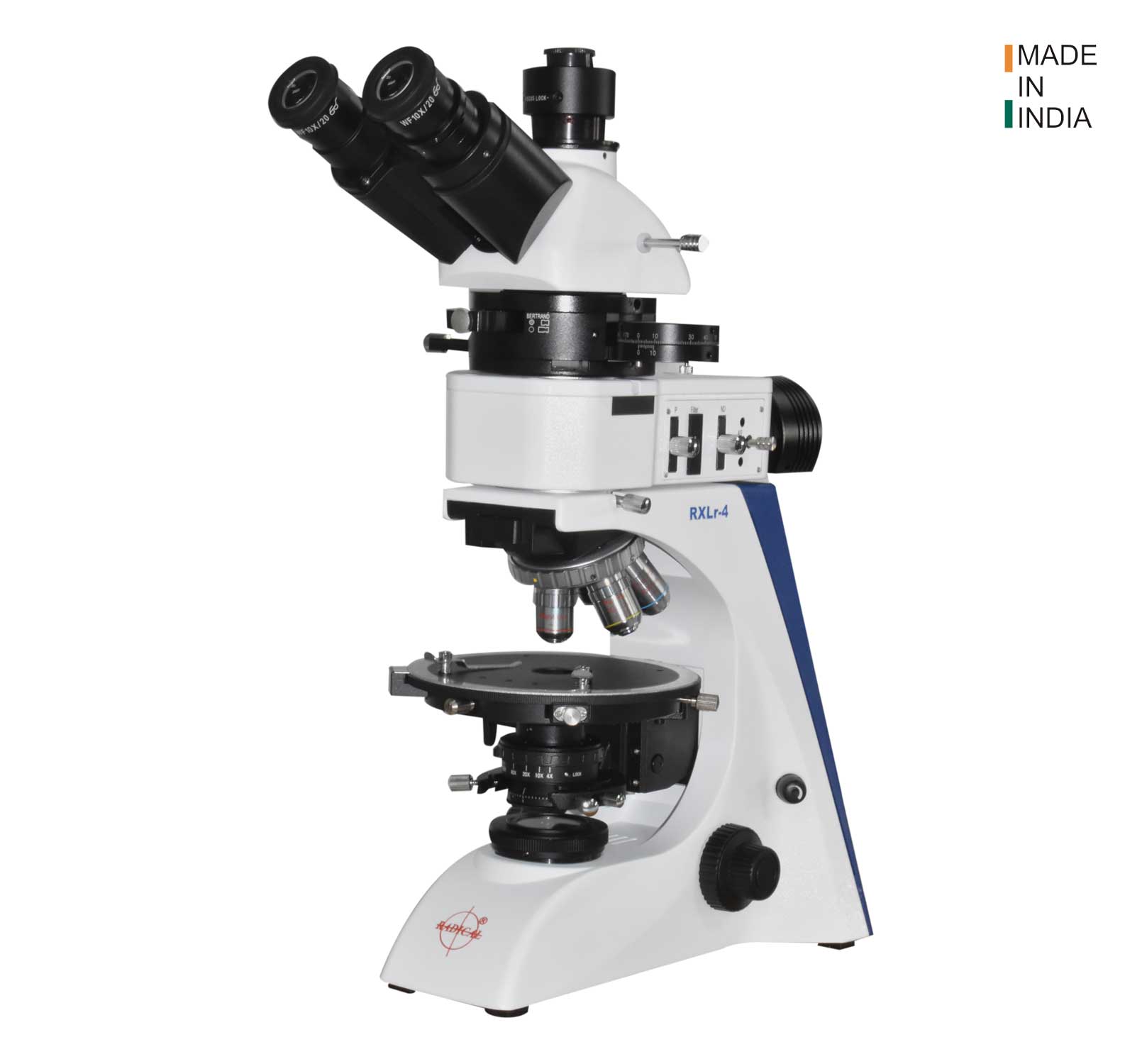

Advanced Research Polarizing Microscope

RXLr-4POL

RXLr-4 Pol microscopes produce brighter, clearer & higher contrast images. Facilities for diascopic & episcopic microscope illumination makes it a sought after microscope petrological, geological labs etc. The Bertrand lens is also focusable and centerable.

BRIGHTFIELD

POLARIZING

Body	Rugged, single die cast, ergonomic design, touch point treated
Optical system	Strain free achromatic universal optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated)
Transmitted Illumination	Koehler halogen/LED, intensity adjustable, battery backup, auto cut-off
Incident Illumination	LED/halogen with aperture and field diaphragm
Polarizing Facilities	Polarizer mounted below the condenser
Analyzer	Analyzer with scale removable from optical path, rotatable, focusable & centerable bertrand lens
Retarding Plates	λPlate, 1/4 λ(Mica) & Quartz Wedge
Viewing Head	Monocular/Binocular/Trinocular Head
Nosepiece	Reverse centerable quadruple/quintuple M25 x 0.75 threads with multiple ball-bearing, rubber/metal Grip & click stop
Eyepiece	Extra wide field with diopter adjustment
Objectives	POL Plan, S-APO/APO, Infinite objectives
Mechanical Stage	Graduated large circular rotary stage
Condenser	Abbe with iris diaphragm & filter slot brightfield, polarizing
Focusing	Coaxial (low position), both sides, coarse & Fine with tension control & upper limit stopper
Attachment	Slots for Compensator Plates Switchable orthoscopic/conoscopic
Certification	EU CE, ISI, ISO, TUV

Part Name	Part Code	Description
Body	RXR4PMB	Rugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, intensity controller, on/off switch, rubber feet, field diaphragm, Kohler illumination with aperture and field diaphragm, heat protection filter, slot for different compensator, blue filter (45°) for white light (4500K), built in handle & cord wrap.
Optical system	RXR4PiOS	Strain free, universal infinite optical system, colour/chromatic & spherical abrasion corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parfocal (45mm) suitable for reflected and transmitted light observation
Transmitted Illumination	RXR4PTL20	Halogen Lamp, 6V/20W, Std. life 2,000 hrs.
Viewing Head	RXR4PHB30ST	Binocular with siedentopf head 30°, 360° rotating, interpupillary adjustment (48-75mm), FOV 20mm, locking mechanism and orientation key in right eyepiece for the crosshair reticle eyepiece.
Nosepiece	RXR4P4N	Objective centrable reverse, precise quadruple nosepiece, revolving on multiple ball bearing, ribbed grip for easy rotation, with slot for Pol & analyzer, compensator, centrable.
Eyepiece	RXR4P1020	Paired, one WF 10X, FOV-20mm, multilayered coated, high quality, antiglare, good contrast, abrasion free, aplanatic, precentered, lockable, with/without eye guard, diopter adjustment and crosshair reticle and pin for orientation in one eyepiece with eye guard.
Mechanical Stage	RXR4PMS170	Large circular rotary stage(lockable), dia. 150mm to 170mm, 360° rotatable, 1° increment, precise vernier scale of 0.1° with click stop at 45° increments. Provision for fixing 2 stage clips; attachable mechanical XY travel 30x40mm, object guide with vernier 0.1mm, centrable, compatible to heating stage, with sample holder, adjustable safety lock.
Objectives	RXR4PPF04	POL PL4X, N.A. 0.10, W.D. 30mm, plan achromatic, suitable for transmitted and reflected illumination
	RXR4PPF10	POL PL10X, N.A. 0.25, W.D. 6.1mm, plan achromatic, suitable for transmitted and reflected illumination
	RXR4PPF40	POL PL40X, N.A. 0.65, W.D. 0.65mm, plan achromatic, spring, suitable for transmitted and reflected illumination
Focusing	RXR4PF25	Coaxial, coarse and fine focus adjustment knobs (low positioned, both side) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm, highly sensitive focus drive with 0.25mm per revolution, fine adjustment 2.5µm/Div. Upgradable to 35mm stroke range.
Retarding Plates	RXR4P-RPLT	Compensator Gypsum 1 λ plate, (1st order red compensating plate, 560 nanometers) (Mica 1/4 λ 145 nanometers) & quartz wedge in metallic mount of 12mmx4mm, slot for compensator and accessories for above nosepiece at 45°.
Condenser	RABC	Centerable abbe condenser N.A. 0.9, iris diaphragm, filter slot, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing
Analyzer/Polarizer	RXR4PAPOL	360° rotatable polarizing mount having 0.1° L.C. below the condenser, built in analyzer can be rotate through 45°/90°/180° with scale removable from optical path with calibrated marking
Power supply	RSMPS620	Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz
Accessories	RCC	Cleaning cloth
	RVC	Vinyl cover
	RCLP	C-clamp for tension adjustment
	RAK	Allen keys & centering tools
	RF5A	Fuses - 2 no's
	MANUAL	Instruction manual
	WARRANTY	Warranty card
	RBF	Blue Filter (frosted & Plain)
	RPC	Power Cord (country Specific)
Holder		Sample holder, Plan glass reflector Monochromator

Body

Body	RXR4PMBECO	Rugged, single aluminium die cast, ergonomic design, touch point treated, acid resistant texture painted, intensity controller, on/off switch (IR sensor), Auto off, handle with grip under cut in front, rubber feet, Kohler illumination with aperture and field diaphragm, heat protection filter, slot for different compensator, blue filter (45mm) for white light (4500K), built in handle & cord wrap, having facility to store compensators, cable and centering tools

Condenser

Condenser	RABC-0.85	Centerable, POL Abbe Condenser N.A. 0.85, with aperture diaphragm, filter slot, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing.
	RABC-1	Centerable Pol abbe swingout condenser N.A. 0.9/0.13, Iris diaphragm, filter slot, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing, with polarizer unit (with scale, rotatable 360° lockable).
	RABC-1.25	Centerable Pol Abbe strain free condenser N.A. 1.25, Iris diaphragm, filter slot, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing, with polarizer unit (with scale, rotatable 360° lockable).
	RXR4P-CDF	Abbe N.A. 1.25 for darkfield, separate movement from focusing (Rack & Pinion)
	RXR4P-PH-SL	Abbe N.A. 1.25 for phase (sliding type), upto 4 position, separate movement from focusing (rack & pinion), filter holder
	RXR4P-PH-TR	Abbe N.A. 1.25 for phase (turret type), upto 6 position, separate movement from focusing (rack & pinion), filter holder
	RABCSL	Centerable abbe condenser N.A. 0.9/1.25, sliding-in/swingout, Iris diaphragm, blue filter, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing, below attachable polarizer

C-mount

C-mount	RCMT50X	0.5X Camera Adaptor/Tube/Mount
	RCMT65X	0.65X Camera Adaptor/Tube/Mount
	RCMT70X	0.7X Camera Adaptor/Tube/Mount
	RCMT01X	1X Camera Adaptor/Tube/Mount

Eyepiece

Eyepiece	RXR4P-EP0518	WF 5X, FOV-18mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1018	WF 10X, FOV-18mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1018M	WF 10X, FOV-18mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1018P	WF 10X, FOV-18mm, Pointer, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1018-CM	Pair, WF 10X, FOV-18mm, multilayered coated, high quality, antiglare, good contrast, aberration free, aplantic, precentered, lockable, diopter adjustment One with corosshair on eyepiece, lockable eyetube
	RXR4P-EP1020C	WF 10X, FOV-20mm, cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, pin for orientation
	RXR4P-EP1020M	WF 10X, FOV-20mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1020-CM	Pair, WF 10X, FOV-20mm, multilayered coated, high quality, antiglare, good contrast, abrasion free, aplanatic, precentered, lockable, diopter adjustment One with crosshair and micrometer (10/100mm) on eyepiece , lockable eye tube
	RXR4P-EP1020P	WF 10X, FOV-20mm, Pointer, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1022	Paired, WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, eye guard, diopter adjustment and crosshair in one eyepiece, (optionally) with double cross line focusable.
	RXR4P-EP1022M	WF 10X, FOV-22mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1022P	WF 10X, FOV-22mm, Pointer, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1023	WF 10X, FOV-23mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable.
	RXR4P-EP1023-CM	WF 10X, FOV-23mm, multi-layered coated, high quality, antiglare, good contrast, abrasion free, aplanatic, precentered, lockable, diopter adjustment One with crosshair and micrometer (10/100mm) on eyepiece, lockable eye tube.
	RXR4P-EP1025	Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1025M	WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1025P	WF 10X, FOV-25mm, Pointer, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP1515	Paired, WF/H 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP2010	Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXR4P-EP-C	Customized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticules
	RXR4P-ECUP	Eyecups (pair)

Focusing

Focusing	RXR4P-F1.0	Coaxial, coarse and fine focus adjustment knobs (low positioned, both side) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm with stage travel upto 20mm, highly sensitive focus drive with 0.10mm per revolution, Fine adjustment 1.0µm/Div. upgradable to 35mm stroke range.
	RXR4PF20	Coaxial, coarse and fine focus adjustment knobs (low positioned, both side) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm with stage travel upto 24mm, highly sensitive focus drive with 0.20mm per revolution, Fine adjustment 2.0µm/Div. upgradable to 35mm stroke range with 200 graduations marking.
	RXR4PF25-F	Coaxial, coarse and fine focus adjustment knobs (low positioned, both side) refocusing mechanism with rack & pinion arrangement, with tension control, upper limit stopper, Coarse stroke range 37.7mm, high sensitive focus drive with 0.20mm per revolution, fine adjustment 2.0µm/Div.

Fluorescence Attachment

Fluorescence Attachment	RXR4FL3100	Turret 4 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
	RXR4FL100	Turret 6 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
	RXR4FLLED	Turret 6 filter holder, LED, std fluorescence filter B & G, others on request.
	RXR4FL1LED	Single LED with battery backup, std. B fluorescence filter, others on request.

Incident/Reflected Illumination

Part Name	Part Code	Description
Incident/Reflected Illumination	RXR4P-RL20	Pre-centered, Halogen Lamp, 6V/20W Std. life 2,000 hrs., inbuilt heat protection filter, aperture & field /iris diaphragm, daylight filter & polarizing slider
	RXR4P-RL30	Halogen Lamp, 6V/30W Std. life 2,000 hrs., inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider
	RXR4P-RL50	Halogen Lamp, 12V/50W Std. life 2,000 hrs., inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider
	RXR4P-RL100	Halogen Lamp, 12V/100W Std. life 2,000 hrs., inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider
	RXLr-4P-RLATT	Incident attachment with incident light halogen/LED, heat absorbing filter, diaphragm & aperture control, Built-in polarizer
	RXR4P-L3WRL-L3	LED 3W, life 30000 hrs., lumens equivalent 20W halogen
	RXR4P-LBBRL	Battery backup from 2-12 hours for LED (internal/external)
	RXR4P-L5WRL3	LED 5W, life 30000 hrs., lumens equivalent 50W Halogen
	RXR4P-ACUT-RL	Auto-cutoff
	RXR4P-L3W-RL-L6	LED 3W life 65000 hrs., lumens equivalent 20W Halogen
	RXR4P-L3W-RL-L6-BF	LED 3W life 65000 hrs, lumens equivalent 20W Halogen with reflected turret
	RXR4P-L3W-RL-L8	LED 3W life 82000 hrs., lumens equivalent 20W Halogen
	RXR4P-L5W-RL-L6	LED 5W life 65000 hrs., lumens equivalent 50W Halogen, with adjustable light intensity.
	RXR4P-L5W-RL-L8	LED 5W life 82000 hrs., Lumens equivalent 50W Halogen
	RXR4P-L-C-RL	Extra long life LED upto 1,00,000 hrs 3W/5W
	RXR4P-SOLAR-RL	Solar power battery charger for LED

Illumination (TL)

Illumination (TL)	RXR4P-H20TL	Built-in Pre-centered, Halogen 6V-20W, life 2000 hrs. inbuilt heat illumination protection filter, aperture & field/ iris diaphragm, daylight filter & polarizing slider, with base collector lens & adjustable light intensity
	RXR4P-H630TL	Halogen 6V-30W, life 2000 hrs. inbuilt heat illumination protection filter, aperture & field diaphragm, daylight filter & polarizing slider inbuilt heat protection filter
	RXR4P-H30TL	Halogen 12V-30W, life 2000 hrs. inbuilt heat illumination protection filter, aperture & field diaphragm, daylight filter & polarizing slider inbuilt heat protection filter
	RXR4P-H50TL	Halogen 12V-50W, life 2000 hrs.
	RXR4P-L3WTL-L3	Uniform colour cool white LED 3W, Koehler illumination, life 30000 hrs., lumens equivalent 20W halogen, constant color temperature 4500k, light intensity controller, with built-in and adjustable aperture and field diaphragm, Eco energy saving auto cut off after 2 hrs. of usage, fly eye lens (for uniform illumination to entire FOV).
	RXR4P-L3WTL-neoL3	Uniform colour LED 3W neo LED, Koehler illumination, life 30000 hrs., lumens equivalent 20W halogen
	RXR4P-LBBTL	Battery backup from 2-12 hours for LED (internal/external)
	RXR4P-L5WTL-L3	Uniform colour LED 5W, life 30000 hrs., lumens equivalent 50W halogen
	RXR4P-ACUT-TL	Auto-cutoff
	RXR4P-L3W-TLL6	Uniform colour LED 3W life 65000 hrs., lumens equivalent 20W halogen
	RXR4P-L3W-TLL8	Uniform colour LED 3W life 82000 hrs., lumens equivalent 20W halogen
	RXR4P-L5W-TLL6	High power LED, uniform colour LED 5W life 65000 hrs., lumens equivalent 50W halogen, with adjustable light intensity
	RXR4P-L5W-TLL8	Uniform colour LED 5W life 82000 hrs., lumens equivalent 50W halogen
	RXR4P-LCTL	Extra long life LED upto 1,00,000 hrs 3W/5W
	RXR4P-SOLARTL	Solar power battery charger for LED

Mechanical Stage

Mechanical Stage	RXR4PMS175	Large circular rotary stage(lockable), graduated, dia. 175mm, ball bearing type 360° rotatable, 1° increment, built-in precise vernier scale of 0.1° with click stop at 45° increments. Provision for fixing 2 stage clips; clampable, attachable mechanical XY travel 30x40mm, with vernier 0.1mm, centrable, compatible to heating stage, with sample holder, adjustable safety lock.
	RXR4P-MS-C	Large circular rotary stage(lockable), dia. upto 200mm-customized, 360° rotatable, with 1° interval, precise vernier scale of 0.1° with click stop at 45° increments. provision for fixing stage clips attachable mechanical XY travel, object guide with vernier 0.1mm, centrable
	RXR4P-MS-Ci	Large circular rotary stage(lockable) dia. upto 178mm, 360° rotatable, with 1° interval, precise vernier scale of 0.1° with click stop at 45° increments. provision for fixing stage clips attachable mechanical XY travel, object guide with vernier 0.1mm, centerable

Micrometer/Calibration slide

Micrometer/Calibration slide	RCS10	Micrometer slide for calibration, 1mm with 10µm least count
	RCS100	Micrometer slide for calibration, 10mm with 100µm least count

Nosepiece

Nosepiece	RXR4P-5N	Inward tilted, Precise quintuple revolving, ball bearing with slot for Pol & Analyzer, centrable

Objectives

Objectives	RXR4P-PL2.5i	POL PL2.5X, N.A. 0.07, W.D. 11.2mm, plan achromatic, unbreakable container for storage
	RXR4PPF04IP	POL PL4X, N.A. 0.10, W.D. 18mm, plan achromatic, suitable for transmitted and reflected illumination
	RXR4P-PL4i	POL PL4X, N.A. 0.10, W.D. 10mm, plan achromatic, unbreakable container for storage
	RXR4P-PL5i	POL PL5X, N.A. 0.16, W.D. 18.5 mm, plan achromatic, infinite, unbreakable container for storage
	RXR4P-PL10i	POL PL10X, N.A. 0.22, W.D. 7.8mm, plan achromatic, unbreakable container for storage
	RXR4PPL10IP	POL PL10X, N.A. 0.25, W.D. 12mm, plan achromatic, suitable for transmitted and reflected illumination
	RXR4PPL20IP	POL PL20X, N.A. 0.25, W.D. 3.9mm, plan achromatic, unbreakable container for storage
	RXR4P-PL20i	POL PL20X, N.A. 0.40, W.D. 2.1 mm, plan achromatic, infinite, unbreakable container for storage
	RXR4P-PL40i	POL PL40X, N.A. 0.65, W.D. 0.31mm, plan achromatic, spring, unbreakable container for storage
	RXR4PPF40IP	POL PL40X, N.A. 0.65, W.D. 0.36mm, plan achromatic, suitable for transmitted and reflected illumination
	RXR4P-PL45i	POL PL45X, N.A. 0.70, W.D. 1mm, plan achromatic, infinite, unbreakable container for storage
	RXR4P-PL50i	POL PL50X, N.A. 0.75, W.D. 1mm, plan achromatic, infinite, unbreakable container for storage
	RXR4P-PL50io	POL PL50X, N.A. 0.85, W.D. 0.41mm, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
	RXR4P-PL60i	POL PL60X, N.A. 0.85, W.D. 0.30mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
	RXR4P-PL60io	POL PL60X, N.A. 1.25, W.D. 0.22mm, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
	RXR4P-PL63i	POL PL63X, N.A. 0.84, W.D. 0.28mm, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
	RXR4P-PL100i	POL PL100X, N.A. 0.85, W.D. 0.95mm, plan achromatic, finite, spring loaded, unbreakable container for storage
	RXR4P-PL100io	POL PL100X, N.A. 1.25, W.D. 0.18mm, DIN semi plan, finite, oil immersed, spring loaded, unbreakable container for storage
Phase Objectives	RXR4P-PH04i	PH4X, N.A. 0.10, W.D. 30mm, phase, plan achromatic, unbreakable container for storage
	RXR4P-PH10i	PH10X, N.A. 0.25, W.D. 6.1mm, phase, plan achromatic, unbreakable container for storage
	RXR4P-PH20i	PH20X, N.A. 0.4, W.D. 2.10mm, phase, plan achromatic, unbreakable container for storage
	RXR4P-PH40i	PH40X, N.A. 0.65, W.D. 0.65mm, phase, plan achromatic, spring loaded, unbreakable container for storage
	RXR4P-PH60i	PH60X, N.A. 0.80, W.D. 0.30mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
	RXR4P-PH63i	PH63X, N.A. 0.84, W.D. 0.28mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
	RXR4P-PH100i	PH100X, N.A. 1.25, W.D. 0.18mm, DIN semi plan, finite, oil immersed, spring loaded, unbreakable container for storage
SEMI APO/Flotar/Fluor Objectives	RXR4P-SAPO04i	4X, N.A. 0.13, W.D. 17.1mm, SAPO, POL, unbreakable container for storage
	RXR4P-SAPO10i	10X, N.A. 0.3, W.D. 16mm, SAPO, POL, unbreakable container for storage
	RXR4P-SAPO20i	20X, N.A. 0.5, W.D. 2.1mm, SAPO, POL, unbreakable container for storage
	RXR4P-SAPO40i	40X, N.A. 0.75, W.D. 0.75mm, SAPO, POL, spring loaded, unbreakable container for storage
	RXR4P-SAPO50i	50X, N.A. 0.8, W.D. 1mm, SAPO, POL, unbreakable container for storage
	RXR4P-SAPO60i	60X, N.A. 0.80, W.D. 0.3mm, SAPO, POL, infinite, oil immersed, spring loaded, unbreakable container for storage
	RXR4P-SAPO63i	63X, N.A. 0.85, W.D. 0.28mm, SAPO, POL, infinite, oil immersed, spring loaded, unbreakable container for storage
	RXR4P-SAPO100i	100X, N.A. 0.9, W.D. 1mm, SAPO, POL, finite, spring loaded, unbreakable container for storage
	RXR4P-SAPO100io	100X, N.A. 1.3, W.D. 0.20mm, SAPO, POL, finite, oil immersed, spring loaded, unbreakable container for storage
APO Objectives	RXR4P-APO04i	4X, N.A. 0.20, W.D. 15.7mm, APO, unbreakable container for storage
	RXR4P-APO10i	10X, N.A. 0.45, W.D. 4mm, APO, unbreakable container for storage
	RXR4P-APO20i	20X, N.A. 0.75, W.D. 1.0mm, APO, unbreakable container for storage
	RXR4P-APO40i	40X, N.A. 0.95, W.D. 0.14mm, APO, spring loaded, unbreakable container for storage
	RXR4P-APO40i-O	40X (Oil), SL, N.A. 1.0, W.D. 0.16mm, APO, spring loaded, unbreakable container for storage
	RXR4P-APO50i	50X, DRY, N.A. 0.95, W.D. 0.35mm, APO, infinite, spring loaded, unbreakable container for storage
	RXR4P-APO60i-D	60X, DRY, N.A. 0.95, W.D. 0.15mm,APO, infinite, spring loaded, unbreakable container for storage
	RXR4P-APO60i-O	60X, Oil, N.A. 1.0, W.D. 0.2mm, APO, infinite, oil immersed, spring loaded, unbreakable container for storage
	RXR4P-APO63i	63X, N.A. 0.89, W.D. 0.28mm, APO, infinite, oil immersed, spring loaded, unbreakable container for storage
	RXR4P-APO100i-D	100X, Dry, N.A. 0.9, W.D. 0.30mm, APO, finite, spring loaded, unbreakable container for storage
	RXR4P-APO100i-O	100X, Oil, N.A. 1.4, W.D. 0.20mm, APO, finite, oil immersed, spring loaded, unbreakable container for storage.
		Please click for More Objectives...

Power supply

Power supply	RTF620	Integrated 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
	RTF630	Integrated 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
	RSMPS630	Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz
	RPSLED	LED power supply, wide voltage range, 90V-240V, 50/60Hz

Packing

Packing	RWBX	Wooden box with separate container for accessories, lock & key, carrying handle
	RSTYRO	Standard Styrofoam packing

Viewing Head

Viewing Head	RXR4PHB30ST-IO	Binocular with siedentopf head 30°, 360° rotating, interpupillary adjustment (48-75mm), FOV 20mm with orientation key in right eyepiece.
	RXR4PHB3022	Binocular with siedentopf head 30°, 360° rotating, inter-pupillary adjustment (47-75mm), FOV 22mm, diopter adjustment on one or both eyepiece.
	RXR4P-BST45	Binocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on one or both eyepiece
	RXR4P-TSL-45C	Trinocular inclined at 45°, sliding head, rotatable through 360°, IPD - from 48-76, diopter adjustment on one or both eyepiece, port for camera attachment, 2 position light distribution
	RXR4P-TST30	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 52-75mm, diopter adjustment on one or both eyepiece, port for camera attachment, splitting ratio 50(EP):50(camera).
	RXR4P-TST-30-C50	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on one or both eyepiece, port for camera attachment, splitting ratio 50(EP):50(camera)
	RXR4P-TST-30-C50-digi5	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on one or both eyepiece, port for camera attachment, integrated 5PM Camera, Sensor size 1/2.5 inch, pixel size 2.2µmX2.2µm with resolution 2592x1944 (equivalent to 35mm frame)
	RXR4P-TST-30-C80	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on one or both eyepiece, port for camera attachment, splitting ratio 20(EP):80(camera)
	RXR4P-TST-30-C100	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD from 48-76, diopter adjustment on one or both eyepiece, port for camera attachment, 2 position splitting ratio 100:0, 0:100/50:50
	RXR4P-DIP2	additional diopter on both eyepieces.

Analyzer/Polarizer	RXR4PAPOLn	Polarizer for transmitted illumination mounted having L.C. 0.1°, 360° rotatable below the condenser, scaled & lockable. Pol slider for reflected illumination. Analyzer for TL/RL 360° rotatable with L.C. 0.1° modular type, graduated, lockable.
Intermediate Tube	RXR4P-ITUBEB	Removable bertrand lens, slot for analyser & compensators, oblique illumination, switchable Ortho scopic/Conoscopic, photometer, built-in & focusable Bertrand lens, centerable.
Conoscopic & Orthoscopic Attachment	RXR4P-COA	Built-in focusable and centerable Bertrand lens removable from optical path. rotatable polarizer switchable conoscopic/ orthoscopic observation including orientation plate.
Compensator/Retarding Plates	RXR4P-CP	Compensator Gypsum 1 λ (1st order red compensating plate, 530/546/560 nanometers) Mica 1/4 λ 145 nanometers) and quartz wedge, whole wave plate.
Heating Stage	RHS50	Biotherm heating stage
Filters	RGF	Green plane or frosted
		Neutral color balancing filter for Transmitted & Reflected Light
Centering Tube	RXR4PCTUBE	Centering objective for fluorescence observation
Immersion oil	RIO100	High quality immersion oil 100ml
Cleaning Kit	RCLEAN	Anti-static cleaning brush, cleaning tissue paper, lens cleaning solution
Accessories	Compensator Filter	¼ Lambda plate, Tint Plates GIF Filter Ø25mm on slider
		Objective Centering Tools

Advanced Research Polarizing Microscope RXLr-4POL

PRODUCT CATEGORIES

Other Links

RXLr-4POL

Educational Microscopes

Laboratory Clinical Microscopes

Medical Research Microscopes

Microscope Cameras

Industrial Microscopes

Advanced Microscopy System

Camera Control Software

Material Science Software

Life Sciences Software

Infrared Thermography

Metrology & Metallurgy

About Radical

Support

Contact Info
