Optical Microscopes Industrial Microscopes RXLr-5NX POL

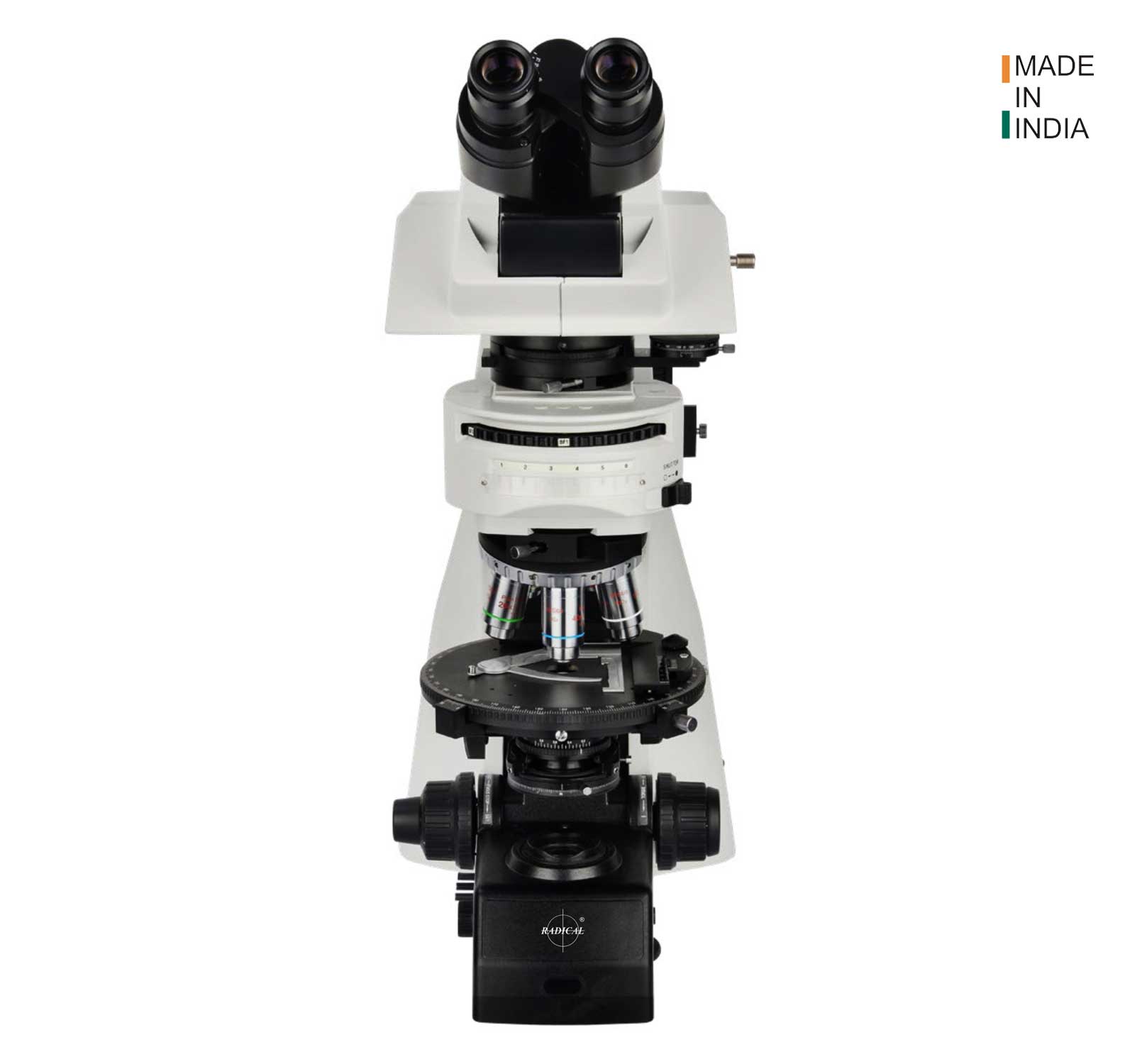

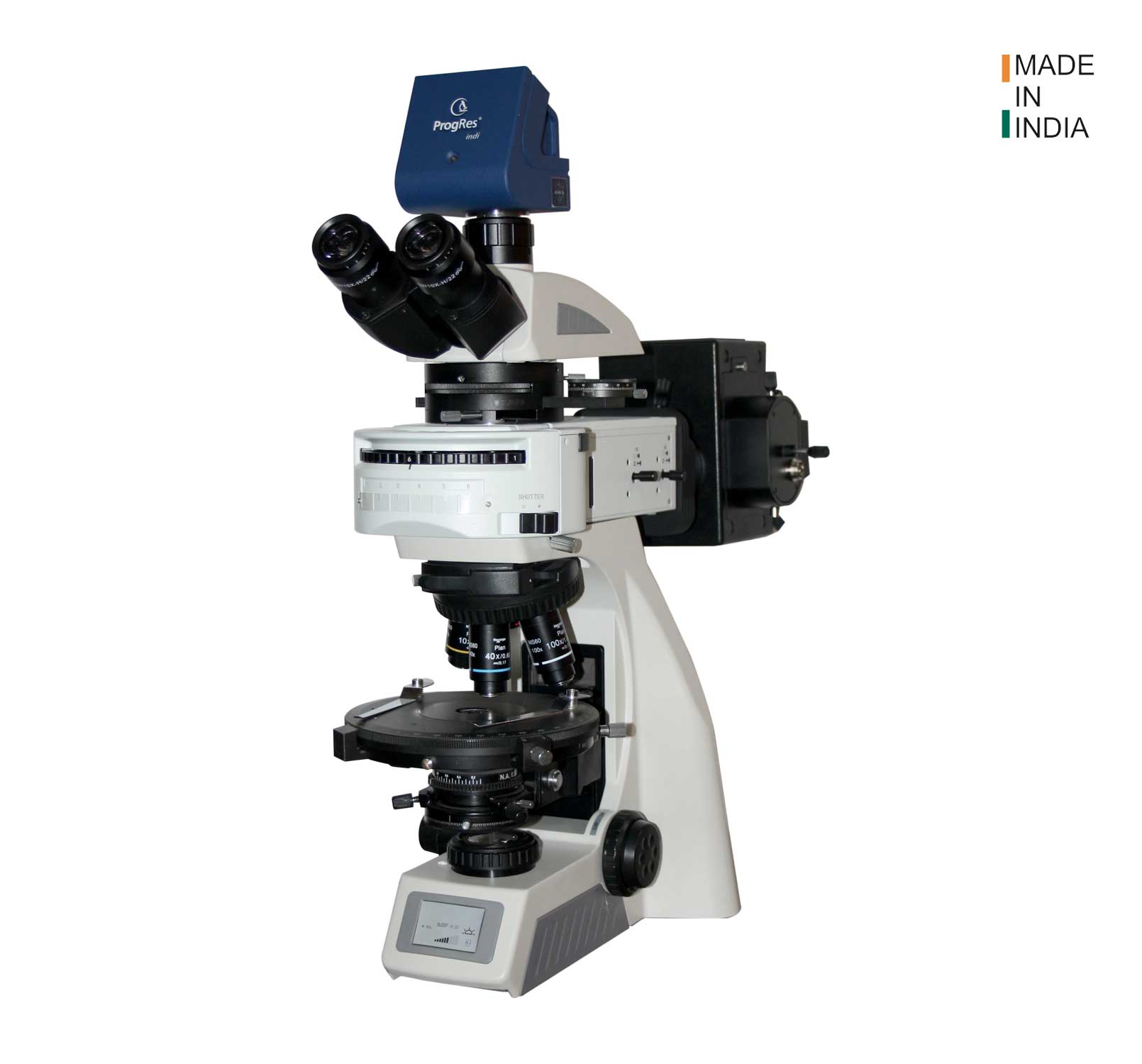

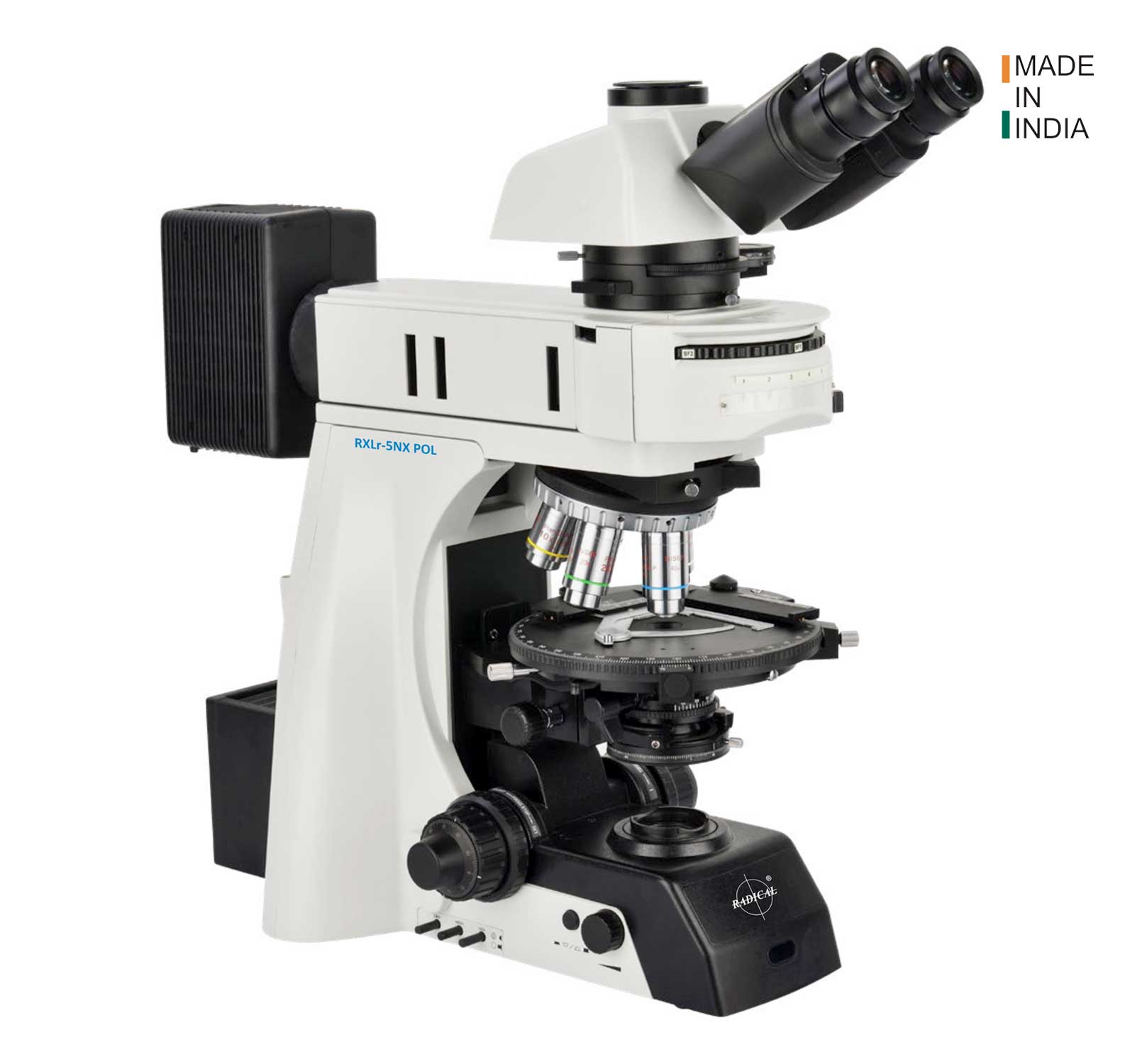

Advanced Research NX Polarizing Microscope

RXLr-5NX POL

RXLr-5NX Pol Professional Research polarizing microscope for geology, petroleum, chemicals, polymer, LED field. Produces high quality and contrast image with special strain free objectivises. Designed for single polarization, orthogonal polarization and conoscopic observations with constant focus mechanism trinocular head Brightness adjustable transmitted light and reflected light. Stage with 45°click, attachable mechanical stage with large moving range, high efficiency without any interferencewhile turning objectives.

BRIGHTFIELD

POLARIZING

Body	Rugged, single die cast, ergonomic design, touch point treated
Optical system	Strain free achromatic Universal infinite optical system, color corrected, Anti-fungal, Anti-bacterial Coated (multi-layered hard coated)
Koehler's Illumination	Koehler halogen/LED, intensity adjustable, battery backup, auto cut-off
Incident Illumination	LED/halogen with aperture and field diaphragm, pre-centered lamp house, Slot for Polarizer/ Analyzer
Intermediate attachment	Slots for Compensator Plates Switchable Orthoscopic/Conoscopic Built-in focusable & centerable Bertrand lens
Polarizing Facilities	Polarizer mounted below the condenser
Analyzer	Analyzer with scale removable from optical path, rotatable, focusable & centerable Bertrand lens

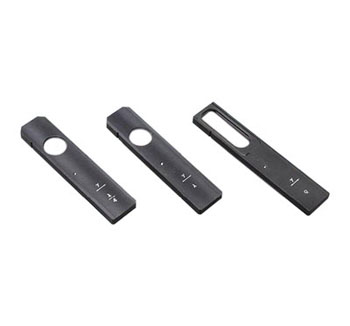

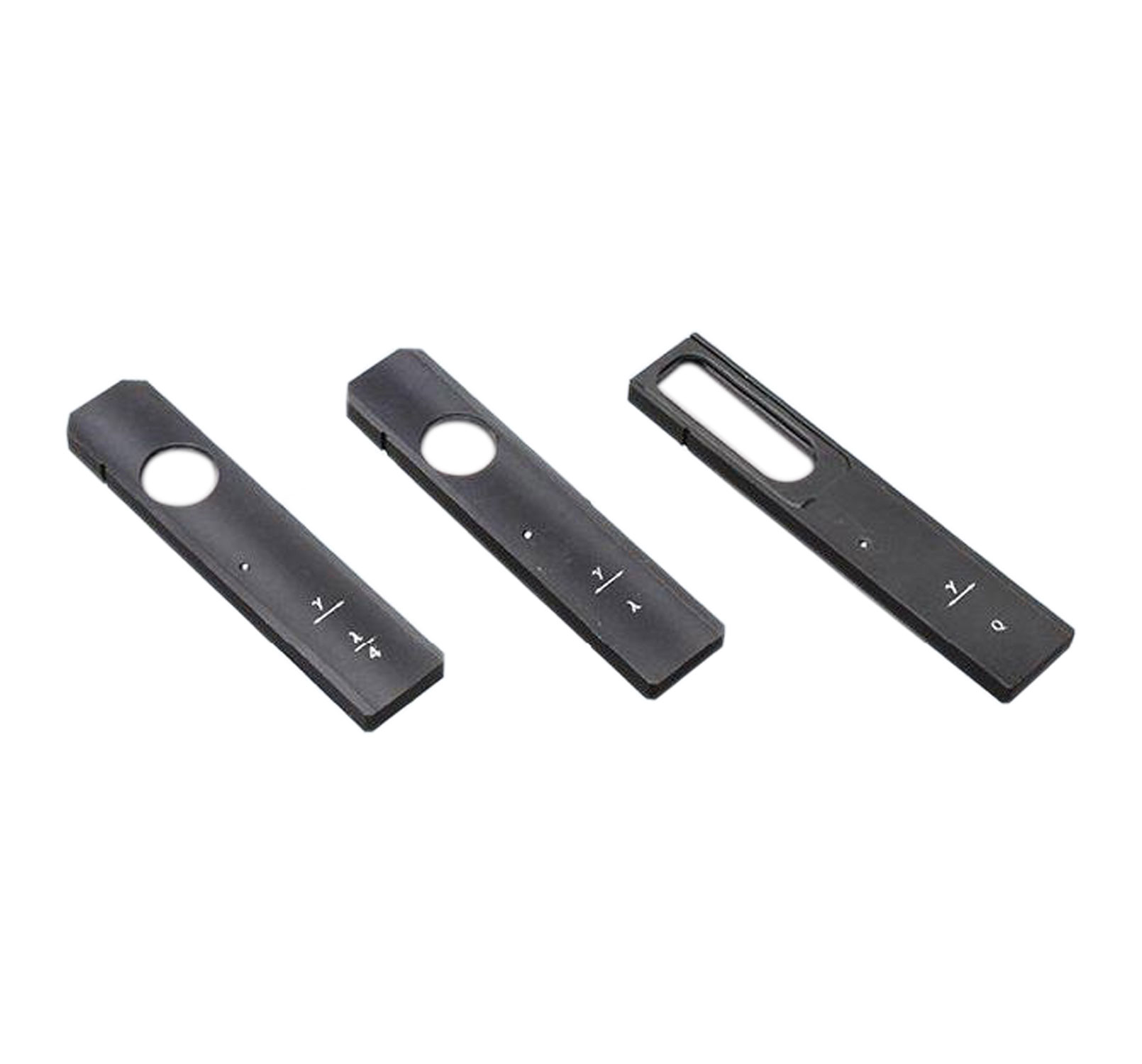

Retarding Plates	λPlate, 1/4 λ(Mica) & Quartz Wedge
Viewing Head	Monocular/Binocular/Trinocular Head

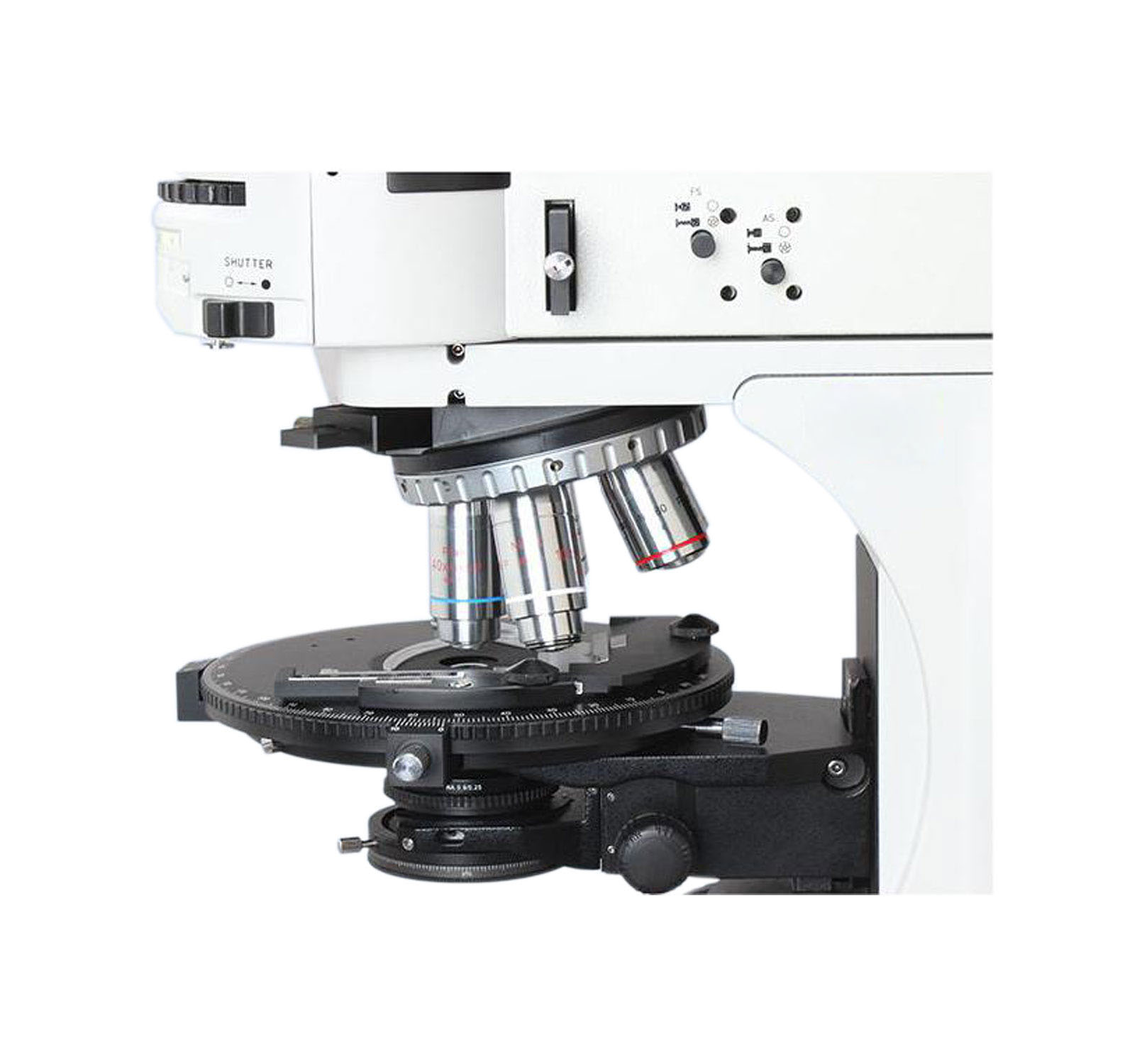

Nosepiece	Centerable Quadruple/Quintuple with Multiple Ball-Bearing, Rubber/metal Grip & Click Stop
Eyepiece	Extra wide field with diopter adjustment
Objectives (Engraved)	POL Plan, S-APO/APO, infinite objectives

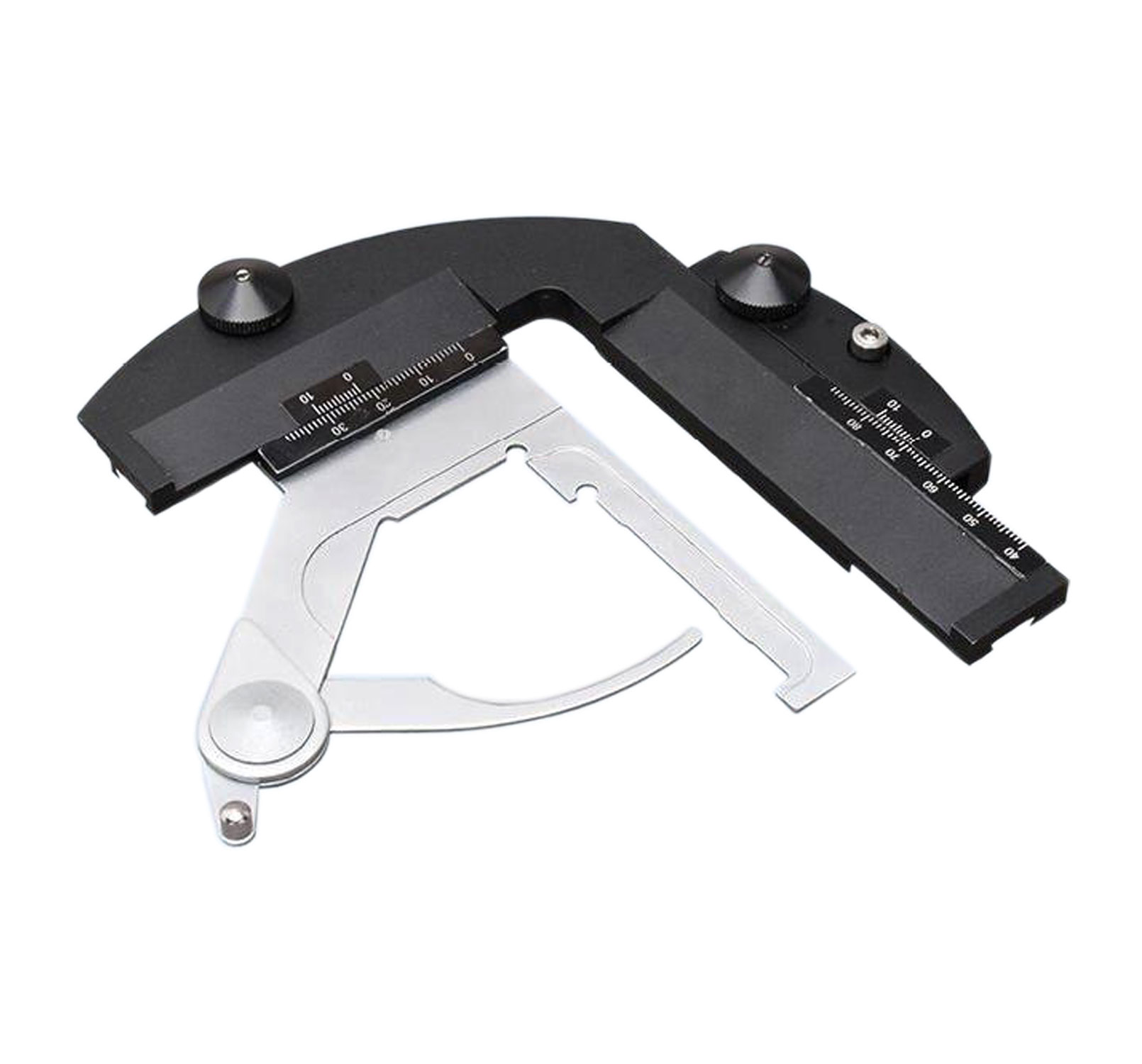

Mechanical Stage	Graduated large circular rotary stage, refocusing mechanism
Condenser	Abbe with iris diaphragm & filter slot. Brightfield, polarizing
Focusing	Coaxial (low position), both sides, Coarse & Fine with Tension control & upper limit stopper
Attachment	Slots for Compensator Plates Switchable Orthoscopic/Conoscopic
Certification	EU CE, ISI, ISO, TUV

Part Name	Part Code	Description
Body	RNX5PMB	Rugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, rubber feet, built in hande, cord wrapping at back, Kohler illumination with aperture and field diaphragm, heat protection filter, transmitted & reflected light illumination system with intensity controller, on/off switch, switch over button for RL/TL, built in filter holder ND4/ND6/ND8/ND11/ND25/ND32, auto off (upto 2 hrs), constant color intensity while changing the light intensity or objective, fly eye lens (for uniform illumination to entire FOV), light pre-set switch* with LCD display* blue filter (45mm) for white light (4500K), accidental fog absorbing compatibility, pseudo-plechorism, depolarize, under cut for easy grip, cord wrap, storage facility.
Optical system	RNX5PiOS	Universal infinite achromatically corrected optical system, cassette filter holder, strain free pol colour corrected, chromatic aberration free, anti-fungal, anti-bacterial and anti-reflection coated (multi-layered hard coated), colour coded objectives, parfocal distance (60mm) constant focus mechanism, suitable for reflected and transmitted light observation and BF, DF, POL, DIC & Phase contrast technique
Transmitted Illumination	RNX5P-TL100	Kohler illumination, pre-focused, halogen lamp, 12V/100W, std. life 2,000 hrs.
Viewing Head	RNX5P-HT30	Trinocular with siedentopf head 30° inclined, 360° rotating, interpupillary adjustment (47-78mm), FOV upto 30mm, diopter adjustment one/both ocular with graticule adjustment (automatic)
Nosepiece	RNX5P-6N	Inward tilted, interchangeable precise sextuple revolving, ball bearing with slot for DIC/Pol/Ana, centrable
Eyepiece	RNX5P-1025	Paired, SW 10X, FOV-25mm, multilayered coated, high quality, antiglare, good contrast, abrasion free, aplanatic, precentered, lockable, diopter adjustment on one/both eyepiece
Mechanical Stage	RNX5P-MS190	Large Circular, hard coated Ceramic and anodized, scratch proof, rotary metal stage, dia. 190mm, laser engraved, graduated 360° rotatable, 1° increment, stage lock, (brake), minimum resolution 6 min, with click stop at 45° increments, sample height upto 50mm, provision for fixing stage clips; attachable mechanical XY travel range 35x25mm, object guide with vernier on 02 sides to 0.1mm, centrable, adjustable break, refocusing mechanism, object count attachment, boreholes for accessories, interchangeable dovetail, suitable for different slide formats.
Objectives	RNX5P-PF1.25i	PL1.25X, N.A. 0.05, W.D. 12.5mm, plan POL achromatic, infinite corrected, unbreakable container for storage
	RNX5P-PF2.5	2.5X, N.A 0.07, W.D 12.2mm, plan POL infinity corrected, unbreakable container for storage
	RNX5P-PF04i	PL4X, N.A 0.13, W.D 30mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PF10i	PL10X, N.A 0.25, W.D 7.0mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PF10ic	PL10X, N.A 0.25, W.D 17mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PF20i	PL20X, N.A 0.40, W.D 3.9mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PF20ic	PL20X, N.A 0.40, W.D 1.2mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PF40i	PL40X, N.A 0.65, W.D 0.65mm, plan POL achromatic, spring loaded, unbreakable container for storage
	RNX5P-PF50i	PL50X, N.A.0.75, W.D.0.37mm, plan POL achromatic spring, loaded
	RNX5P-PF50ic	PL50X, N.A.0.85, W.D.0.30mm, plan POL achromatic spring loaded, oil
	RNX5P-PF50io	PL50X, N.A.0.9, W.D.0.14mm, plan POL achromatic spring loaded, oil
	RNX5P-PF100i	PL100X, N.A 1.25, W.D 0.23mm, plan POL achromatic, oil, spring loaded, unbreakable container for storage
	RNX5P-PF100id	PL100X, N.A 0.85, W.D 0.3mm, plan POL achromatic, dry, spring loaded, unbreakable container for storage
Focusing	RNX5P-F1.0	Coaxial, 2 gear, coarse and fine intermediate focus adjustment knobs (low positioned, both sides) with rack & pinion arrangement, height adjustable with tension control, upper limit stopper, full stroke range 35mm, coarse:10mm per rotation, highly sensitive focus drive with 0.10mm per revolution, fine adjustment 1.0µm/Div. 3 step tension, coarse & fine graduate, sample height upto 35mm.
Condenser	RABC	Centerable abbe condenser N.A. 0.9/0.25, strain-free, sliding-in/swing-out, iris diaphragm, blue filter, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing & DIC.
Analyzer/Polarizer	RNX5PAPOL	360° rotatable polarizer mounted below the condenser with 0°, 45°, 90°, marking built in analyzer with scale removable from optical path, 360°, rotatable with 0.1° L.C. for transmitted illumination for RL/TL
Retarding Plates	RNX5P-RPLT	Compensator Gypsum 1 λ plate, (1st order red compensating plate, 530/560 nanometers) compensator, (Mica 1/4 λ 145 nanometers) & quartz wedge, whole and quarter wave plate
Intermediate Tube	RNX5P-ITUBEB	Removable Bertrand lens, slot for analyzer & compensators, switchable orthoscopic/conoscopic, built-in focusable & centerable Bertrand lens, compatible with 25mm FOV.
Power Supply	RSMPS620	Integrated SMPS based, wide voltage range, 90V-250V, 50/60Hz
Accessories	RCC	Cleaning cloth
	RVC	Vinyl cover
	RAK	Allen keys
	RF5A	Fuses - 2 no's
	MANUAL	Instruction manual
	WARRANTY	Warranty card
	RBF	Blue Filter (frosted & Plain)
	RPC	Power Cord (country Specific)
	RTIS	Lens Cleaning Tissue

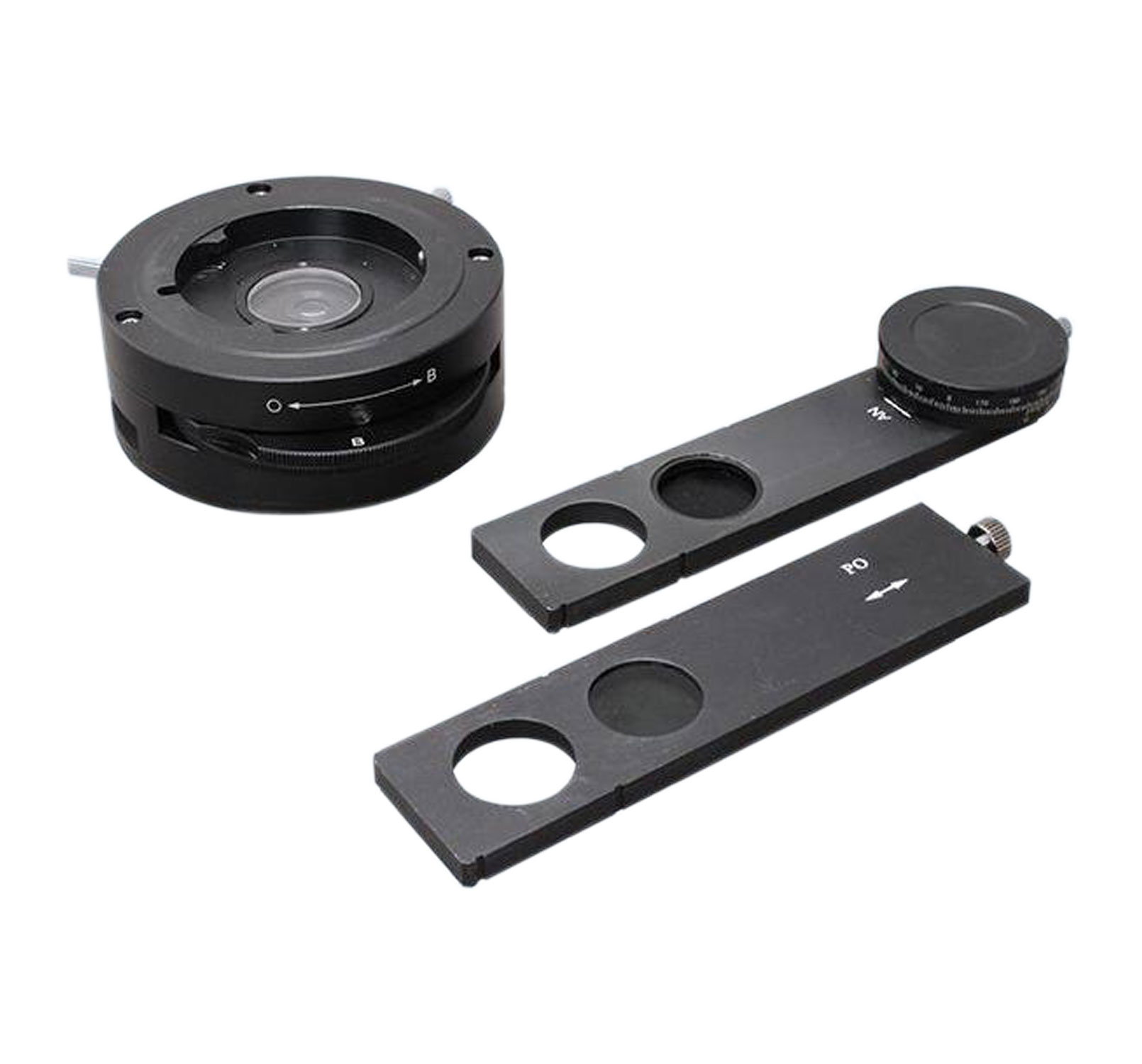

Analyzer/Polarizer

Analyzer/Polarizer	RNX5PAPOLI	Slider having rotatable polarizer analyzer with scale, removable from optical path, 360° rotatable with 0.1° L.C. for reflected illumination
	RXRN4PAPOL	360° Rotatable polarizing mount having 0.1° L.C. Polarizer below the condenser, built in analyzer can be rotate through 45° with scale removable from optical path with calibrated marking
	RNX5PAPOL3	360° rotatable polarizer with rotatable analyzer slider for transmitted & reflected light.
	RNX5PAPOL-TR	360° rotatable polarizer mounted below the condenser with 0°, 45°, 90°, marking built in analyzer with scale removable from optical path, 360°, rotatable with 0.1° L.C. for transmitted illumination for RL/TL., Polarizer slider for reflected ilumination in transmitted light attachment.
	TL-1 (Polarizer)	Mounted below the condenser with scale marking & rotatable 360°, swingout with slot for compensator.
	RL-1 (Polarizer)	Rotatable upto 90° & analyzer slider for incident illumination (click stop) at 0°, 45°, 90°, switchable
	ANA-1 (Analyzer)	Built in Analyzer with scale removable from optical path, rotatable 360° with 0.1° L.C. with focusable Bertrand Lens.
	ANA-5 (Analyzer)	Built in Analyzer with scale removable from optical path, rotatable 180° with scale of 5° vernier. (for Transmitted & Reflected Light)

Body

Part Name	Part Code	Description
Body	RNX5PCXMB	Rugged, single die cast, ergonomic design, touch point treated, intensity controller, on/off switch, rubber feet, Kohler illumination with aperture and field diaphragm, heat protection filter, blue filter (45mm) for white light (4500K)
	RXRN4PMB	Rugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, intensity controller, on/off switch, auto shut off, rubber feet, Kohler illumination with aperture and field Diaphragm, heat protection filter, slot for different compensator, vertical handle & under cut in the front, have cord wrap and cord attachment, blue filter (45mm) for white light (4500K).
	RNX5PMBC	Rugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, intensity controller, on/off switch, rubber feet, Kohler illumination with aperture and field diaphragm, heat protection filter, blue filter (45mm) for white light (4500K),IR sensor (auto cutoff) with adjustable time delay of upto 2 hrs. Integrated 4 segmented LED for oblique illumination (optional)
	RNX5PMBM	Rugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, rubber feet, built in handle, Kohler illumination with aperture and field diaphragm, heat protection filter, Motorized transmitted & reflected light illumination system with fully motorized changeover of contrast methods, with intensity controller, on/off switch, switch over button for RL/TL, built in filter holder, auto off (upto 2 hrs), Diffuser & heat protection filter, constant color intensity while changing the light intensity or objective, fly eye lens (for uniform illumination to entire FOV), light pre-set switch with LCD display blue filter (45mm) for white light (4500K), accidental fog absorbing compatibility, pseudo-plechorism, depolarize, under cut for easy grip, cord wrap, storage facility.
	RNX45PMB	Rugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, intensity controller, on/off switch, rubber feet, Kohler illumination with aperture and field diaphragm, heat protection filter, Transmitted & Reflected Light Illumination System with intensity controller, light preset, inbuilt memory/RAM for memorizing the intensity set for illumination for each objective with LCD display for light intensity level, objective selected, sleep time, illumination I/T, adjustment of 3 step focusing etc

Condenser

Condenser	RCDF	Abbe N.A. 1.25 for Darkfield, separate movement from focusing (rack & pinion)
	RABC-N.A	Centerable abbe condenser N.A. 0.85, Iris diaphragm, filter slot, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing
	RABCP	Centerable achromatic POL aplanatic condenser N.A. 0.9/1.25, strain-free, with switchable condenser top, swing out, adjustable iris & aperture diaphragm, magnification guide, colour coded, blue filter, separate movement from focusing (rack & pinion) suitable for brightfield, polarizing & low magnification, suitable for 2x-100X, swivel-type heads.
	RABCP1	Centerable achromatic POL condenser N.A. 0.9, strain-free, with switchable condenser top, swing out, iris diaphragm, magnification guide, colour coded, blue filter, separate movement from focusing (rack & pinion) suitable for brightfield, polarizing & low magnification, suitable1x-100x.
	RABC-0.18	Centerable abbe condenser N.A. 0.9/0.18, strain-free, swing-in/swing-out, iris diaphragm, blue filter, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing & DIC.
	RABC-1.25	Centerable abbe condenser N.A. 0.9/1.25, strain-free, swing-in/swing-out, iris diaphragm, blue filter, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing & DIC.
	RABC-4	Centerable achromatic & aplanatic condenser N.A. 0.9, strain-free iris diaphragm, filter & polarizer holder, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing, suitable for 2x-100X
	RABC85	Centerable, POL Abbe Condenser N.A. 0.85, Iris diaphragm, filter slot, separate movement from focusing (rack & pinion) suitable for brightfield and polarizing.
	RABC85-i	Centerable, POL abbe condenser N.A. 0.85, iris diaphragm, filter slot, separate movement from focusing (rack & pinion) with 360° degree rotatable polarizer with swinout achromat top lens suitable for brightfield and polarizing.
	RCUC	Universal condenser N.A. 0.9, iris diaphragm with variable disc to correct spherical and chromatic aberration
	RCPH-SL	Abbe N.A. 1.25 for phase (sliding type), upto 4 position, separate movement from focusing (rack & pinion), filter holder
	RCPH-TR	Abbe N.A. 1.25 for Phase (turret type), upto 6 position, separate movement from focusing (rack & pinion), filter holder

C-mount

C-mount	RCMT50X	0.5X Camera Adaptor/Tube/Mount
	RCMT65X	0.65X Camera Adaptor/Tube/Mount
	RCMT70X	0.7X Camera Adaptor/Tube/Mount
	RCMT01X	1X Camera Adaptor/Tube/Mount

Eyepieces

Eyepieces	RNX5P-EP0518	WF 5X, FOV-18mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1018	WF 10X, FOV-18mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1018M	WF 10X, FOV-18mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1018P	WF 10X, FOV-18mm, pointer, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RXRN4P1020	Paired, WF 10X, FOV-20mm, multilayered coated, high quality, antiglare, good contrast, aberration free, aplanatic, precentered, lockable, diopter adjustment and crosshair reticule in one eyepiece, rubber grip, cover, eyeguard and key for orientation
	RNX5P-EP1020	WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1020M	WF 10X, FOV-20mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1020P	WF 10X, FOV-20mm, pointer, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1020CH	Paired, WF 10X, FOV-20mm, with eye guards, multilayered coated, high quality, abrasion free, aplanatic, precentered, lockable, diopter adjustment on both eyepiece. Crosshair reticule and key for orientation in one eyepiece and one eyepiece with micrometer (1/100mm).
	RNX5P-WFEP1022	High eye point 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, with diopter adjustment, focusable & strain free colour correction, eye-guard.
	RNX5P-WFEP1022CH	WF 10X, FOV-22mm, Micrometer (10/100mm) & crosshair and key for orientation, reticule, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable with diopter adjustment
	RNX5P-WFEP1022CHM	Paired, high eye point, WF 10X, FOV-22mm, graticule with crosshair 10x10mm, L.C.1mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable with diopter adjustment with constant focus and automatic Adjustment of right eyepiece with graticule.
	RNX5P-EP1022	Paired, WF 10X, FOV-22mm, with eye guard, multilayered coated, high quality, aberration free, aplanatic, precentered, lockable, diopter adjustment and one eyepiece with crosshair (45° Mark scale) reticule in one eyepiece and key for orientation.
	RNX5P-EP1022M	WF 10X, FOV-22mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, disk dia 27mm
	RNX5P-EP1022P	WF 10X, FOV-22mm, pointer, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1022CH	Paired, WF 10X, FOV-22mm, with eye guards, multilayered coated, high quality, aberration free, aplanatic, precentered, lockable, diopter adjustment (focusable) on both eyepieces. Crosshair reticule and key for orientation in one eyepiece and one eyepiece with micrometer (1/100mm) with eyeguard, suitable for both with or without eye glass wearer.
	RNX5P-EP1022GC	Paired, WF 10X, FOV-22mm, graticule with crosshair 10x10mm, L.C. 1mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable with diopter adjustment
	RXRN4P1022	Paired, WF 10X, FOV-22mm, with eye guard, multilayered coated, high quality, aberration free, aplanatic, precentered, lockable, diopter adjustment (focusable) and crosshair reticule in one eyepiece and key for orientation.
	RXR5P-1023	WF 10X, FOV-23mm, multilayered coated, high quality, antiglare, good contrast, abrasion free, aplanatic, precentered, lockable, eye guard, diopter adjustment and crosshair in one eyepiece, lockable right/left eye tube with soft rubber eyecups, dust caps for all heads. (Q
	RXRN4P1025	Paired, WF 10X, FOV-25mm, Reticle (1/100mm), multilayered coated, high quality, antiglare, eyeguard, good contrast, aberration free, aplanatic, precentered, lockable, constant orientation of cross hair, diopter adjustment and crosshair reticule in one eyepiece and key for orientation.
	RNX5P-1025CM	Paired, WF 10X, FOV-25mm, focusable & adjustable, strain free with color correction, Reticle (10/100mm), multilayered coated, high quality, antiglare, good contrast, aberration free, aplanatic, precentered, lockable, constant orientation of cross hair, diopter adjustment and micrometer scale, crosshair reticule in both eyepiece and key for orientation,with eyeguards.
	RNX5P-EP1025	Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1025M	WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1025P	WF 10X, FOV-25mm, pointer, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP1025CH	Paired, WF 10X, FOV-25mm, focusable & adjustable, strain free with color correction, multilayered coated, high quality, high resolution, antiglare, good contrast, aberration free, aplanatic, precentered, lockable, constant orientation of cross hair, diopter adjustment on both eyepiece and micrometer scale, crosshair reticule in one eyepiece and key for orientation, suitable for both with or without eye glass wearer, with eye piece guards
	RNX5P-EP1515	Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP2010	Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RNX5P-EP-C	Customized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticules, adjustable focusable
	RNX5P-ECUP	Eyecups (pair)

Focusing

Focusing	RXF10	Co-axial, tension control, upper limit stopper, focusing stroke 30mm, high sensitivity focus drive with 0.10 mm per revaluation, fine adjustment 1µm/Div.
	RXF10-D	Co-axial, 3 gear, height adjustable with tension control, upper limit stopper & stage lock, coarse adjustable distance 35mm, Stroke 25mm, high sensitivity focus drive with 0.10mm per revolution/rotation of fine motion, fine adjustment 1.0µm/Div, sample height, upto 50mm, 3step Coarse, medium and fine adjustment by inbuilt stepper motor, 1 and 4 micron, torque adjustable, self adjusting focus mechanism.
	RXF20	Co-axial, tension control, upper limit stopper, coarse stroke 37mm per rotation, highly sensitivity focus drive with 0.20 mm per revaluation, fine adjustment 2µm/Div.
	RXRN4PF25	Coaxial, coarse and fine focus adjustment knobs (low positioned, both sides) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm, highly sensitive focus drive with 0.25mm per revolution, fine adjustment 2.5μm/Div. Upgradable to 35mm stroke range.
	RXRN4PF30	Coaxial, coarse and fine focus adjustment knobs (low positioned, both sides) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm, highly sensitive focus drive with 300 micron per fine focus rotation calibrated in 3-mincron increments.
	RNX5P-F10	Coaxial, 2 gear, coarse and fine intermediate focus adjustment knobs (low positioned, both sides) with rack & pinion arrangement, height adjustable with tension/torque control, upper limit stopper, full stroke range 25mm, coarse:10mm per rotation, highly sensitive focus drive with 0.10mm per revolution, fine adjustment 1.0µm/Div., coarse & fine graduate, sample height upto 35mm.
	RNX5P-F100	Manual Coaxial, coarse and fine focus adjustment knobs (low positioned, both sides) with rack & pinion arrangement, with tension/torque control, upper limit stopper, full stroke range 25mm, fine stroke per rotation 100 µm. Highly sensitive focus drive with 0.10mm per revolution, fine adjustment 1.0µm/Div. sample height upto 35mm.

Fluorescence Attachment

Fluorescence Attachment	RNX5PFL4100	Turret 4 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
	RNX5PFL6100	Turret 6 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
	RNX5PFL6LED	Turret 6 filter holder, LED, std fluorescence filter B & G, others on request.
	RNX5PFL1LED	Single LED with battery backup, std. B fluorescence filter, others on request.

Incident/Reflected Illumination

Incident/Reflected Illumination	RNX5P-RL30	Halogen lamp, 6V/30W std. life 2,000 hrs, inbuilt heat protection filter, turret 4 filter holder, iris diaphragm and aperture diaphragm, central adjustable, intensity controller, having Illumination reflector modules* for BF, DF, POL, DIC/Double beam interferometry etc., with filter slot & polarizing slot with inbuilt filters [normal (day light), frost filter, ND filters: ND8, ND4, ND50, ND25] with external power supply, aperture & field diaphragm, daylight filter & polarizing slider
	RNX5P-RL50	Halogen lamp, 12V/50W std. life 2,000 hrs, inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider
	RNX5P-RL100	Halogen lamp, 12V/100W std. life 2,000 hrs, inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider
	RNX5P-RL10024	Halogen lamp, 24V/100W std. life 2,000 hrs, inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider
	RNX5P-IL4LED	Turret 4 filter holder, iris diaphragm and aperture diaphragm LED/12V-50W Halogen illumination, life 65000 Hrs., central adjustable, intensity controller, having Illumination reflector modules* for BF, DF, POL etc, with filter slot & polarizing slot with inbuilt filters [normal (day light), frost filter, ND filters: ND50, ND25] BF mirror
	RNX5P-IL3LED	Reflector Turret 3 filter holder, iris diaphragm and aperture diaphragm LED equivalent to 12V-50W Halogen illumination, central adjustable, intensity controller, LED life 30, 000 Hrs. having illumination reflector modules* for BF, DF, POL etc, with filter slot & polarizing slot with inbuilt filters [normal (day light), frost filter, ND filters: ND50, ND25] BF mirror, Removable Bertrand lens, slot for analyzer & compensators, switchable orthoscopic /conoscopic, built-in focusable & centerable Bertrand lens
	RNX5P-IL3100	Turret 3 position filter holder, iris diaphragm and aperture diaphragm,central adjustable, having reflector modules* for BF, DF, POL etc, with filter slot & polarizing slot with inbuilt filters [normal (day light), frost filter, ND filters: ND50, ND25]BF mirror, halogen lamp, 12V/100W std. life 2,000 hrs, inbuiltheat protection filter
	RNX5P-IL4100	12V/100W Halogen lamp, turret 4 filter holder, iris diaphragm and aperture diaphragm, central adjustable, having reflector modules* for BF, DF, POL etc, with filter slot & polarizing slot with inbuilt filters [normal (day light), frost filter, ND filters: ND50, ND25] BF mirror & adaptor to attach up to 2 reflected light source simultaneously, inbuilt heat protection filter & diffuser, field stop, Oblique illumination, optical light path selector, reflector for reflected light is removable from light path, per-centered lamp house.
	RNX5P-DE50	Diascopic/Episcopic 12V-50W halogen lamp illumination with changeover switch having in-built SMPS based power supply, Fly-eye lens for uniform illumination in entire field, provision for built in filters ( NCB11, ND8 etc).optionally eco illumination sensor which detects presence of user in front of microscope to automatically switch on or off microscope illumination.
	RNX45P-IL4L-H	10W LED with life of 30,000 hrs., turret 4 filter holder, iris diaphragm and aperture diaphragm (center adjustable), polarizing & filter slot, having reflector modules* for BF, DF, POL etc
	RXR4NP-L3W-TL-L3	Uniform colour white LED 3W, life 30000 hrs., lumens Transmitted equivalent 20W halogen Light
	RNX5P-H30TL	Halogen 6V-30W, life 2000 hrs. inbuilt heat illumination protection filter, aperture & field diaphragm, daylight filter & polarizer, inbuilt heat protection filter, adjustable light intensity.
	RNX5P-H30RL	Halogen 6V-20W, life 2000 hrs.
	RNX5P-L3WRLL3	Kohler illumination uniform colour (white) LED 3W, life 30000 hrs., lumens equivalent 50W halogen
	RNX5P-LBBRL	Battery backup from 2-12 hours for LED (internal/external)
	RNX5P-L5WRL3	LED 5W, life 30000 hrs., lumens equivalent 50W halogen
	RNX5P-L3W-RLL6	LED 3W life 65000 hrs., Lumens equivalent 20W halogen
	RNX5P-L3W-RLL8	LED 3W life 82000 hrs., Lumens equivalent 20W halogen
	RNX5P-L5W-RLL6	Built-in Kohler illumination uniform colour (white) LED 5W life 65000 hrs., Lumens equivalent 50W halogen, constant color temperature, centrable, aperture & field diaphragm discs, inbuilt controller for light intensity, 4 Position turret for reflector with upto 4 mirror cubes for BF, DF & DIC Attachment etc., Oblique illumination, Smith Reflector module, optical light path selector, per-centered lamp house, slot for DIC & Pol, polarizer & analyser, Eco energy saving auto cut Off, fly eye lens (for uniform illumination to entire FOV), built-in filters, Suitable for BF/DF/DIC/POL, separate lamp housing, dedicated polaring reflector, reflected light axis with built-in quartz plate to avoid pseudo-plechorism.
	RNX5P-L5W-RLL6-AO	Kohler illumination for Transmitted Light, uniform colour (white) LED 5W life 65000 hrs., constant color temperature 4500k, light intensity controller, with built-in and adjustable aperture and field diaphragm, lumens equivalent 50W Halogen, Eco energy saving auto cut Off, fly eye lens (for uniform illumination to entire FOV), built-in filters, Suitable for BF/DF/DIC/POL.
	RNX5P-L10W-RLL6	Built-in Kohler illumination uniform colour (white) LED 10W life 65000 hrs., Lumens equivalent 50W halogen, constant color temperature, centrable, aperture & field diaphragm discs, inbuilt controller for light intensity, 4 Position turret for reflector with upto 4 mirror cubes for BF, DF, FL & DIC Attachment etc., Oblique illumination, optical light path selector, per-centered lamp house, slot for DIC, polarizer & analyser, Eco energy saving auto cut Off, fly eye lens (for uniform illumination to entire FOV), built-in filters, Suitable for BF/DF/DIC/POL/FL, dedicated polarizing reflector.
	RNX5P-L15W-RL	Kohler illumination uniform colour (white) LED 15W life 65000 hrs., Separate lamp house for TL & RL with quartz collector, Lumens equivalent 100W halogen, constant color temperature, pre-centered, aperture & field diaphragm discs, automatic light intensity controller, color coded aperture and diaphragm control, fly eye lens (for uniform illumination to entire FOV), switchable orthoscopic/conoscopic, switchover from transmitted to incident or vice-versa, motorized built-in focusable & centerable Bertrand lens, Diffuser & heat protection filter, Suitable for BF/DF/DIC/POL.
	RNX5P-L15W-RLL6-AO	Kohler illumination for Reflected Light illuminator, incorporates, 4 fold turret, color coded diaphragm, uniform colour LED 15W life 65000 hrs., constant color temperature 4500k, light intensity controller, with built-in and adjustable aperture and field diaphragm, lumens equivalent 50W Halogen, Oblique illumination, Smith Reflector module, optical light path selector, per-centered lamp house, slot for DIC, polarizer & analyser, dedicated polaring reflector, reflected light axis with built-in quartz plate to avoid pseudo-plechorism, Mirror & plane face glass splitter (2x22.5°) with lens, Eco energy saving auto cut Off, fly eye lens (for uniform illumination to entire FOV) built-in filters, Suitable for BF/DF/DIC/ POL.
	RNX5P-L5W-RLL8	LED 5W life 82000 hrs., Lumens equivalent 50W halogen
	RNX5P-L-C-RLL1	Extra long life LED upto 1,00,000 hrs 3W/5W
	RNX5P-L3WTLL14	Uniform colour LED 14W, life 30000 hrs., with internal power supply, Illumination and built in lamp house with micro prism lenses for uniform illumination throughout the entire field of view
	RNX5P-SOLARRL	Solar power battery charger for LED
	RNX5P-ACUT-RL	Auto-cutoff

Mechanical Stage

Mechanical Stage	RNX5P-MS190M	Large Circular, hard coated Ceramic and anodized, rotary metal stage, dia. 190mm, laser engraved, graduated 360° rotatable, 1° increment, stage lock, (brake), minimum resolution 6 min, with click stop at 45° increments, sample height upto 50mm, provision for fixing stage clips; attachable mechanical XY travel range 40x30mm, object guide with vernier on 02 sides to 0.1mm including interchangeable resting buttons (0.1, 0.3, 0.4, 1.0 & 2.0mm) centrable, adjustable break, object count attachment, boreholes for accessories, interchangeable dovetail, suitable for different slide formats.
	RNX5P-MS-C	Large circular rotary stage, dia. upto 200mm-customized, 360° horizonatally rotatable, with 1° interval, precise vernier scale of 0.1° with click stop at 45° increments. provision for fixing stage clips; attachable mechanical XY travel range 35x25mm, object guide with vernier 0.1mm, centrable
	RNX5P-MS-1	Large circular rotary stage, dia.190mm, 360° horizonatally rotatable, with 1° interval, precise vernier scale of 0.1° with click stop at 45° increments. provision for fixing stage clips; attachable mechanical XY travel range 30x40mm, object guide for point counting with 2 vernier 0.1mm and X-Y centrable
	RNX45P-MS160	Large circular rotary metal stage, dia. 160mm, graduated 360° stage rotatable, 1° increment, stage lock (brake), minimum resolution 6min, with click stop at 45° increments. provision for fixing stage clips; attachable mechanical XY travel, object guide with vernier 0.1mm, centrable
	RXRN4P-MS-1	Large circular rotary stage(lockable), dia. 175mm-, 360° rotatable, with 1° interval, precise vernier scale of 0.1° with click stop at 45° increments. provision for fixing stage clips attachable mechanical XY travel, object guide with Vernier 0.1mm, centrable
	RXRN4P-MS-2	Trinocular, ergo head, tilting 0° to 40°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepiece, port for camera attachment, 3 position beam splitting ratio 100:0, 50:50, 0:100, FOV upto 25mm.

Micrometer/Calibration slide

Micrometer/Calibration slide	RCS10	Micrometer slide for calibration, 1mm with 10µm least count
	RCS100	Micrometer slide for calibration, 10mm with 100µm least count

Nosepieces

Nosepieces	RNX5P-4N	Inward tilted, interchangeable precise quadruple revolving, ball bearing with slot for DIC/Pol/Ana, centreable
	RXRN4P4N	Objective centrable reverse quadruple nosepiece, revolving on multiple ball bearing.
	RNX5P-5N	Removable inward tilted, interchangeable precise quintuple revolving, ball bearing with slot for DIC/Pol/Ana & compensators, centreable slots, detachable with DIN slot
	RNX45P-5NC	Coded & centerable inward tilted, interchangeable precise quintuple revolving, ball bearing with slot for DIC/Pol/Ana, centreable slots, having light intensity memory function
	RNX5P-6NC	Inward tilted, interchangeable precise coded (light intensity manager) sextuple revolving on multiple ball bearing, click stop mechanism for smooth and accurate alignment, having ribbed grip for easy rotation slot for Ana/Pol/DIC & compensators for Bright Field & polarizer application.
	RNX5P-6NM	Inward tilted, interchangeable precise sextuple revolving motorized, ball bearing with slot for Pol/Ana, centrable

Objectives

Objectives	RNX5P-PL2.0i	LWD PL2.0X, N.A. 0.1, W.D. 8.5mm, plan POL achromatic, infinite, unbreakable container for storage
	RNX5P-PL2.5i	PL2.5X, N.A. 0.1, W.D. 30mm, plan POL achromatic, infinite, unbreakable container for storage
	RNX5P-PL2.5ib	PL2.5X, N.A. 0.07, W.D. 11mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PL5i	PL5X, N.A. 0.16, W.D. 20.5mm, plan POL achromatic, infinite, unbreakable container for storage
	RNX5P-PL5c	PL5X, N.A. 0.12, W.D. 14mm, plan POL achromatic, infinite, unbreakable container for storage
	RNX5P-PL10i	LWD PL10X, N.A 0.30, W.D 7.0mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PL20i	LWD PL20X, N.A 0.40, W.D 10mm, plan POL achromatic, infinite, unbreakable container for storage
	RNX5P-PL20ib	PL20X, N.A 0.40, W.D 1.15mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PL40ib	PL40X, N.A 0.65, W.D 0.36mm, plan POL achromatic, spring loaded, unbreakable container for storage
	RNX5P-PL50i	PL50X, N.A. 0.80, W.D. 0.41mm, plan POL achromatic, infinite, spring loaded, unbreakable container for storage
	RNX5P-PL50ie	LWD PL50X, N.A.0.50, W.D.8mm, plan POL achromatic spring, loaded, unbreakable container for storage
	RNX5P-PL63i	PL63X, N.A. 0.85, W.D. 0.30mm, plan POL achromatic, infinite, spring loaded, unbreakable container for storage
	RNX5P-PL100i	PL100X, N.A. 1.25, W.D. 0.13mm, plan POL achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
	RNX5P-PL100ie	LWD PL100X, N.A. 0.75, W.D. 3mm, POL SAPO, infinite, dry, spring loaded, unbreakable container for storage
POL Plan Achromatic	RXR5NXP01.25C	1.25X, N.A 0.05, W.D 13mm, plan POL infinity corrected, with cover glass corrected
	RXR5NXP02.5C	2.5X, N.A 0.05, W.D 13mm, plan POL infinity corrected, with cover glass corrected
	RXR5NXP04i	4X (POL), N.A 0.10, W.D 30mm, plan achromatic, infinite, unbreakable container for storage
	RXR5NXP5CC	PL5X, N.A. 0.16, W.D. 20.5mm, plan POL achromatic, infinite, with cover glass corrected
	RXR5NXP10i	10X (POL), N.A 0.25, W.D 12.0mm, plan achromatic, infinite, unbreakable container for storage
	RXR5NXP20i	20X (POL), N.A 0.45, W.D 2.1mm, plan achromatic, infinite, unbreakable container for storage
	RXR5NXP40i	40X (POL), N.A 0.65, W.D 0.65mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
	RXR5NXP50i	50X (POL), N.A 0.85, W.D 0.3mm, plan achromatic, infinite, oil immersed, unbreakable container for storage
	RXR5NXP100i	100X (POL), N.A 1.25, W.D 0.20, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
Phase Objectives	RNX5P-PH04i	PH4X, N.A. 0.10, W.D. 30mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PH10i	PH10X, N.A. 0.25, W.D. 6.1mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PH20i	PH20X, N.A. 0.4, W.D. 2.10mm, plan POL achromatic, unbreakable container for storage
	RNX5P-PH40i	PH40X, N.A. 0.65, W.D. 0.65mm, plan POL achromatic, spring loaded, unbreakable container for storage
	RNX5P-PH60i	PH60X, N.A. 0.80, W.D. 0.30mm, plan POL achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
	RNX5P-PH63i	PH63X, N.A. 0.84, W.D. 0.28mm, plan POL achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
	RNX5P-PH100i	PH100X, N.A. 1.25, W.D. 0.18mm, plan POL achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
SEMI APO/Flotar/Fluor Objectives	RNX5P-SAPO1.6	1.6X, N.A. 0.05, W.D. 3.4mm, POL SAPO/Fluor, infinity corrected, unbreakable container for storage
	RNX5P-SAPO01.25i	1.25X, N.A. 0.04, W.D. 3.0mm, POL SAPO, unbreakable container for storage
	RNX5P-SAPO2.5i	2.5X, N.A. 0.08, W.D. 10.7mm, POL SAPO/Fluor, unbreakable container for storage
	RNX5P-SAPO04i	4X, N.A. 0.15, W.D. 17.1mm, POL SAPO, unbreakable container for storage
	RNX5P-SAPO05i	5X, N.A. 0.15, W.D. 12mm, POL SAPO/Fluor, unbreakable container for storage
	RNX5P-SAPO05ib	5X, N.A. 0.15, W.D. 13.7mm, POL SAPO/Fluor, unbreakable container for storage
	RNX5P-SAPO05iw	5X, N.A. 0.15, W.D. 23mm, POL SAPO, unbreakable container for storage
	RNX5P-SAPO10i	10X, N.A. 0.3, W.D. 17.3mm, POL SAPO/Fluor, unbreakable container for storage
	RNX5P-SAPO10ib	10X, N.A. 0.3, W.D. 11mm, POL SAPO/Fluor, unbreakable container for storage
	RNX5P-SAPO20i	20X, N.A. 0.5, W.D. 4.5mm, POL SAPO/Fluor, unbreakable container for storage
	RNX5P-SAPO20io	20X, N.A. 0.75, W.D. 0.33mm, POL SAPO, infinite, oil immersed, unbreakable container for storage
	RNX5P-SAPO40i	40X, N.A. 0.75, W.D. 0.72mm, POL SAPO, spreing loaded, unbreakable container for storage
	RNX5P-SAPO50i	50X, N.A. 0.8, W.D. 1mm, POL SAPO, spring loaded, unbreakable container for storage
	RNX5P-SAPO50io	50X, N.A. 0.9, W.D. 0.14mm, POL SAPO/Fluor, oil, unbreakable container for storage
	RNX5P-SAPO60i	60X, N.A. 0.80, W.D. 0.3mm, POL SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
	RNX5P-SAPO60io	60X, N.A. 0.90, W.D. 0.3mm, POL SAPO, oil immersed, spring loaded, unbreakable container for storage
	RNX5P-SAPO63i	63X, N.A. 0.85, W.D. 0.28mm, POL SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
	RNX5P-SAPO100i	100X, N.A. 1.3, W.D. 0.20mm, POL SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
	RNX5P-SAPO100id	100X, N.A. 0.9, W.D. 1mm, POL SAPO, infinite, dry, spring loaded, unbreakable container for storage
APO Objectives	RNX5P-APO02i	2X, N.A. 0.1, W.D. 8.5mm, POL APO, unbreakable container for storage
	RNX5P-APO04i	4X, N.A. 0.20, W.D. 15.7mm, POL APO, unbreakable container for storage
	RNX5P-APO10i	10X, N.A. 0.45, W.D. 4mm, POL APO, unbreakable container for storage
	RNX5P-APO20i	20X, N.A. 0.75, W.D. 1.0mm, POL APO, unbreakable container for storage
	RNX5P-APO40i	40X, N.A. 0.95, W.D. 0.14mm, POL APO, spring loaded, unbreakable container for storage
	RNX5P-APO40i-O	40X (Oil), SL, N.A. 1.0, W.D. 0.16mm, POL APO, spring loaded, unbreakable container for storage
	RNX5P-APO60i-D	60X, DRY, N.A. 0.95, W.D. 0.15mm, POL APO, infinite, spring loaded, unbreakable container for storage
	RNX5P-APO60i-O	60X, Oil, N.A. 1.0, W.D. 0.2mm, POL APO, infinite, oil immersed, spring loaded, unbreakable container for storage
	RNX5P-APO63i	63X, N.A. 0.89, W.D. 0.28mm, POL APO, infinite, oil immersed, spring loaded, unbreakable container for storage
	RNX5P-APO100i-D	100X, Dry, N.A. 0.9, W.D. 0.30mm, POL APO, infinite, spring loaded, unbreakable container for storage
	RNX5P-APO100i-O	100X, Oil, N.A. 1.4, W.D. 0.20mm, POL APO, infinite, oil immersed, spring loaded, unbreakable container for storage.
		Please click for More Objectives...

Optical System

Optical System	RNX5PiOSi	Universal infinite optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parfocal distance (45/60mm)

Power supply

Power supply	RTF620	Integrated 6V-20W Transformer based, wide voltage range, 90V-250V, 50/60Hz,
	RTF630	Integrated 6V-30W Transformer based, wide voltage range, 90V-250V, 50/60Hz,
	RSMPS630	Integrated SMPS based, wide voltage range, 90V-250V, 50/60Hz
	RPSLED	LED power supply, wide voltage range, 90V-250V, 50/60Hz
	RSMPSBI	Built-in integrated

Packing

Packing	RWBX	Wooden box with separate container for accessories, lock & key, carrying handle
	RSTYRO	Standard Styrofoam packing

Transmitted Illumination

Transmitted Illumination	RNX5P-H20TL	Halogen 6V -20W, life 2000 hrs.
	RNX5P-H50TL	Halogen 12V -50W, life 2000 hrs.
	RNX5P-TL30	Halogen lamp, 6V/30W std. life 2,000 hrs, inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider, adjustable light intensity & variable light control.
	RNX5P-TL100	Halogen lamp, 12V/100W std. life 2,000 hrs, inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider
	RNX5P-TL10024	Halogen lamp, 24V/100W std. life 2,000 hrs, inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider
	RNX5P-L3WTLL3	Kohler illumination uniform colour LED 3W, life 30000 hrs., lumens equivalent 50W Halogen
	RNX5P-L3W-TLL6	Uniform colour LED 3W life 65000 hrs., light intensity controller, with aperture and diaphragm control lumens equivalent 20W Halogen
	RNX5P-L3W-TLL8	Uniform colour LED 3W life 82000 hrs., lumens equivalent 20W Halogen
	RNX5P-L3WTLL10	Uniform colour LED 10W, life 30000 hrs., with internal power supply, Illumination and built in lamp house with micro prism lenses for uniform illumination throughout the entire field of view
	RNX5P-L5WTLL3	Uniform colour LED 5W, life 30000 hrs., lumens equivalent 50W Halogen
	RNX5P-L5W-TL-RL	Kohler illumination uniform colour (white) LED 5W life 65000 hrs., Seperate lamp house for TL, RL, Lumens equivalent 50/100W halogen, constant color temperature, centrable, aperture & field diaphragm discs, Oblique illumination, light intensity controller, color coded aperture and diaphragm, fly eye lens (for uniform illumination to entire FOV), switchable orthoscopic/conoscopic swithover from transmitted to incident or vice-versa, built-in focusable & centerable Bertrand lens, Suitable for BF/DF/DIC/POL.
	RNX5P-L5W-TLL6	Built-in Kohler illumination uniform colour (white) LED 5W life 65000 hrs., lumens equivalent 100W Halogen, Suitable for BF/POL/DIC etc, separate lamp housing.
	RNX5P-L5W-TLL6-AC	Kohler illumination for Transmitted Light, uniform colour (white) LED 5W life 65000 hrs., constant color temperature 4500k, light intensity controller, with built-in and adjustable aperture and field diaphragm, lumens equivalent 50W Halogen, Eco energy saving auto cut Off, Suitable for BF/POL/DIC etc, diffuser disk, exchangeable LED Lamp.
	RNX5P-L10W-TL-RL	Kohler illumination uniform colour (white) LED 10W life 65000 hrs., Separate lamp house for TL, RL, Lumens equivalent 50/100W halogen, constant color temperature, centrable, aperture & field diaphragm discs, Oblique illumination, light intensity controller, color coded aperture and diaphragm, fly eye lens (for uniform illumination to entire FOV), switchable orthoscopic/conoscopic swithover from transmitted to incident or vice-versa, built-in focusable & centerable Bertrand lens, Suitable for BF/DF/DIC/POL.
	RNX5P-L15W-TLL6-AC	Kohler illumination for Transmitted Light, uniform colour (white) LED 15W life 65000 hrs., constant color temperature 4500k, light intensity controller, with built-in and adjustable aperture and field diaphragm, lumens equivalent 50W Halogen, Eco energy saving auto cut Off, Suitable for BF/POL/DIC etc.
	RNX5P-L15W-TL	Kohler illumination uniform colour (white) LED 15W life 65000 hrs., Separate lamp house for TL & RL with quartz collector, Lumens equivalent 100W halogen, constant color temperature, pre-centered, aperture & field diaphragm discs, automatic light intensity controller, color coded aperture and diaphragm control, fly eye lens (for uniform illumination to entire FOV), switchable orthoscopic/conoscopic, switchover from transmitted to incident or vice-versa, motorized built-in focusable & centerable Bertrand lens, Diffuser & heat protection filter, Suitable for BF/DF/DIC/POL.
	RNX5P-L5W-TLL8	Uniform colour LED 5W life 82000 hrs., lumens equivalent 50W Halogen
	RNX5P-L-C-TL	Extra long life LED upto 1,00,000 hrs 3W/5W
	RNX5P-LBBTL	Battery backup from 2-12 hours for LED (internal/external)
	RNX5P-ACUTTL	Auto-cutoff
	RNX5P-SOLARTL	Solar power battery charger for LED

Viewing Head

Viewing Head	RNX5P-BST30	Binocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 47-76, with constant focus, diopter adjustment on one eyepiece, with FOV of upto 25mm
	RNX5P-BST30C	Binocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece. Orientation of eyepiece (crosshair) remain same while adjusting IPD (in right eye tube)
	RNX5P-BST45	Binocular inclined at 45°, siedentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece
	RNX5P-TST30C	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece, eyepiece locking mechanism, Orientation key in one eye tube for crosshair reticule eyepiece. Port for Camera attachment.
	RNX5P-TST-2P50	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece, port for camera attachment, splitting ratio 50(EP):50 (camera) F.O.V. upto 25mm
	RNX5P-TST-2P50-1	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-75, with constant focus, diopter adjustment on one eyepiece, eyepiece locking mechanism, port for camera attachment, splitting ratio 50(EP):50 (camera) F.O.V. upto 25mm.
	RNX5P-TST-2P50i	Trinocular head inclined at 30°, sidentopf head, rotatable through 360°, IPD 55-75mm, with constant focus, diopter adjustment on one eyepiece,automatic adjustment on right eyepiece, port for camera attachment, splitting ratio 50(EP):50 (camera) F.O.V. upto 25mm
	RNX5P-TST-2P80	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece, port for camera attachment, splitting ratio 20(EP):80 (camera)
	RNX5P-TST-3P50	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 47-76, with constant focus, diopter adjustment on one eyepiece, port for camera attachment, 3 position splitting ratio 100:0, 50:50, 0:100, with FOV of upto 25mm
	RNX5P-TST-3P80	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece, port for camera attachment, splitting ratio 100:0, 20:80, 0:100
	RNX45P-TST-2P50	Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD – from 47-76, with constant focus, diopter adjustment on one eyepiece, port for camera attachment, 2 position light path, splitting ratio 100:0, 50:50, with FOV of up to 25mm
	RNX5P-TST-CAMU	Trinocular head inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 47-76, with constant focus, diopter adjustment on one eyepiece, with integrated 5MP HDMI camera with SD card slot, USB port and Ethernet port, software included for pc
	RXR4NP-TST-30-C50	Trinocular inclined at 30°, siedentopf head, rotatable Head through 360°, IPD - from 48-76, diopter adjustment on one or both eyepiece, port for camera attachment, splitting ratio 50(EP):50(camera)
	RNX5P-DIP2	Additional diopter on both eyepieces.

Magnification	RNX5P-CHG	Magnification changer 1x, 1.5/1.6x or 2x
	RNX5P-CHG-C	Coded Magnification Changer/tube optics 1x, 1.5/1.6x or 2x
Multi Head Attachment	RXR5P-5H	Multi head attachment for 1 main observer and 4 viewers having uniform light distribution, same field of view, image alignment at all head with support legs & leg extension
	RXR5P-10H	Multi head attachment for 1 main observer and 9 viewers having uniform light distribution, same field of view, image alignment at all head with support legs & leg extension, with power supply & power cord.
Pointer	RXR5P-1PTR	1 colour(green) LED pointer, 360° rotatable, moveable with joystick, intensity adjustable.
Retarding Plates	RXRN4P-RPLT	Compensator Gypsum 1 λ plate, (1st order red compensating plate, 560 nanometers) (Mica 1/4 λ 145 nanometers) & quartz wedge in metallic mount of 12mmx4mm
Intermediate Tube	RXRN4P-ITUBEB	Removable Bertrand lens, slot for analyzer & compensators, switchable Orthoscopic/Conoscopic, photometer, built-in & focusable Bertrand lens.
	RXRN5P-ITUBEB	Removable Bertrand lens, slot for analyzer & compensators, switchable Orthoscopic/ Conoscopic, photometer, built-in centerable & focusable Bertrand lens.
Heating Stage	RHS50	Biotherm heating stage
Filters	RGF	Green plane or frosted
Centering Tube	RCTUBE	Centering objective for fluorescence observation
Immersion oil	RIO100	High quality immersion oil 100ml
Cleaning Kit	RCLEAN	Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution
Room Temp.		25°±10°C & R.H. 30% to 60%, non-condensing.
Graticule/ MicrometerCalibration slide		a. Graticule crossline 10mm=100div., Approx. 26mm (2 piece) b. Micrometer scale /slide for calibration, 10 div. (1mm) with 10µm least count c. Stage micrometer: 1mm=100div.
Filter		Yellow Filter
DIC/Plas DIC Kit	RXR5NXDICKIT	DIC kit including condensor/objectives(prisms/polarizer)
	RIAADIC	Analyser for DIC
	RIAPDIC	Polarizer for DIC
Special Insert		Smith Reflector
		Neutral density filter
		Quartz-depolarizer
Intermediate Tube	RNX5P-ITUBEB-C	Advanced Coded Conoscopic module with grain suppression up to 10 μm, with quartz plate, iris diaphragm, Removable Bertrand lens, slot for analyzer & compensators, switchable orthoscopic/conoscopic, built-in focusable & centerable Bertrand lens, compatible with 25mm FOV.

Advanced Research Polarizing Microscope RXLr-5NX POL

PRODUCT CATEGORIES

Other Links

RXLr-5NX POL

Educational Microscopes

Laboratory Clinical Microscopes

Medical Research Microscopes

Microscope Cameras

Industrial Microscopes

Advanced Microscopy System

Camera Control Software

Material Science Software

Life Sciences Software

Infrared Thermography

Metrology & Metallurgy

About Radical

Support

Contact Info
