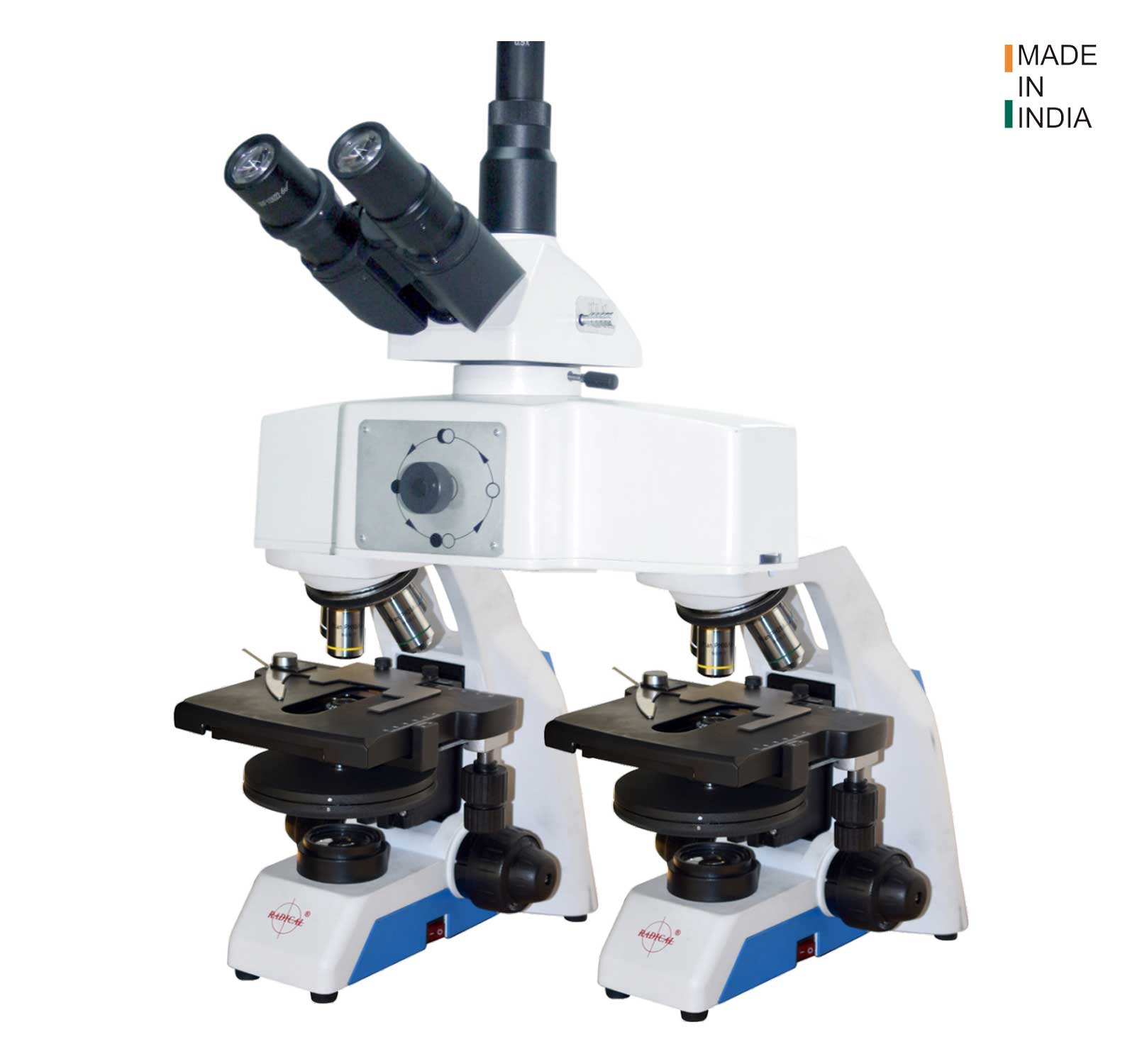

RBCM-505T Series
Radical Forensics Biological Comparison Microscopes were developed about three decades in
consultation with the leading scientist & criminologists of world repute, their after the instruments are being continually updated.
Comparison Microscope are the advanced & versatile instrument invented for comparative micro study in forensics science, for instance, comparison of fibre, hair, pathological samples etc. The comparison microscope is an ideal instrument for the criminal investigation of material evidence, authenticated and education at police technical section and also suitable for other departments which need object comparison. By means of this sophisticated instrument, two micro samples, can be studied under eyes as well as on monitor screen. It combines the latest opto-mechanical developments in light microscopy.
| Body | Upright microscope mounted on heavy and rugged metal base attached with a comparison bridge to split/superimpose the images of microscopes, suitable for BF/DF/PH & POL applications. |
|---|---|
| Optical system | Optical system having facility for Full image, split image as well as super imposed image for comparison |
| Illumination | Reflected, transmitted (top & bottom) and inclined LED 5W, high Brightness,Brightness Adjustable, life 50,000 hrs. lumens equivalent 100W halogen having 4500K constant colour temperature, white light with aperture & field diaphragm, separate intensity controllers & ON/OFF switches. (cordless illumination) |
| Viewing Head | Sidentopf upright trinocular head 30°, IPD 48-75mm with side corrected image with comparison bridge, field of view 18mm, switchable 100% left image, 100% right image, height adjustable. |
| Mechanical Stage | Double, gliding stage plate, rectangular right/ left hand low drive control, coaxial movement knob, Wear resistant stage with silver (Ag) treated, horizontal, hard coating, double slide holder, stage size 140x 150mm, X-Y movement 50-76mm on wire,smooth positioning system to enable cell tracking at high magnification & precise for accurate comparative analysis, precision 0.1mm vernier scale with stainless steel holder, one touch stage clips, ball bearing mechanism with friction & jerk free movement. |
| Nosepiece | Inward Facing Quarduple Nosepiece. |
| Eyepiece | Wide Field 10x/ FOV18mm, paired |
| Bridge | Full right and left image, split and superimposed |
| Objectives | 4x, 10x,40x, 100x SL (oil) infinity corrected Micro objectives, flat field, strain free & having anti-reflection coating. LWD Infinity Macro objectives 1x, aberration corrected. |
| Focusing | Co-axial, tension control, upper limit stopper, focusing stroke 30mm, high sensitivity focus drive with 0.10mm per revaluation, fine adjustment 1μm/Div. |
| Condenser | Sub -stage abbe condenser N.A 0.65 with aspheric lens (light relay) for brightfield, Prerendered & Pre-focused uniform illumination for entire FOV, separate movement on ball bearing guideways from focusing (rack & pinion) , metal guide with iris diaphragm having center adjustable, removable filter holder. |
| Power Supply | Integrated SMPS based, wide voltage operating range, 90V-240V, 50/60Hz. |
| Accessories | Cleaning cloth, Vinyl cover, Allen keys, Fuses - 2 no's, Specimen cup and Contrast plate, Power Cord (country specific), Instruction manual, Warranty card, Lens Cleaning Tissue, suitable C-Mount Adapter. |
