Universal Magnascope
RBM-110

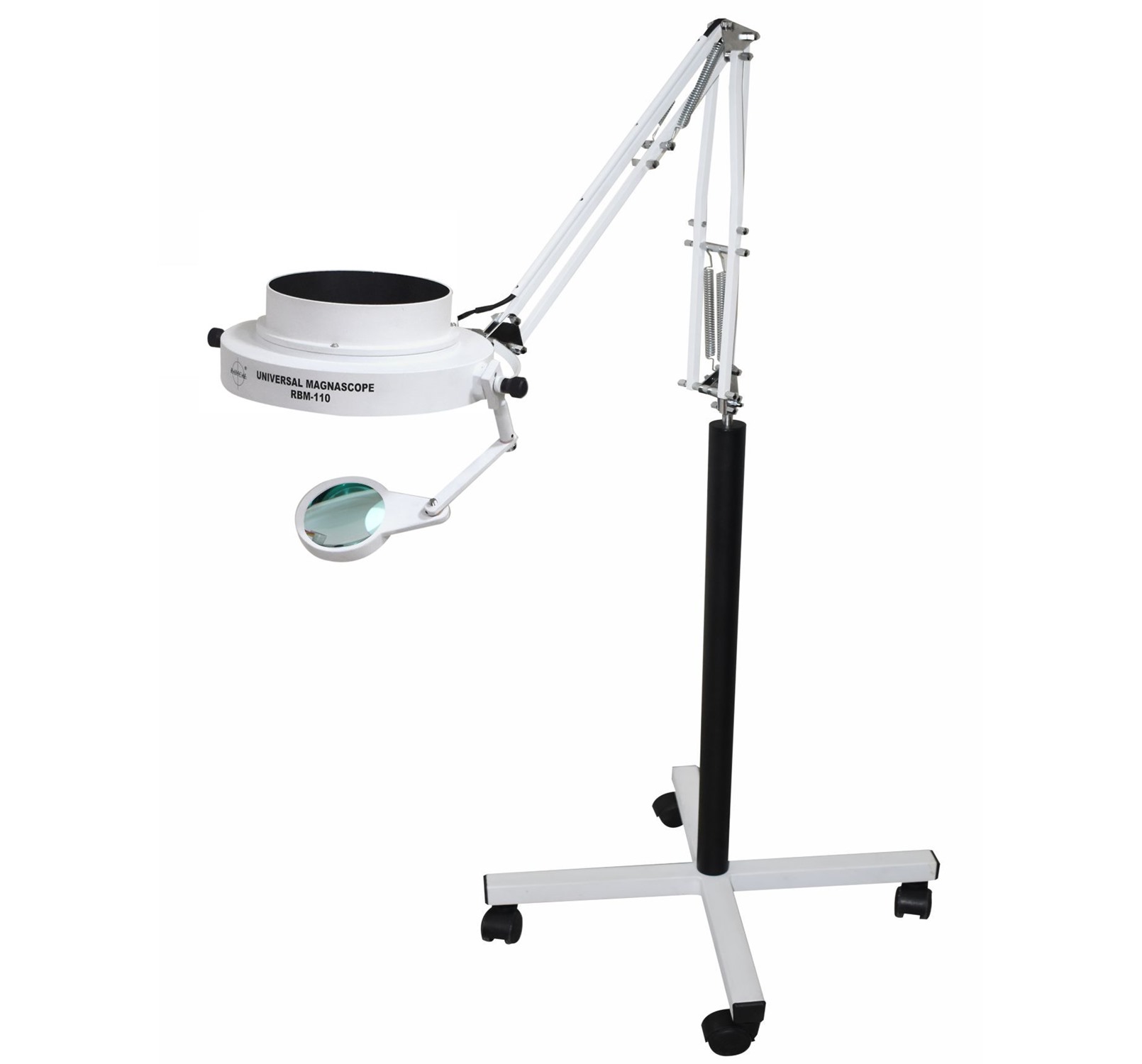

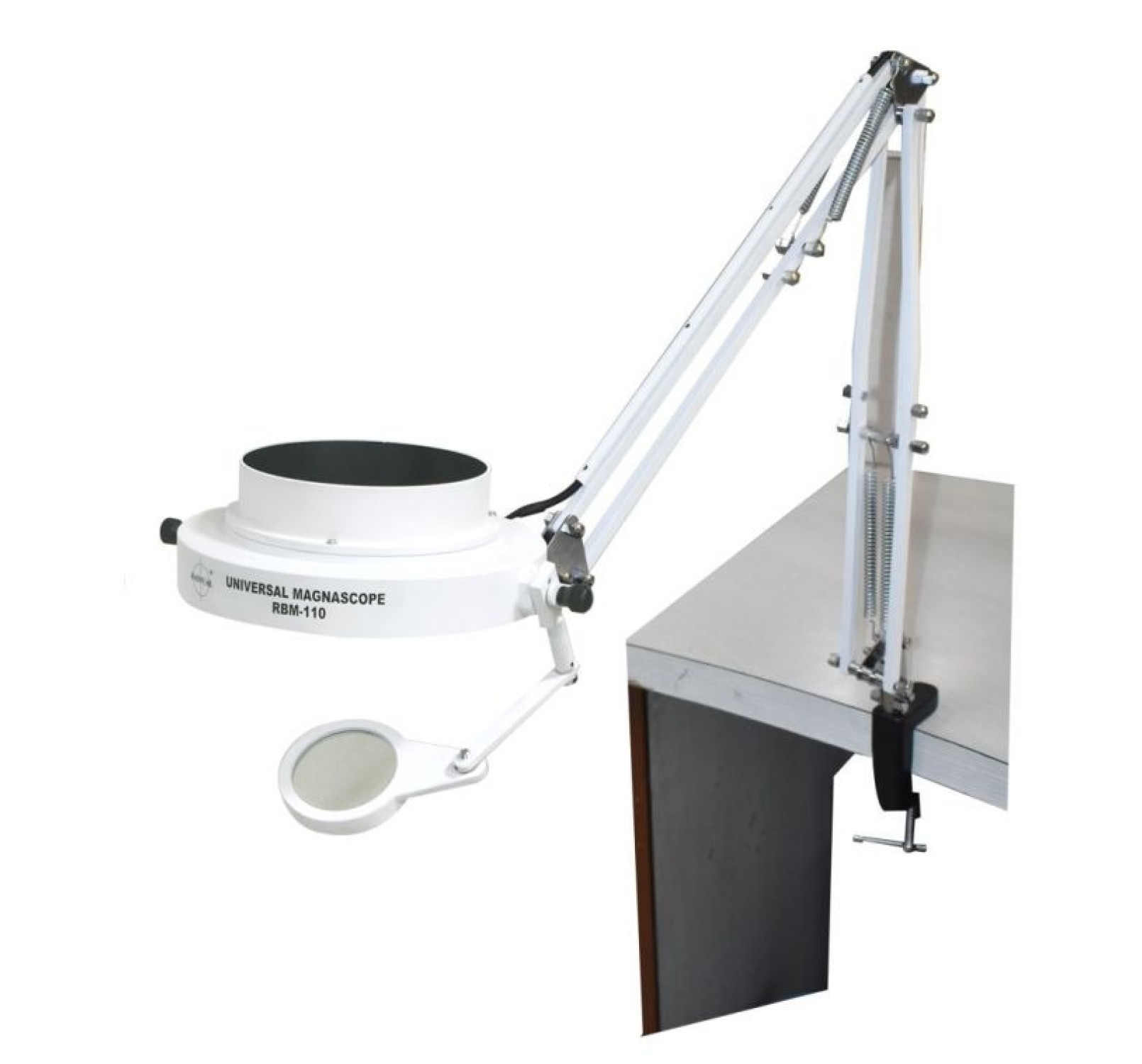

'RADICAL' Universal Magnascope Model RBM-110 is a versatile, high-performance illuminated magnification system for precision inspection, assembly and quality control. Supplied with both a heavy-duty floor stand and a table clamp, it offers mobile or fixed mounting as per workspace requirements. The distortion-free optical glass lens delivers sharp, high-contrast, shadow-free viewing, while the flexible balanced arm allows effortless, stable positioning over large or stationary workpieces without occupying valuable bench space.
| Magnification | 3.5x Standard (with 2x Auxiliary Lens 7x Magnification) |
|---|---|
| Body Material | Aluminum & Brass duly powder coated |
| Body Color | Texture Pearl White |
| Illumination | Top LED Ring consisting of 27 LED Bulbs, with non reflecting frosted cover |
| Outer Ring Diameter | 230mm (9") |
| Lens Diameter | 150mm (6 inch) |
| Lens Material | White Optical Glass |
| Working Distance | 220mm (8.7") |
| Arm Length | upto 850mm (34") |
| Horizontal Movement | 890mm (35") |
| Rotation | 360° |
| Lens Tilt | 90° |
| Stand Type | Heavy Duty Aluminum Flexible Arm, Spring Balance Mechanism for easy movement to place lens in convenient position and orientation. Lens mounting clamp swivel upto 360°. |
| Base | Heavy weight with four castor wheel |
| Power Supply | AC 220V-240V, 50Hz |
| Weight | 15Kg. |
| Key Features |
|
|---|---|
| Applications |
|
| Advantages | Combines superior optical performance with exceptional ease of use. The floor stand configuration provides unrestricted access to large components while the adjustable arm allows precise positioning without disturbing the workpiece, improving inspection accuracy and reducing visual fatigue. |
| Optical Performance | The precision optical glass lens provides magnification up to 7x with an optional 2x auxiliary lens, delivering crystal-clear images free of chromatic or spherical aberration, with excellent depth perception and a comfortable working distance. |
