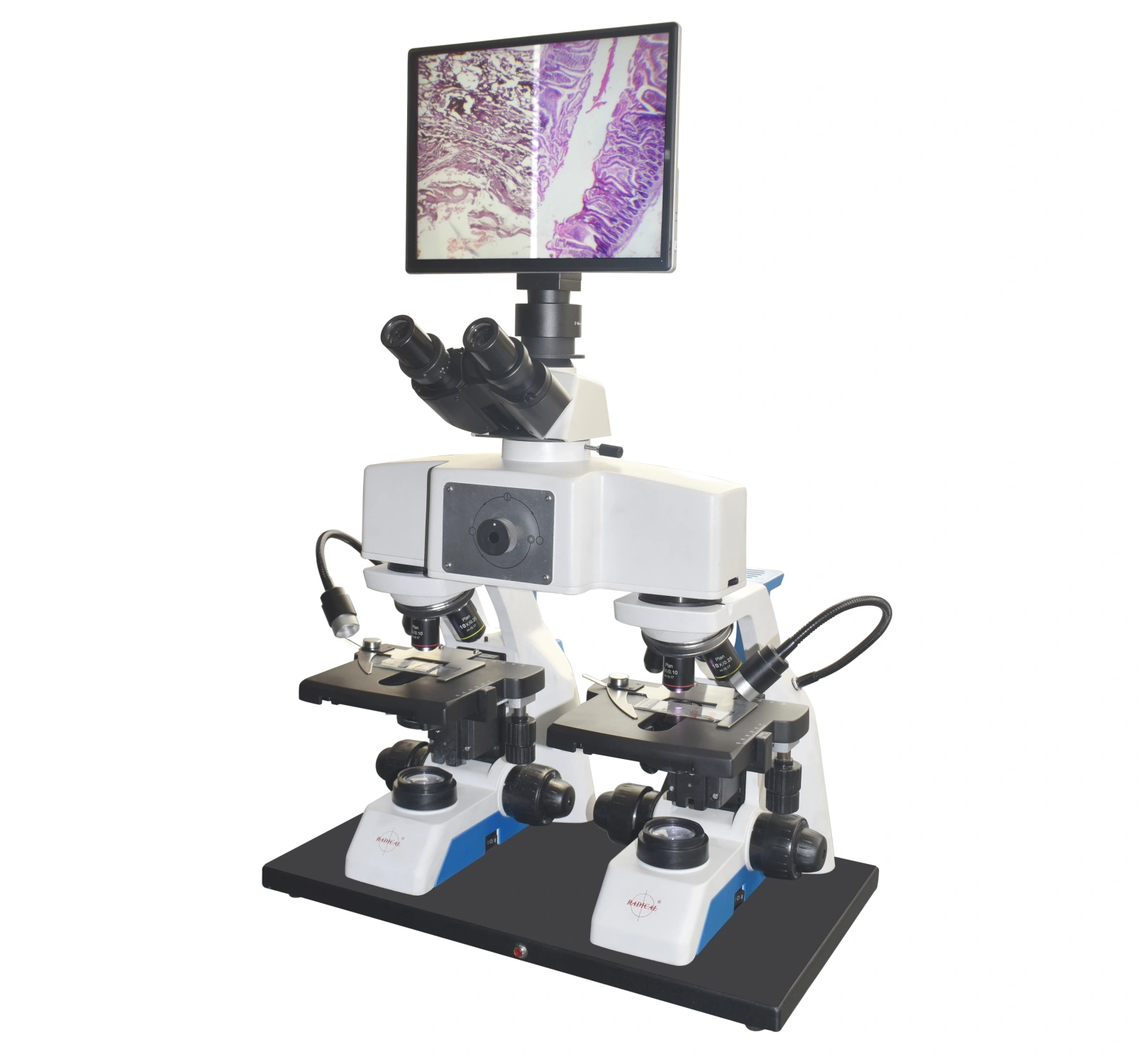

Cordless Biological Comparison Microscope
RCM-10
'Radical' Biological Comparison Microscope is a precision optical instrument designed for simultaneous side-by-side observation and comparison of two specimens. It is ideally suited for biological, pathological, forensic, research and laboratory applications where accurate visual comparison is required.
This Microscope will allow you to observe both micro (prepared slides) and macro (bullets, minerals, insects) and compare them in one microscope.
| Stand/Frame | Two micro/macro bodies fitted on a flat base with ergonomic blue vary handles on back of each body for safe transport. |
|---|---|
| Body | Two microscope bodies connected with comparison bridge; trinocular head mounted at 30° inclined observation. |
| Observation Head | Binocular Observation Head inclined at 30°, interpupillary distance 48-78mm with camera port. |
| Portability | Fully cordless design – no power cord required during use. Large base stable on any surface including outdoors. Hand grips on back of each body for safe carrying. |
| Model | RCM-10 |
|---|---|
| Viewing Modes | Images viewable as: 100% left only. Side-by-side comparison Optical Overlay/Overlapping controlled via knob available on comparison bridge. |
| Bridge Controls | Front Left and Right knobs (OPEN/CLOSE) control which body's image is shown. Top Left & Right knobs switch between side-by-side (half-dark circle) and optical overlay (empty circle). |
| Nosepiece | Quadruple/Quintuple revolving nosepiece, ball-bearing mounted for smooth and precise positioning of objectives. |
| Objectives | Infinity corrected Plan Micro Objectives 4x, 10x, 20x, 40x, 100x SL (OIL) |
| Macro Objective | 2x |
| Eyepiece | Wide field 10x/FOV 20mm, paired |
| Mechanical Stage | Reckless mechanical stage, double plate, rectangular right/left hand low drive control, co-axial movement knob, wear resistant stage with refocusing mechanism, stage size 140×150mm, X-Y movement 50-76mm on wire, precision 0.1mm vernier scale, ball bearing mechanism with friction & jerk free movement. |
| Focussing | Coaxial coarse and fine focussing controls on each RCM-10 body independently. |
| Condenser | Sub-Stage abbe condenser N.A. 1.25 with aspheric lens (light relay) for bright field, pre-centered & pre-focused uniform illumination for entire FOV. |
| Illumination | Cordless rechargeable LED illumination - top (reflected) through flexible goose neck and transmitted LED illumination, with separate intensity controllers and on/off switches. |
