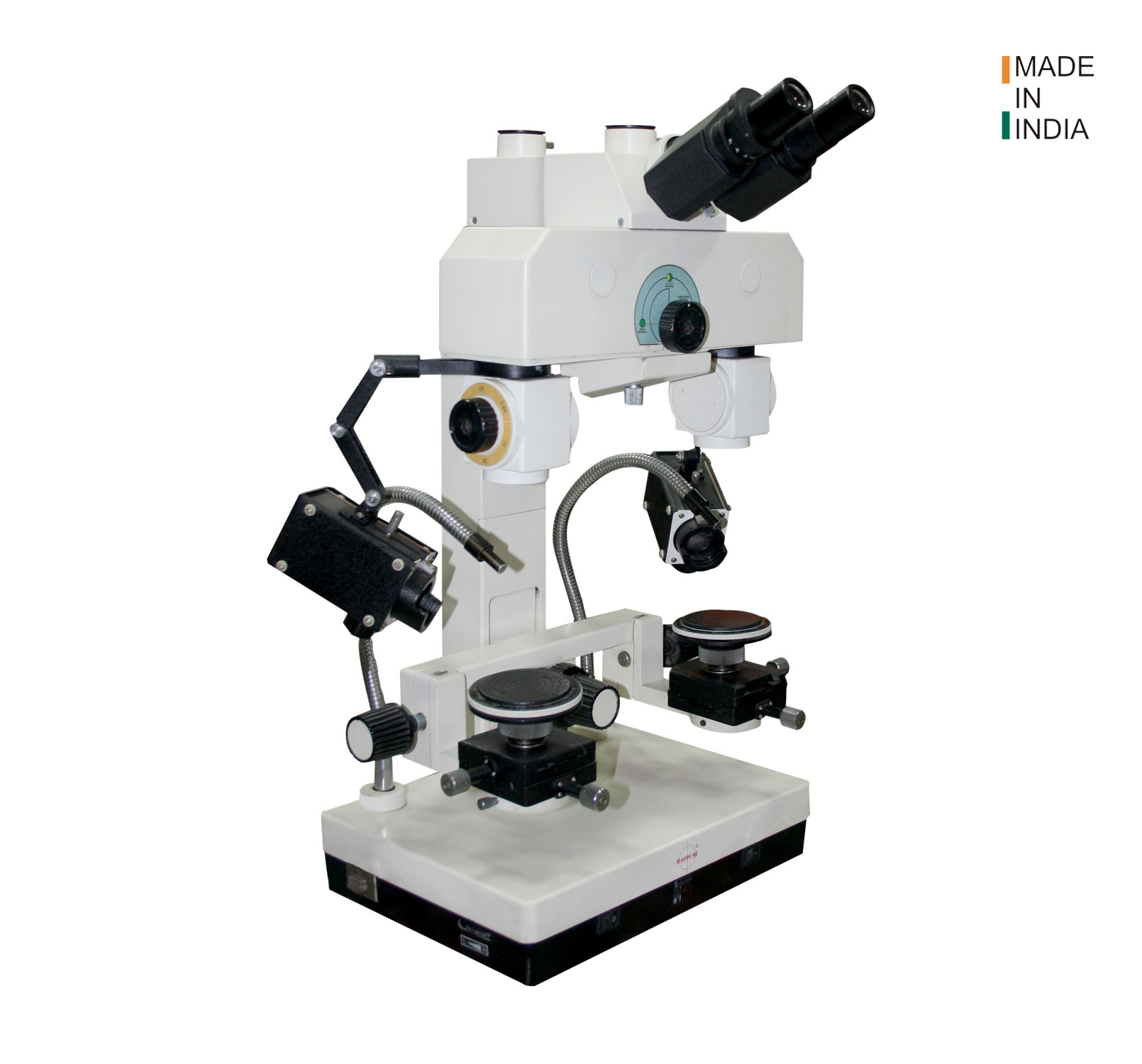

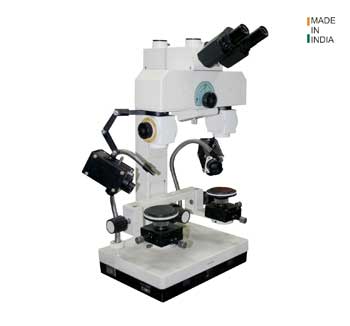

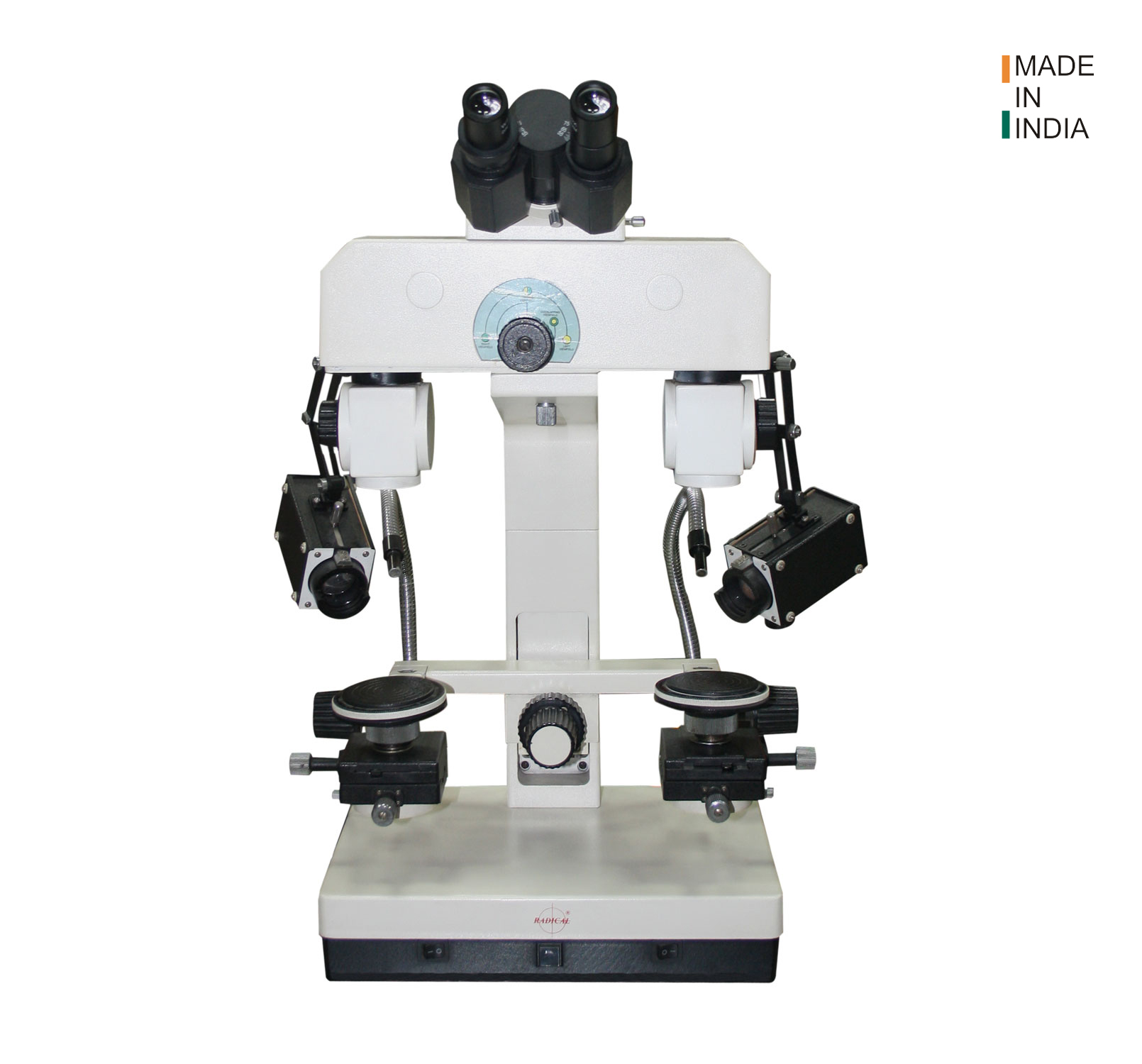

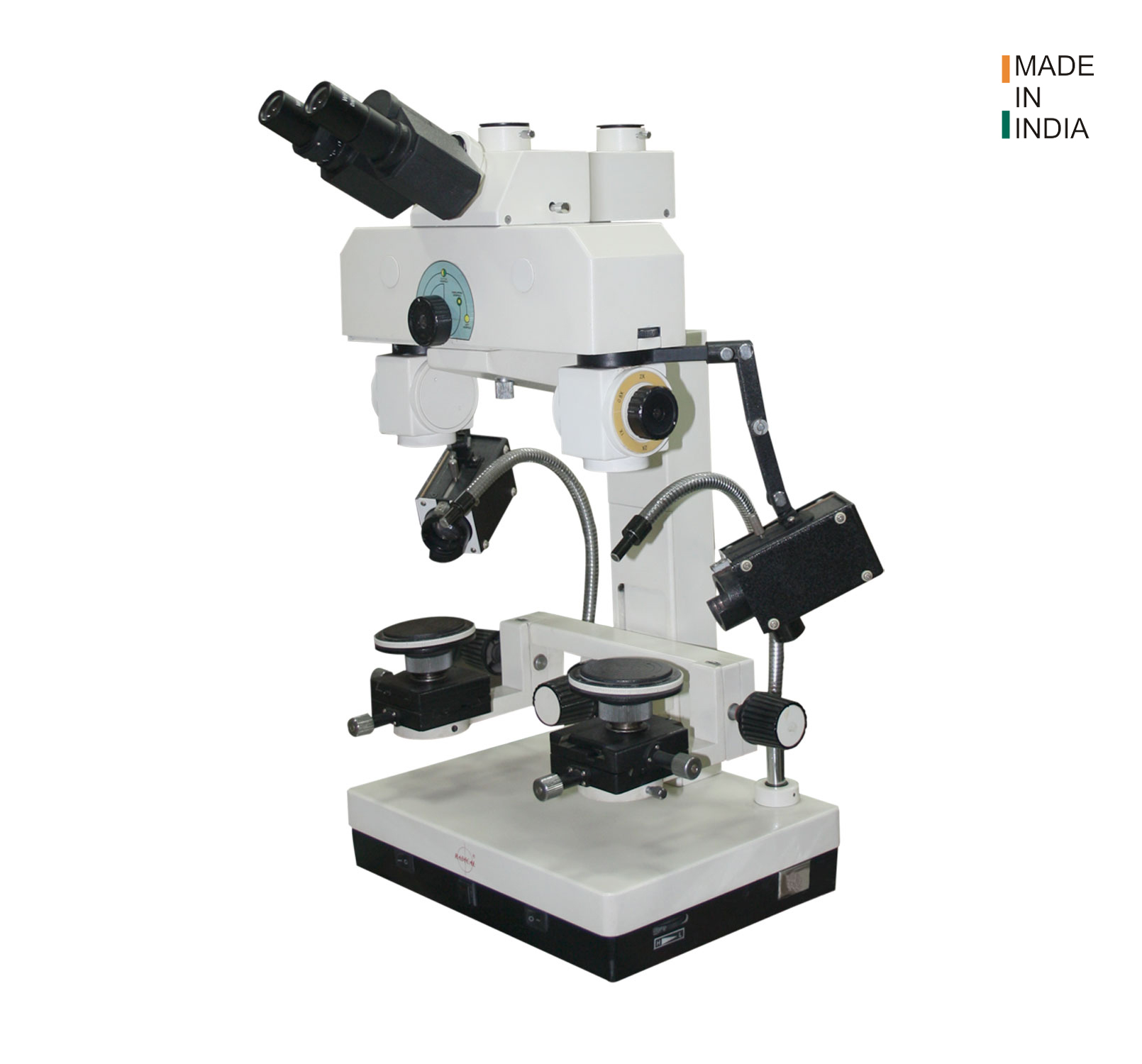

RCM-22
This microscope is for Crime Scene Investigation and Forensic Science. Analyze and Compare Bullets, Bullet Cartridge Casings, Scratch Marks, Wires, Fibre, Hair, and Paint Fragments. Polarization Capable: Includes both Polarizer and Analyzer for viewing under Cross Polarization Conditions. Two Separate Specimens can be Studied Simultaneously with a Split Screen Viewing. The Comparison Bridge brings Both the Beam Paths together. The two images of the Objects under Examination can be Observed in the Field of View in Multiple Ways. They can be Observed together, Side-By-Side, Separated by a Thin Line that can be Moved to Either Side Allowing More or Less of Either Object to be Viewed. On the Extremes, the Field of View can show Only the Left Object or Only the Right Object.
| Optical system | Color corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated) |
|---|---|
| Illumination | Reflected, transmitted and inclined koehler`s halogen/LED, Fiber optic, intensity adjustable, battery backup, auto cut-off |
| Viewing Head | Trinocular with comparison bridge |
| Stage | Two Fully Rotatable Mechanical X-Y-Z Movable Stages, X-Y Stage Movement Knobs Ball Socketed Inclinable Stages and other Vice Type Mechanical Holders |
| Objectives | Five Built-In Objectives (Per Microscope) on Rotary Selector |
| Magnification | Upto 144X |
| Stand | Stage Bridge Frame Focusing Knob Moves Both Stages Up/Down Simultaneously. |
| Eyepiece | Extra wide field, high point |
| Certification | EU CE, ISI, ISO, TUV |
| Model | RCM-22 |
|---|---|
| Head | Binocular/Trinocular with comparison bridge, Includes Two Photo Ports, One for Still Camera and One for CCD Video Camera! |
| Body | Single body mounted on heavy and rugged metal base attached with a comparison bridge to split/side-by-side/Separated by a Thin Line that can be Moved to Either Side Allowing More or Less of Either Object to be viewed |
| Total Magnification | 3.8X - 144X |
| Eyepiece | 10X (25x optionally available) |
| Objective | 0.8x, 1x, 2x, 3x and 4.8x. |
| Mechanical Stages | Two fully rotatable mechanical X-Y-Z moveable stages, 65mm. diameter with graduation marks every 2° for the full 360°. Ball Socketed Inclinable Stages : Ball Socket Mounted Stages Provides Capability to incline. |
| Illumination | Reflected halogen 6V-20W, intensity controllers & ON/OFF switch |
| Working Distance | 105mm |
| Optional Accessories | Photo micrographic Attachment Projection Screen Attachment, Semi Plan Objectives 2.5x, 20x, 60x, & Oil Immersion 100x, Spare Eyepieces, USB Camera with Necessary software etc. |
