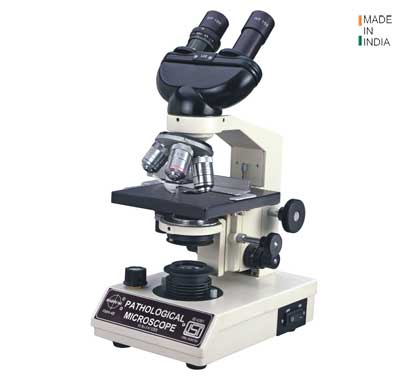

Advanced Binocular Research Microscope
RMH-4B
Precision made basic RADICAL Pathological Microscopes are designed in such a way that a single microscope serves many growing demands which may be placed upon it. Modern style, functional design, advanced engineering and a wide variety of accessories which can be attached to the Microscopes have made the 'RMH' series a truly versatile range of microscopes.
| Observation Head | 45° inclined Monocular / Binocular / Trinouclar observation head rotatable through 360°. |
|---|---|
| Nosepiece | Quadruple nosepiece with accurate centering and positive click stops |
| Stage | Built in graduated mechanical stage of 135x120mm. Low coaxial drive controls for easy and smooth scan of specimen slide over range of 50x75mm |
| Illumination | 6V-20W halogen lamp, 220/110Volts and mirror attachment for working in day light |
| Objectives | Achromatic 4X - 10X- 40X SL and 100X SL Oil immersion |
| Eyepieces | Wide field WF 10X std |
| Packing | The Microscopes are packed in full mould Styrofoam Boxes with Vinyl Cover, Duster, Filter, Immersion Oil and Operating Manual |
| Model | RMH-4B |
|---|---|
| Body | Rugged, sturdy, robust, aluminium die cast, corrosion free, ergonomic design, metallic parts with antirust, antibacterial, corrosion-proof & stain-proof coating, acid resistant texture paint, touch point treated, intensity controller & on/off switch, inbuilt light source, on lens filter holder, rubber feet. |
| Optical system | Achromatic optical system, mechanical tube length 160mm, lead free optical glass, colour coded objectives |
| Transmitted Illumination | Built-in halogen 6V - 20W (life 2000 hrs.) or LED for uniform illumination, intensity controller, built-in field diaphragm, on/off switch. |

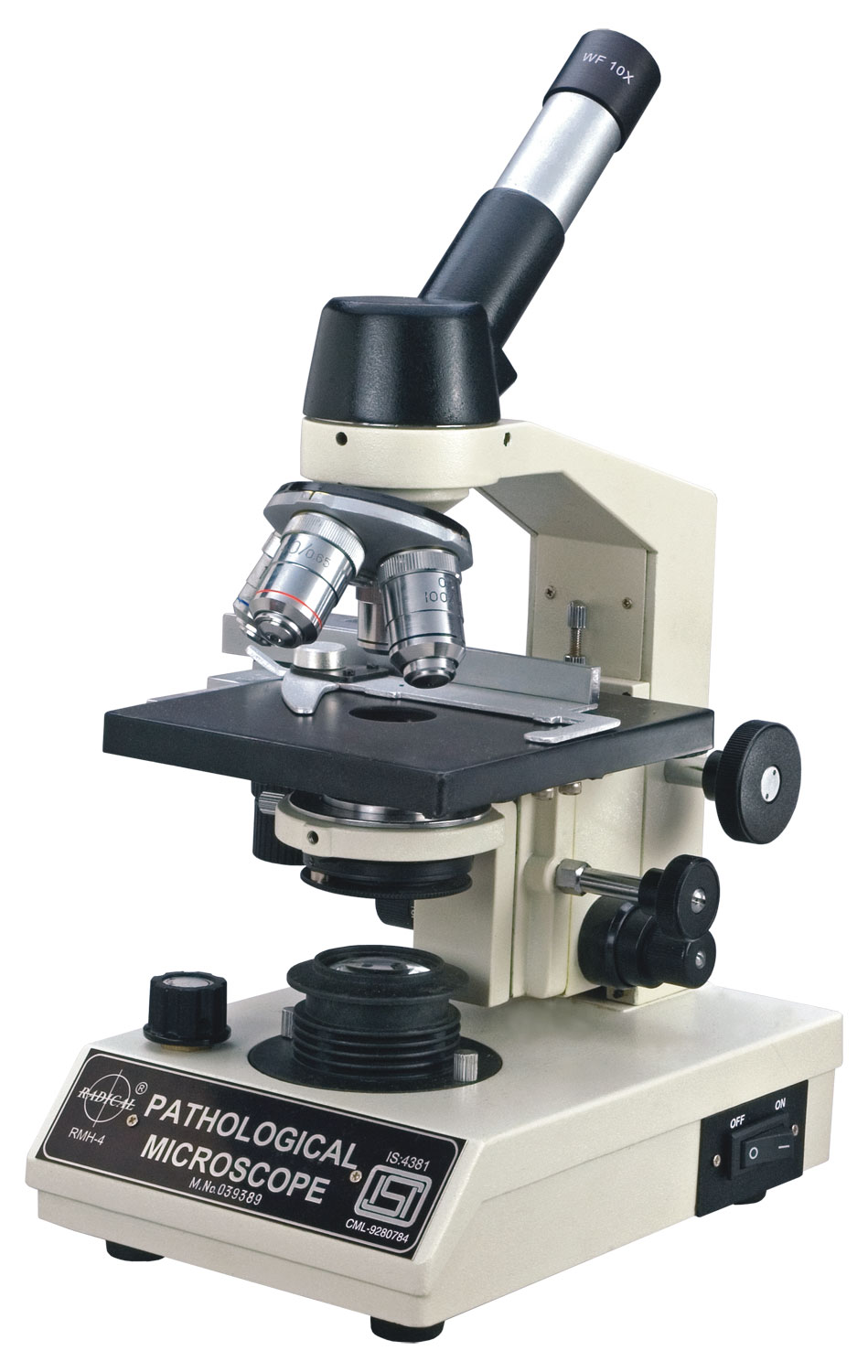

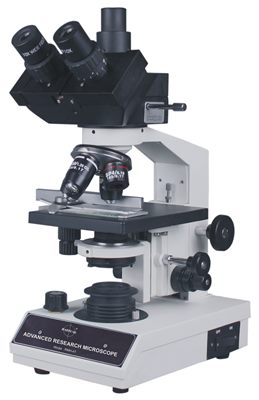

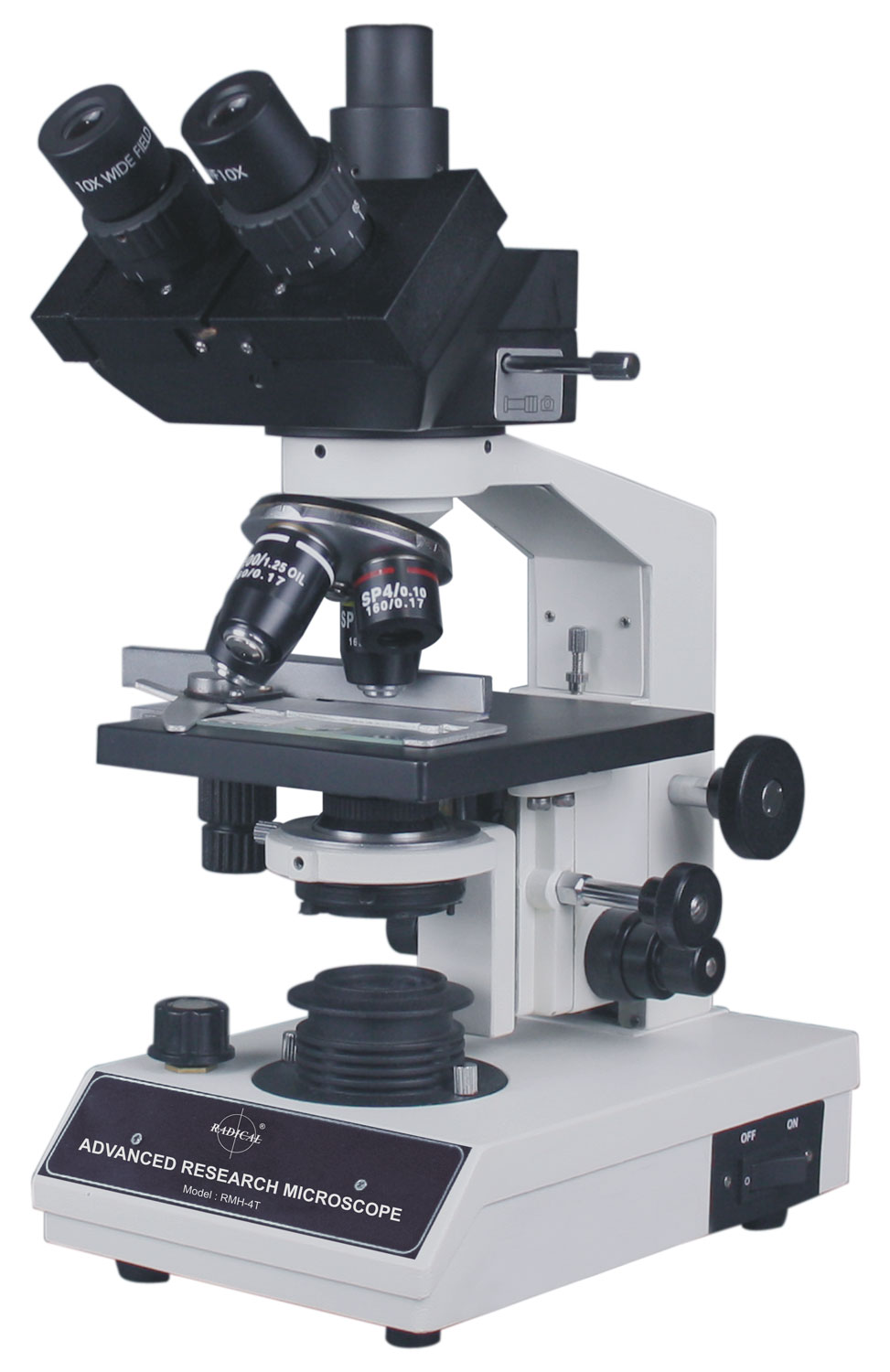

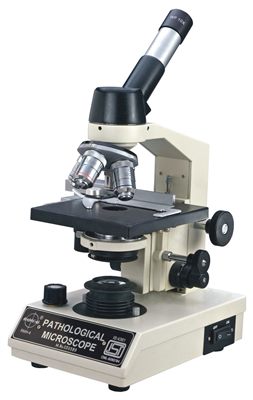

| Viewing Head | Monocular / Binocular / Trinocular observation head, inclined at 45°, sliding head, rotatable through 360°. IPD - from 55-76, in case of binocular / trinocular head. Diopter adjustment on one or both eyepiece. |
| Nosepiece | Parcentered & parfocal, outward tilted, precise quadruple revolving on multiple ball bearing, for smooth & accurate alignment, with positive click stop, with ribbed grip for easy rotation, Extra port is fitted with dust proof metallic/ebonite cap. |
| Eyepiece | Paired, WF 10X, corrected for colour & spherical aberration, compensating, multilayered coated, high quality, good contrast, abrasion free, distortion free, (single eyepiece in case of monocular head), diopter adjustment on one/both eyepieces. |
| Mechanical Stage | Rectangular low drive control, hard coating, spring loaded, steel single slide holder, stage size 140x132mm, X-Y movement 75-50mm (graduated with vernier min. accuracy 0.1mm) on stainless steel ball bearing, with graduated Scale |
| Objectives | 4X, N.A. 0.10, W.D. 12mm, JIS achromatic, parfocal & precentered, unbreakable container for storage |
| 10X, N.A. 0.25, W.D. 5mm, JIS achromatic, parfocal & precentered, unbreakable container for storage | |
| 40X, N.A. 0.65, W.D. 0.35mm, JIS achromatic, spring loaded, parfocal & precentered, unbreakable container for storage | |
| 100X, N.A. 1.25, W.D. 0.17, JIS achromatic, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage | |
| Focusing | Focusing through vertical movement of stage by coarse and fine motion knobs. Coarse adjustment by rack & pinion and fine movement by screw lever mechanism. |
| Condenser | Sub stage Abbe condenser N.A. 1.25 for BF, aspheric lens, separate movement from focusing (rack & pinion) metal guide with adjustable iris diaphragm, built-in base illumination. |
| Power supply | SMPS based, wide voltage range, 90V-240V, 50/60Hz |
| Accessories | Cleaning cloth |
| Vinyl cover | |
| Immersion oil, Lens Cleaning Solution | |
| Allen key | |
| Fuses - 2 no's | |
| Instruction manual | |
| Warranty card | |
| Blue Filter (frosted & Plain) 32mm diameter | |
| Power Cord (country Specific) |
