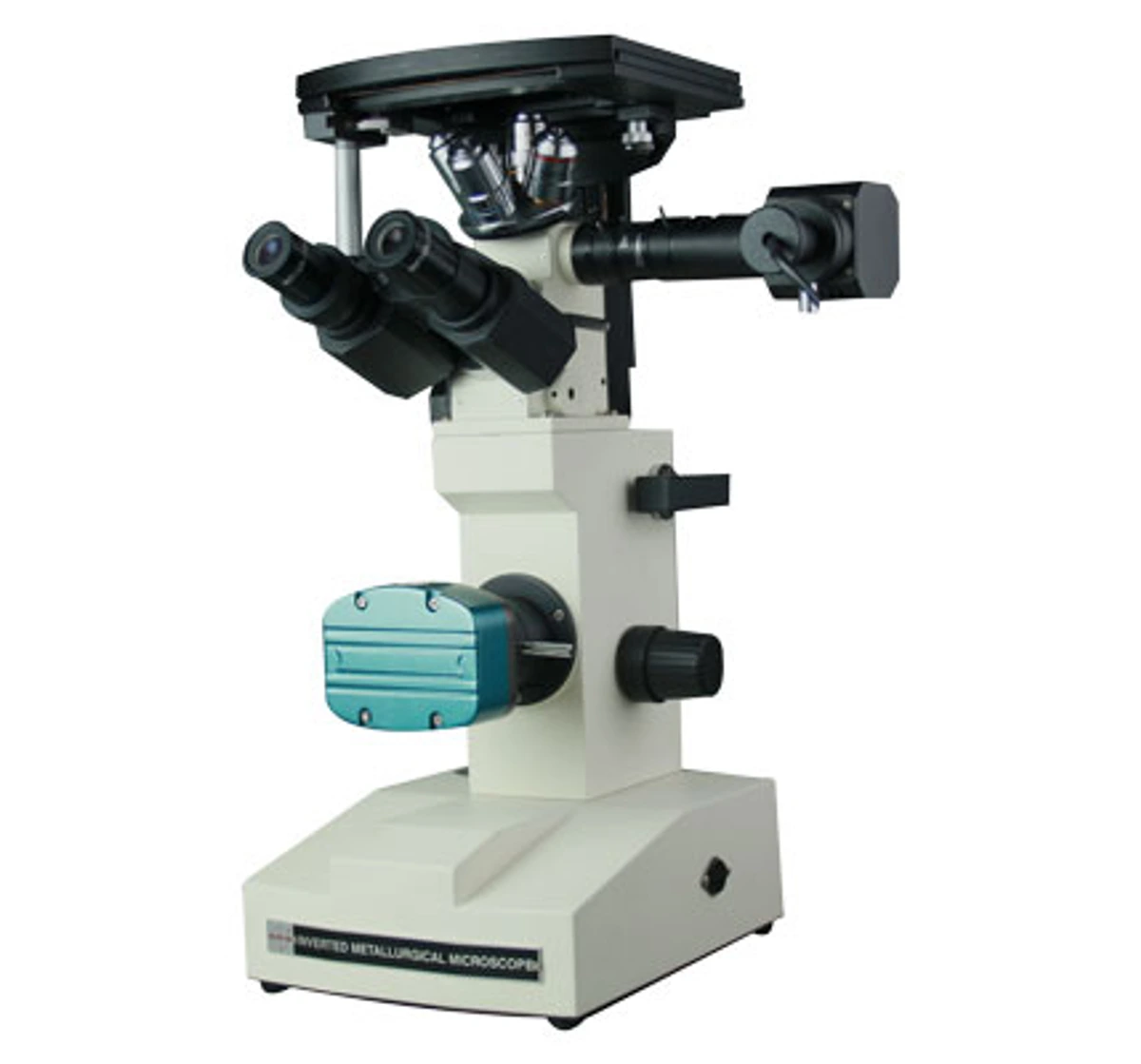

Inverted Metallurgical Microscope
RMM-1
Inverted metallurgical microscope with built-in Siedentopf binocular head, brightfield & darkfield illumination and built-in optical path selector for photography.
| Observation Head | Siedentopf Binocular observation head with adjustable eye piece separation |
|---|---|
| Stand | Inverted microscope stand, complete with built-in transformer, calibrated light intensity control, socket and fuse holder |
| Stage | Graduated mechanical stage, 150x160mm in size, offers 30x30mm cross section motion reading to 0.1mm by vernier |
| Illumination | Brightfield vertical illuminator 6V-20W Halogen with aperture diaphragm, filter slots and bulb centring mechanism |
| Polarising | Built-in rotatable analyser and lamp polariser filters are provided for dark field illumination |
| Objectives | M4x (N.A.0.12), M10x (N.A.0.25), M20x (N.A.0.40) and M40x (N.A.0.65) |
| Eyepieces | Wide field HKW 10x |
| Magnification | 50X-400X for visual observation, 20X-165X for 35mm photography and 50X-400X for polaroid photography |
| Photo Mechanism | Built-in optical path selector (flip-in type) and built-in deviating mirror |
| Accessories | Stage clip, 3 stage insert plates (opening 15, 25 and graduated 25 phi-mm), green and blue filters |
| Model | RMM-1 |
|---|
