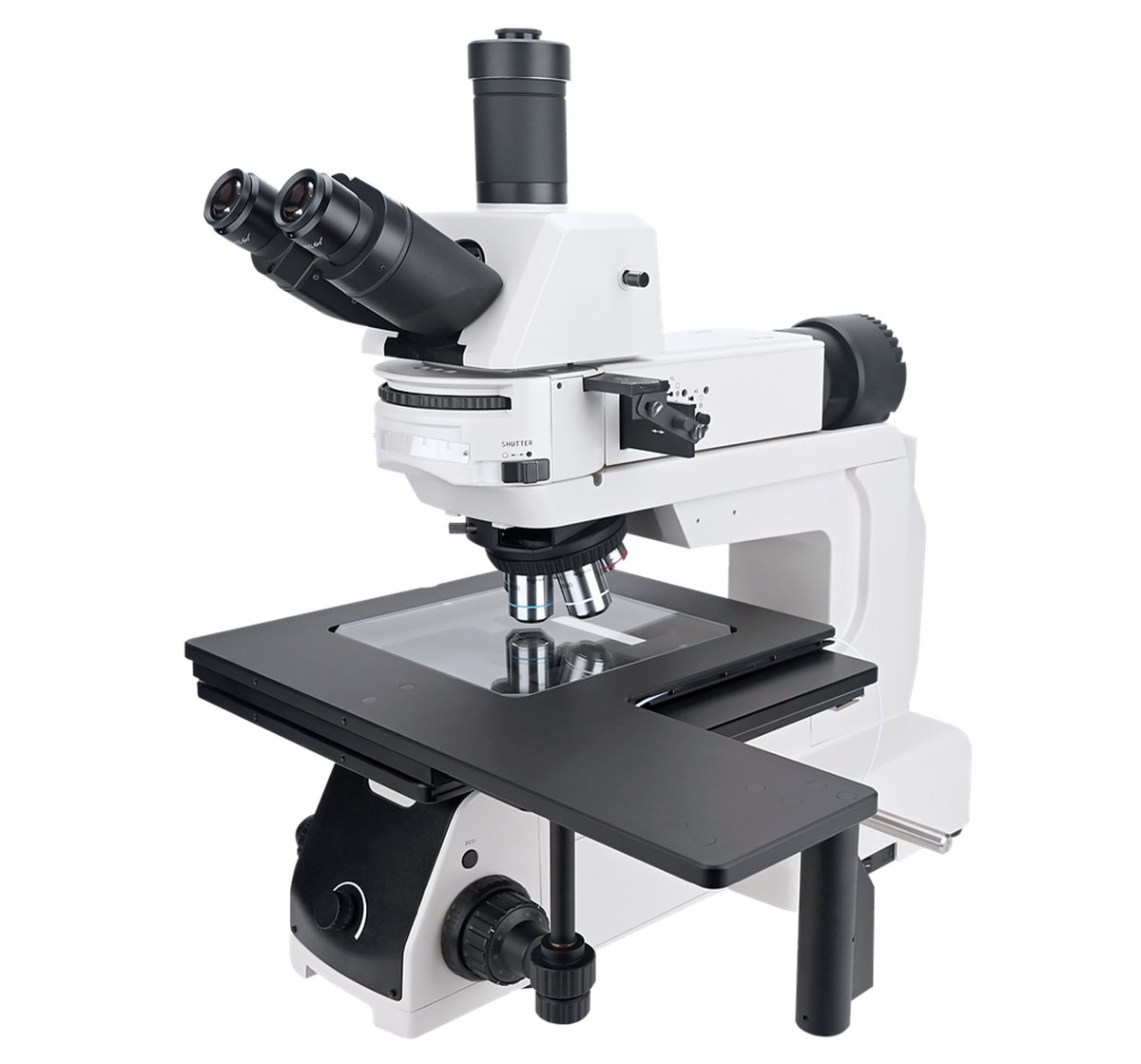

Industrial Measuring Microscope
RMM-1080
The RMM-1080 Industrial inspection microscope provides high-quality microscopic observation of 200mm wafers, flat panel displays, printed circuit boards, and other large samples. With human body engineering design, the use of comfortable, suitable for long time, large flux of a microscope. Modular design, can according to user requirements in terms of sex of customization, to adapt to the different application environment, to achieve the best observation conditions. Cooperate with NOMIS microscopic imaging analysis software, from observation to generate a report one pace reaches the designated position, simplifying the use process, increases work efficiency.
| Optical System | NIS infinite optical system |
|---|---|
| Eyepiece | SW10X(22), SW10x(25) |
| Focusing | Low hand a coaxial focusing mechanism, coarse elastic zone height limit ring around the adjusting ring and micro began to swap mechanism focusing range 32 mm, fine-tuning the value 1 um |
| Reflected | 5W LED, light adjust, memory |
| Transmitted | 10W LED, light adjust, memory |
| Viewing Head | Seidentoph trinocular, 30° inclined, intrpupilary 47-78mm, positive; beam splitter (100/0,0/100) |
| Nosepiece | Code sextuple nosepiece |
| Objectives | 5X, 10X, 20X, 50X & 100X |
| Stage | 8" x 8", range: 210×210mm. Available for 200mm wafers with optional sample holder |
| Condenser | The transmission lighting is equipped with condenser |
| Observation | BF, DF, DIC, POL |
| Built-in Clutch Platform Handle | The RMM-1080 industrial inspection microscope is equipped with an 8-inch large platform and various platform brackets for a large moving range. It can realize the fast and slow movement of the platform and use the fine-tuning handle of the platform, so that it is no longer difficult to accurately and quickly locate the sample. |
|---|---|
| Positive Viewing Tube | The standard erect viewing tube provides higher synchronicity between platform movement and eyepiece viewing compared to the traditional inverted viewing tube. |
| True Color Imaging | The RMM-1080 series comes with an optional LED light source that provides a constant color temperature and true color imaging at all brightness levels. LED long service life, low power consumption, and convenient maintenance make it the ideal microscope light source. |
| Light Memory | It can remember the lighting brightness when using each objective lens, and automatically adjust the light intensity when different objectives are converted to each other, reducing visual fatigue and improving work efficiency. |
| Model | RMM-1080 |
|---|
