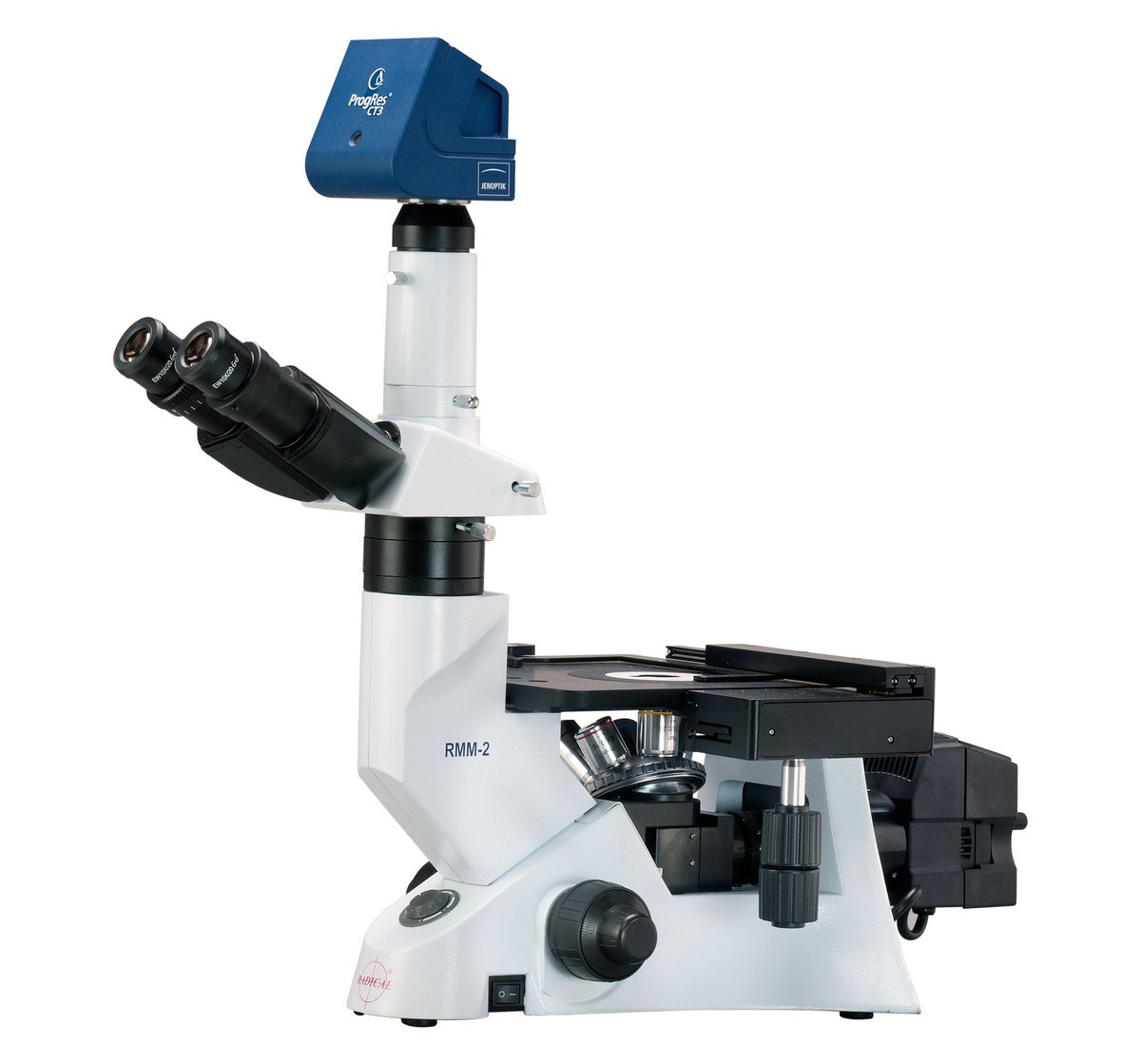

Inverted Metallurgical Microscope
RMM-2
Inverted metallurgical microscope with Siedentopf trinocular head, Koehler's illumination and built-in polarizing slots for simple polarizing observation.
| Viewing Head | Siedentopf Trinocular head with dioptric and interpupillary adjustment from 48mm to 75mm |
|---|---|
| Stage | Plain stage size 160x250mm, attachable mechanical stage X-Y co-axial control moving range 120x78mm |
| Illumination | Koehler's illuminator 6V-30W Halogen through built-in base transformer, complete with field and aperture diaphragm |
| Polarising | Built-in slots for analyzer and polarizer to work under simple polarizing |
| Objectives | Infinity plan achromatic DIN size field metallurgical corrected and anti-mould/fungus. M4x (N.A.0.12), M10x (N.A.0.25), M20x (N.A.0.40) and M40x (N.A.0.65) |
| Eyepieces | High eye point extra widefield DIN EW 10x/20x and WF 15x/15 (paired) with eye guards |
| Magnification | With standard optics for dry magnification and visual observation from 40x to 600x |
| Size & Weight | 540mm x 315mm x 280mm. Net weight: 14kgs. Gross weight: 19kgs |
| Optional Accessories | Stage Micrometer, Micrometer Eyepiece, Filar Micrometer Eyepiece, Grain Size Eyepiece, Counting Reticles, Spare objectives M60x, M100x (dry), Eyepieces WF10x, 15x, 20x etc. Automatic image analyzer, Digital cameras, High Resolution CCD cameras etc. |
| Model | RMM-2 |
|---|
