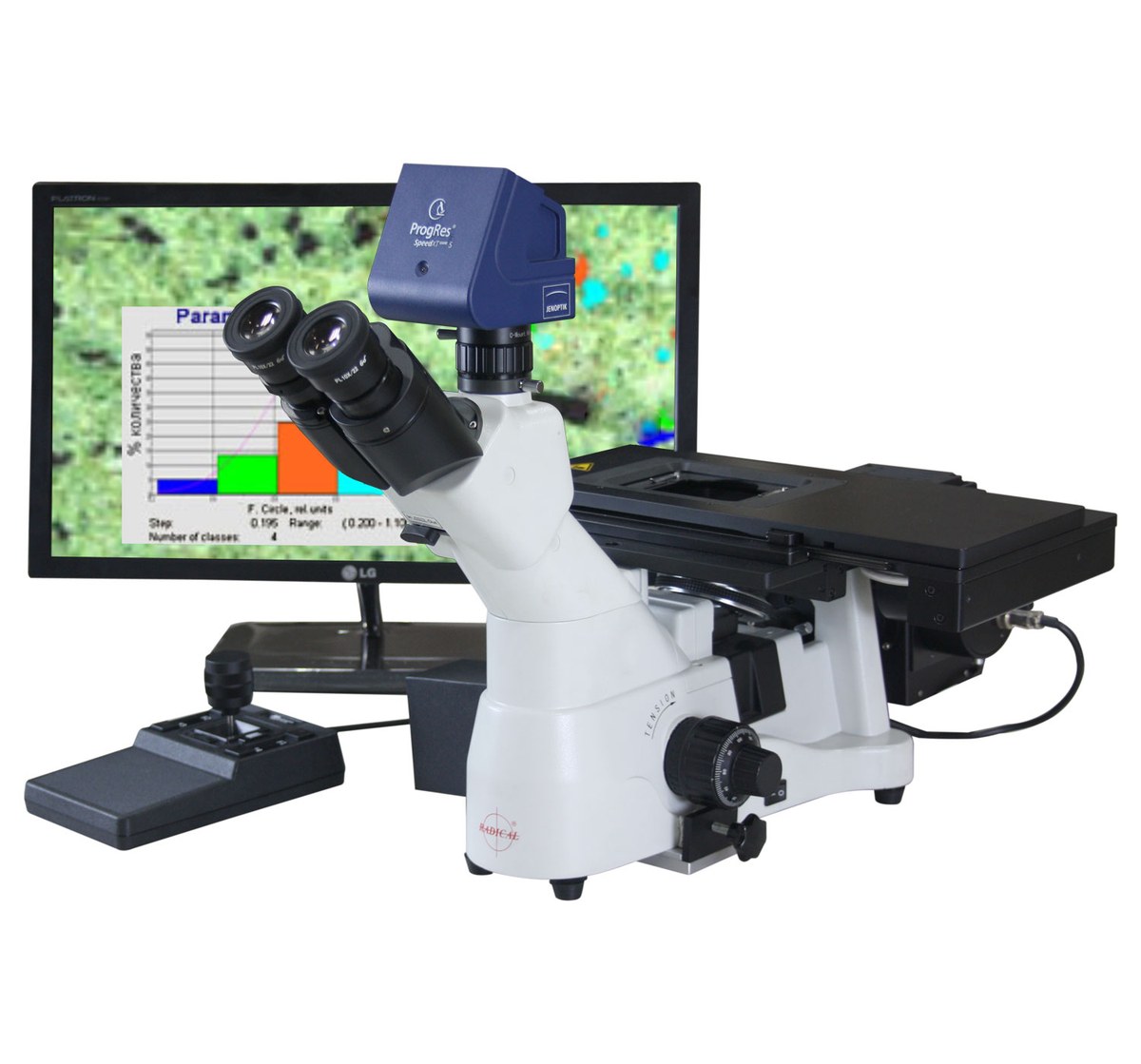

Motorized Metallurgical Microscope
RMM-3M
Motorized inverted metallurgical microscope with a motorized mechanical stage, high repeatability and accuracy, built for research and quality control applications requiring automated stage positioning.
| Binocular Head | Siedentopf head designed with interpupillary and dioptric adjustment from 55mm to 75mm |
|---|---|
| Objectives | Plan Achromatic Infinite DIN size flat field metallurgical corrected and anti-mould/fungus objectives. M4x (N.A.0.12), M10x (N.A.0.25), M20x (N.A.0.40), M50x (N.A.0.65) & M100x Dry (N.A.1.25) |
| Eyepieces | Wide field DIN eyepieces WF 10x & 15x (paired) |
| Motorized Mechanical Stage | Travel range of 120 x 80mm, repeatability <1µm & Accuracy +/- 3µm |
| Orthogonality | <40s, typ. <15-20s |
| Resolution | 0.05µm (smallest step size) |
| Maximum Travel Speed | 60mm/s with 1mm lead screw pitch and 120mm/s with 2mm lead screw pitch. 2 Phase Stepper Motor |
| Illumination | Koehler's illuminator 12V-100W halogen through complete with field and aperture diaphragms, four filter turret and bulb-centering mechanism are provided |
| Polarizing Filters | Built-in slots for analyzer and polarizer to work |
| Optional Accessories | Progress Cameras & Image Analysis Software are also available |
| Model | RMM-3M |
|---|
