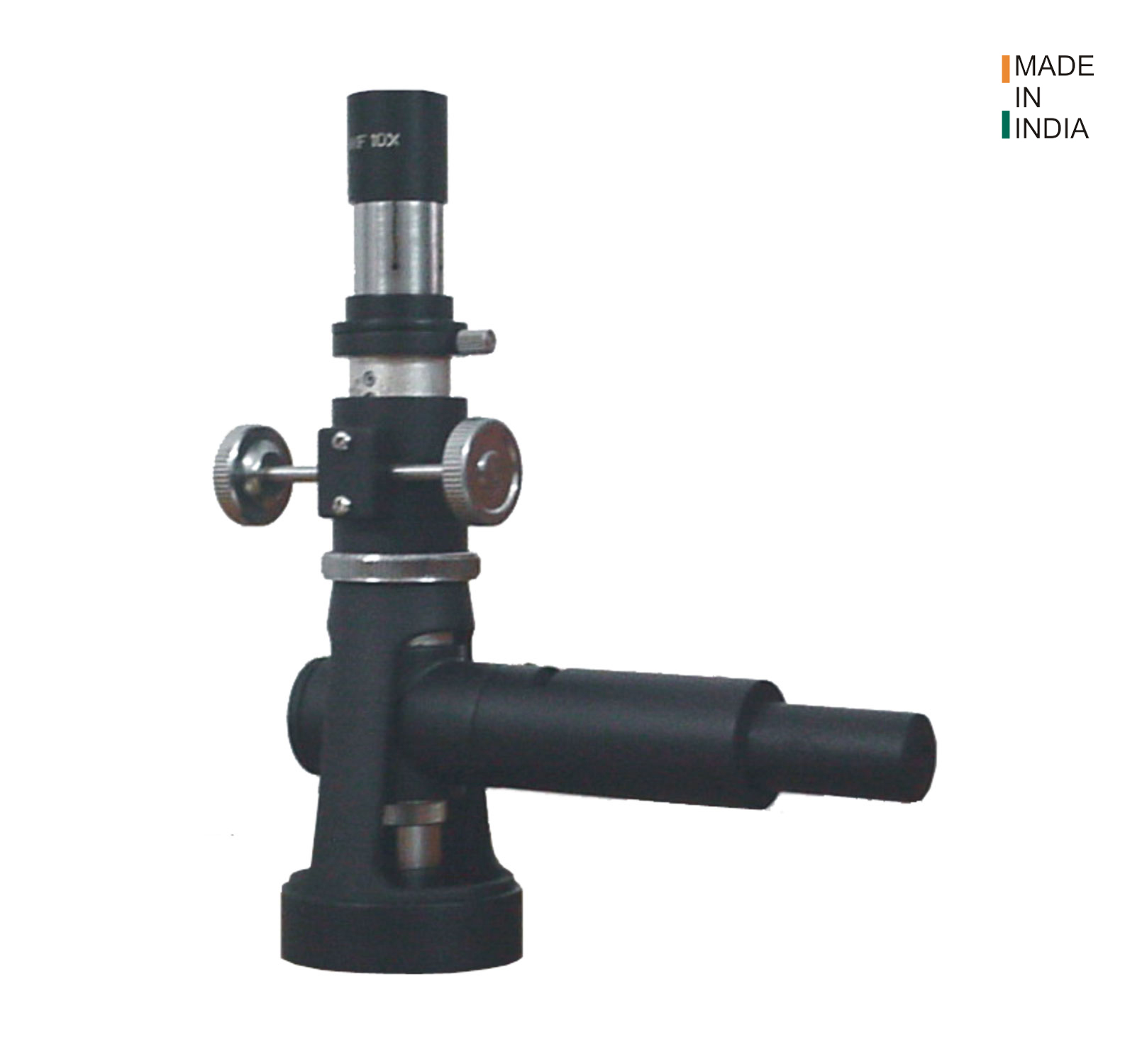

RMM-5A
RMM-5A is a self-contained Portable Metallurgical Microscope, ideally used for inspecting metallography of metals in Laboratories, in situ, in field, etc. The Microscope is compact in size, Handheld design. It can be attached / fixed up against the surface of ferrous metal on any type of complicated surface (with optional magnetic stand). Polished surface area can be viewed with this instrument at different magnifications. All objectives are centered and parfocalised. The Microscope can also be used with digital camera for image process system, to save metallurgical images to PC for data transfer, analysis, storage, printouts etc.
| Standard magnification | 40x to 400x |
|---|---|
| Objectives | M4x, M10x, M20x & M40x. |
| Eyepiece | WF 10x |
| Illuminator | 3W LED incident light through Epi-Illuminator with rechargeable battery pack etc. 110/220V AC. Detachable specimen locating device with a cross disc is also provided. A set of two filters in mount, vinyl cover and operating instructions, are supplied complete in a wooden storing cabinet. |
| Optional Accessories | Grain Size Eyepiece WF 10x, Micrometer Eyepiece WF10x, Filar Micrometer Eyepiece 10x, Calibration Slide 1/100mm, CMOS Cameras, Image Analysis Software, Magnetic stand with ON/OFF switch |

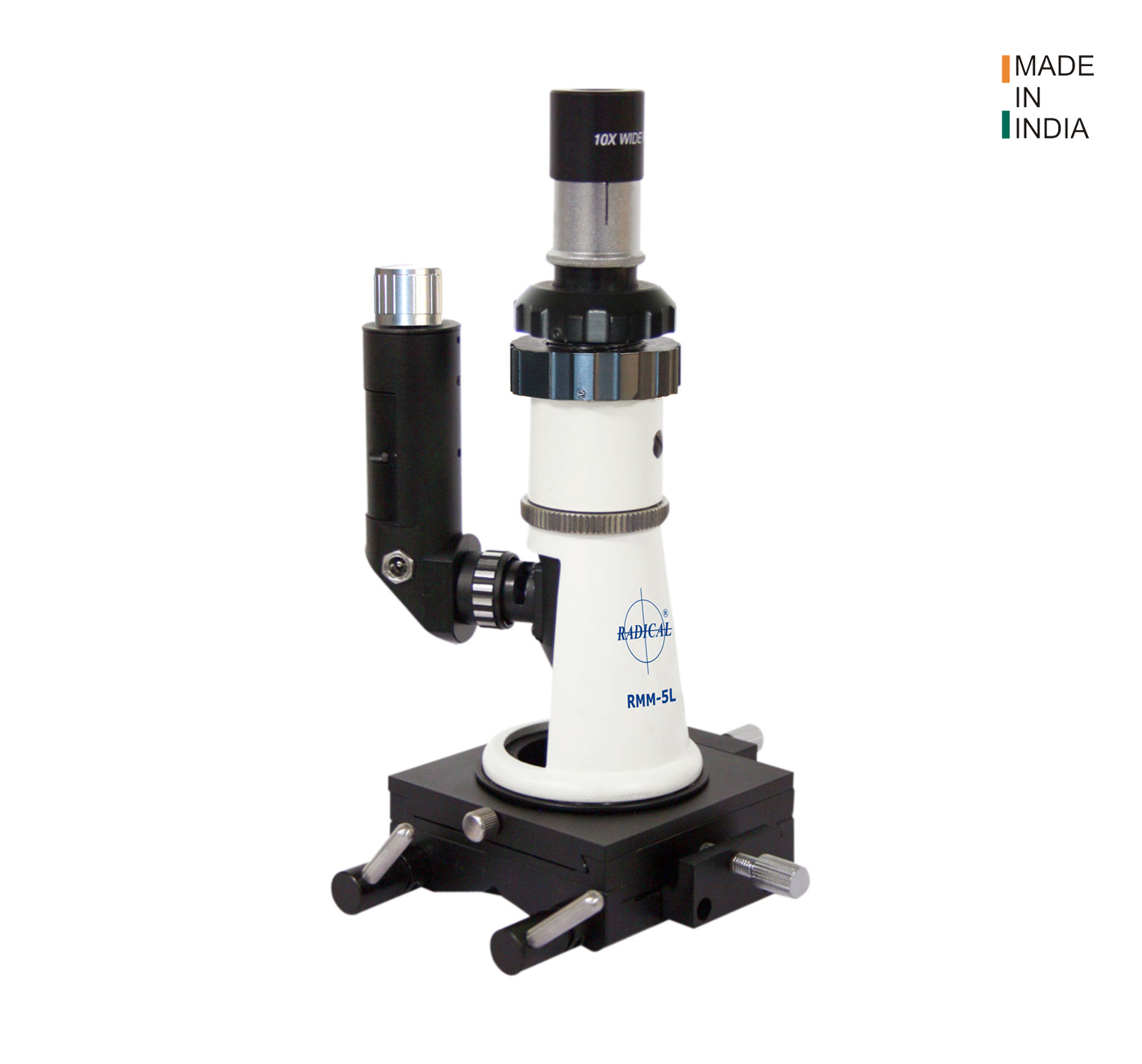

RMM-5L & RMM-5L with Magnetic moveable base
RMM-5L is an industrial, handheld and self-contianted portable metallurgical microscope with vertical light source. Ideally used for inspection metallography of metals in laboratory or in-situ. It can also be used for identification of casting quality, inspection of raw material or metallurgical structure research and analysis of processed material in factory and laboratory. Microscope can be attached directly against the surface of ferrous metal at any angles for non-destructive examination on flat, curvature as well as other complicated surface with the help of optional magnetic base. The microscope is fitted with a portable and easy to use rechargeable LED illuminator. Adjustable power supply 6V, 2.1W.
| Semi Plan Objectives | M4x, M10x & M40x |
|---|---|
| Eyepieces | WF 10x & 15x |
| Magnification | 40x - 600x |
| Mechanical Tube Length | 160mm |
| Focusing | Coaxial coarse/fine focusing system, range 36mm |
| Illumination | Coaxial illumination, built in LED rechargeable & adjustable |
| Accessories | Charger, Spare LED, Illustrated Operating Instructions, etc. |
| Packing Case | Durable Wooden Storing Cabinet. |
| • |
|
| • | Grain Size Eyepiece WF 10x with adjustable focusing. |
| • | Micrometer Slide 1/100mm. |
| • | Polarising Attachment |
| • | ProCAM CMOS Camera's & Image Analysis Software. |
| • | Magnetic Microscope Base, moveable in X-Y direction. |
RMM-6L
RMM-6L is an industrial, self-contained portable metallurgical microscope with vertical light source. Ideally used for inspection Metallography of metals in grooved, where other microscopes can not reach, like large ball bearings etc.
Microscope can be attached directly against the surface of ferrous metal at any angles for non-destructive examination on flat, curvature as well as other complicated surface with the help of magnetic base.
The microscope is fitted with a portable and easy to use rechargeable LED illuminator. Adjustable power supply 6V, 2.1W
