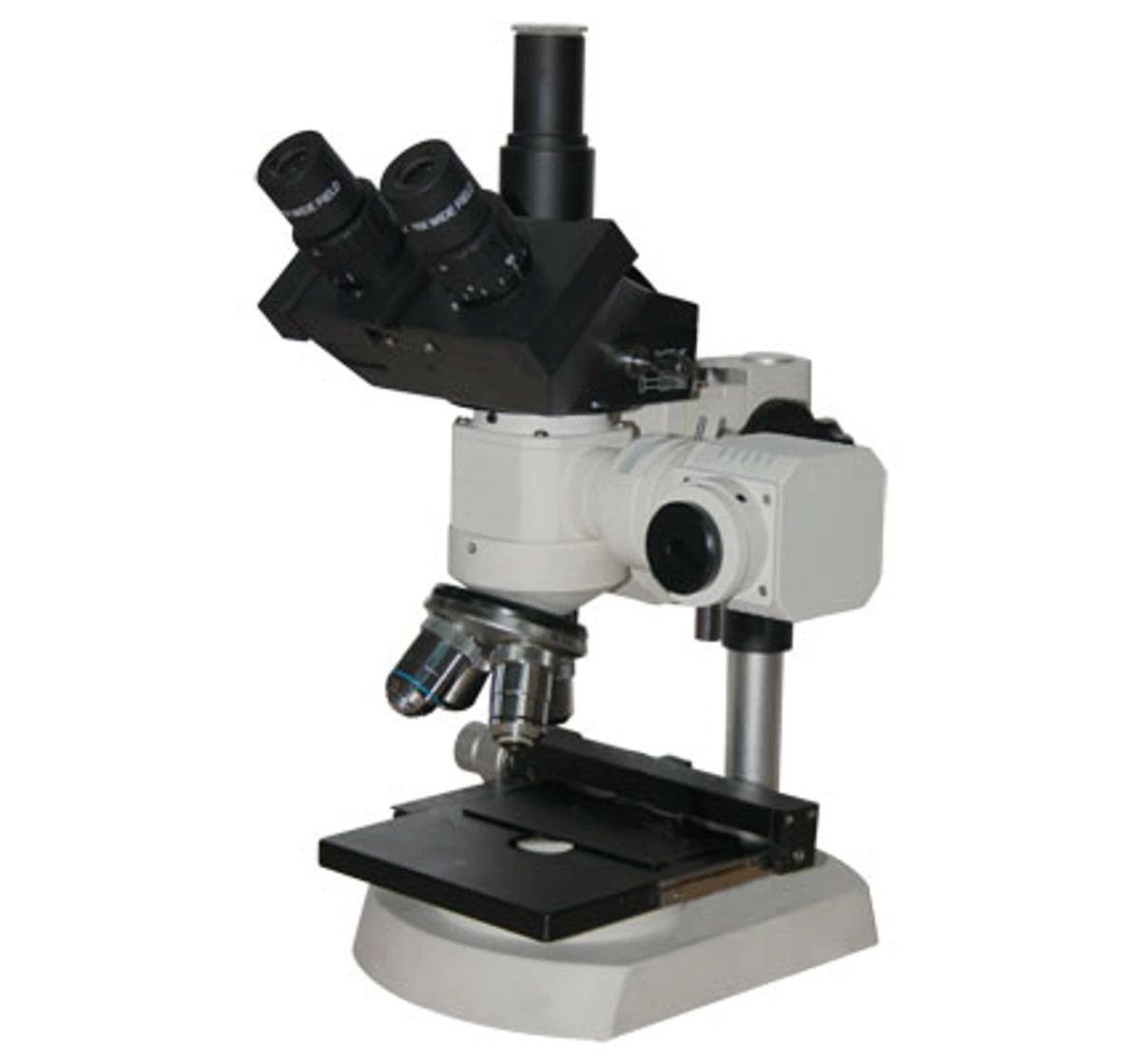

Metallurgical Microscope
RMM-55T IM
Trinocular metallurgical microscope with heavy base and coaxial mechanical stage for X-Y movement of specimens.
| Observation Head | Trinocular Observation Head inclined at 45° |
|---|---|
| Nosepiece | Quadruple revolving Nosepiece |
| Magnification | 40x to 600x |
| Illumination | Brightfield vertical illuminator 6V-20W Halogen with aperture diaphragm, filter slots and bulb centring mechanism |
| Objectives | M4X, M10X, M20X and M40X specially corrected for flatfield achromat |
| Eyepieces | WF 10X and 15X |
| Stand | Heavy base with coaxial mechanical stage for x-y movement |
| Model | RMM-55T IM |
|---|
