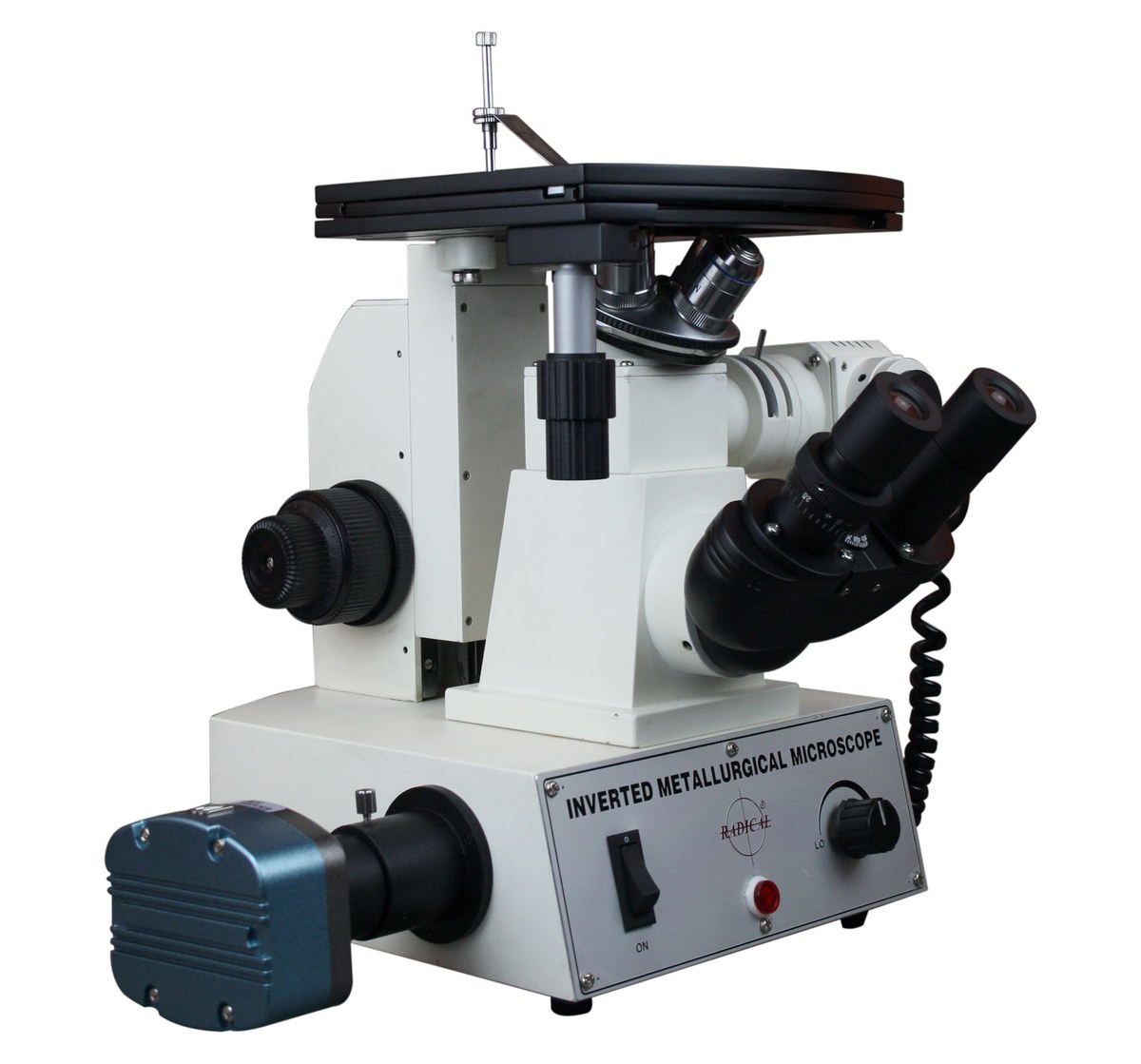

Inverted Metallurgical Microscope
RMM-77
A latest Binocular inverted Metallurgical Microscope equipped with vertical illuminator having centring provision, field and aperture diaphragm and slot for dropping filters, built-in base, variable solid state transformer, large sturdy stage with co-axial arrangement for x-y axis movements, coarse and fine graduated focussing knobs.
| Observation Head | Binocular Head is equipped with 45° inclined observation tube. Interpupillary distance from 53 to 77mm and diopter adjustment is provided on one ocular for eye-acuity |
|---|---|
| Eyepieces | WF 10x (Paired) |
| Objectives | M 4x, M 10x, M 20x and M 40x (SL) |
| Stage | Built-in graduated mechanical stage of size 165mm x 180mm is controlled by convenient low coaxial positioned knobs for easy and smooth scanning of specimen |
| Stand | Stable well balanced design and wear resistant for maximum ease of operation. Wooden stand base is provided |
| Magnification | Standard magnification range from 40x to 600x |
| Model | RMM-77 |
|---|
