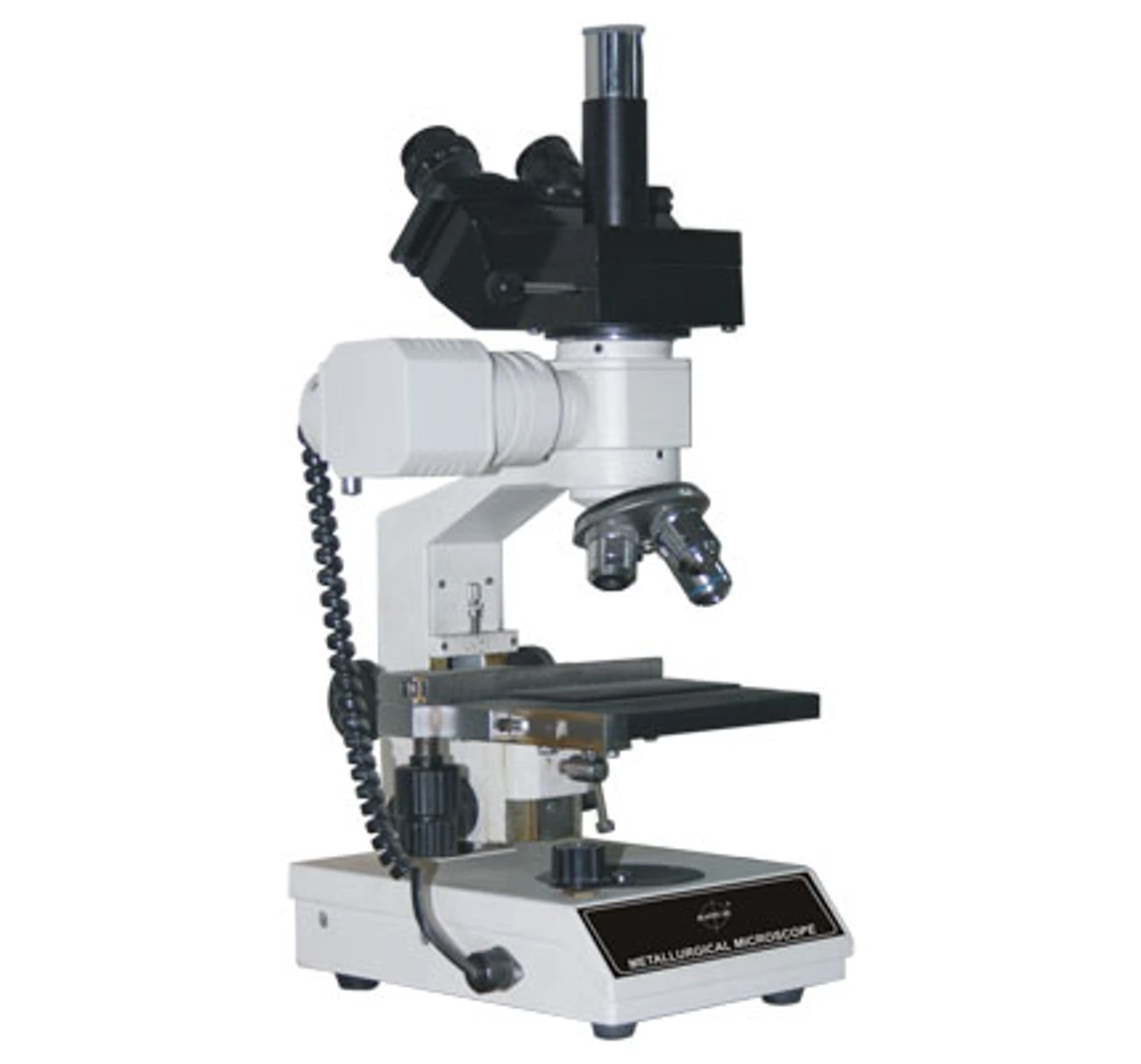

Trinocular Metallurgical Microscope
RMM-7T
Trinocular metallurgical microscope with quadruple revolving nosepiece and large low co-axial mechanical stage for X-Y movement of specimens. Also available as Model RMM-7 with monocular observation head.
| Body | Trinocular Head inclined at 45° |
|---|---|
| Nosepiece | Quadruple revolving nosepiece with accurate centering and positive click stops |
| Stage | Large Low co-axial Mechanical Stage for X-Y movement of specimens upto thickness of 65mm |
| Illumination | Brightfield vertical illuminator 6V-20W Halogen with aperture diaphragm, filter slots and bulb centring mechanism |
| Objectives | Achromatic M4X - M10X & M40X |
| Eyepieces | H6X - WF10X (paired) and P7X for microphotography |
| Model | RMM-7T |
|---|---|
| Related Model | RMM-7 – Same as Model RMM-7T, but with Monocular observation head |
