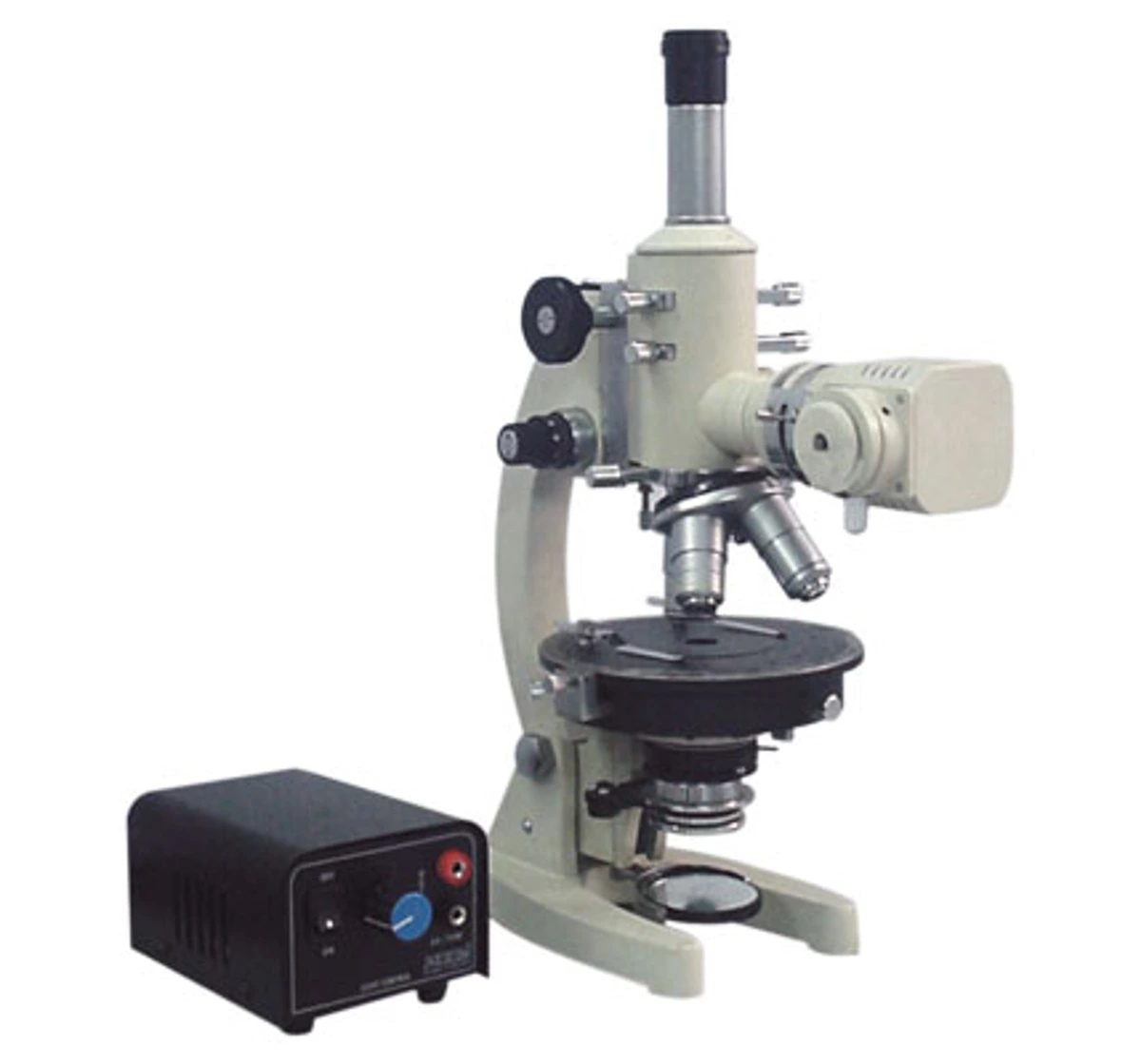

Laboratory Ore Microscope
ROM-11
Ore Microscope is a Principal Piece of equipment used by the Geologists to observe the optical properties of minerals. It has indispensable applications for Petrography, Crystallography Geology or finding stress points in metal, glass and Textiles, etc.
| Stage | Compact ball-bearing rotating stage, 140mm diameter, graduated with vernier, lock and stage specimen clips |
|---|---|
| Focussing | Separate knobs are provided for coarse and fine focussing adjustments |
| Transmitted Illuminator | Plano-concave mirror diameter 50mm mounted on gimble mount, interchangeable with sub-stage 15W lamp |
| Incident Illuminator | With pre-centred 20W tungsten halogen source and electric transformer with intensity control |
| Intermediate Tube | Built-in slide out analyzer, λ-Gypsum Plate, λ/4-Mica Plate and Bertrand Lens |
| Compensator | λ-Gypsum Plate (1st order red compensating plate, 560 nanometers) and λ/4-Mica Plate (145 nanometers) |
| Objectives | Achromatic, Semi-plan Objectives P-4x, P-10x and P-40x SL |
| Eyepieces | Widefield Eyepiece WF-10x and H5 Cross & H10x micro |
| Polarizer | Fully Rotatable Polarizer on strain free abbe-condenser N.A. 1.25 with iris-diaphragm |
| Model | ROM-11 |
|---|---|
| Optional Accessories | Detachable Mechanical Stage, Sub-stage Halogen Illuminator, Micrometer Eyepiece, Spare Bulbs, Additional Compensators, Wooden Storing Cabinet, etc. |
