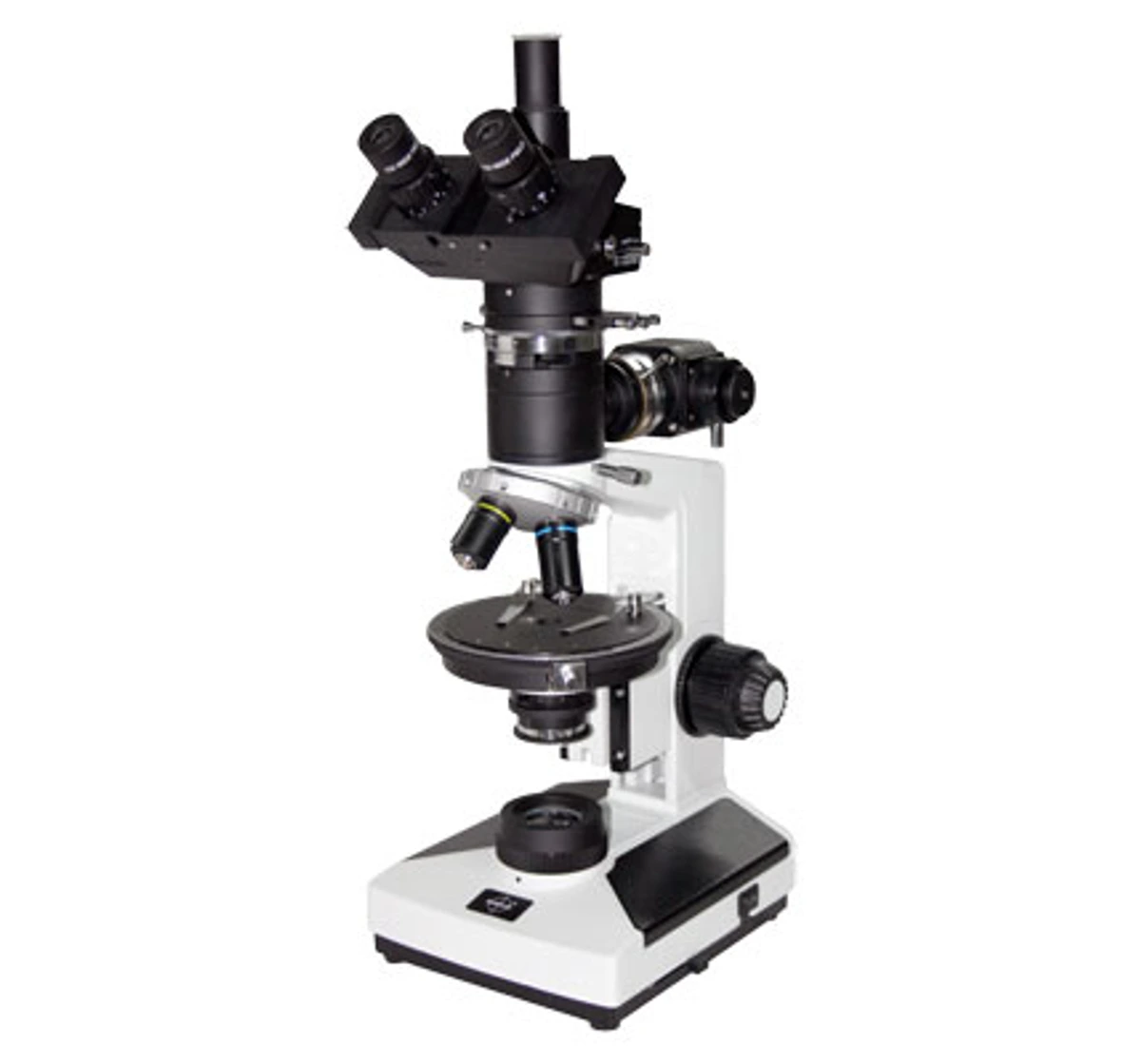

Research Ore Microscope
ROM-55T
Research Polarizing Microscope are principal piece of equipment used by the Geologists to observe the optical properties of minerals. It has indispensable applications for petrography, crystallography, geology, mineralogy, ceramics, toxicology, chemical microscopy or detecting defects in semi-conductors, finding stress points in metals, glass & textiles etc.
| Stage | Compact Ball bearing Rotating Stage, 140mm dia., graduation with vernier, lock & stage specimen clips |
|---|---|
| Focusing | Coaxial focusing is provided with coarse tension adjustment ring and graduated slow motion knobs. Adjustable safety lock is attached to prevent the breakage of specimen slides |
| Illumination | Koehler's Illuminator with pre-centered 20W Tungsten Halogen source & integral electric transformer with intensity control |
| Incident Illuminator | Reflected light incident illuminator consist of Polarizing unit, Slot for filter holder and a 20 Watt source |
| Intermediate Tube | Built-in focusable Bertrand Lens with center adjustment. Built-in Analyzer removable from optical part. Analyzer can be rotated 90° with vernier reading to 6' |
| Compensator | Gypsum (1st. order red compensating plate, 560nm). Mica (145nm) & Quartz Wedge (I-IV order) |
| Objectives | Stress less flat achromatic DIN Objectives PF4x/0.10, PF10x/0.25 & PF40x/0.65 SL |
| Eyepieces | HKW10x Paired & WF 10x Cross |
| Polarizer | Fully rotatable Polarizer on a strain free N.A 1.25 abbe condenser with iris diaphragm |
| Model | ROM-55T |
|---|---|
| Optional Accessories | Detachable Mechanical Stage, Objectives PF20x & PF60x, Micrometer Eyepiece WF10x, Microphotographic Equipment, 30° Inclined Siedentopf Heads, Wooden storing cabinet etc. |
