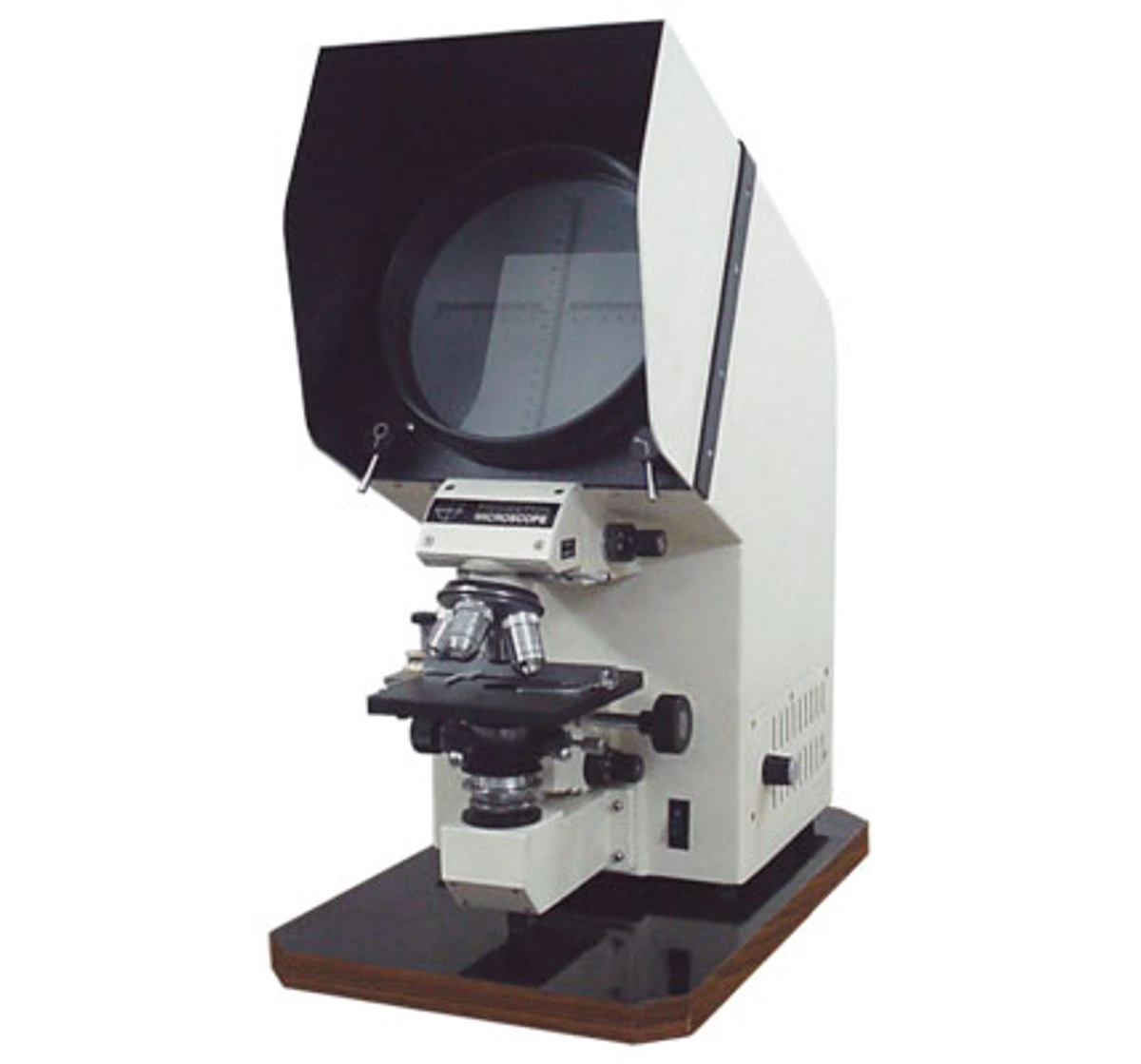

Polarizing Projection Microscope
RPL-4
RADICAL Projection Microscope is a versatile instrument of universal applications, Designed for all stages of demonstration, Measurements, checking, counting & comparison in Science Labs, Textile Production, Medical & Agricultural Fields.
| Screen | 200mm Round graduated Screen is made from fine grain Glass, rotatable in 360° on ball bearings & has a Fresnel lens |
|---|---|
| Lamp | Low Voltage Projection Lamp 12V-100W Halogen, is controlled by a variable intensity Control Knob |
| Objectives | Four Standard flat field achromatic objectives 5x-10x-20x & 40x, providing magnification from 125x to 1000x |
| Storage | Spare Bulb, Fuse, Micrometer Slide, Vinyl Cover & Power cord are Housed in a drawer with lock |
| Model | RPL-4 |
|---|---|
| Optional Accessories | Revolving Microscope Platform, Wall projection facility attachment, Yarn Comparator, Rotor Knob Screen Attachment, Spare Projection Bulbs, Micrometer Slide, Photo micrographic Equipment, Imaging System CCTV And Objectives |
