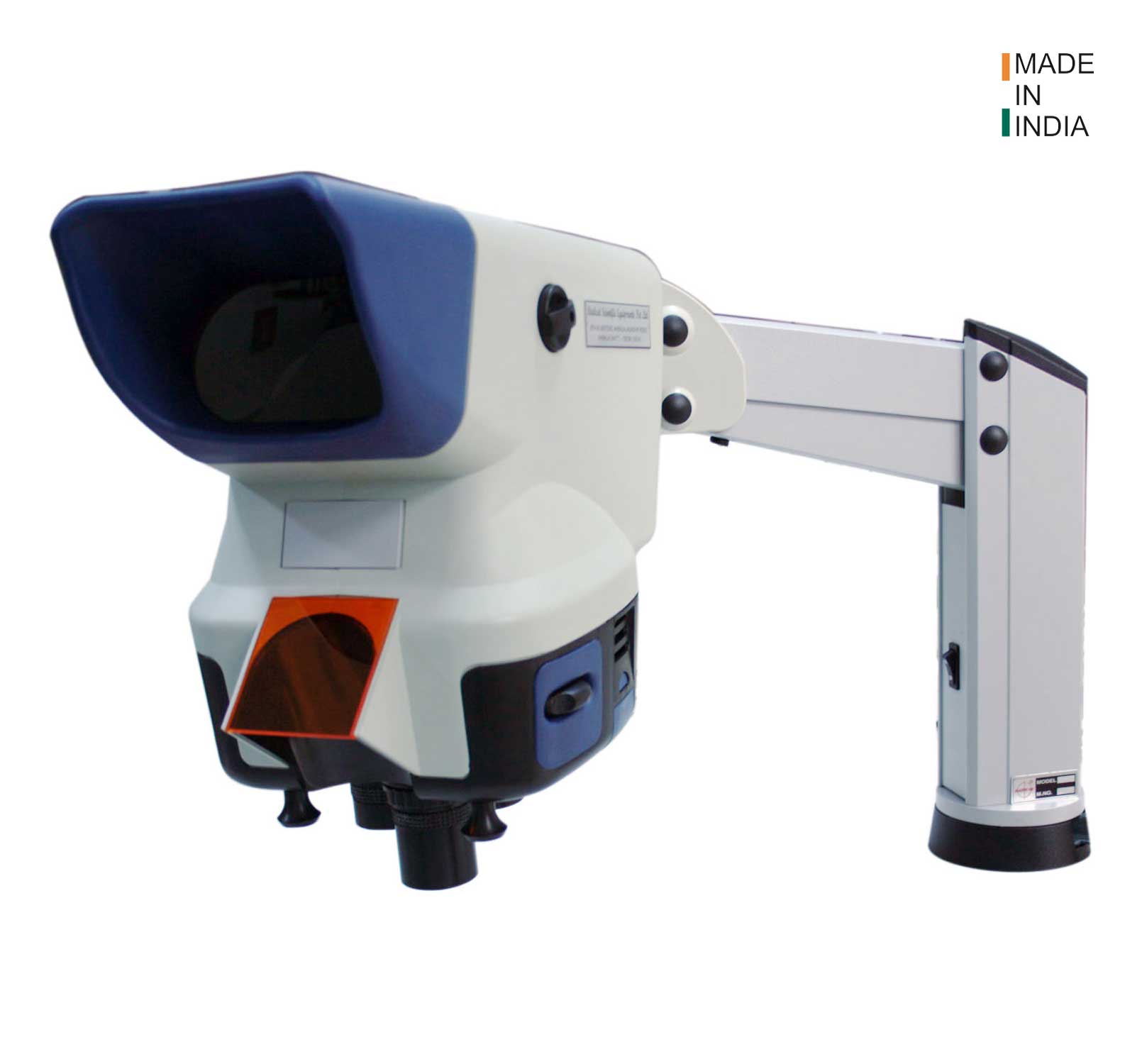

Stereo Inspection Scope Microscope
RSM-15
RSM-4 series stereo microscopes are manufactured with extra wide field eyepiece and long working Distance objective, making it suitable for medical and material science application. With multiple Illumination and stand option these are configurable for any laboratory task.
BRIGHTFIELD
|
DARKFIELD
|
| Optical system | Greenough System |
|---|---|
| Illumination | LED/Halogen |
| Viewing Head | Binocular/Trinocular |
| Eyepiece | Extra Wide Field |
| Stage | Large Stage With Handrest |
| Objectives | Long Working Distance |
| Highest Magnification | 160x |
| Stand | Two step focussing, universal, customized |
| Certification | EU CE, ISI, ISO, TUV |
| Part Name | Part Code | Description |
|---|---|---|
| Body | RSM4MB | Plain focussing stand, Rugged, ergonomic design, touch point treated, anti mould, anti electrostatic, acid resistant texture painted, rubber feet & stage clips. |
| Optical System | RSM4GOS | Greenough Optical System |
| Total Magnifications | RSM4TX | 10x to 160x (using different combinations of Eyepeice, zoom lens & aux. objectives) |
| Standard Zoom Lens | RSM4ZL | 2X & 4X (rotatable), working distance 100mm |
| Eyepeices | RSM41018 | Paired, WF 10X, FOV-18mm, Multilayered coated,High Quality, good contrast, aberration free, Aplantic, Lockable |
| Head | RSM4H45 | Binocular head, sidentopf, 45° inclined, rotatable 360°, IPD 48-75mm |
| Focussing | RSM4PFOC | Plain focussing, lifting upto 50mm |
| Illumination | RSM4HAL | Halogen (Transmitted and Reflected), separate Intensity controller & ON/OFF Switch |
| Standard accessories | RCC | Cleaning cloth |
| RVC | vinyl cover | |
| MANUAL | Instruction manual | |
| WARRANTY | Warranty card | |
| RPC | Power Cord (If any - country Specific) |
| Part Name | Part Code | Description |
|---|---|---|
| Body/Stand | RSM4UNV | Universal bracket arm, hight, angle position adjustable, vertical high 350mm, diameter 35mm, horizontal movement 400mm, no transmitted light |
| RSM4COF | Column flat base, black & white sheet dia 95mm, column height 240mm, dian32mm, no transmitted light | |
| RSM4BLIT | Base with table, 95mm glass, black & white plate, transmitted light 12V-15W halogen, 7W fluorescent optional, intensity controller, column height 240mm, dia 32mm, base 20mm x 255mm, 40mm | |
| RSM4LRFLT | Large flat base, column height 240mm, dia 32mm, base size 380x260x20mm, no transmitted light | |
| RSM4FLTB | Flat base, black & white plate 95mm, arm height 300mm, focussing knob 100mm | |
| RSM4LEDGSNK | Flat base, black & white plate 95mm, arm height 250mm, Dual LED (3W) lighting gooseneck inbuilt into stand | |
| RSM4LEDRLTL | Transmitted & reflected LED, intensity controller, column height 240mm, | |
| RSM4BFLAT | Plain, flat base with coloum, no transmitted light | |
| Eyepiece | RSM4EP1020 | Paired, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, aberration free, aplantic, lockable |
| RSM4EP1515 | Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, aberration free, aplantic, lockabl | |
| RSM4EP2010 | Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, aberration free, aplantic, lockabl | |
| Auxillary Objectives | RSM4AUX0.5 | 0.5X / 165mm |
| RSM4AUX1.5 | 1.5X/45mm | |
| RSM4AUX2.0 | 2X/30mm | |
| Head | RSM4H1X2X | 1X/2X zoom combination |
| RSM4H1X3X | 1X/3X zoom combination | |
| Illumination | RSM4RLTLLED | Epi-illumination, incident & transmitted LED, intensity/brightness control |
| RSM4RLGSK | Fibre Optic Light Source with Single or Double Flexible Light Pipes | |
| RSM4RLTL100 | Co-axial illuminator 12V-100W Halogen | |
| RSM4RLFL | Circular Fluorescent Illuminator | |
| RSM4FLR | 60 LED, intensity adjustable, color temperature 6400K, 24V6W | |
| RSM4LEDR | 56 LED, Ring Light, color temperature 6400K, 24V6W | |
| RSM4HAL15W | Halogen bulb with reflector, 12V15W | |
| Micrometer slide | RCS100 | Micrometer slide for calibration, 10mm with 100µm least count |
| Mechanical stage | RSM4STAGE | Stage, X-Y movement, ball guide, 180X155X26mm, travel 35X30mm, size 185X140mm |
| Packing | RWBX | Wooden box with separate container for accessories, lock & key, carrying handle |
| RSTYRO | Standard Styrofoam packing | |
| Cleaning Kit | RCLEAN | Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution |
