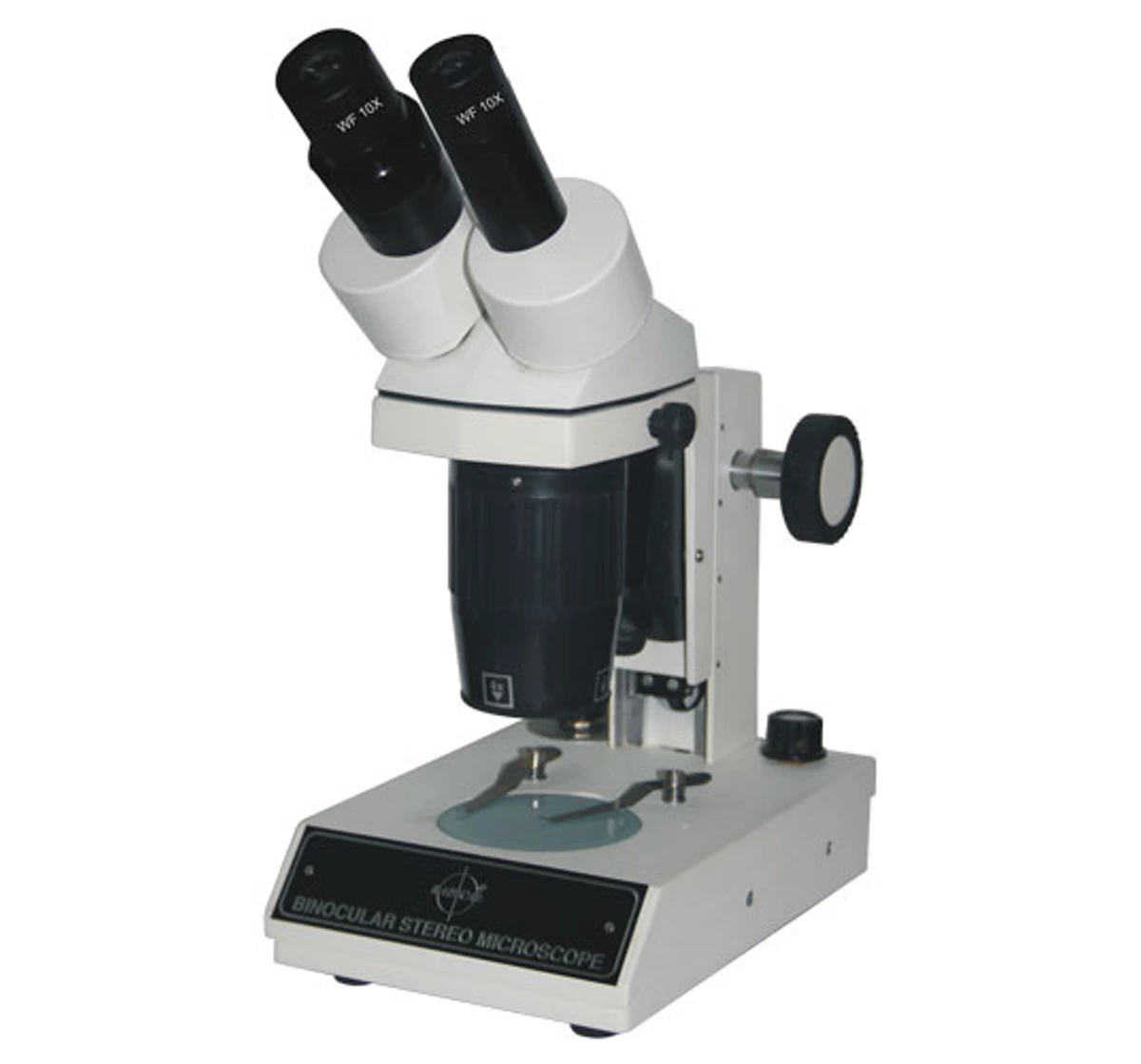

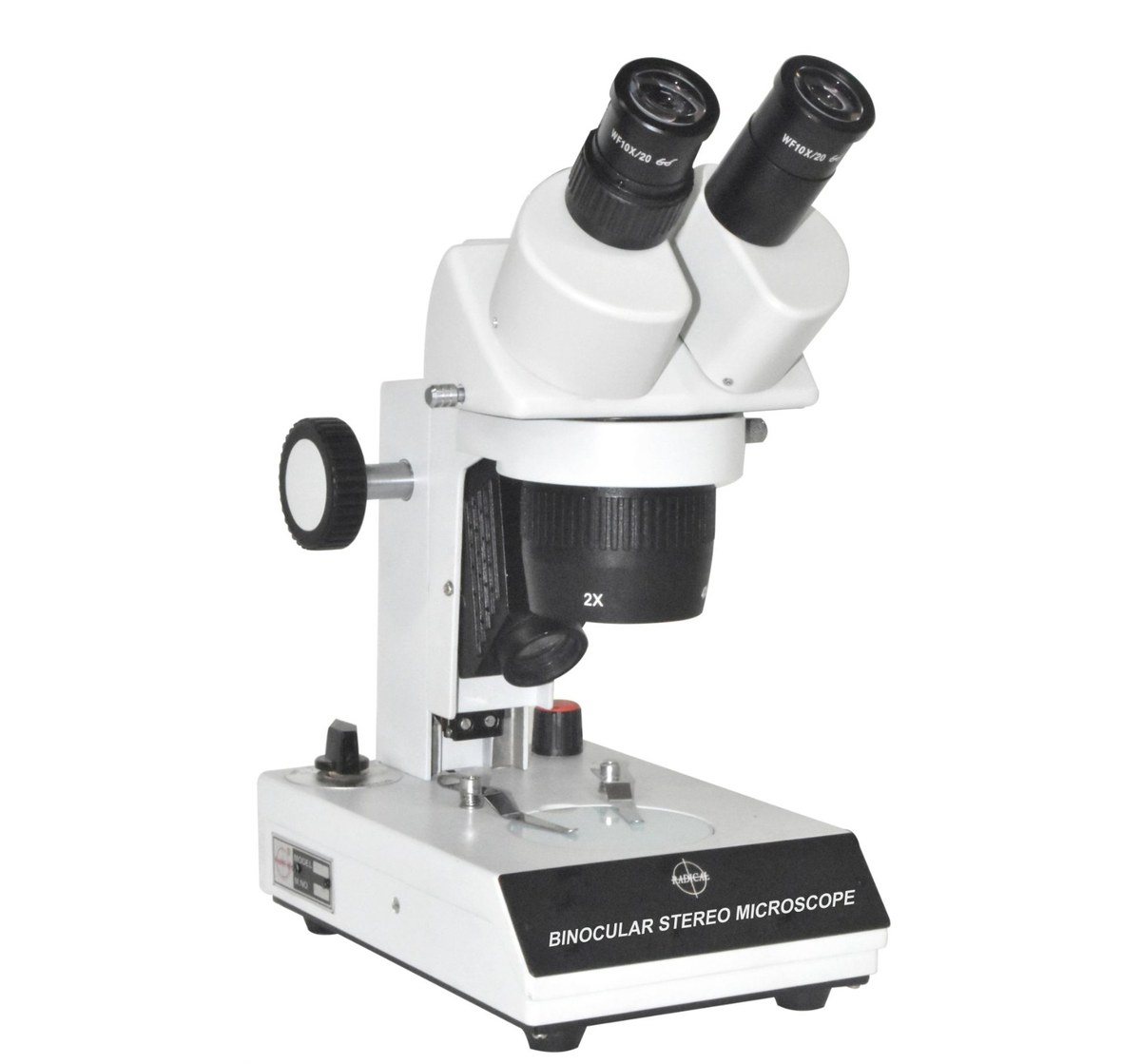

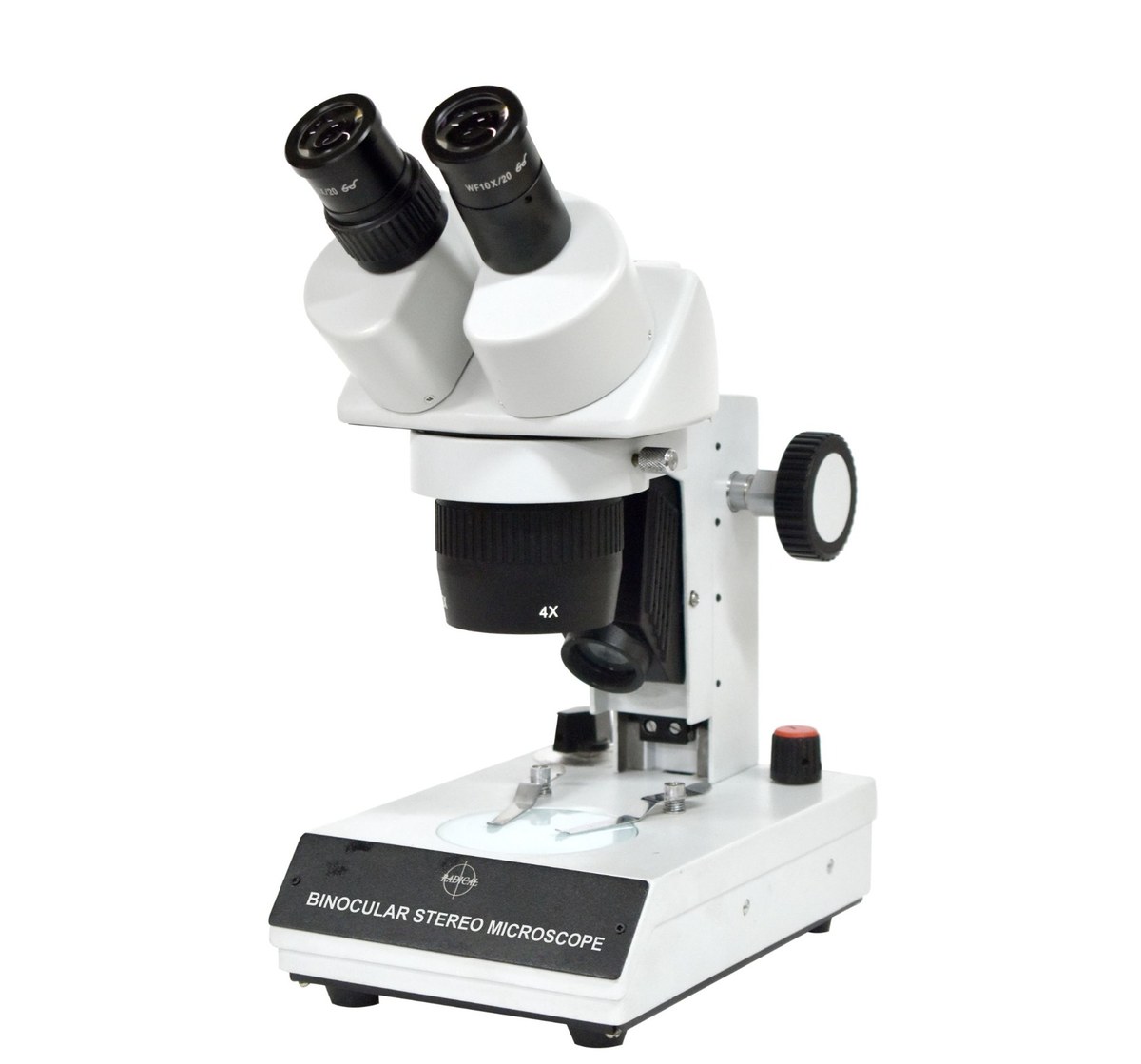

Binocular Stereo Microscope
RSM-4
A significant advantage of Stereoscopic Microscopic is that by using two optical systems, an erect image of the object can be seen in three dimensions.
| Observation Head | Binocular head inclined at 45° rotated through 360° with adjustable inter-pupillary distance |
|---|---|
| Focussing | By Rack and Pinion on ball bearing mechanism with adjustable tension collar |
| Magnification | Standard magnification 20X & 40X or 10x & 30x |
| Illumination | With integral illuminator, 2 separate lamps (halogen or LED) are fitted to provide both transmitted and incident illumination |
| Objectives | 2X - 4X or 1X – 3X selected by rotating nosepiece through 90° |
| Eyepieces | Standard extra wide field eyepieces WF-10X/20mm is provided |
| Working Distance | 100mm |
| Model | RSM-4 |
|---|
