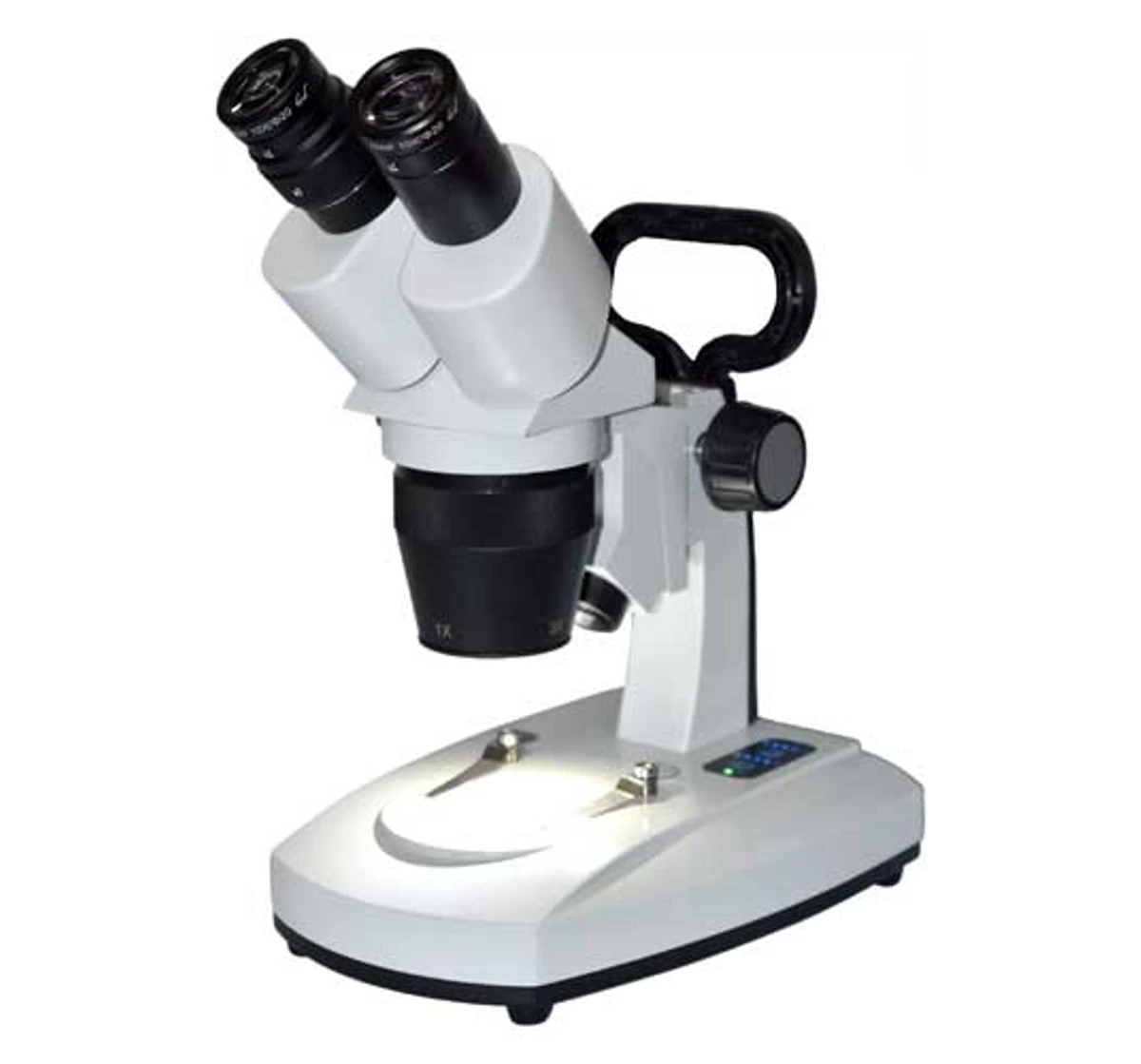

Binocular Stereo Microscope
RSM-5
A significant advantage of Stereoscopic Microscopic is that by using two optical systems, an erect image of the object can be seen in three dimensions.
| Eyepieces | WF10x/20mm Paired, locked, adjustable inter-pupillary distance 50mm to 75mm |
|---|---|
| Head | Binocular 45° inclined, 360° rotatable & +5 adjustable diopter |
| Objectives | Built-in 2x - 4x through rotatable turret (magnification 20x and 40x) |
| Focusing | By coarse focusing knobs with slip clutch for adjustments |
| Field of View | 10mm with 2x and 5mm with 4x objectives |
| Working Distance | 76mm |
| Illumination | Lifetime LED, incident and transmitted illumination, Voltage 100-230V |
| Base | Base with 2 stage clips, 50mm frosted glass and black & white reversible plate |
| Cordless Use | Upto 10 hours cordless working time with rechargeable batteries |
| Dimensions | 150mm x 130mm x 360mm, Weight 2.100 Kg. (Nett); 285mm x 220mm x 385mm, Weight 2.5 Kg. (Gross) |
| Other Model | Available in 1x & 3x objectives, Field of view 20mm & 7mm respectively |
| Model | RSM-5 |
|---|
