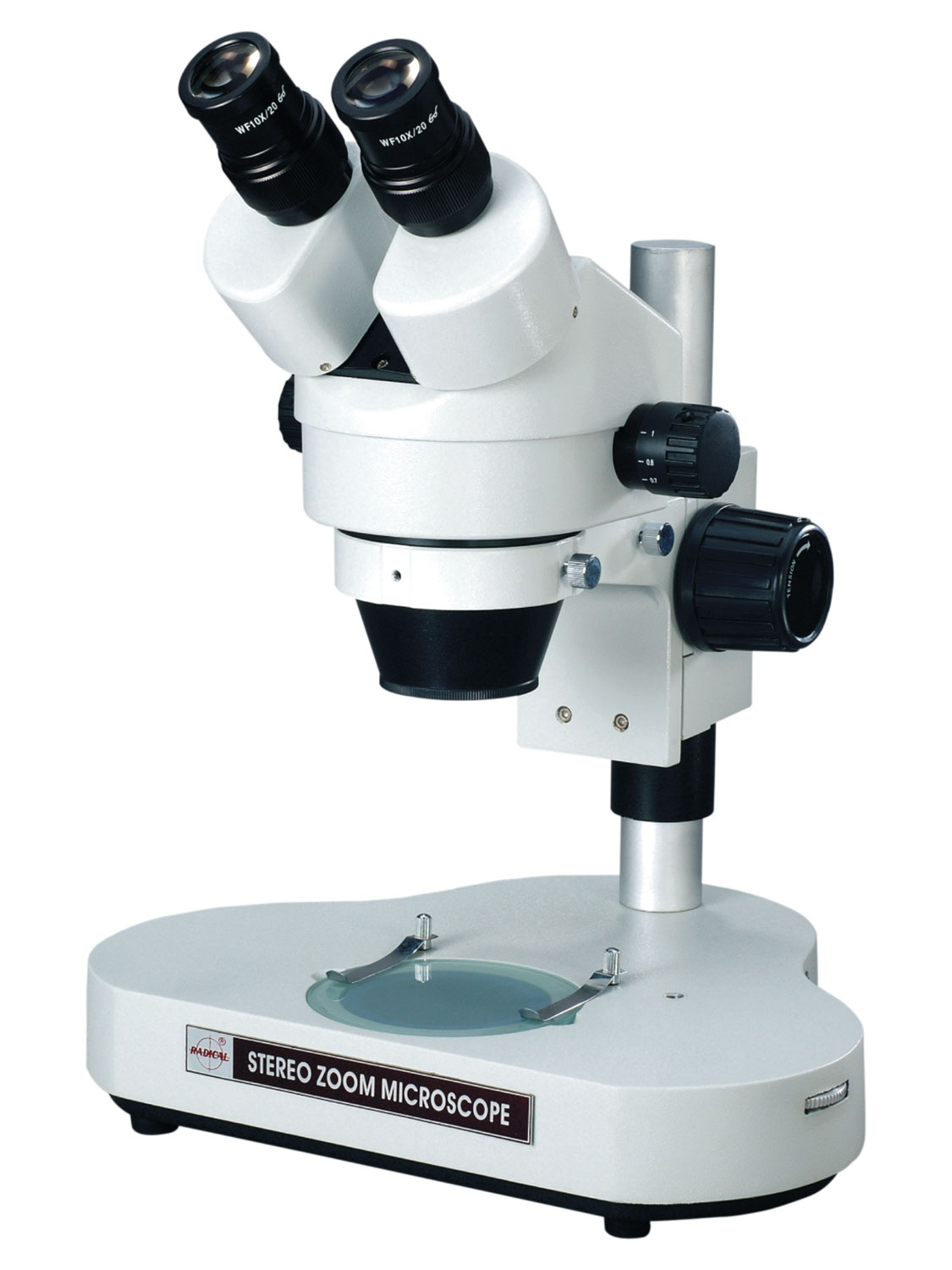

Binocular Stereo Zoom Microscope
RSM-8
Binocular tube with an inclination of 45° for greater ease of observation, offering crisp, erect images with high resolution and excellent stereoscopic effect across a 7x to 45x zoom range.
| Viewing Head | Binocular tube with an inclination of 45° for greater ease of observation |
|---|---|
| Magnification | 7x to 45x |
| Zoom Ratio | 6.4:1 |
| Focusing | Rack-Pinion focussing, stroke 50mm |
| Eyepieces | Wide field eyepiece 10x (paired) |
| Objective | 0.7x to 4.5x |
| Optical Performance | Crisp, erect images with high resolution and excellent stereoscopic effect |
| Working Distance | Standard working distance 100mm, regardless of magnification |
| Field of View | 28.6 - 4.4 mm |
| Interpupillary Distance | 54 to 75 mm |
| Dioptric Adjustment | Range of ±5 diopters possible with both oculars |
| Rotation | Binocular body can be rotated a full 360° and locked in any position desired |
| Focus Retention | Once brought in focus, image remains clear and sharp throughout the whole zoom range |
| Illumination | Dual illumination system having circular fluorescent incident light and transmitted light through solid state built-in transformer halogen bulb 6 Volts 20 Watts |
| Packing | Packed in cardboard box with operation manual, vinyl cover etc. |
| Model | RSM-8 |
|---|
