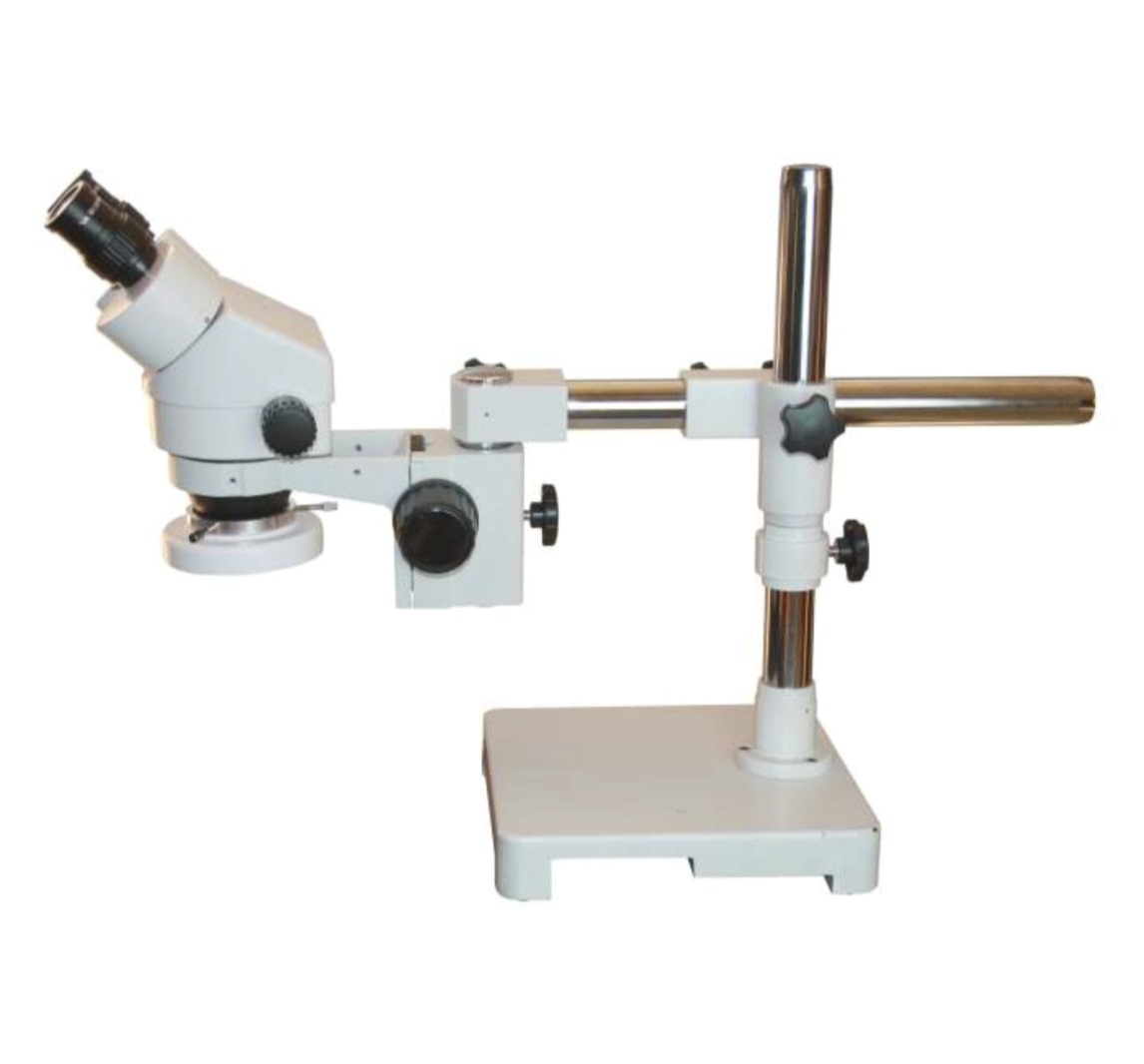

Binocular Stereo Zoom Microscope
RSM-8U
RSM-8U mounts the binocular stereo zoom head on a universal stand with counter weight, allowing smooth free-arm positioning over the work area. The stand carries no built-in illumination and is suited for use in natural light or with optional external illuminators.
| Observation Head | Binocular body inclined at 45° for fatigue free viewing, rotatable a full 360° and lockable in any position |
|---|---|
| Ocular Tubes | Ergonomically positioned and interlocked for improved operability |
| Magnification | 7x to 45x |
| Zooming Ratio | 6.4:1 |
| Zoom Objective | 0.7x to 4.5x |
| Standard Eyepiece | WF10x/20 (paired) |
| Working Distance | 100mm at standard WF10x/20 eyepiece |
| Field of View | 28.6-4.4mm at standard WF10x/20 eyepiece |
| Stand | Universal stand with counter weight for smooth free-arm positioning, without any illumination |
| Application | Suited for industrial and biological research applications requiring high precision, maximum working distance and large field coverage |
| Model | RSM-8U |
|---|
