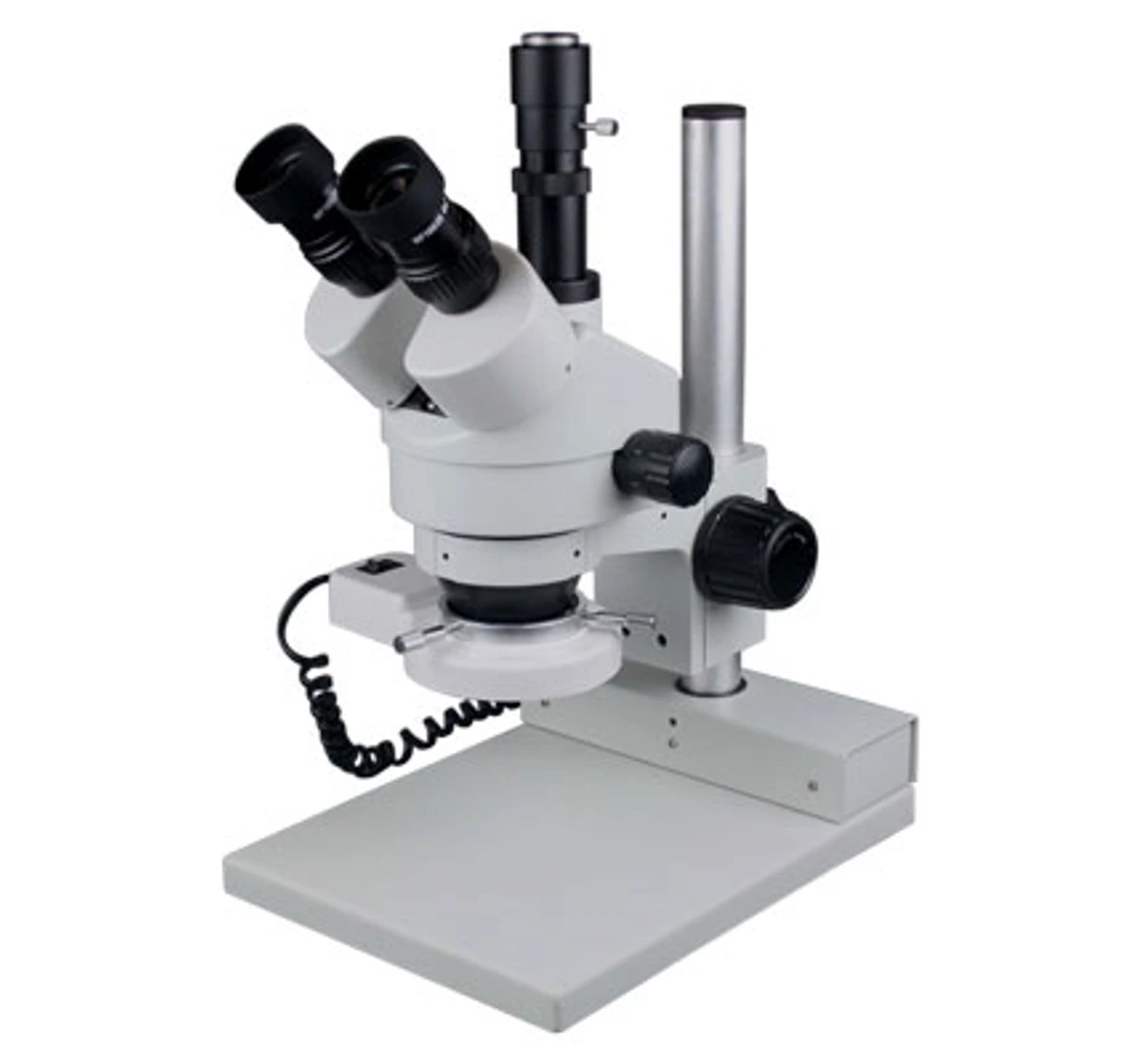

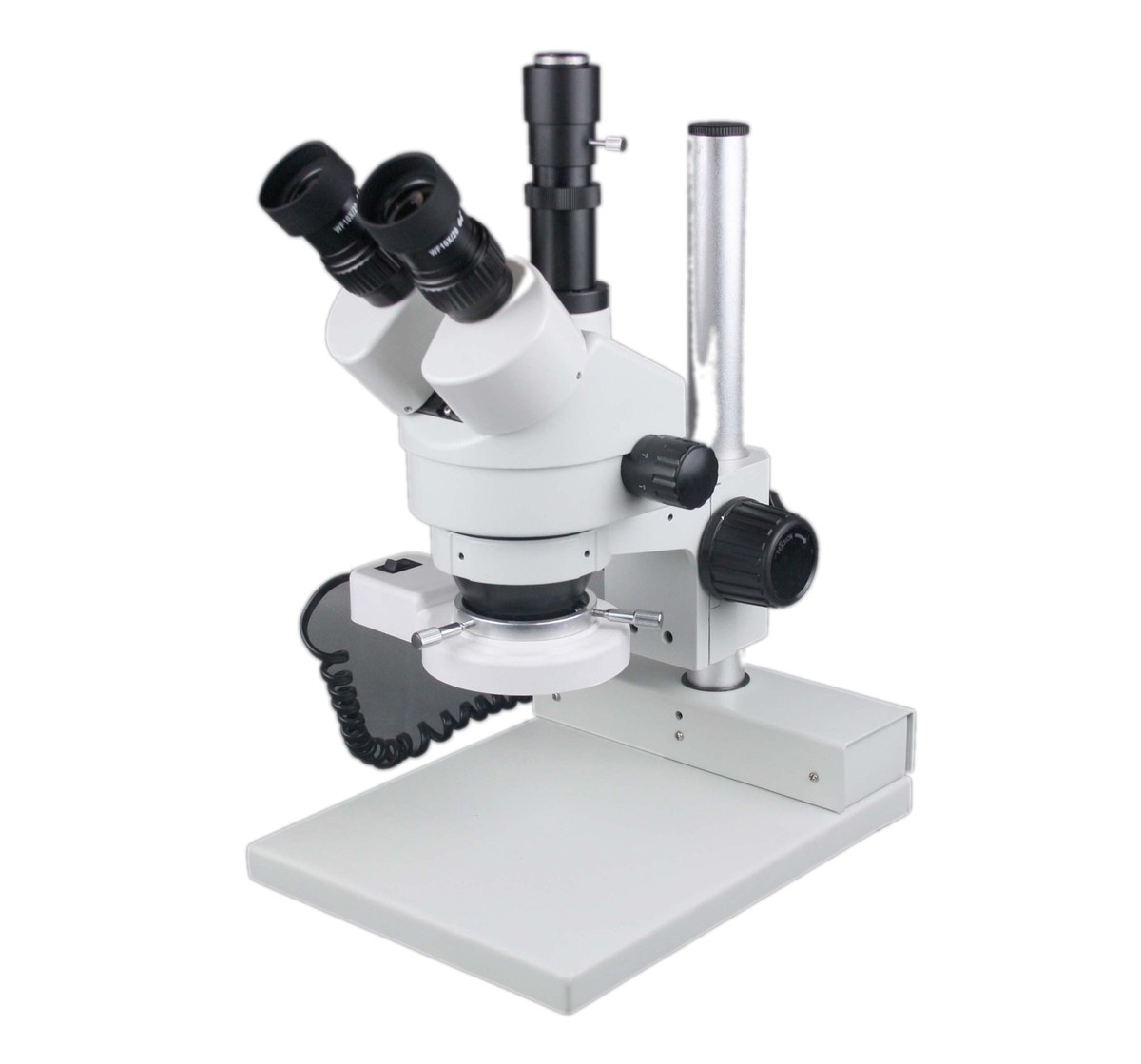

Trinocular Stereo Zoom Microscope
RSM-9F
Large stage is equipped for convenience of work. A long life and low temperature 10W fluorescent lamp is provided for the built in incident light.
| Magnification | 7x to 45x |
|---|---|
| Zooming Ratio | 6.4:1 |
| Eyepiece | Wide field eyepiece 10x (paired) |
| Objective | 0.7x to 4.5x |
| Working Distance | 100mm |
| Field of View | 28.6-4.4mm |
| Interpupillary Distance | 54 to 75mm |
| Dioptic Adjustment | +5 diopters is possible with both oculars |
| Focusing | Rack-Pinion focussing stroke 50mm |
| Illumination | Long life and low temperature 10W fluorescent lamp is provided for the built in incident light |
| Stage | Large stage is equipped for convenience of work |
| Model | RSM-9F |
|---|
