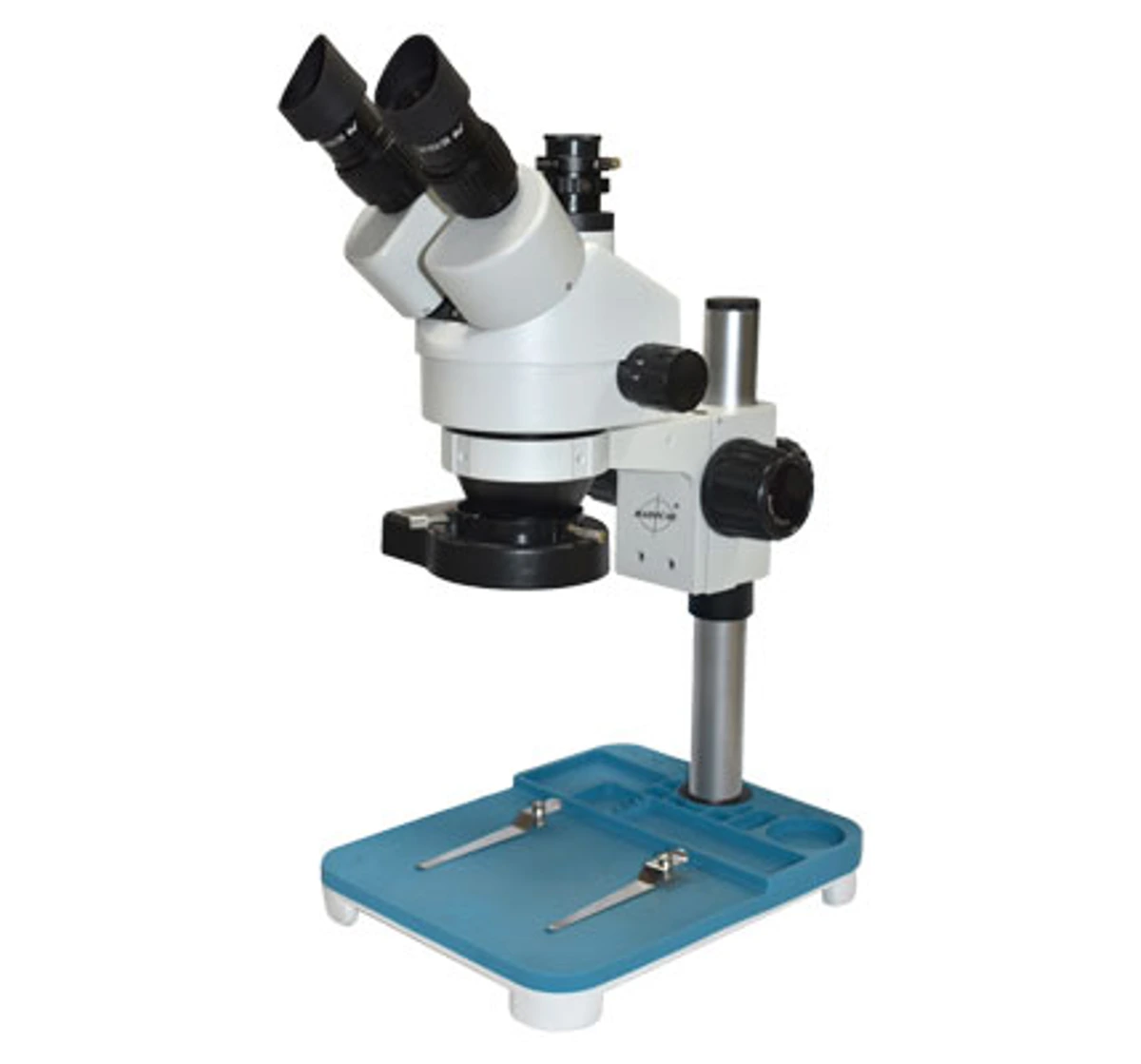

Stereo Zoom Workstation
RSM-9S
A significant advantage of Stereo Zoom Workstation is that by using two optical systems, an erect image of the object can be observed in three dimensions.
| Observation Head | Binocular / Trinocular head with an inclination of 45° for greater ease of observation |
|---|---|
| Magnification | 7x to 45x Standard with 10x eyepiece |
| Zooming Ratio | 6.4:1 |
| Zoom Range | 0.7x to 4.5x |
| Eyepiece | Wide Field Eyepiece 10x/20mm (Paired) |
| Field of View | Std. 28.6 - 4.4mm |
| Interpupillary Distance | 54 to 75mm |
| Dioptic Adjustment | +5mm dioptic is possible with both ocular |
| Rack-Pinion Focusing | Range upto 50mm |
| Working Distance | Std. 100mm |
| Illumination | Incident illumination through LED ring light with variable intensity |
| Stand | Pole type stand of 300mm height |
| Base | Aluminum alloy base covered with removable high quality, anti-static, non slip magnetic mat of size 260 x 204mm |
| Model | RSM-9S |
|---|
