Trinocular Stereo Zoom Microscope
RSM-9U

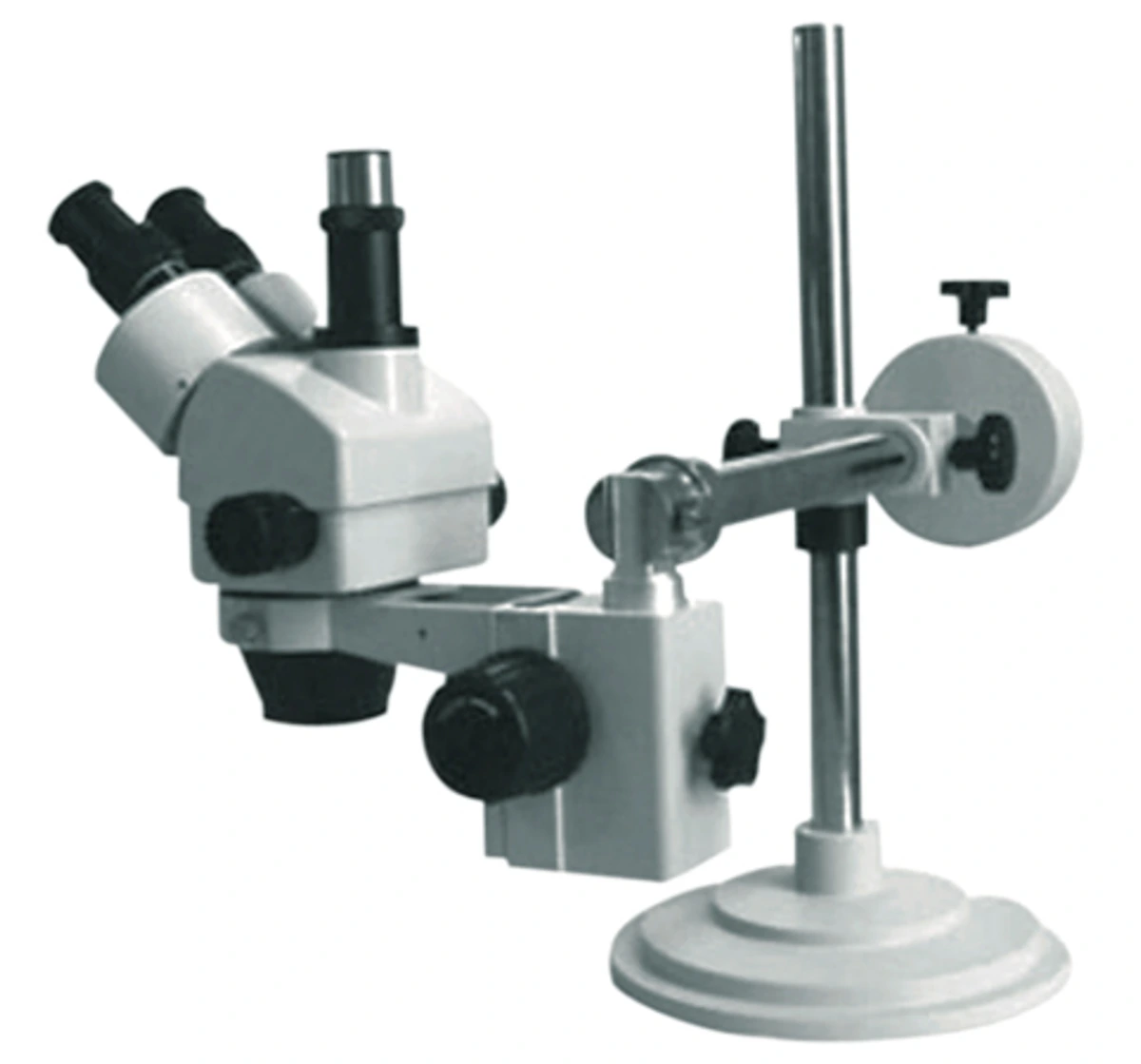

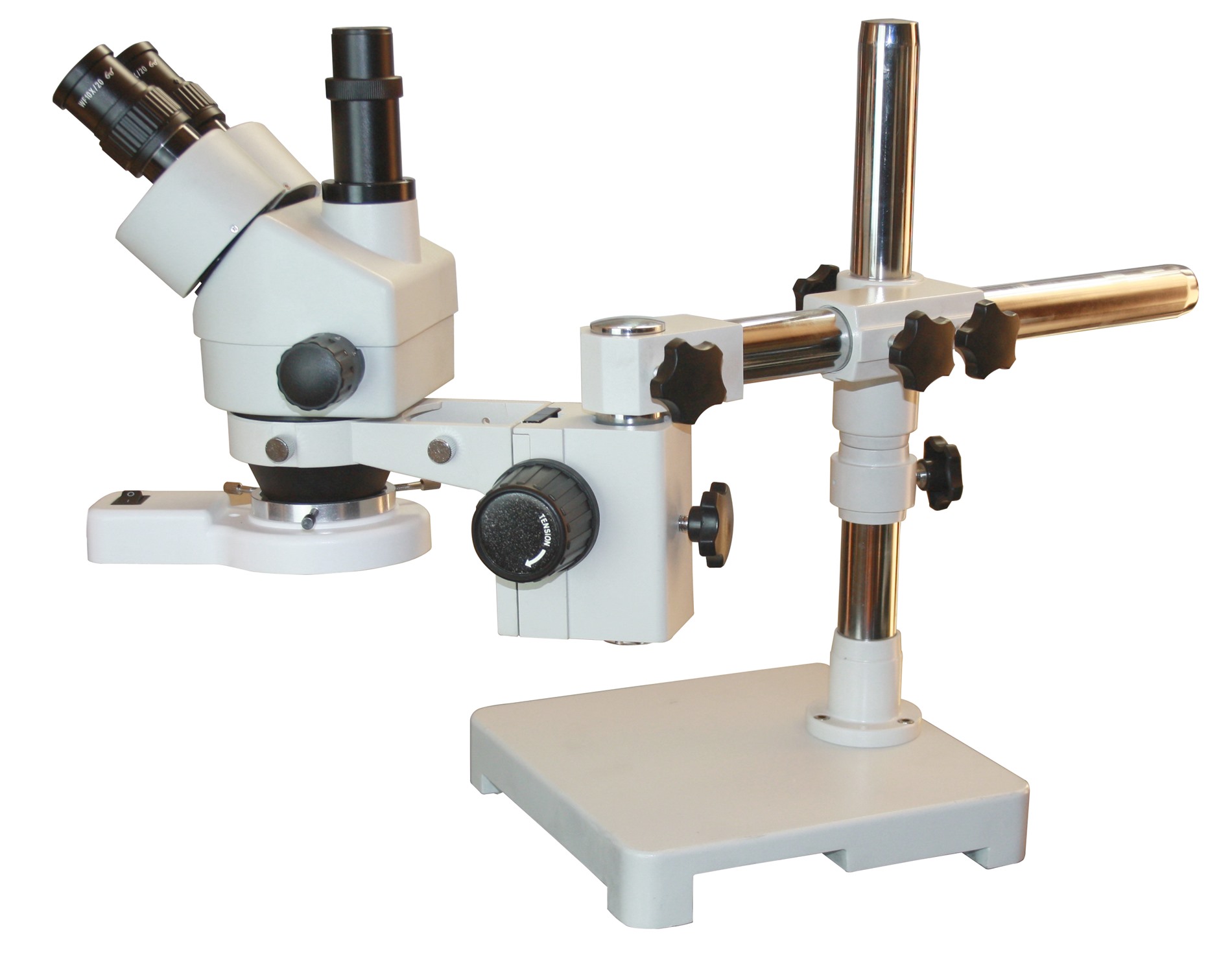

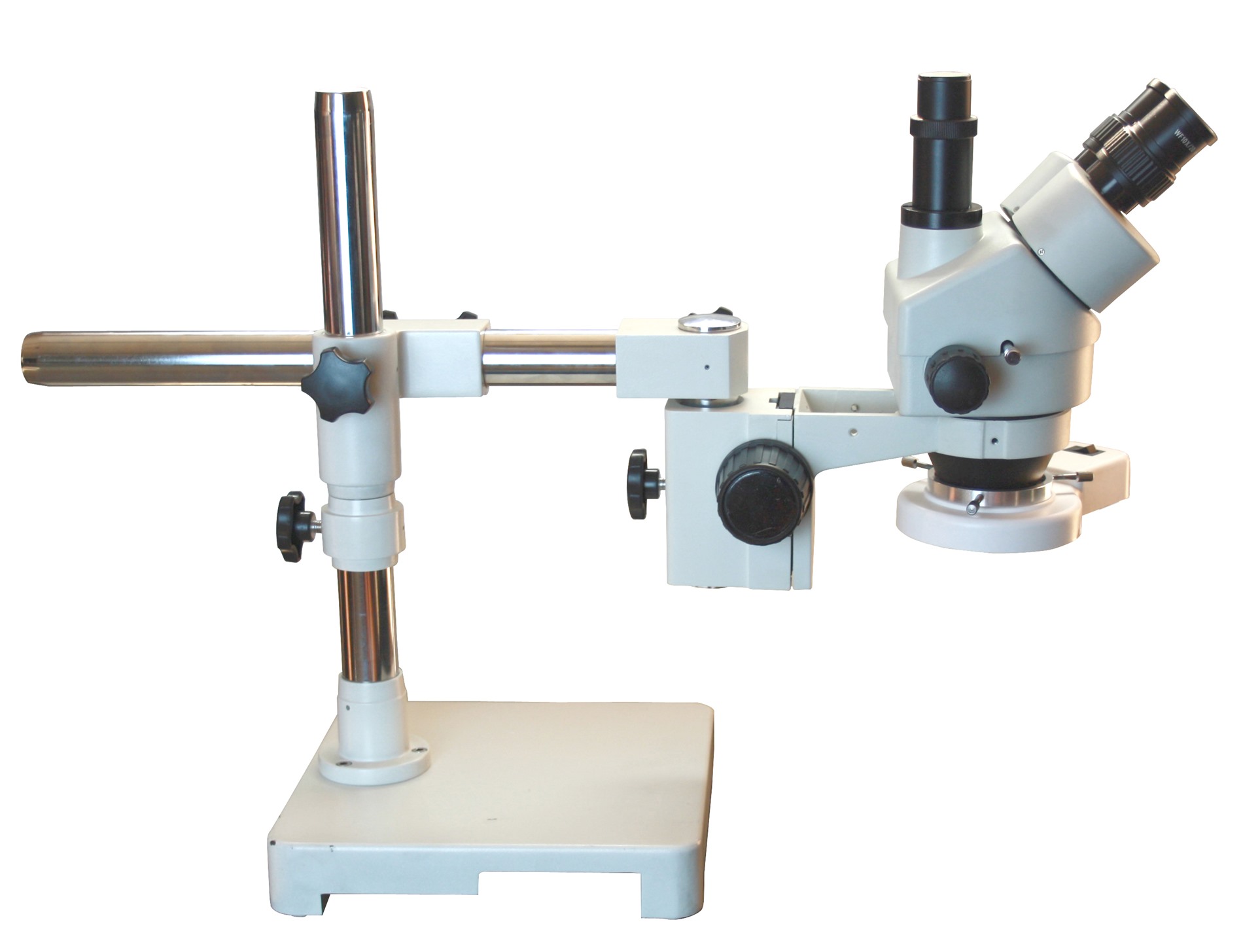

RSM-9U mounts the trinocular stereo zoom head on a boom stand for flexible positioning over large parts or work areas.
| Observation Head | Trinocular tube with 45° inclination for observation ease, rotatable 360° |
|---|---|
| Magnification | 7x to 45x |
| Zooming Ratio | 6.4:1 |
| Rack-Pinion Focusing Stroke | 50mm |
| Wide Field Eyepiece | 10x (paired) |
| Objective | 0.7x to 4.5x |
| Standard Working Distance | 100mm, regardless of magnification |
| Field of View | 28.6-4.4mm |
| Interpupillary Distance | 54 to 75mm |
| Dioptic Adjustment | +5 diopters possible on both oculars |
| Illumination | Incident illumination system having circular fluorescent ring light |
| Base | Round or Square base |
| Model | RSM-9U |
|---|
