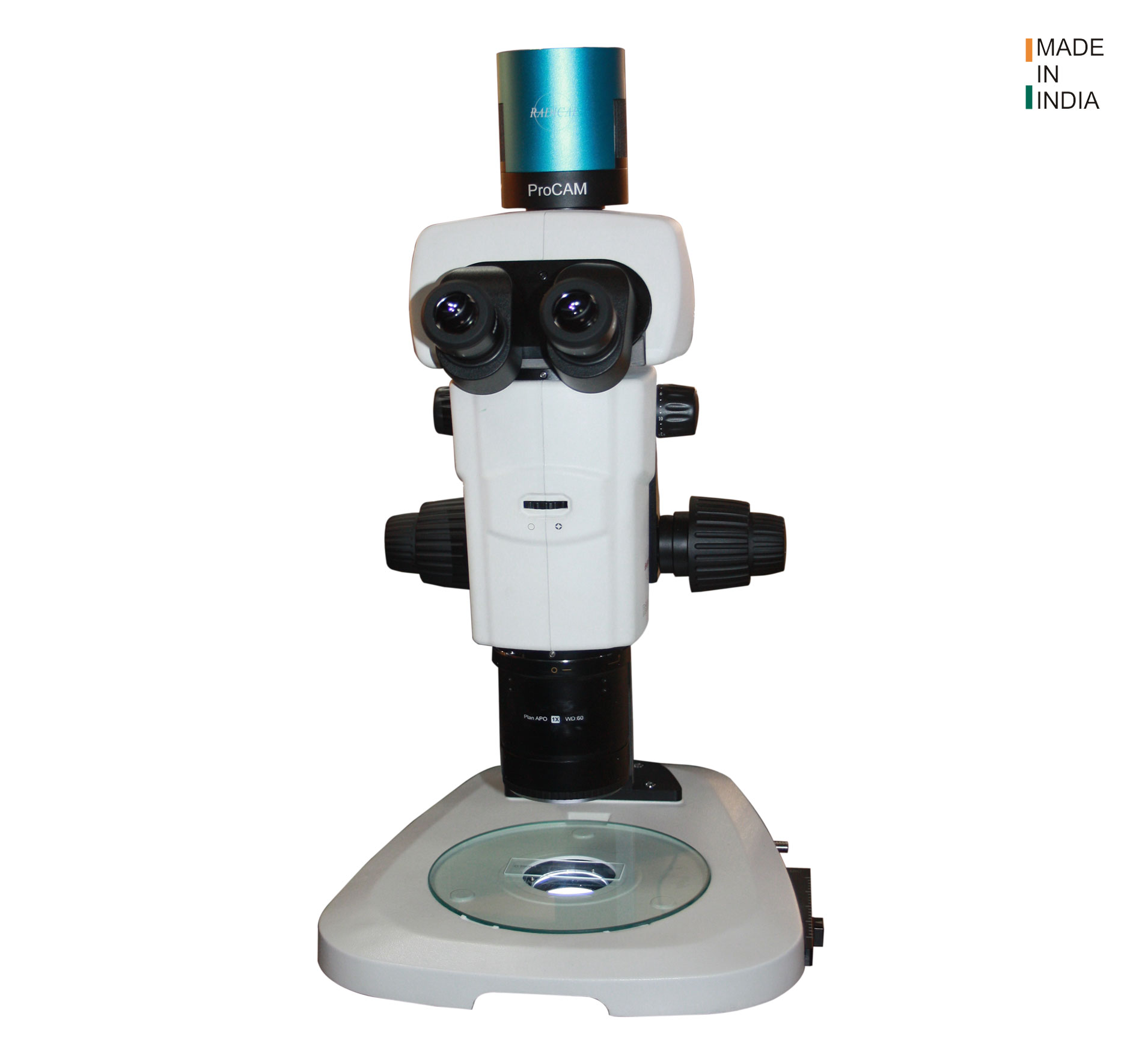

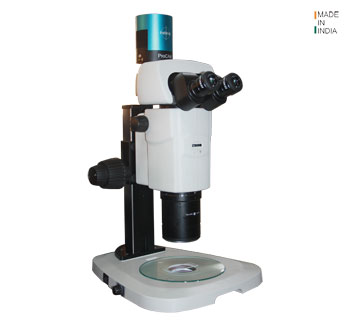

Research stereozoom microscope

High Resolution Stereo Zoom Microscope

RSMr-X8 Series

Research stereozoom microscope is importantly applied in industry detection and life science. Based on Galileo optical system and man-machine engineering, RSMr-X8 presents a real and perfect micro-image with easy operation, meets the research demands of biomedicine, microelectronics and semiconductor.

Optical system Greenough System
Illumination Top bottom LED, Coaxial, cold light, Diascopic, optional colour temperature
Viewing Head Tilting viewing head for comfortable operation
Eyepiece Extra Wide Field
Stage Large stage with hand rest
Objectives Apochromatic objective
Zoom Large zoom ratio 18:1
Stand Co-axial coarse and fine focusing stand, universal, customized, LCD on base
Camera Port Single, dual port, aperture diaphragm adjustment
Other Contrast Darkfield, polarizing, fluorescence
Motorized Control Motorized focus and zoom
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RSMRX8MB Rugged, ergonomic design, touch point treated, anti-mould, anti-electrostatic, acid resistant texture painted, built-in aperture/iris diaphragm, rubber feet & stage clips.
Optical System RSMRX8POS APO chromatic, parallel optics zoom system, fringes & abrasions free, resolution upto 900 lines per mm
Standard Zoom Lens RSMRX8ZL Zoom range: 0.75X~13.5X, zoom ratio: 18:1; built-in aperture diaphragm; click stop, manual
Zoom ratio RSMRX8ZR 18:1
Eyepieces RSMRX81023 High eye point, wide field plan eyepiece WF 10X, FOV-23mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (± 5) on one/both eyepieces with rubber eye guard (suitable for eyeglass wearer), one with 10mm graticule.
Objective RSMRX81X 1X main objective, plan apochromatic, working distance 60mm with FOV 31.4mm, NA 0.15, coded function is available on motorized program
Viewing head RSMRX8T20 30° inclined trinocular head; binocular: trinocular=50: 50; 100:0, interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
Oblique Illumination RSMRX8OCC In-built OCC slider
Focusing RSMRX8FOS Plan stand with coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm, focus column 350mm
Illumination RSMRX8LED 5W LED light box (size: 270X100X130mm) with single fiber (500mm), color temperature 5000-5500K; operating voltage 100-240VAC/50-60Hz, output 12V
Standard Accessories RCC Cleaning cloth
  RVC Vinyl cover
  RPC Power Cord (Country Specific), USB cable
  MANUAL Instruction manual
  WARRANTY Warranty card
  Cartridges Oblique illumination cartridges, Brightfield cartridges, Polarization plate cartridges
    Thermo Plate Normal glass plate diameter 180mm round plate Glass thickness:1.0mm
    Power Adapter
    C-mount adaptor 0.55x
    Upgradable from 3.75x to 270x
  • Auxillary Objectives
    • Auxillary Objectives RSMRX8OBJ0.3 APO 0.3X/WD upto 275mm, N.A0.045
      RSMRX8OBJ0.5 APO 0.5X/WD upto 195mm, N.A 0.05
      RSMRX8OBJ1.0 APO 1.0X/WD upto 90mm, N.A 0.1
      RSMRX8OBJ1.25 APO 1.25X/WD upto 60mm, N.A 0.125
      RSMRX8OBJ1.5 APO 1.5X/WD upto 45.5mm, N.A 0.15
      RSMRX8OBJ2.0 APO 2X/WD upto 30mm, N.A 0.2
      RSMRX8OBJC APO customized objective
      Depth of field   High depth of field up to 80µm for 1X
          Please click forMore Objectives...
  • Body/Stand
    • Part Name Part Code Description
      Body/Stand RSMRUNV Chromium-plated steel base 330x220 having Universal bracket arm, height, angle position adjustable, Stand vertical high 500mm, diameter 35mm, horizontal movement 590mm, adjustable X, Y & Z position. with ball bearing for smooth operation, locking ring, grease free run, no transmitted light, adjust able stop & adjustable break.
      RSMRX8UNV Universal bracket arm, height, angle position adjustable, vertical high 350mm, diameter 35mm, horizontal movement 400mm, no transmitted light
        RSMRX8HPB New designed base having inbuilt halogen 6V20W with intensity adjustment and on/off switch. Provision for inbuilt polarizing plate.
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Eyepieces
    • Eyepiece RSMRX8EP1516 High eye point,wide field plan eyepiece WF15X, FOV-16mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (±5) on one/both eyepieces
      RSMRX8EP2012.5 High eye point, paired, WF20X, FOV-12.5mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (±5) on one/both eyepieces
        RSMRX81020 High eye point, WF10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (±5) on one/both eyepieces with rubber eye guard (suitable for eyeglass wearer)
        RSMRX81022 High eye point, wide field plan eyepiece WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (± 5) on one/both eyepieces with rubber eye guard (suitable for eyeglass wearer)
        RSMRX81022ESD High eye point, wide field plan eyepiece WF 10X, FOV-22mm, ESD capable, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (± 5) on one/both eyepieces with rubber eye guard (suitable for eyeglass wearer)
  • Focusing
    • Focusing RSMRX8FCM Motorized Focus Unit (up 96mm and down 4mm)
      RSMRX8FOS1 Plan stand with coarse and fine coaxial focus system, integrated body with focus holder, coarse range:50 mm, fine precision 0.002mm, focus column 450mm with load capacity upto 20 kg
  • Illumination
    • Illumination RSMRX8LEDTR/RE 3W LED epi-illumination (life upto 30,000 hrs.), transmitted & reflected, separate intensity controller & on/off switch
      RSMRX8IMTR/RE Incident Monochromatic fiber optic enable cold light with ring fiber illumination unit to be fixed on objective and transmitted light illumination
      RSMRX8LEDR56 56 LED, ring light, color temperature 6400K, 24V6W (life hrs. 10,000)
      RSMRX8LEDR56-1 56 LED, ring light with 4 different segmentation modes, colour temperature 6400K, 24V6W (life hrs. upto 65,000), with separate controls for segmentation and rotation 4modes: full, half, quarter circle, 2 facing quarter circles
      RSMRX8OM Specially designed rectangular base flat LED light 3 point arc, with arm rest (suitable for Transmitted BF & DF) with intensity controller, having transparent stage glass with LED light having single side coated mirror for he projecting light in different angles cold source illumination
      RSMRX8RLGSK1 Fibre optic light source (halogen 150W) with single flexible Light Pipes (life hrs. 2,000)
        RSMRX8RLGSK2L Fibre optic light source (LED) with double flexible light Pipes (life hrs. upto 1,00,000)
  • Mechanical Stage
    • Mechanical Stage RSMRX8STAGE Stage, X-Y movement, ball guide, 180X155X26mm, travel 35X30mm, size 185X140mm
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • Optical System
    • Optical System RSMRX8GOS APO chromatic, greenough optics zoom system, resolution upto 600 lines per mm
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
      RSTYRO Standard Styrofoam packing
  • Reticule
    • Reticule Crosshair
      Micrometer
      Micrometer+Crosshair
      Pointer
      Grid (0.1mm lc)
      As per customer request
  • Standard Zoom Lens
    • Standard Zoom Lens RSMRX8ZL20 Zoom range: 0.75X~15X, zoom ratio:20:1; built-in aperture diaphragm; click stop, manual, detachable 1x objective having N.A. 0.3
      RSMRX8ZL-1 Zoom range: 0.7X~12.6X, zoom ratio:18:1; built-in aperture diaphragm; click stop, manual, continuously zoom with steps 0.7/1/1.25/1.6/3.2/4/5/6.3/8/10
      RSMRX8ZL-2 Zoom range: 0.7X~11.5X, zoom ratio: 16:1; built-in aperture diaphragm; click stop, manual
      RSMRX8ZL-i Zoom range: 0.8X~16X, zoom ratio: 20:1; built-in aperture diaphragm; click stop, manual
  • Viewing head
    • Viewing head RSMRX8BH30 Binocular head, 30° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
      RSMRX8BH45 Binocular viewing head, 45° adjustable; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
      RSMRX8BHTILT Binocular head, tilting at 0°-40° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
      RSMRX8TH30 Tilting trinocular viewing head, 0~30 degree adjustable; binocular: trinocular= 100:0 or 0:100/50:50; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
      RSMRX8TH45 Tilting trinocular viewing head, 5~45 degree adjustable; binocular: trinocular= 100:0 or 0:100/50:50; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
  • Zoom Ratio
    • Zoom Ratio RSMRX6ZR 16:1
      Zoom Ratio RSMRX8ZR20 20:1
      RSMRX8ZL-2 Zoom range: 0.7X~11.5X, zoom ratio: 16:1; built-in aperture diaphragm; click stop, manual
Control Panel RSMRX8CP Controling and Display System to microscope, parameter like resolution/zoom ratio/magnification etc.
Base RSMRX8BS Specially design base with OIC slider for BF, DF & oblique illumination
RSMRX8BS-C Specially designed rectangular base of size 24cmx20cm with arm rest, having transparent glass stage.
Objective RSMRX81.6X 1.6X objective, plan apochromatic, working distance24mm, NA 0.21
Camera Tube RSMRCTUBE80 Camera tube for attaching single camera, beam splitting 20:80
Analyzer   Objective mountable, cup-shaped analyzer.
Cleaning Kit RCLEAN Anti-static cleaning brush, cleaning tissue paper, Lens cleaning solution
Warm Heating Stage RSMRX8WHS Allows to heat your samples on 154X120X5.6mm transparent sapphire/glass surface. the heated Transparent sapphire plate provides thin profile and uniformly heated surface.
Optical window 128x95mm
Dimensions 154x120x5.6mm
Glass thickness 0.5mm
Temperature ranges from ambient to 50°C
Temperature stability 0.1°C
Temperature accuracy 0.1°C
Heating rate 10°C/min

As we are continuously improving & developing our products, this website may not be updated with the latest advancements. However, we try our best to update it with the latest information.
For complete and updated specifications, please ask for our latest brochures.
