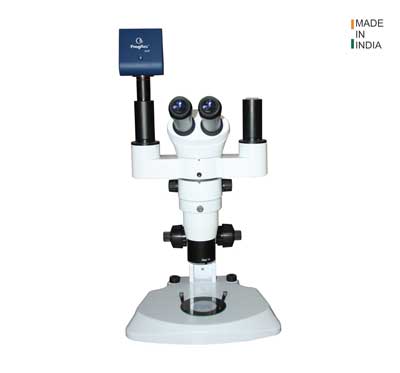

Zoom Stereo Microscope

RSMr Series

RSMr series stereo zoom microscopes with parallel APO optical system generate three-dimensional and laterally precise images for your microscope applications. These microscopes provide large object fields and allow extended working distances. Stereo Microscope is perfect for the observation of large biological samples like leafs or tissues. In the field of materials microscopy, stereomicroscopes and stereo zoom microscopes are valuable tools for the inspection or analysis of materials surfaces.

BRIGHTFIELD

FLUORESCENCE

PHASE CONTRAST

Optical system	Greenough System
Illumination	Top Bottom LED, Coaxial, Cold Light, Diascopic
Viewing Head	Interpupillary Adjustable
Eyepiece	Extra Wide Field
Stage	Large stage with hand rest
Objectives	Long Working Distance
Zoom	Continuous
Stand	Co-axial coarse and fine focusing stand, universal, customized
Camera Port	Single, Dual Port
Focus Range/travel	105mm
Other Contrast	Darkfield, Polarizing, Fluorescence
Motorized Control	Motorized Focus and Zoom
Certification	EU CE, ISI, ISO, TUV

Part Name	Part Code	Description
Body	RSMR8MB	Large plain focusing stand with transmitted light, tabletop with rugged, ergonomic & compact design, touch point treated, anti mould, anti-electrostatic, acid resistant texture painted, rubber feet & stage clips, pole length upto 300mm available extendable with torque adjustment, screw mountable objectives lens, 76mm mount diameter
Optical System	RSMR8POS	APO chromatic corrected, parallel/Greenough/Galilen optics zoom system, distortion free infinity corrected optical system, Parfocal corrected optics, resolution upto 600 lines per mm with N.A. upto 0.2, Maximum resolution with exchangeable Optics upto 1215 Lp/mm
Total Magnifications	RSMR8TX	5X to 480x (using different combinations of eyepiece, zoom lens & objectives-optionally available)
Standard Zoom Lens	RSMR8ZL	0.8X to 6.4X continuously zoom with steps of 0.8x, 1X, 2X, 3X, 4X, 5.0X, 5.5x & 6.4X
Zoom ratio	RSMR8ZR2	1:8 with standard zoom from 0.8X to 6.4X continuously zoom
Eyepieces	RSMR81020	High eye point, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (± 5), reticle lead
Head	RSMR8B20	Binocular head, 20° inclined, low eye-level, IPD 48-75mm
Focusing	RSMR8PFOS	Plain focusing (500mm), zoom drive with horizontal drive system with focusing stopper, rack & pinion using ball guide tension adjustable fine focusing knob, (knob rotational adjustment focusing stroke 120mm)
Illumination	RSMR8LED	3W LED epi-illumination (life hrs. upto 1,00,000), transmitted & reflected, color temperature 6000k, separate intensity controller & on/off switch
Accessories	RCC	Cleaning cloth
	RVC	Vinyl cover
	MANUAL	Instruction manual
	WARRANTY	Warranty card
	RPC	Power Cord (Country Specific)
		B/W plastic plate D=84x5 mm thickness

Auxillary Objectives

Auxillary Objectives	RSMR8OBJ0.3	APO 0.3X/WD upto 275mm, N.A0.045
	RSMR8OBJ0.5	APO 0.5X/WD upto 195mm, N.A 0.05
	RSMR8OBJ0.63	APO 0.63X N.A.0.07, WD 150mm, object field 59mm
	RSMR8OBJ1.0	APO 1.0X/WD upto 122mm, N.A 0.17, object field 4.5x to 36mm
	RSMR8OBJ1.0i	APO 1.0X, N.A 0.1 WD 115mm, (Built-in), max. objective field-35mm.
	RSMR8OBJ1.0iF	APO 1.0X/WD 120mm, N.A 0.17, object field upto 37mm, depth of field 12mm
	RSMR8OBJ1.0I	APO 1.0X, N.A 0.1 WD upto 92mm,
	RSMR8OBJ1.25	APO 1.25X/WD upto 60mm, N.A 0.125
	RSMR8OBJ1.5	APO 1.5X/WD upto 45mm, N.A 0.15
	RSMR8OBJ1.6	APO 1.6X/WD upto 50mm
	RSMR8OBJ2.0	APO 2X/WD upto 40mm, N.A 0.2
	RSMR8OBJ2.0I	APO 1.0X, N.A 0.1 WD 75mm
	RSMR8OBJC	APO customized objective
		Please click for More Objectives...

Body/Stand

Part Name	Part Code	Description
Body/Stand	RSMR8MBi	Plain focusing stand, rugged, ergonomic design, touch point treated, anti mould, anti-electrostatic, acid resistant texture painted, rubber feet & stage clips, extendable with torque adjustment. Single nosepiece for 1x objective with option for both stereo & mono axis view.
	RSMR8MBID	Rugged, ergonomic design, touch point treated, antimould, anti-electrostatic, acid resistant texture painted, Large base 300x400mm with antishock feet and column 600mm, encoded built-in aperture/iris diaphragm, rubber feet & stage clips screw mountable objectives lens
	RSMR8MBIR	Plain focusing stand, rugged, ergonomic design, touch point treated, anti-mould, anti-electrostatic, acid resistant texture painted, rubber feet & stage clips, screw mountable objectives lens, auto-cut off
	RSMR8UNV	Universal bracket arm, height, angle position adjustable, vertical high 350mm, diameter 35mm, horizontal movement 400mm, no transmitted light
	RSMR8UNV-C	Universal bracket arm, height, angle position adjustable, vertical high 450mm, diameter 35mm, horizontal movement 590mm, adjustable X, Y & Z position. with ball bearing for smooth operation, locking ring, grease free run, no transmitted light, adjust able stop & adjustable break.
	RSMR8-C	Customized stand with acid resistant texture painted D310,W200, H35 with plain focusing, column & transmitted BF & DF accessories, having opening of 84mm for BF & DF
	RSMR8MSDR	Expand the scope of operations, any orientation and angle observed the objectives, Vertical Pillar: high 380mm, Diameter Ø32mm, Horizontal moving:235mm, Base size: 210x260x40mm, steel gears on focusing holder
	RSMR8Dia	Flat base with 100mm dia hole, having clear glass white & black plate, diascopic illumination (transmitted) of 3W LED/6V-20W halogen/7W fluorescent with intensity control knob (LED or halogen)
	RSMR8COF	Column flat base, black & white sheet dia 95mm, column height 240mm, dian32mm, no transmitted light
	RSMR8BLIT	Base with table, 95mm glass, black & white plate, transmitted light 12V-15W halogen (life hrs.2,000), 7W fluorescent optional, intensity controller, column height 240mm, dia 32mm, base 20mmx255mm,40mm
	RSMR8LRFLT	Large flat base, coumn height 240mm, dia 32mm, base size 380x260x20mm, no transmitted light
	RSMR8SRFLT	Flat base, black & white plate 95mm, arm height 300mm, focusing knob 100mm
	RSMR8LEDGSNK	Flat base, black & white plate 95mm, arm height 250mm, dual LED (3W, life hrs. 10,000) lighting gooseneck inbuilt into stand
	RSMR8LEDRLTL	Transmitted & reflected (LED 5W, life hrs. 10,000), intensity controller, column height 240mm
	RSMR8ART	Articulated stand, Microscope is mounted on the stand for observation of large sizes, dual horizontal polls on linear ball bearing mechanism for smooth rotation and movement, observation head can be tilt forward, backward, right & left.
	RSMR8PFLAT	Plain, flat base with coloum, no transmitted light
	RSMR8XCOAX	Co-axial coarse and focusing stand (with upto 500mm movement), coarse handle stroke 36.8mm per rotation, fine handle stroke 0.77mm per rotation
	RSMR8GEMSTD	Gemological stand
	RSMR8UNIST	Universal Stand
	RSMR608-PFS	76mm focus mount diameter, 100mm focusing stroke, 240mm (l) x 290mm (d) x 318mm (h), 125mm black & white stage plate
	RSMR608-PS	76mm focus mount diameter, 305mm pole height, 193mm focusing stroke, 240 (l) x 290mm (d) x 318mm (h), 125mm black & white stage plate
	RSMR608-PS1	Rugged, ergonomic design, touch point treated, anti mould, anti electrostatic, Acid resistant texture painted, rubber feet & stage clips76mm focus mount diameter, 305mm pole height, 130mm focusing stroke, 240 (l) x 290mm (d) x 318mm (h), 125mm, travel range 130mm, base with transmitted light with rotatable and moving clear and frosted reflector, interface for universal light guide with 120mm clear glass plate
	RSMR608-TLRL	76mm focus mount diameter, 100mm focusing stroke, 240mm (l) x 292mm (d) x 318mm (h), 100mm clear glass stage plate and black & white stage plate; variable 12v/4w transmitted and 12v/2w reflected LED illumination; Average LED life expectancy—25,000 hours. colour temperature: 6200° -7000° Kelvin
	RSMR608-FO	76mm focus mount diameter, 100mm focusing stroke, 240mm (l) x 310mm (d) x 383mm (h), 280mm clear glass stage plate, tiltable mirror provides direct and oblique illumination with either variable 6v20w halogen illuminator or rear mount and adapter to accept 1/2" light guide, 150w fiber optic illuminator with 15" light guide
	RSMR608-UBS	Universal boom stand with inserts in focus block for extra smooth movements, horizontal arm with bonder port, base dimensions 10" X 10", 14-3/8" vertical post, 20-3/8" horizontal post
	RSMR608-UBS-2	Universal boom stand with inserts in focus block for extra smooth movements, chromium plated ms, base dimensions 330 X 220mm, having Anti Shock vertical post 500mm, horizontal post 500mm, weight 20kg approx. ergonomically shaped knobs and grease-free run.
	RSMR608-UBS-C	Customized universal boom stand with inserts in focus block for extra smooth movements, horizontal arm with bonder port, base dimensions 10"X10", 18" vertical post, 12" horizontal post, 76mm focus mount diameter, rugged, ergonomic design, touch point treated, anti mould, anti-fungal, anti electrostatic, acid resistant texture painted D340, W300, H35, rubber feet & stage clips, transmitted and reflected LED illumination, integrated power socket, having load capacity upto10kg, interchangeable protective glass for protection of optics from harmful fumes, splash.
	RSMR608-BBS	Ball bearing boom stand, horizontal arm with bonder port, base dimensions 10" X 10", 15-1/2" vertical post, 23" horizontal post
	RSMR608-FAS	Flexible arm stand, lockable 14-1/2" vertical motion range, 3' scanable range, horizontal or vertical mount
	RSMR-FLX	Flexible arm with length upto 1000mm 360° rotatable having counter weight to balance upto 7kg. load & c-clamp upto 100mm table thickness

Camera Tube

Camera Tube	RSMRCTUBE80	Camera tube for attaching single camera, beam splitting 20:80
	RSMRCTUBE50	Camera tube for attaching single camera, beam splitting 50:50
	RSMRCTUBE100	Camera tube for attaching single camera, beam splitting 100:0, 0:100

C-mount

C-mount	RCMT50X	0.5X Camera Adaptor/Tube/Mount
	RCMT65X	0.65X Camera Adaptor/Tube/Mount
	RCMT70X	0.7X Camera Adaptor/Tube/Mount
	RCMT01X	1X Camera Adaptor/Tube/Mount

Eyepiece

Eyepiece	RSMR8EP1018	High eye point, WF 10X, FOV-18mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (±5), reticle lead
	RSMR8EP1022	High eye point, WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lead free, lockable, diopter adjustment (±5), one/on both eyepiece, reticle lead.
	RSMR8EP1022A	High eye point, WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lead free, lockable, diopter adjustment (-8 to +5), one/on both eyepiece, reticle lead.
	RSMR8EP1022M	Paired high eye-point, WF 10X, FOV-20mm. multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable. micrometer eyepiece (10/100mm) with adjustable focusing
	RSMR8EP1023	High eye point, WF 10X, FOV-23mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (±5), one/on both eyepiece, reticle lead depth of field 70mm
	RSMR8EP1023CH	High eye point, WF 10X, FOV-23mm, multilayered coated, high quality, good contrast, abrasion free, distortion-free aplanatic, exchangeable eyecup lockable, diopter adjustment(± 5), with crosshair reticle & micrometer.
	RSMR8EP1024	High eye point, WF 10X, FOV-24mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (±5), reticle lead
	RSMR8EP1515	High eye point, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, lead free, aplanatic, lockable, diopter adjustment (±5), reticle lead
	RSMR8EP1516	High eye point, WF 16X, FOV-16mm, multilayered coated, high quality, good contrast, abrasion free, lead free, aplanatic, lockable, diopter adjustment (±5), reticle holder, with soft rubber eye-guard
	RSMR8EP2010	High eye point, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (±5), reticle lead
	RSMR8EP3070	High eye point, WF 30X, FOV-7.0mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (±5), reticle lead
	RSMR8EPG	Rubber eye guards

Focusing

Focusing	RSMR8XCOAX	Co-axial coarse and fine focusing stand (with 300mm movement), coarse handle stroke 36.8mm per rotation, fine handle stroke 0.77mm per rotation

Fluorescence Attachment

Fluorescence Attachment	RSMR8FL100	Turret 4 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
	RSMR8FL4LED	Turret 4 filter holder, 5W (Equivalent to 100W halogen), std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm
	RSMR8FL3100	3 position slider filter holder with shutter, 100W Hg, std fluorescence filter, separate power supply having LCD Display for voltage
	RSMR8FL4130	Turret 4 filter holder, 130W cooled fiber, LED 2000 hrs, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm
	RSMR8FL6100	Turret 6 filter holder, 100W Hg, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm
	RSMR8FL6LED	Turret 6 filter holder, LED cooled fiber, std fluorescence filter B & G, others on request.
	RSMR8FL6100	Turret 6 filter holder, 100W cooled fiber, LED, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm
	RSMR8FL6120	Turret 6 filter holder, 120W cooled fiber, LED, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm
	RSMR8FL6130	Turret 6 filter holder, 130W cooled fiber, LED, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm
	RSMR8FL6200	Turret 6 filter holder, 200W cooled fiber, LED, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm

Head

Head	RSMR8B10	Trinocular observation: binocular head, 10° inclined, fatigue free observation, low eye-level, IPD 48-75
	RSMR8B20A	Binocular head, 20° inclined, rotatable 360°, low eye-level, IPD 50-78mm
	RSMR8B20i	Binocular head, 20° inclined, low eye-level, IPD 48-75mm/50-76mm
	RSMR8BH45	Binocular head, 45° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
	RSMR8BH30	Binocular head, 30° inclined, rotatable 360°, IPD 48-76mm, intermediate parallel zoom with FOV upto 25mm
	RSMR8BHTILT	Binocular head, tilting at 0°-40° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
	RSMR8BHTILT2	Binocular head, tilting at 5°-45° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
	RSMR8BHTILT3	Trinocular head, tilting at 5°-45° inclined, rotatable 360°, IPD 52-76mm, intermediate parallel zoom having camera tube for attaching single camera, beam splitting 50:50
	RSMR8THTILT3	Trinocular head, tilting at 0°-30° inclined, rotatable 360°, IPD 52mm, intermediate parallel zoom on common main objective having camera tube for attaching single camera, beam splitting 50:50.
	RSMR820c	Trinocular viewing head, inclined at 20° with 2 position beam splitting ratio (100:0, 0:100), rotatable 360°, IPD 51-75mm, intermediate Greenough/Parallel zoom.
	RSMR608TH	Trinocular viewing head, inclined at 35° with 2 position beam splitting ratio (100:0, 0:100), rotatable 360°, IPD 55-75mm, intermediate parallel zoom/Greenough, with inbuilt 1X objective having WD of 115mm
	RSMR608TH30	Trinocular viewing head, inclined at 30°, rotatable 360°, IPD 55-75 mm, intermediate parallel zoom having camera tube for attaching single camera, with beam splitting ratio (100:0, 50:50/0:100).
	RSMR608TH30C	Trinocular viewing head, inclined at 30°, rotatable 360°, IPD 50-76mm, intermediate parallel zoom having camera tube for attaching camera, with 2 position beam splitting ratio (100:0, 50:50/0:100)
	RSMR608THi	Trinocular viewing head, inclined at 35° with 2 position beam splitting ratio (100:0, 0:100), rotatable 360°, IPD 50-75mm, intermediate Greenough/Parallel zoom, with in-built 1X objective having WD of 120mm
	RSMR608THi-38	Trinocular viewing head, inclined at 38° with 2 position beam splitting ratio (100:0, 0:100), rotatable 360°, IPD 50-76mm, intermediate Greenough zoom
	RSMR608BH45	Binocular viewing head, inclined at 45, rotatable 360°, IPD 55-75mm, intermediate parallel zoom, with inbuilt 1X objective having WD of 122mm, depth of field 12mm with fusion optics
	RSMR608TH45	Trinocular viewing head, inclined at 45° with 2 position beam splitting ratio (100:0, 0:100), rotatable 360°, IPD 54-76mm, intermediate parallel zoom, with inbuilt 1X objective having WD of 115mm
	RSMR8B21	Binocular head, 20° inclined, low eye-level, IPD 50-76mm with
	RSMR0835TH	Trinocular viewing head, inclined at 35°, IPD 55-75mm, intermediate parallel zoom, with inbuilt 1X objective having WD of 115mm

Illumination

Illumination	RSMR8RLGSK1	Fibre optic light source (halogen 150W) with single flexible light pipes (life hrs. 2,000)
	RSMR8RLGSK2	Fibre optic light source (halogen 150W) with double flexible light pipes (life hrs. 2,000)
	RSMR8RLGSK1L	Fibre optic light source (LED) with single flexible light pipes, length 600mm (life hrs. upto 1,00,000) colour temperature 5600k, compact housing
	RSMR8RLGSK2L	Cold light source illumination, Fibre optic light source (LED) with double flexible light pipes 500mm length (life hrs. upto 1,00,000) with interlocking, with brightness control.
	RSMR8RLTL100	Co-axial illuminator 12V-100W Halogen
	RSMR8COAXIAL	Co-axial verticle illuminator with LED light source and LED Guide
	RSMR8LEDTL	3W LED epi-illumination (life hrs. upto 1,00,000), transmitted, color temperature 6000k, intensity controller & on/off switch
	RSMR8LEDTL-UNI	Transmitted illumination base with 90° white light LED light, brightness knob, sprightly moveable diaphragm and 3 position turret for Bright field plus and oblique light contrast by shift able diaphragm, homogenous brightfield, all-side dark field, also unilateral by moveable diaphragm wiht glass plate
	RSMR8LED	Integrated 3W LED epi-illumination (life hrs.10,000), transmitted & reflected, seperate intensity controller &on/off switch, selectable section
	RSMR8RLFL	Circular Fluorescent Illuminator (Reflected)
	RSMR8LEDR56	56 LED, ring light, colour temperature 6400K, 24V6W (life hrs. 10,000), intensity controller with lighting diffuser.
	RSMR8LEDR56-S	56 LED, ring light with 4 different segmentation modes, colour temperature 6400K, 24V6W (life hrs. upto 25,000), with separate controls for segmentation and rotation 4modes: full, half, quarter circle, 2 facing quarter circles
	RSMR8LEDR56-S1	56 LED, ring light with 4 different segmentation modes, colour temperature 5600K, 24V6W (life hrs. upto 25,000), with switchable separate controls for segmentation and rotation 4modes: full, half, quarter circle, 2 facing quarter circles and diffuser
	RSMR8LEDR56-S2	56 LED, ring light 150mm with 4 different segmentation modes, colour temperature 6400K, 24V6W (life hrs.upto 50,000 hrs), with separate controls for segmentation and rotation 4modes: full, half, quarter circle, 2 facing quarter circles with diffuser
	RSMR8LEDR60	60 LED, intensity adjustable, color temperature 6400K, 24V6W (life hrs. 10,000)
	RSMR8LED-RL	3W LED with brightness control epi-illumination (life hrs.10,000), reflected (Built-in to microscope stand) separate intensity controller & on/off switch.
	RSMR8LED-TL	6W LED with brightness control epi-illumination (life hrs. 60,000), constant colour temp: 5600k, transmitted (Built-in to microscope stand) separate intensity controller & on/off switch.
	RSMR8LED-TLRL	6W LED (White) with brightness control epi-illumination (life hrs. upto 60,000), constant colour temp: 5600k, transmitted & reflected (Built-in to microscope stand) separate intensity controller & on/off switch.
	RSMR8H15WTL	Halogen bulb with reflector, 12V 15W, Reflected light (life hrs. 2,000)
	RSMR8H15WRL	Halogen bulb with reflector, 12V 15W, Reflected light (life hrs. 2,000)
	RSMRBBLED	Battery backup from 2-12 hours for LED
	RSMR8LED-C	LED illumination with life hrs. upto 85,000
	RSMR8OM	Specially designed rectangular base (310x200x35), flat LED light, with arm rest (suitable for transmitted BF & DF) working surface 195x160 with intensity controller, having transparent stage glass with LED light having single side coated mirror for the projecting light in different angles cold source illumination, with armrest, integrated power, intensity controller.
	RSMR8OM1	Specially designed rectangular base flat LED light, with arm rest (suitable for Transmitted BF & DF) with working surface & intensity controller, having transparent stage glass with LED light having single side coated mirror for projecting light in different angles
	RSMR8OMHOL	Halogen light fitted inside specially design rectangular base size 225x180x85mm, with adjustable mirror for projecting light in different angles, suitable for detection of micro crystals
	RSMR8Diasco	5W LED light box with single fiber (500mm), color temperature 5000-5500K; operating voltage 100-240VAC/50-60Hz, output 12V
	RSMR8LED3D	3W LED for double spot reflected illumination with intensity controller

Micrometer/Calibration slide

Micrometer/Calibration slide	RCS10	Micrometer slide for calibration, 1mm with 10µm least count
	RCS100	Micrometer slide for calibration, 10mm with 100µm least count

Optical System

Optical System	RSMR8GOS	APO chromatic, greenough optics zoom system, resolution upto 600 lines per mm, parfocal corrected optics

Standard Zoom Lens

Standard Zoom Lens	RSMR63ZL	0.8X to 5.0X continuously zoom with steps of 0.8x, 1X, 2X, 3X, 4X, 5.0X Zoom with click stops.
	RSMR8ZLC	Manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x
	RSMR8ZL1	0.8X to 6.5X continuously zoom with steps of 0.8x, 1X, 2X, 3X, 4X, 5.0X & 6.5X
	RSMR8ZL5	0.62X to 5X (continuously zoom with upto 8 steps), with click stop mechanism

Teaching Head

Teaching Head	RSMR-2H	Dual head attachment for 2 viewers, main/secondary observation: binocular inclined at 30°, siedentopf head, 22mm rotating 360°, IPD 48-76, diopter adjustable on both eyepiece
	RSMR-5H	Penta head attachment for 5 viewers, main/secondary observation: binocular inclined at 30°, siedentopf head, 22mm rotating 360°, IPD 48-76, diopter adjustable on both eyepiece

Zoom Ratio

Zoom Ratio	RSMR63ZR	1:6.3, with standard zoom from 0.8X to 5X
	RSMR8ZRL	0.8X to 6.4X continuously zoom with steps of 0.8x, 1X, 1.25X,1.6X, 2X, 2.5X, 3.2X, 4X, 5.0X, 5.6X, 6.4.
	RSMR8ZR	1:8 with standard zoom from 0.63X to 5X
	RSMR8ZR1	1:8 with standard zoom from 0.8X to 6.5X
	RSMR8ZR3	Zoom- 1:8, 1.0X to 8X continuously zoom with 8 steps, magnification range from 10X to 480X (using different combinations of eyepiece and objectives
	RSMR8ZR5	Zoom- 8:1, 0.8X to 6.4X continuously zoom with steps of 0.8x, 1X, 1.25X,1.6X, 2X, 2.5X, 3.2X, 4X, 5.0X, 5.6X, 6.4.
	RSMR8ZL-S	0.63X to 5.0X continuously zoom keeping object in focus with steps of 0.63x, 0.8x, 1X, 2X, 3X, 4X, 5.0X Zoom with click stops, operable on both sides with click stops
	RSMR10ZH	Zoom- 1:10, 0.8X to 8X continuously zoom with 8 steps, magnification range from 4X to 480X (using different combinations of eyepiece and objectives with steps of 1X, 2X, 3X, 4X, 5.0X, 6x, 7x/8x Zoom with click stops, operable on both sides with click stops
	RSMR10ZHA	Zoom- 1:10, 0.65X to 6.5X continuously zoom with click stops, operable on both sides.
	RSMR10ZHIO	Zoom-1:10, 1X to 10X continuously zoom with 8 steps,
	RSMR10-CZH	Zoom- 1:10, 0.6X to 6X continuously zoom with upto 8 steps, magnification range from 3X to 360X (using different combinations of eyepiece and objectives, customized zoom steps (8 position) with click stop mechanism, FOV 37mm for fast, accurate inspection
	RSMR10-CZHi	Zoom- 1:10, 0.63X to 6.3X continuously zoom with 8 steps, magnification range from 3.15X to 378X(using different combinations of eyepiece and objectives
	RSMR12ZH	Zoom- 1:12, 0.8X to 9.6X continuously zoom with 8 steps, magnification range from 4X to 576X (using different combinations of eyepiece and objectives
	RSMR12-CZH	Zoom- 1:12, customized zoom steps (8 position)
	RSMR12ZR	Zoom- 1:12, 0.8X to 10X continuously zoom with 10 steps, magnification range from 4X to 600X (using different combinations of eyepiece and objectives
	RSMR608	Zoom- 1:10, 0.5X to 5X continuously zoom
	RSMR608A	Zoom Ratio: 1:8.3, 0.6X to 5.0X continuously zoom
	RSMR16	Zoom- 1:16, 0.7X to 11.2X continuously zoom with 10 steps, magnification range from 3.5X to 672X (using different combinations of eyepiece and objectives

Depth of field	RSMR8DOF	High depth of field up to 12mm for 1X
Magnification		8X to 80X (with 1.0x adjustment)
	RSMR8TX1	4X to 384x (using different combinations of eyepiece, zoom lens & objectives-optionally available)
		10X to 80X (with 1.0x objective) & 10X eyepiece
Darkfield	RSMR8DF	Darkfield attachment
Mechanical Stage	RSMR8STAGE	Manual mechanical stage, X-Y movement, ball guide, 180X155X26mm, travel 35X30mm, size 185X140mm
Analyzer/ Polarizer	RSMR8POLANA	Set of analyzer and polarizer
Power supply	RSMPS620	SMPS based, wide voltage range, 90V-240V, 50/60Hz Single phase
	RSPAC220	220V +20 volts 50-60 Hz, Single Phase AC
Packing	RWBX	Wooden box with separate container for accessories, lock & key, carrying handle
	RSTYRO	Standard Styrofoam packing
Cleaning Kit	RCLEAN	Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution
		B/W plastic plate D=100 mm thickness & glass plate D-100mm Collector lens for light dual guide Ring Light Guide Adopter

Zoom Stereo Microscope RSMr Series

PRODUCT CATEGORIES

Other Links

RSMr Series

Educational Microscopes

Laboratory Clinical Microscopes

Medical Research Microscopes

Microscope Cameras

Industrial Microscopes

Advanced Microscopy System

Camera Control Software

Material Science Software

Life Sciences Software

Infrared Thermography

Metrology & Metallurgy

About Radical

Support

Contact Info
