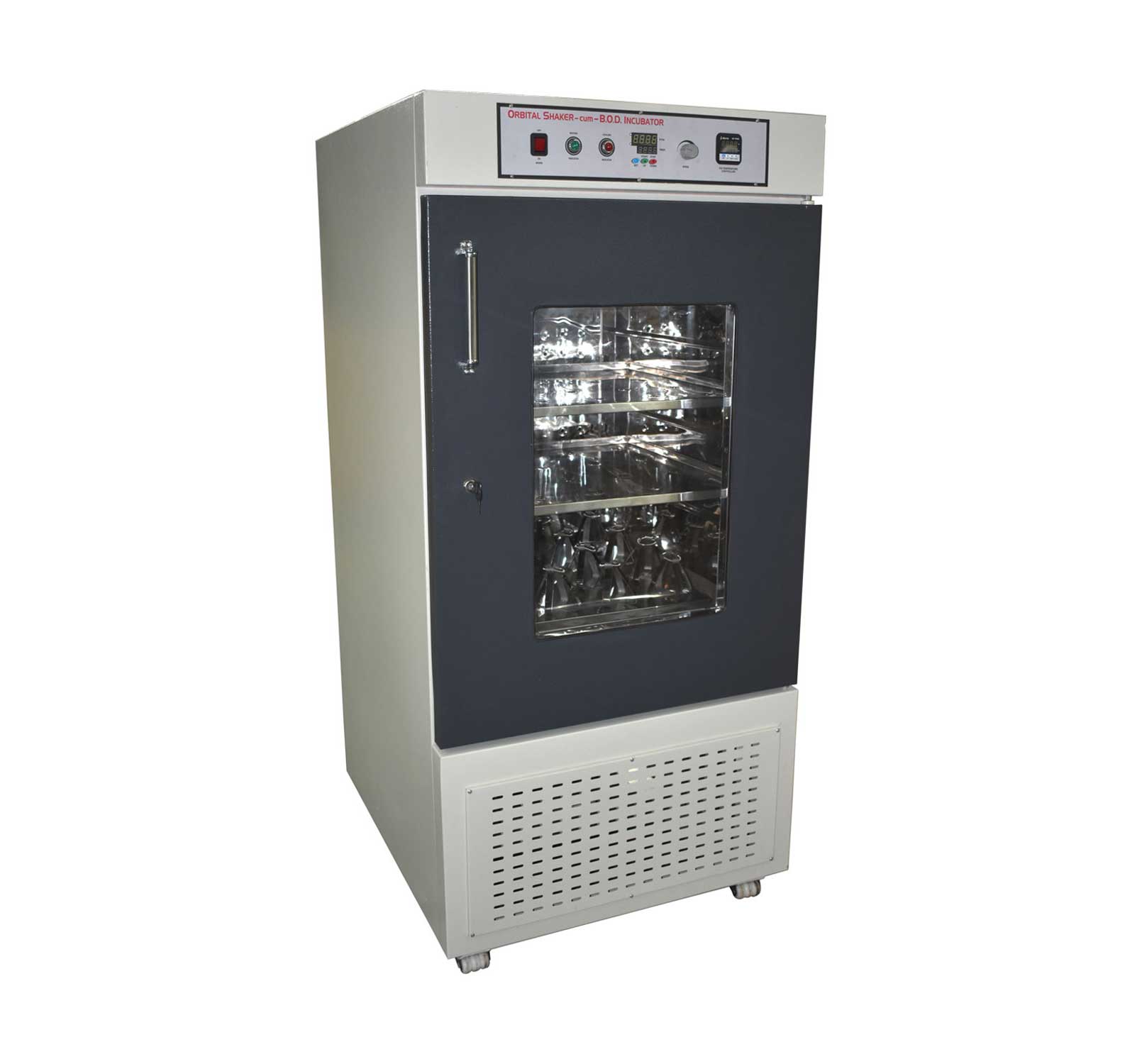

Orbital shaking incubator Cum B.O.D incubator is specifically designed for controlled incubation with orbital shaking arrangement, and with a powerful geared motor for many laboratory procedures such as tissue culture, fermentations studies, enzyme reactions, growth studies etc.
The outer chamber is made up of a mild stainless steel sheet duly finished with powder coating & the inner chamber is made up of a thick stainless steel sheet.
The gap between the walls is fitted with high grade glass wool to avoid thermal loss.
The plexi glass window is provided to inspect the specimen without disturbing the inner temperature.
The incubator is illuminated with a door operated or a panel operated florescent tube.
The unit works within a temperature range of 5°C to 60°C.
The temperature is controlled by a Dual Display Microprocessor PID Digital Temperature Indicator cum Controller with an accuracy of ± 0.5°C.
An air circulation fan is provided to maintain stability throughout.
The speed of the shaker is variable from 30 RPM to 250 RPM.
The tray of the shaker is also made up of a stainless steel sheet, with lotus type clamps to hold flasks.
The unit is fitted with a Digital RPM meter and a 999 min digital timer.
Capacity (ml)
| Capacity |
Temp. Range |
RPM Range |
| 16 flasks of 500 ml |
50°C to 60°C |
Up to 250 RPM |
| 25 flasks of 250 ml |
50°C to 60°C |
Up to 250 RPM |
| 36 flasks of 100 ml |
50°C to 60°C |
Up to 250 RPM |
Optional Accessories :
1. Timer 0-24 hours
2. Automatic voltage stabilizer 3KVA (Most rec.)
