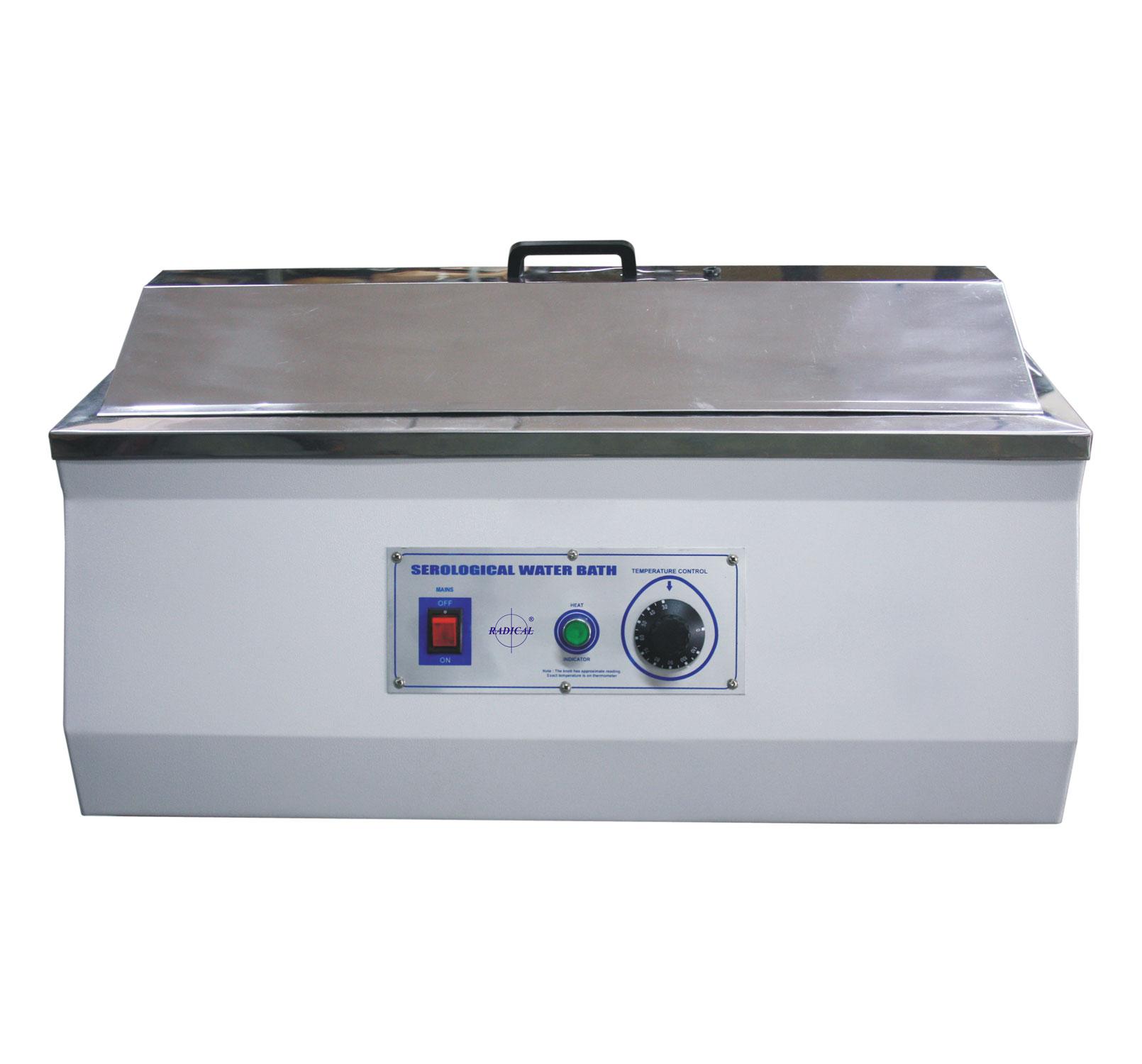

Serological water bath is a versatile equipment to handle any clinical procedure, incubation, inactivation, agglutination and biomedical procedures.
These units are double walled, with the inner chamber being made up of stainless steel and the outer of mild steel which is duly powder coated.
The gap between the walls is fitted with a special grade glass wool in order to avoid thermal losses.
The inner chamber is fitted with an immersion type heating element and is covered with a perforated removable diffuser tray.
The cover is provided with the unit as a standard accessory.
The temperature ranges from ambient to 100°C, and is controlled by a Hydraulic capillary type thermostat with an accuracy of ± 1°C.
It is workable on 220 V AC 50 Hz Single phase.
| Chamber Size (mm)
|
Suitable Racks
|
Capacity (Ltr.)
|
| 300x175x175 mm |
1 Rack |
12 Ltrs |
| 300x250x175 mm |
2 Rack |
14 Ltrs |
| 375x300x175 mm |
4 Rack |
18 Ltrs |
| 455x300x175 mm |
6 Rack |
25 Ltrs |
| 605x300x175 mm |
8 Rack |
32 Ltrs |
Optional (Extra Cost):-
1 Microprocessor PID digital temp. indicator cum contrroller.
2 Stirrer with 1/20 Hp motor with S.S. rod blade
3 Auto cut off device when water level is low.
