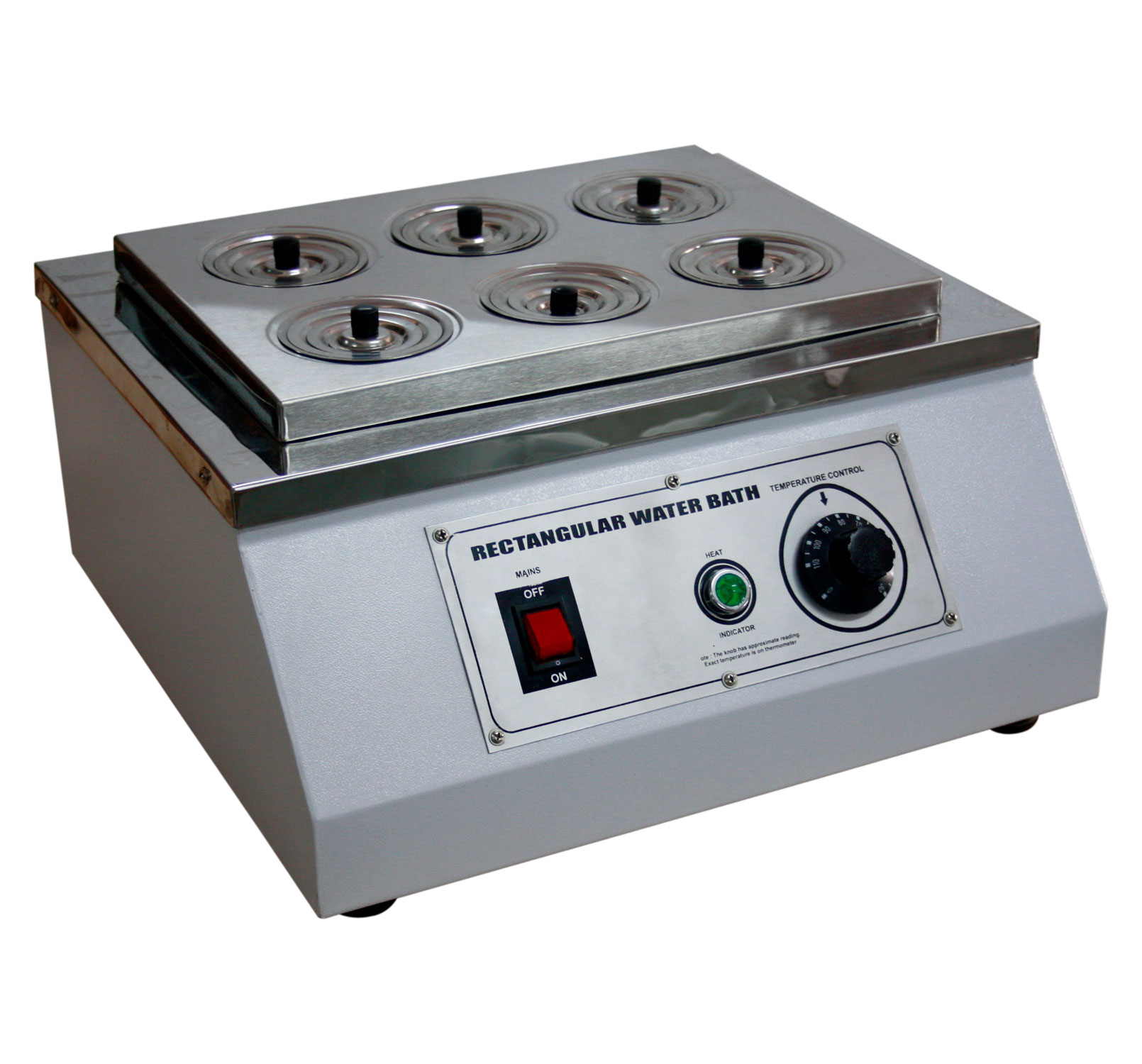

Water Bath Rectangular (Double walled)
RSTI-135
It is a double walled unit, with the inner chamber being made up of stainless steel and the outer of mild steel that is duly powder coated.
The gap between the walls is fitted with a special grade glass wool in order to avoid thermal losses.
The concentric rings can be removed in order to accommodate containers of various sizes.
The temperature ranges from ambient to 100°C, and is controlled by a Hydraulic capillary type thermostat with an accuracy of ± 1°C.
It is workable on 220 V AC 50 Hz Single phase.
| Inner Chamber Size are available |
Holes |
Cap. (Aprox.) |
| 300x250x100 mm |
6 Holes of 75mm |
8L |
| 355x405x100 mm |
12 Holes of 75mm |
15L |
Optional :-
Microprocessor PID digital temp. indicator cum contrroller.
Auto cut off device when water level is low.
