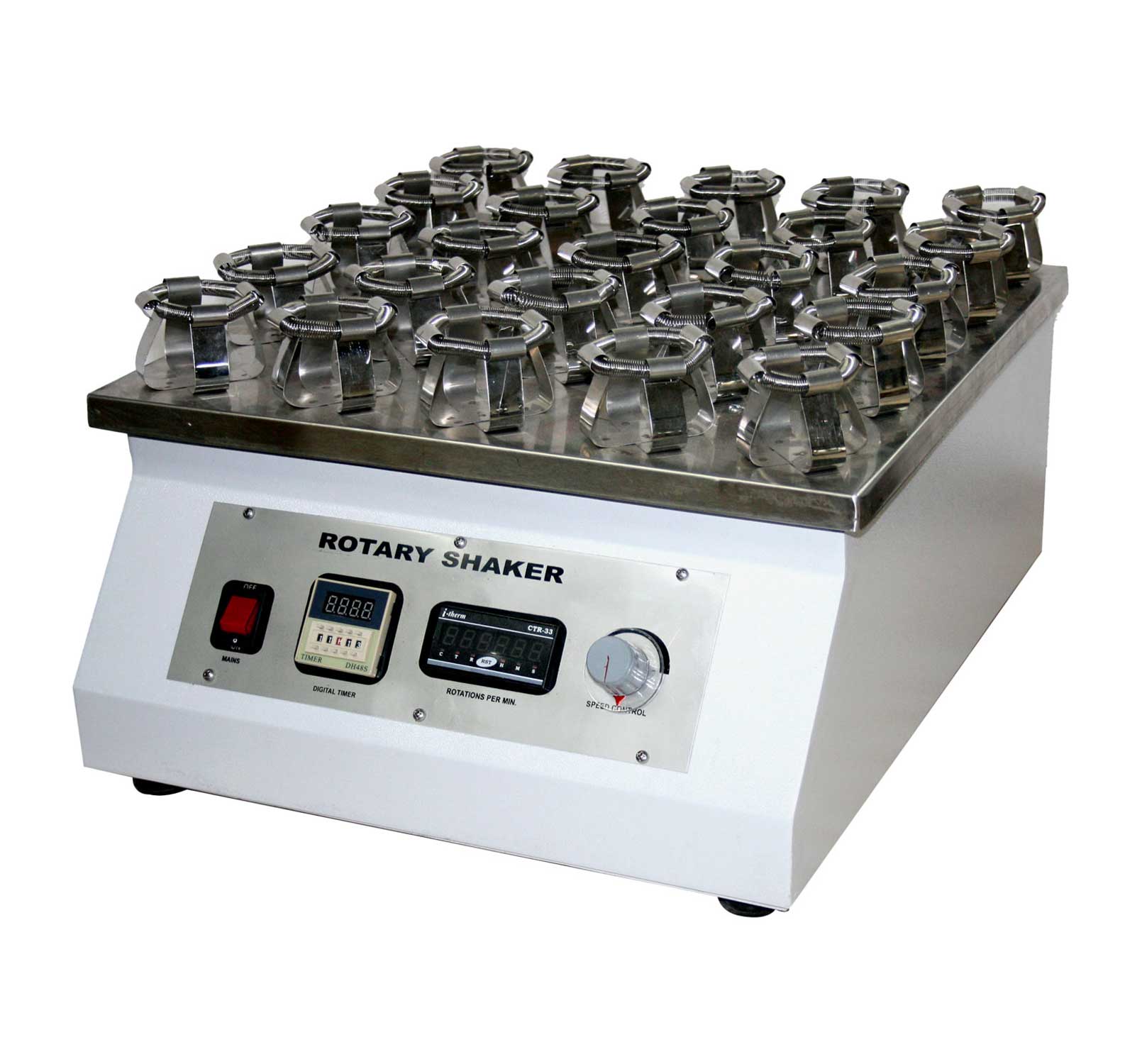

These platform rotary shaker systems are acclaimed by industry experts for their high performance rotation, mixing and durability.
The body is made out of a thick sheet of mild steel which is duly finished with powder coating.
Heavy duty PMDC motors for suitable capacities are provided for long time, continuous operations.
Models with fixed speed and variable speeds are available.
The platform is provided with lotus type clamps to hold flasks.
The speed range is up to 250 RPM and comes with an electronic control.
A mechanical timer of up to 60 minutes is fitted to control the duration of rotation.
It is workable on 220 V AC 50 Hz single phase.
| Platform size in (cm)
|
Holding capacity (ml)
|
Motor type
|
| 45x45 mm |
25 flasks of 100 ml |
PMDC |
| 45x45 mm |
36 flasks of 50 ml |
PMDC |
| 45x45 mm |
16 flasks of 250 ml |
PMDC |
| 55x55 mm |
25 flasks of 250 ml |
PMDC |
| 65x65 mm |
36 flasks of 250 ml |
PMDC |
| 105x105 mm |
81 flasks of 250 ml |
PMDC |
| 105x105 mm |
64 flasks of 500 ml |
PMDC |
Optional :- 1 Digital R.P.M. indicator
2 Digital timer (0-99 min.)
| Platform size in cm
|
Holding capacity
|
| 45x45 mm |
25 flasks of 100 ml |
| 45x45 mm |
36 flasks of 50 ml |
| 45x45 mm |
16 flasks of 250 ml |
| 55x55 mm |
25 flasks of 250 ml |
| 65x65 mm |
36 flasks of 250 ml |
| 105x105 mm |
81 flasks of 250 ml |
| 105x105 mm |
64 flasks of 500 ml |
Optional :-
1 Digital R.P.M. indicator
2 Digital timer (0-99 min.)
