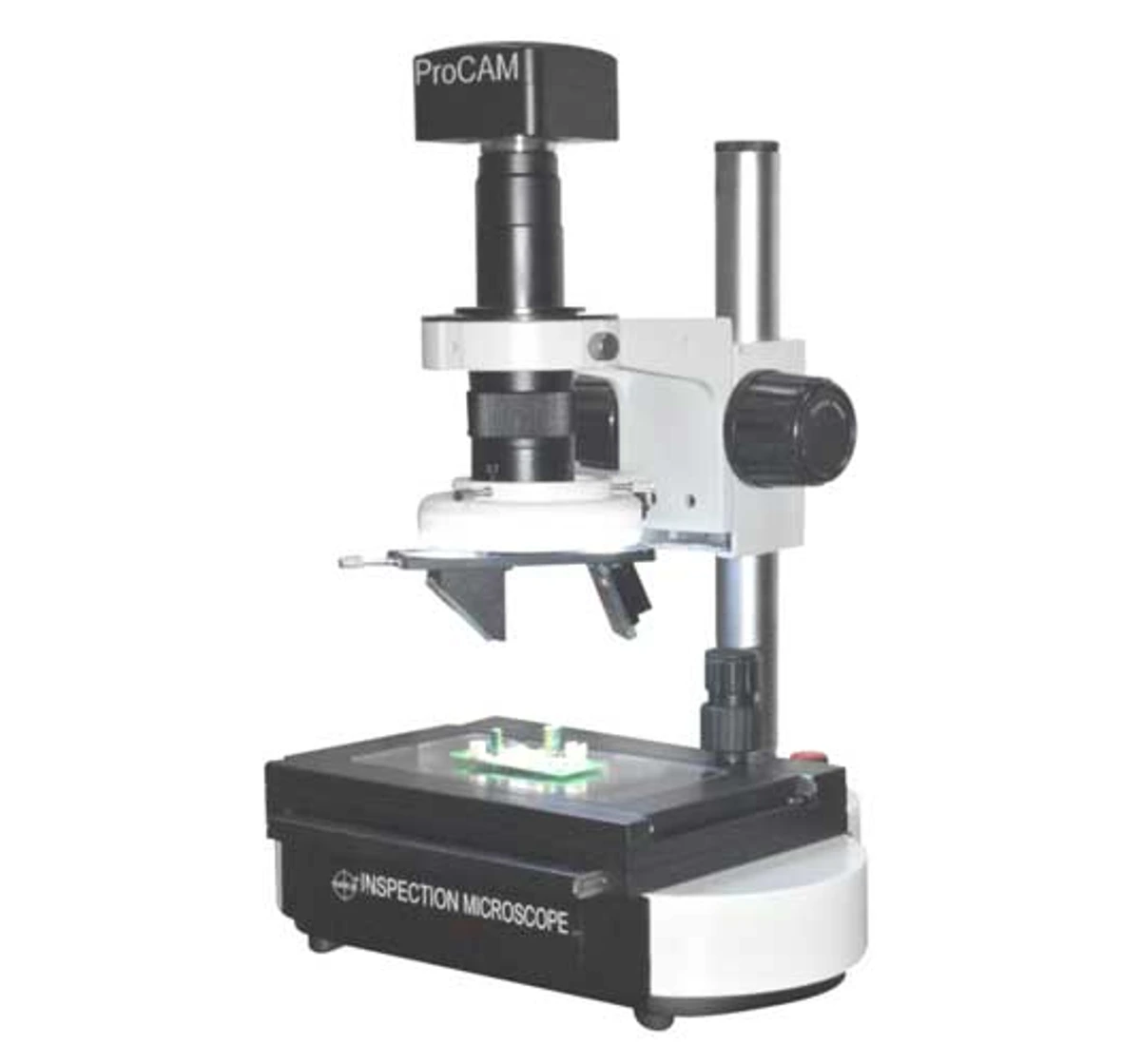

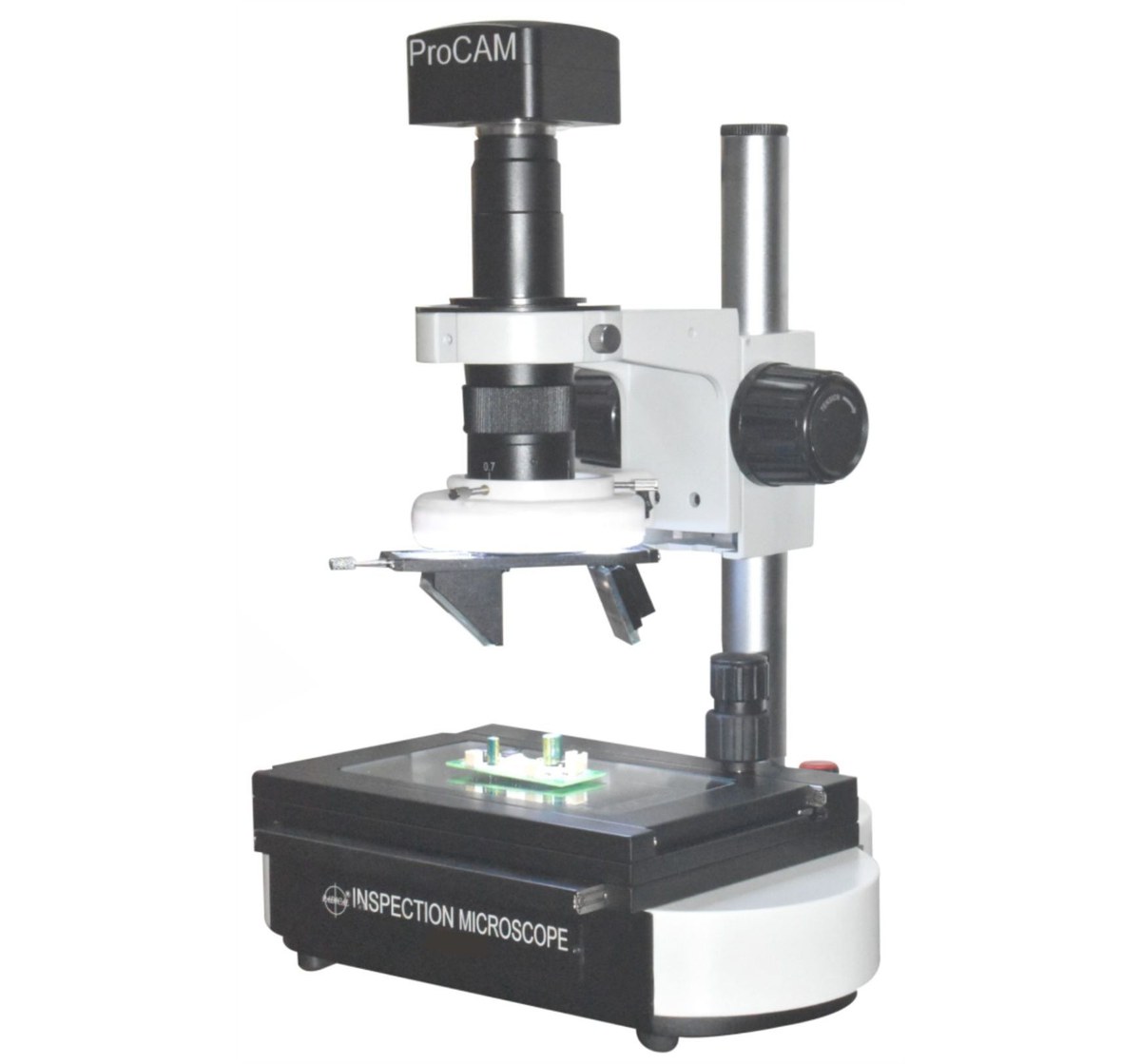

Digital 3D Inspection Microscope
RSZ-3D
Digital 3D Inspection Microscope Model RSZ-3D is a versatile multi functional instrument, using latest optical technology, with low distortion, high resolution, large depth of focus, wide and flat field with ease for measurements.
| Optical System | Based on infinity optical system with high resolution zoom body, standard working distance of 100mm |
|---|---|
| Field of View | Large FOV & depth of field at minimum magnification. Support 2D and 3D observation, 360° rotation for 3D inspection |
| 3D Viewing | At 45° 3D object viewing angle, working distance and center position always remain same while switching between 2D & 3D observations |
| Cameras | High Definition CMOS/HDMI/VGA Cameras are available for different applications |
| Software | Capable for more than 10 types measurement functions & excel format data output |
| Zoom Range | Adjustable zoom range is 0.7x - 4.5x, field of view 3mm to 25mm on display screen |
| Illumination | LED ring light with adjustable brightness control is provided |
| Stand | Heavy duty pole type, height adjustable |
| Stage | Standard flat base with X-Y axis measuring stage |
| Model | RSZ-3D |
|---|
