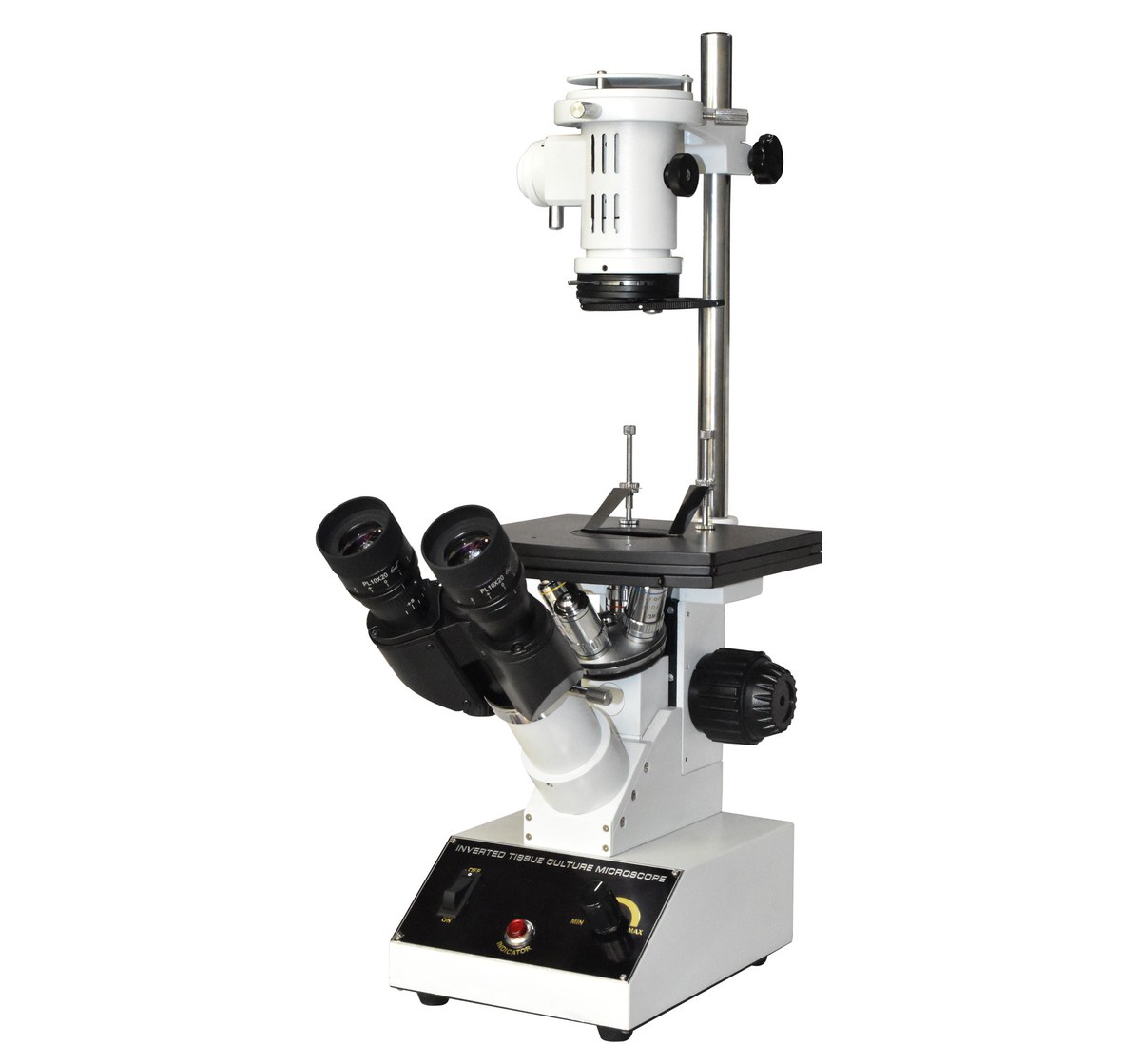

Inverted Tissue Culture Microscope
RTC-6
Binocular Inverted Tissue Culture Microscope with quadruple revolving nosepiece, equipped with Binocular Observation Head and best quality optical components having full prismatic optical path, large co-axial mechanical stage of size 165mm x 180mm, co-axial coarse & fine focussing knobs with adjustable tension control ring, variable intensity controlled built in base solid-state transformer, fitted with 6V 20Watts halogen bulb and illumination based on Koehler's system. Supplied with following optical combination in a storing box.
| Observation Head | 45° inclined Binocular head interchangeable with Monocular or Trinocular observation head |
|---|---|
| Nosepiece | Quadruple revolving turret nosepiece with positive accurate click stops |
| Stage | Oversize plain stage 180 x 150mm with 2 extension plates 150 x 65mm for large bottles and microfilter work |
| Illumination | Based on Koehler's system is provided by a post-mounted high intensity 6 volts 20 watts Halogen illuminator |
| Objectives | Achromatic 5x, 10x, LWD-20x & LWD-40XSL |
| Eyepieces | HWF 10x (paired) with eye guards |
| Model | RTC-6 |
|---|
