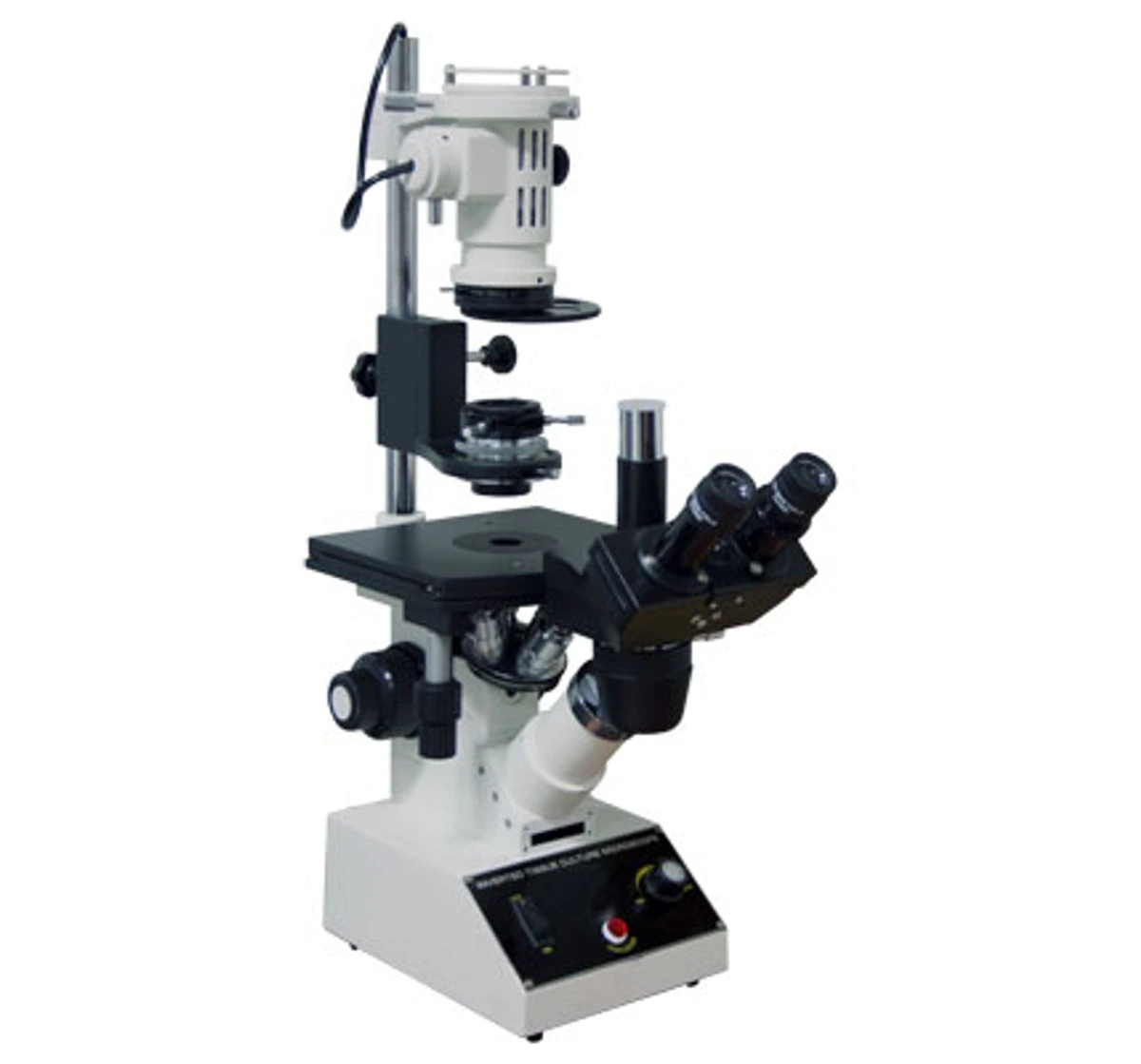

Inverted Tissue Culture Microscope
RTC-8
Binocular Microscope with quadruple revolving nosepiece, equipped with Radical Binocular Head and best quality optical components having full prismatic optical path, large co-axial mechanical stage of size 165mm x 180mm, co-axial coarse & fine focussing knobs with adjustable tension control ring, variable intensity controlled built in base solid-state transformer, fitted with 6V 20Watt Halogen bulb, illumination based on Koehler's system, LWD phase contrast equipment having following optical combination with arrangements, in a storing box.
| Observation Head | 45° inclined Binocular head interchangeable with Monocular or Trinocular observation head |
|---|---|
| Nosepiece | Quadruple revolving turret nosepiece with positive accurate click stops |
| Stage | Oversize plain stage 180 x 150mm with 2 extension plates 150 x 65mm for large bottles and microfilter work |
| Illumination | Based on Koehler's system is provided by a post-mounted high intensity 6 volts 20 watts Halogen illuminator |
| Objectives | Phase Contrast Objectives 4x, PH10x, PH LWD 20x & PH LWD-40XSL |
| Eyepieces | HWF 10x (paired) with eye guards |
| Model | RTC-8 |
|---|
