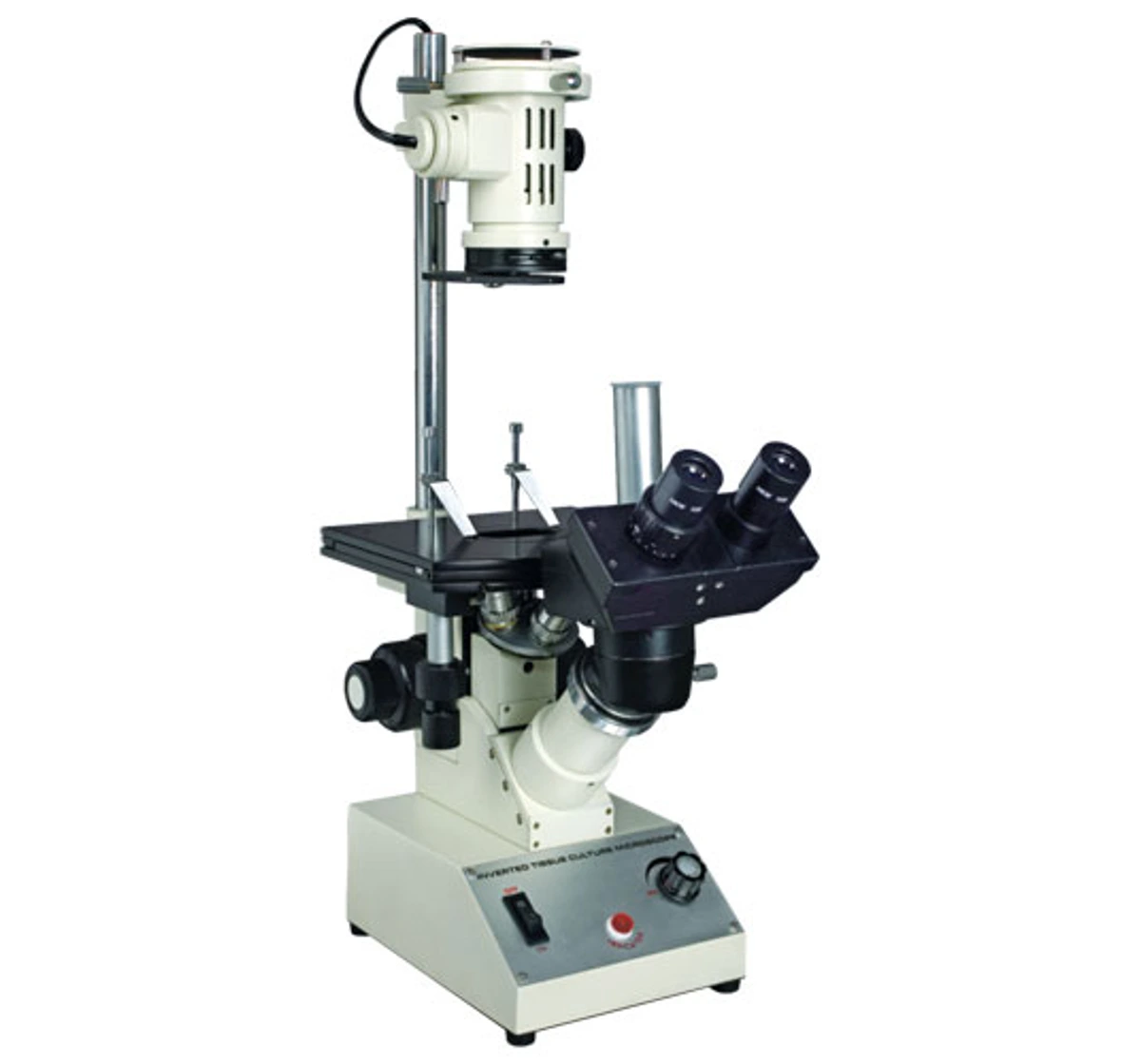

Inverted Tissue Culture Microscope
RTC-99
Inverted Tissue Culture Microscope with quadruple revolving nosepiece, equipped with Trinocular Observation Head and best quality optical components having full prismatic optical path, large Co-axial Mechanical Stage of size 165mm x 180mm, co-axial coarse & fine focussing knobs with adjustable tension control ring, variable intensity controlled built in base solid-state transformer, fitted with 6V 20Watt Halogen bulb and illumination based on Koehler's system. Supplied with the following optical combination in a storing box.
| Observation Head | 45° inclined Trinocular head interchangeable with Binocular Head |
|---|---|
| Nosepiece | Quadruple revolving turret nosepiece with positive accurate click stops |
| Stage | With Large double plate coaxial mechanical stage |
| Illumination | Based on Koehler's system is provided by a post-mounted high intensity 6 volts 20 watts Halogen illuminator |
| Objectives | Achromatic 5x, 10x, LWD-20x & LWD-40XSL |
| Eyepieces | HWF 10x (paired) with eye guards & P7x for photomicrography |
| Model | RTC-99 |
|---|
