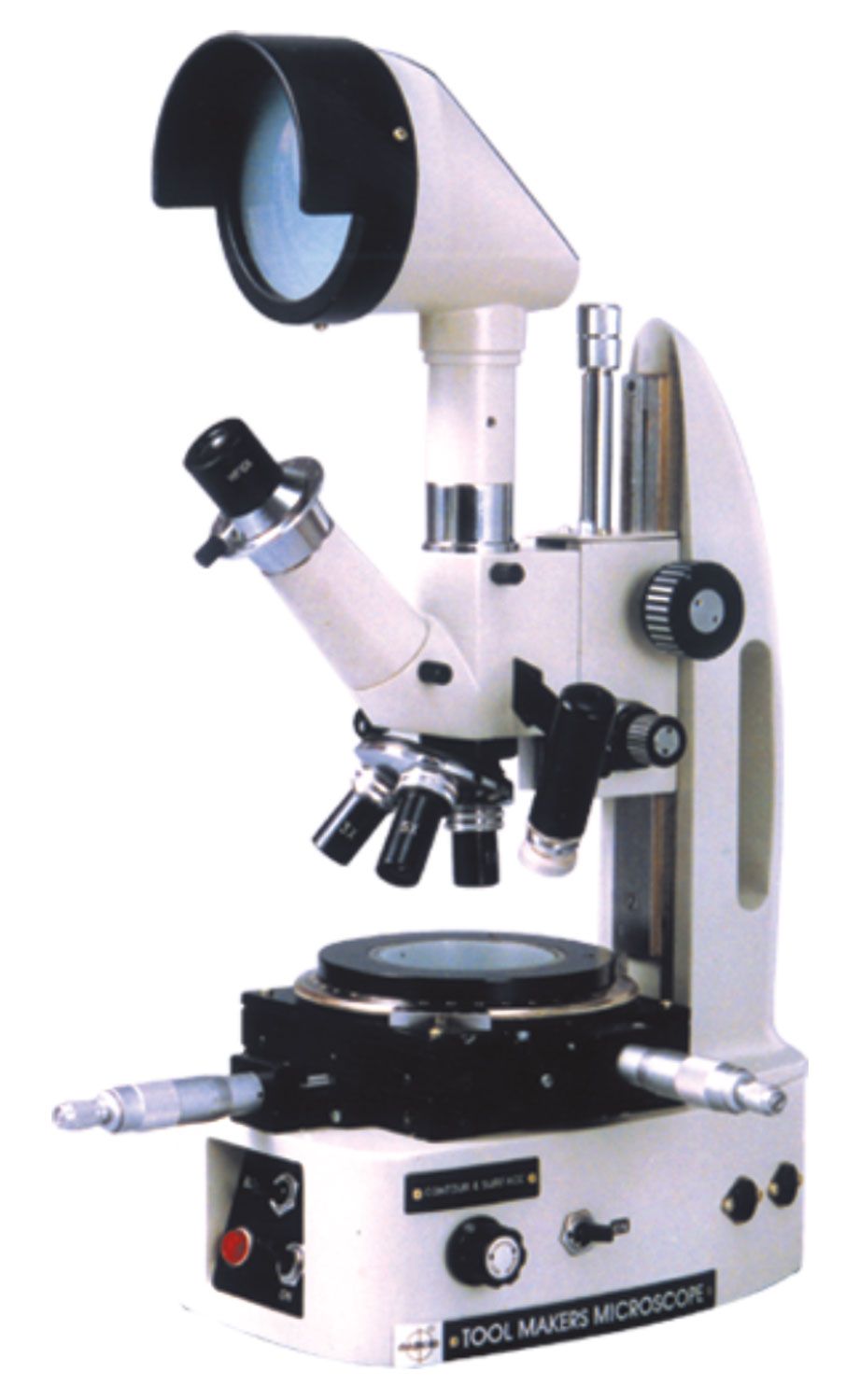

RTM-500

Observation Tube	Monocular, inclined at 45° fitted with Goniometric head graduated 360°.
Base	Large and heavy base provides extra overall rigidity to the instrument.
Stage	125mm X 125mm with interchangeable intermediate table to receive different optional accessories. Equipped with micrometer head. Rotary measuring stage dia 130mm is mounted on the table with 55mm glass aperture, circular graduated scale is divided into 360°.
Illumination	Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light.
Objective	2x-3x-5x
Eyepiece	WF 10x (with cross) h10x (with micrometer) & H15x.
