Accessories
For Tool Maker's Microscope RTM Series
| TM-1 | CENTRE HOLDING DEVICE: For measuring pitch diameter and other workpieces which has center holes. |
|---|---|
| TM-2 | V BLOCK : For measuring round bars and other work-pieces without center holes.Set of 2 nos. with clamps, size 24x16mm. |
| TM-3 | HOLDER WITH CLAMP : For clamping light and rather thin workpieces on the stage glass. |
| TM-4 | VEE SUPORT : With spring clamps for inspection of parts without centres or counter bores. |
| ME-1 | Metric Coarse Thread 0.25 to 1.0mm |
| ME-2 | Metric Coarse Thread 1.25 to 2.0mm |
| ME-3 | Concentric Circle 0.05 to 4mm |
| ME-4 | 55° Angle |
| ME-5 | 60° Angle |
| ME-6 | Whitworth Thread 60-26 TPI |
| ME-7 | Whitworth Thread 24-18 TPI |
| ME-8 | Measuring Micrometer Eyepiece |
| ME-9 | Stage Micrometer 10/100 parts |
| TM-11 | TWIN SPOT LIGHT OBLIQUE ILLUMINATION: With adjustable inclination for surface lighting of samples and relief structure can also be fitted as optional. |
| TM-12 | DEPTHOSCOPE ATTACHMENT : can be provided with the microscope. It is useful for depth measurement by optical means without physical contact with the specimen. Dial gauge mechanism is coupled with the fine focus control of the microscope. |
| TM-13 | SPARE OBJECTIVES : 1x, 2x, 3x, 5x, 10x, 20x & 40x |
| TM-13A | EYEPIECES : WF 10x, WF 15x & WF 20x |

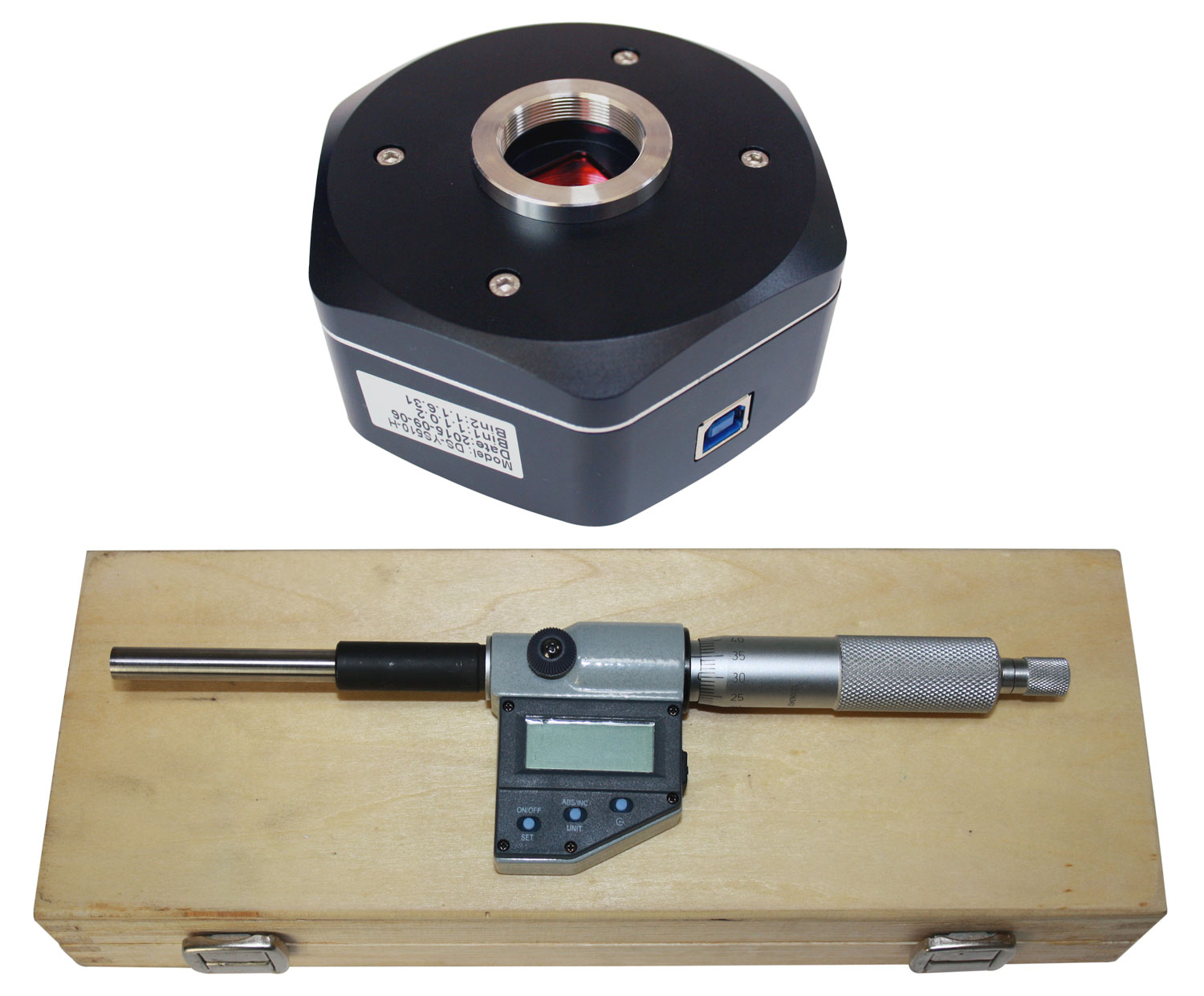

| TM-14 | DIGITAL MICROMETER HEADS : Range 0-25mm. The Digimatic Micrometer Heads provide easiest and most efficient means of obtaining precision on measurement of linear travel on x-y stage. Extra large LCD readout with 0.001mm (one micron) resolution, having inches/mm mode, zero - setting functions etc. |
| TM-14A | DIGITAL MICROMETER HEADS : Same as TM-14 but Range 0-50mm. |
| TM-15 | CCD CAMERA : High quality color USB 2.0 PC digital image system for Tool Maker's Microscope. 1280x1024 clear images with high resolution. 0.5x reduction lens built-in already. Capturing, Saving, Editing & E-mailing your images on PC screen. Save the images in different files like BMP, TIFF, JPG, PICT, PTL etc. Adapters included for 23mm, 30mm and 30.5 mm eye tubes. User friendly software, very easy installation and USB connection. |
