RVM Series
TRAVELLING Microscopes are designed to meet the requirements of Research, Colleges, Schools and Industrial laboratories. They are used for accurate measurement of the diameters of different objects. They are also used in Physics Laboratories for more accurate determination of small variation in the liquid levels, Manometers, the refractive index of liquids as well as in surface tension & viscosity experiments.
The travelling microscope consists of a cast iron base with machined vee-top surface & is fitted with three levelling screws, one being fixed. The microscope can travel Horizontally 20 cm & vertically 17 cms. with the help of slides. Two slow motion knobs with graduated drum are provided for taking accurate readings.
Vernier readings 0.01 mm. or 0.02 mm. Microscope tube consists of eyepiece 10x with cross, objective 1.5x power and working distance of 75 mm. Objective. For placing objects on horizontal stage, made of milky cenolite sheet is provided on the base.

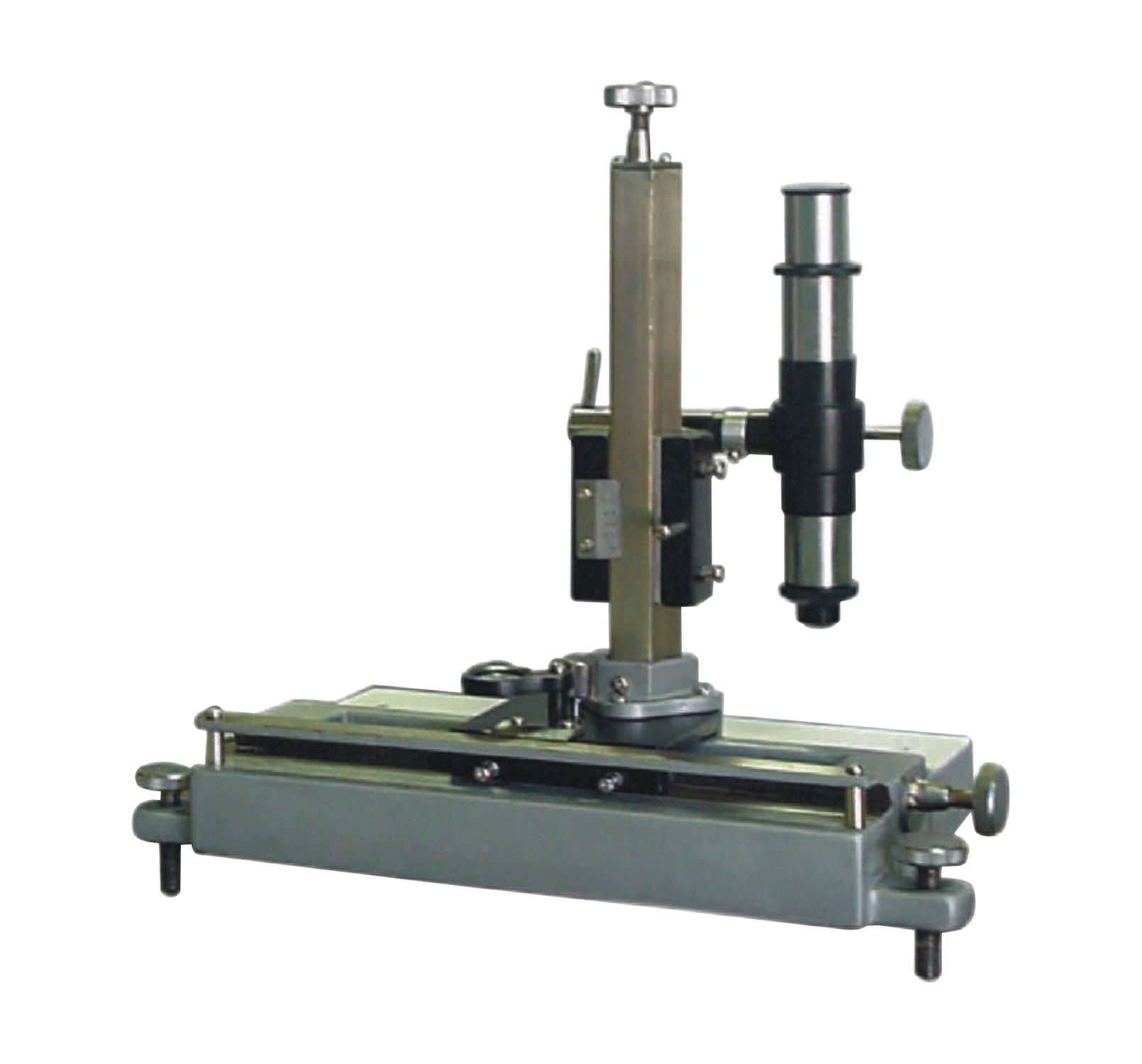

| RVM-201 | TRAVELLING MICROSCOPE |
|---|---|
| Having movement horizontally and vertically with stainless steel scale and vernier reading to 0.01 mm. or 0.02 mm. | |
| RVM-202 | Technical specifications are same as above but fitted with Micrometer head controlling movement |
| RVM-203 | SIX POSITION VERNIER MICROSCOPE |
| Liner microscope is a light instrument designed for use in School and College Laboratories for demon-stration and measuring purposes. Microscope travel 17 cm. divided in half millimeter vernier constant 0.02 mm or 0.01 mm. Complete in wooden box. | |
| RVM-204 | TRI-AXIAL TRAVELLING MICROSCOPE |
| Three axes measurement: Horizontal, vertical and right-angled transverse motion, rack and pinion mechanism Micrometer with resolution 10-micron or better ball slide mounted microscope for vertical movement on 1 5cm scale length. Objective: - Achromatic FL 50 mm. (approx.) Eyepiece: - 10x with cross hair Horizontal movement: - 19cm coarse (x-axis) and fine movement: 25mm with LC 10 micron. Y-axis movement 6cm Fine LC 10micron. Vertical Z movement: - 17cm coarse and fine movement of 25mm with LC 10 micrometer. |
