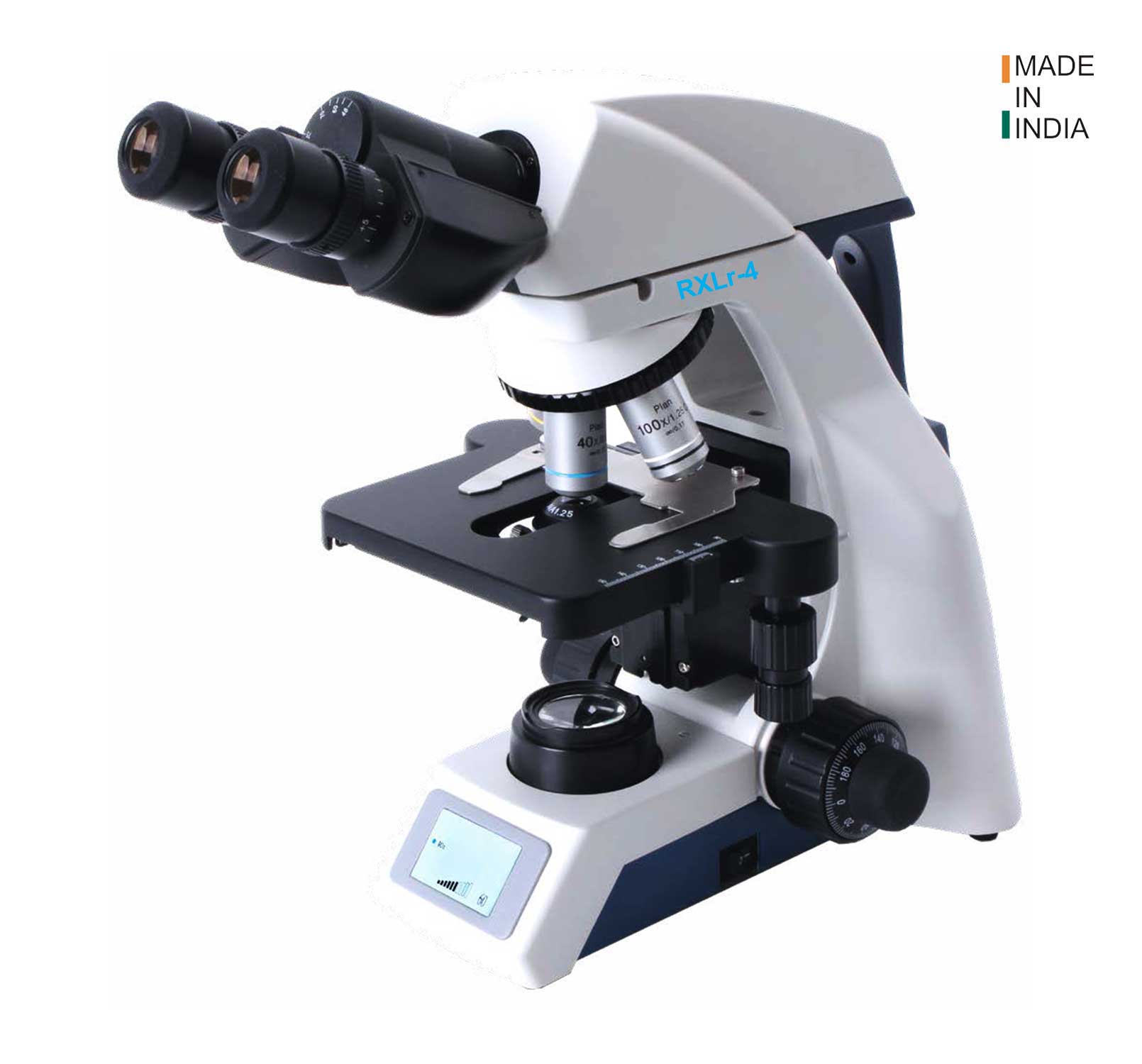

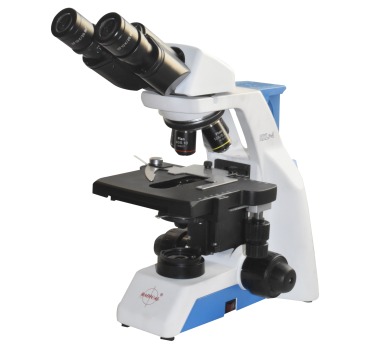

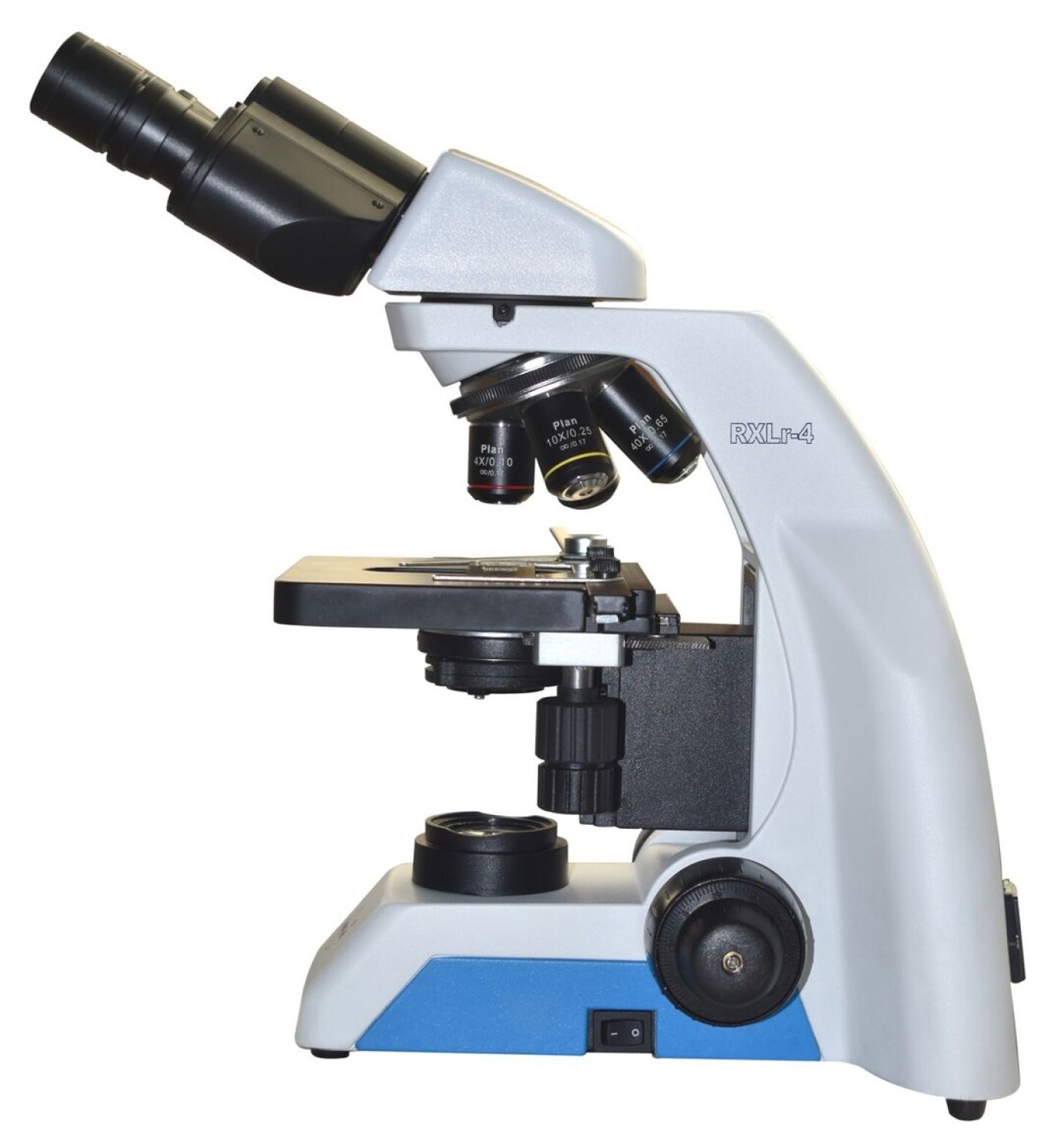

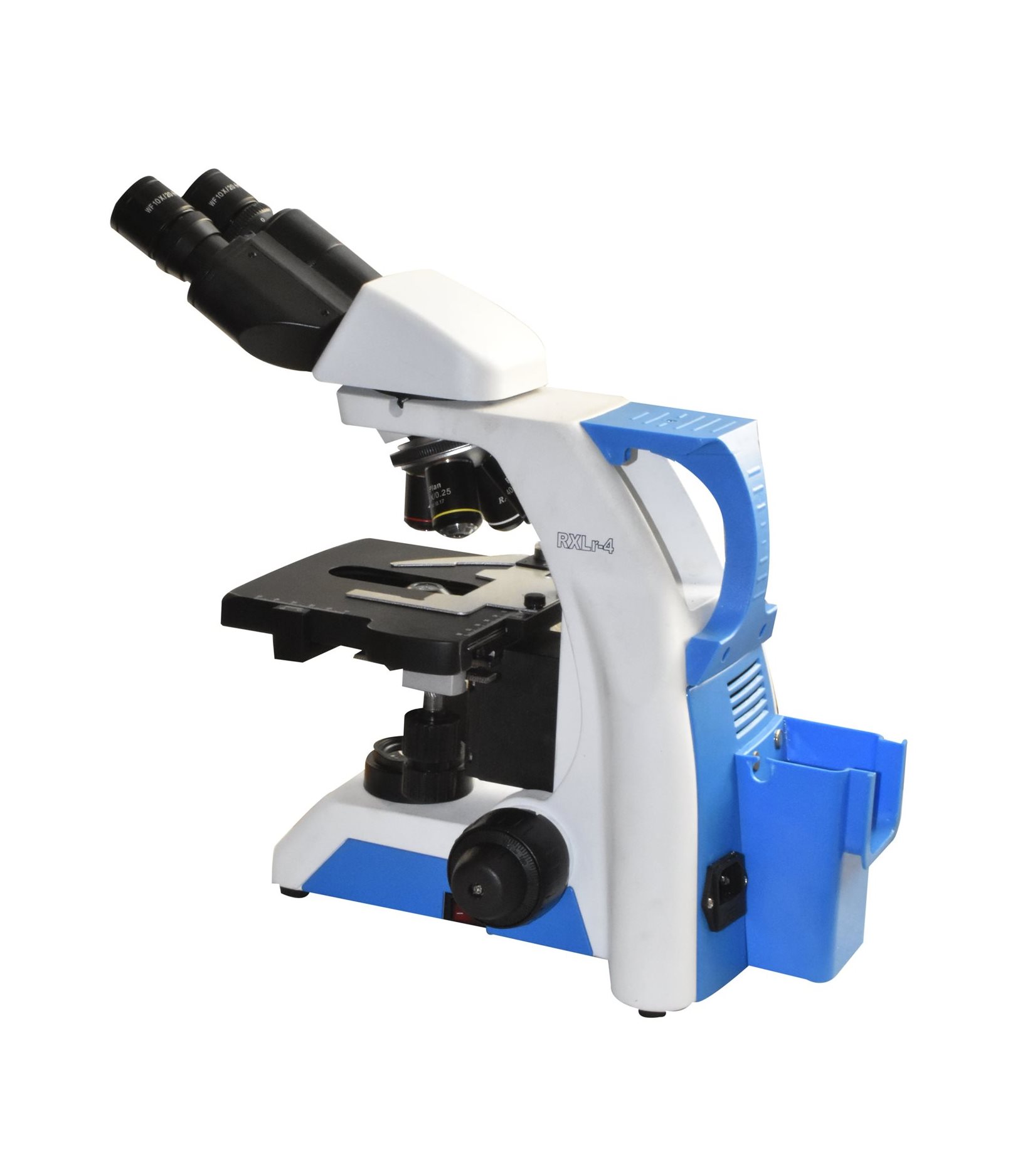

High Performance Biological Microscope

RXLr-4

RXLr-4 series has been developed with long term use and great durability in mind. Microscope is easy to operate, robust and durable with infinity optics translating to excellent price/performance ratio meeting the demanding clinical needs. With quality optics microscope is suitable for brightfield,phase contrast, darkfield & floursecence techniques it is adapted to the most sophisticated environmental conditions in medical lab.

BRIGHTFIELD
DARKFIELD
FLUORESCENCE
PHASE CONTRAST

Body Rugged, single die cast, ergonomic design, touch point treated with hook for power chord
Optical system Universal infinite optical system (IOS), colour corrected (CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated)
Koehler`s Illumination Koehler`s Halogen/LED, intensity adjustable, battery backup, auto cut-off
Viewing Head Ergonomic siedentopf Binocular/Trinocular Head
Mechanical Stage Rackless, refocusing, right/left hand control, hard coated surface, double layer, single/double slide holder, low position coaxial movement
Objectives Japanese Infinity Semi Plan/Plan/Flotar/SAPO/APO objectives
Condenser Abbe with iris diaphragm & filter slot brightfield, darkfield, phase contrast
Nosepiece Quadruple/Quintuple with ball-bearing, slot for polarizer & analyzer, rubber/metal grip & click stop
Eyepiece Extra wide field, high point with diopter adjustment
Focusing Feather touch ultra precise Coaxial (low position), both side, Coarse & Fine with tension control & upper limit stopper
Motorized Z-axis motorized focusing
Power Supply 90V-240V/50Hz AC (SMPS)
Microscopy Techniques Polarizing, darkfield, fluorescence, phase contrast
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RXR4MB Rugged, single die cast, sturdy, ergonomic design, interchangeable, anti-rust material, epoxy powder coated, non-hinged type with built in light & with light intensity regulator, heat treated, touch point treated, acid resistant texture painted, corrosion proof, acid proof, stain proof, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, handle/grip on the back, rubber feet, slot for Ana/Pol, extended base with hand rest, slot for filter.
Optical system RXR4IOS Universal plan infinite optical system, infinity corrected, anti-reflective coating, high transmission prism, harmonic compensating, color corrected, chromatic & spherical aberration, anti-fungal, anti-mould, anti-bacterial coated, anti-microbial treated, skin friendly material coated, with focal length 200, (multi-layered hard coated), colour coded objectives, vacuum coated Prism, flat image, uniformaly centered, interchangeable & parfocal (60mm), parcentered, suitable for BF, DF, PH, Pol etc.
Koehler's Illumination RXR4HL20K Koehler's illumination Halogen 6V-20W (life 2000 hrs.) variable intensity control
Viewing Head RXR4B30 Binocular inclined at 30°, swivelling siedentopf head, rotatable through 360°, IPD-from 48-76, fixed diopter, upto 50mm adjustable viewing height, F.O.V upto 25mm with locking mechanism.
Nosepiece RXR4-5N Inward tilted, precise quintuple revolving (with an rubber/metallic ring grip) on multiple ball bearing, click stop mechanism
Eyepiece RXR4EP1020 Paired, high eye point WF 10X, FOV-20mm, anti-fungus coated, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, precentered, built-in diopter adjustment on one/both eyepieces (±5mm) with soft rubber eyecups with eyepiece pointer, lockable, suitable for both with or without glass wearer.
Mechanical Stage RXR4MS Double plate, rectangular right/left hand low drive control, co-axial movement knob, Wear resistant stage with silver (Ag) treated, refocusing mechanism, reckless, horizontal, hard coating, double slide holder, stage size 140×150mm, X-Y movement 50-76mm on wire, precision 0.1mm vernier scale, with stainless steel holder, ball bearing mechanism with friction & jerk free movement.
Objectives RXR404i 4X, N.A 0.12, W.D 30mm, plan achromatic, infinite, unbreakable container for storage
RXR404ic 4X, N.A 0.12, W.D 18.5mm, plan achromatic, infinite, unbreakable container for storage
RXR405i 5X, N.A 0.15, W.D 12mm, plan achromatic, infinite, unbreakable container for storage
RXR410i 10X, N.A 0.25, W.D 6.7mm, plan achromatic, infinite, unbreakable container for storage
RXR420i 20X, N.A 0.45, W.D 2.1mm, plan achromatic, infinite, unbreakable container for storage
RXR440i 40X, N.A 0.65, W.D 0.65mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
RXR440ic 40X, N.A 0.65, W.D 0.7mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
RXR4100i 100X, N.A 1.25, W.D 0.18mm, plan achromatic, oil immersed, infinite, spring loaded, parfocal & precentered, unbreakable container for storage
Focusing RXF25 Co-axial, tension control, upper limit stopper, coarse adjustable distance 25mm, ball drive system and brass metal gears for smooth operation with torque adjustment ring one side, high sensitivity focus drive with 0.25 mm per revolution, fine adjustment 2.5µm/Div, 3 step tension, (coarse & fine graduated).
Condenser RABC Abbe condenser N.A. 1.25 with aspheric lens (light relay) for brightfield, uniform illumination for entire FOV, separate movement on ball bearing guideways from focusing (rack & pinion), metal guide with iris diaphragm having center adjustable, removable filter holder, objective guide marking & focusable with slot for phase/darkfield slider optionally available with flip top lens etc, color coded/label with position guide, aperture diaphragm, with labels for matching objective magnification, slot for filter/DF/PH.
Power Supply RSMPS620 Integrated SMPS based, wide voltage operating range, 90V-240V, 50/60Hz, output 6Vdc 1A. Max required power 7W
Accessories RCC Cleaning cloth
RVC Vinyl cover
RIO immersion oil (10ml)
RA3K Allen keys
RF5A Fuses - 2 no's
MANUAL Instruction manual
WARRANTY Warranty card
RBF Blue Filter (frosted & plain)
RPC Power Cord (country specific)
RWBX Wooden box with separate container for accessories, lock & key, carrying handle
  • Body
    • Part Name Part Code Description
      Body RXR4MBi Rugged, single die cast, sturdy, ergonomic design, interchangeable, touch point treated, acid resistant texture painted, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/ Halogen, handle/grip on the back, extended base with hand rest, Cord wrap slot at back side, storage compartment, rubber feet, wear resistant stage with silver (Ag) treatment, slot for Ana/Pol inbuilt image capture button/ trigger, ECO illumination & LCD display for magnification, Auto switch off, over-charging cut-off with visual symbol, lumens, brightness, power saving mode etc.
      RXR4MB4 Rugged, single die cast, sturdy, ergonomic design, interchangeable, touch point treated, acid resistant texture painted, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, handle/grip on the back, extended base with hand rest, rubber feet, slot for Ana/Pol inbuilt, USB port on body 5V USB, cable storage at back, ECO illumination & LCD display for magnification, Auto switch off, lumens, brightness etc.
      RXR4MB20 Rugged, single die cast, ergonomic design, touch point treated, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, rubber feet.
      RXR4MB30 Rugged, single die cast, sturdy, ergonomic design, interchangeable, touch point treated, acid resistant texture painted, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, handle/grip on the back, rubber feet, slot for Ana/Pol, adjustable field diaphragm.
      RXR4MBC27 Rugged, aluminum single die cast, ergonomic design, touch point treated, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, rubber feet, field diaphragm for koehler illumination
      RXR4MBC28 Rugged, aluminum single die cast, ergonomic design, touch point treated, illumination intensity controller & on/off switch, auto sleep mode, LCD display, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, rubber feet, field diaphragm for koehler illumination, provision for setting precise light for lenses.
      RXR4MBK Rugged, single die cast, sturdy, ergonomic design, adjustable, field diaphragm, interchangeable, touch point treated, acid resistant texture painted, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, handle/grip on the back, rubber feet, slot for Ana/Pol
      RXR4MBWi Rugged, single die cast, sturdy, ergonomic design, interchangeable, touch point treated, acid resistant texture painted, window in arm, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen
      RXR4MB-BH Rugged, aluminum single die cast with Hexagonal base, sturdy, ergonomic design, inter changeable, anti-rust material, touch point treated, acid resistant texture painted, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, handle/grip on the back, rubber feet, slot for Ana/Pol, extended base with hand rest, window in arm & field diaphragm for full Koehler illumination
      RXR4MB-CR Rugged, single die cast, sturdy, ergonomic design, interchangeable, anti-rust material, epoxy powder coated, heat treated, touch point treated, acid resistant texture painted, Silver AG treated, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, handle/grip on the back, Cord wrap slot at bak side, rubber feet, slot for Ana/Pol, extended base with hand rest, slot for filter.
      RXR4MB-CR Rugged, single die cast, sturdy, ergonomic design, interchangeable, anti-rust material, epoxy powder coated, non-hinged type with built in light & with light intensity regulator, heat treated, touch point treated, acid resistant Texture painted, corrosion proof, acid proof, stain proof, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/Halogen, handle/grip on the back, rubber feet, Window in arm, Colour LED indicator ,auto cut off (slot for Ana/Pol, extended base with hand rest, slot for filter. (having screw in arm)
  • Condenser
    • Condenser RABC-1 Abbe condenser N.A. 1.25 with aspheric lens (light relay) for brightfield, sliding-in, centrable, up-down adustment on rack & pinion, built in aperture diaphragm.
      RABC-2 Sub stage Abbe condenser N.A. 0.9/1.25, focusable with aspheric lens (light relay) for brightfield, uniform illumination for entire FOV, separate movement on ball bearing guideways from focusing (rack & pinion), metal guide with variable iris diaphragm having center adjustable, removable filter holder, upgradable to PH, DF, FL, POL & turret.
      RABC-C Abbe condenser N.A. 0.9/1.25, with holder for phase contrast and darkfield slider.
      RABC-i Abbe precision condenser N.A. 1.25 with aspheric lens (light relay) for brightfield, uniform illumination for entire FOV, separate movement on ball bearing guideways from focusing (rack & pinion), metal guide with iris diaphragm having centre adjustable, removable filter holder, objective guide marking & focusable with slot for PH & DF. Vertically adjustable with rack & pinion movement of 18mm, placed at left hand knob.
      RABC-FT Flip top sub-stage abbe condenser 1.25, Iris diaphragm, day light blue filter, rack and pinion movements on stainless steel guides.
      RABC-SW Abbe condenser N.A. 1.25 with aspheric lens (light relay) for brightfield, uniform illumination for entire FOV, separate movement on ball bearing guideways from focusing (rack & pinion), metal guide with iris diaphragm having center adjustable, Swingout filter holder, objective guide marking & focusable with slot for phase/dark field slider.
      RABC-SW1 Abbe condenser Height adjustable N.A. 1.25 swingout/slider/diaphragm with aspheric lens (light relay) for brightfield, uniform illumination for entire FOV, separate movement on ball bearing guideways from focusing (rack & pinion), metal guide with iris diaphragm having center adjustable, Swingout filter holder, objective guide marking & focusable with slot for phase/dark field sliders
      RX4SWCON Swingout Abbe condenser 0.9/1.2 for magnification 2x-100x with iris diaphragm, aspheric lens, slot for phase/darkfield slider etc
      RXR4UCON Universal condenser for BF upto 100x/PH upto 100x/DF upto 40x observation abbe N.A. 1.25 , turret type upto 6 position, 1 position for 2x low magnification, separate movement from focusing (rack & pinion), filter holder & centering telescope (CT)
      RXR4UCON1 Universal condenser for BF upto 100x/PH upto 100x/DF upto 40x observation abbe N.A. 1.25, turret type upto 4 position, separate movement from focusing (rack & pinion), filter holder & centering telescope (CT)
      RXR4UCON2 Universal condenser for BF upto 100x/PH upto 100x/DF upto 40x observation abbe N.A. 1.25, sliders type upto 4 position, separate movement from focusing (rack & pinion), filter holder & centering telescope (CT) Easily Observation Change.
        RXR4UCON-P Universal (modular disc) condenser N.A. 0.9/1.25, with brightfield, darkfield & phase for position pH1, pH2, pH3.
        RXR4UCON-SW Universal Swing out condenser for BF upto 100x/PH upto 100x/DF upto 40x observation abbe N.A. 1.25 (turret type 5 position), separate movement from focusing (rack & pinion), filter holder, Built-in aperture iris diaphragm having center adjustable
        RXR4RDF Abbe N.A. 1.25 for Darkfield, oil, separate movement from focusing (Rack & Pinion)
        RXR4UNV1.40-7P Universal condenser for BF upto 100x/PH upto 100x/DF upto 40x observation Abbe N.A. 1.40/1.25 (turret type), separate movement from focusing (rack & pinion), filter holder, 7 position, 2 position for BF, 2position for DF (upto 40x) & 2position optional, built in aperture iris diaphragm & lock pin
        RXR4CDF-1 Darkfield condenser N.A 0.8-0.95, W.D 4mm (dry) for objective 20x-40x
        RXR4CDF-2 Darkfield condenser N.A 1.2-1.43, W.D 1.5mm (oil) for objective 20x-100x
        RXR4CON-O Abbe condenser N.A. 0.9/1.25 oil with labels for matching objective magnification, for brightfield, separate movement from focusing (rack & pinion), with iris diaphragm, with centre adjustable, for magnification 2x-100x
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Eyepieces
    • Eyepieces RXR4EP1018 Paired, high eye point WF 10X, FOV-18mm, Huygenian type, multilayered coated, high quality, good contrast, abrasion free, aplanatic, pre-centered, anti-fungus coating, built-in diopter adjustment on one/both eyepieces (±5mm) rubber eyecups, foldable eyeguard.
        RXR4EP1018P WF 10X, FOV-18mm, Pointer/cross hair, with high focal point, multi-layered coated, high quality, good contrast, abrasion free, aplanatic, anti-fungal coated, lockable, dioptre adjustment (±5mm).
        RXR4EP1020C Paired, high eye point WF 10X, FOV-20mm, compensating, anti-fungus coated, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable,precentered, built-in diopter adjustment on both eyepiece (±5mm) with soft rubber eyecups.
        RXR4EP1020M WF 10X, FOV-20mm, Micrometer(10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4EP1020P WF 10X, FOV-20mm, one with pointer, cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, anti-fungal coated, lockable, diopter adjustment on both eyepieces with soft rubber eyecups.
        RXR4EP1020FL High eye point WF 10X, FOV-20mm, filar micrometer eyepiece having 1mm scale with wire movement & 0.01mm least count and movement by knob rotation
        RXR4EP1020HY huygenian 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, anti-fungus coating, diopter adjustment on eyepiece (±5mm)
        RXR4EP1022 Paired, WF 10X, FOV-22mm, high eye point, (Prism incorporated), multilayered coated, high quality, focusable, good contrast, abrasion free, aplanatic, lockable, dioptric adjustment on both eyepiece (±5mm) with graduated ring foldable eyeguard, anti-fungal coated, lock-in eyepieces, provision to insert graticules, rubber eyecups.
        RXR4EP1022e Paired, high eye point WF (Wide Field) 10X, FOV-22mm, anti-fungus coated, multilayered coated, high quality, good contrast, abrasion free, high transmission aplanatic, lockable, precentered, built-in diopter adjustment on both eyepiece (±5mm) with soft rubber eyecups.
        RXR4EP1022M WF 10X, FOV-22mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4EP1022P WF 10X, FOV-22mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable provision to insert graticule, dioptric adjustment(±5mm)
        RXR4EP1515 Paired, WF 15X, FOV-18mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4EP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4EP-C Customized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticules
        RXR4ECUP Eyecups (pair)
          Filar micrometer
  • Fluorescence Attachment
    • Fluorescence Attachment RXR4FLLED LED reflection illumination, single band blue filter with corresponding LED module inside, intensity adjust knob, BF/FL switching knob
      RXR4FLLED2 LED reflection illumination, single band blue filter with LED module, intensity with corresponding LED module inside, intensity adjust knob, BF/FL switching knob with Blue filters: Blue Filter Excitation 440-455nm, Dichroic Mirror, Emission Wavelength 510-520nm.
      RXR4FLLED11 LED reflection illumination, single band blue filter with LED module, intensity with corresponding LED module inside, intensity adjust knob, BF/FL switching knob with Blue filters: Blue Filter Excitation 450nm, Dichroic Mirror Wavelength 450nm, Emission Wavelength 510-520nm
      RXR4FL3100 Turret 3 filter holder, 100W Hg, std fluorescence filter B & G, others on request (including power supply)
      RXR4FL4100 Turret 4 filter holder, 100W Hg, std fluorescence filter B & G, others on request (including power supply)
        RXR4FL6100 Turret 6 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
        RXR4FL2LED 3 position LED Reflection illumination, 2 No. single band filter with corresponding LED module (life 20,000 hrs) inside, intensity control knob, BF/FL switching knob
        RXR4FL6LED Turret 6 filter holder, LED, std fluorescence filter B & G, others on request.
        RXR4FL1LED Dual LED,  with battery backup, std. B fluorescence filter, others on request.
      Filters Excitation DM BA
      Blue Blue 450 450 510-520
  • Focusing
    • Focusing RXR4F1.0 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.10 mm per revolution, fine adjustment 1µm/Div.
      RXR4F1.0B Both side, Co-axial on cross roller guide, tension control, upper limit stopper, upper limit stopper, fine adjustment with 200 graduations, Precision 1 µm, high sensitivity focus drive with .0.2mm per rotation. coarse adjustable distance 25mm with friction adjustment
      RXR4F2.0 Both side, Co-axial on cross roller guide, tension control with torque adjustment ring, coarse movement 30mm, upper limit stopper, high sensitivity focus drive with 0.20 mm per revolution, fine adjustment 2µm/Div, coarse-37.7mm per rotation, up 2mm/ down 13mm.
        RXR4F2.0i Both side, Co-axial on cross roller guide, tension control, coarse movement stroke 20mm, fine focus graduation 2.5µ, Stage height movement, coarse focus range 15/20mm & Fine 0.25mm
        RXR4F2.0i25 Both side, Co-axial on cross roller guide, tension control, coarse movement 25mm, upper limit stopper, high sensitivity focus drive with 0.20 mm per revolution, fine adjustment 2µm/Div, coarse-37.7mm per rotation.
        RXR4F3.0 Co-axial, coarse fine-focusing knob, tension control, upper limit stopper(for slide safety),coarse adjustable distance 25mm, ball drive system and brass metal gears for smooth operation with torque adjustment ring one side, high sensitivity focus drive with 0.30 mm per revolution, fine adjustment 3µm/Div, 3 step tension, (coarse & fine graduated).
        RXR4F3.0i Co-axial coarse and fine focusing, tension control, upper limit stopper, coarse adjustable distance 24mm, ball drive system and brass metal gears for smooth operation with torque adjustment ring one side, high sensitivity focus drive with 0.25 mm per revolution, auto focus stop for safety, fine adjustment 2.0µm/ Div, 2 step tension, (coarse & fine graduated).
        RXF10 Low position coarse & fine Co-axial, built-in tension control, upper limit stopper, coarse adjustable distance 25mm, full stroke 37mm, high sensitivity focus drive with 0.10 mm per revolution, fine adjustment 1.0µm/Div, 3step tension, (coarse & fine graduated) height adjustable 15mm.
        RXF20 Co-axial coarse & fine control with focus adjustment, tension control, upper limit stopper (focus stop mechanism), coarse adjustable distance/ focus range 20mm, ball drive system and brass metal gears for smooth operation, high sensitivity focus drive with 0.20 mm per revolution, fine adjustment 2.0µm/Div, coarse & fine graduated.
  • Koehler`s Illumination
    • Koehler`s Illumination RXR4H30 Halogen 6V-30W, life 2000 hrs.
        RXR4L2WL3 ECO-Illuminator, uniform colour LED 2W, life 30000 hrs., lumens equivalent 6V-20W
        RXR4L3WL3 ECO-Illuminator, uniform colour LED 3W, life 30000 hrs., lumens equivalent 6V-20W
        RXR4L3WL3i Built-in uniform colour, (Warm, daylight) White LED 3W life 30000 hrs., lumens equivalent 6V-20W, intensity control, flicker free illumination, colour temperature 6000K, on/off switch, with micro prism filter (fly eye lens) for uniform illumination in entire FOV. Inbuilt battery backup (NiMH rechargeable batteries with 2 to 4 hours backup), easy to change bulb from right side without opening the bottom base, light intensity control knob at right side of body for easy operate light control & coarse & fine focus.
        RXR4LBB Lithium Ion battery backup from 2-12 hours for LED (internal/external)
        RXR4L3WL5i Built-in uniform colour, White LED 3W life 50000 hrs., lumens equivalent 6V-20W, intensity control, flicker free illumination, colour temperature 6000K, with heat sink, on/off switch, with micro prism filter (fly eye lens) for uniform illumination in entire FOV. Inbuilt battery backup (NiMH rechargeable batteries with 2 to 4 hours backup), easy to change bulb from right side without opening the bottom base, light intensity control knob at right side of body for easy operate light control & coarse & fine focus.
        RXR4L3WL6 Built-in uniform colour, White LED 3W life 65000 hrs., lumens equivalent 6V-20W, intensity control, flicker free illumination, colour temperature 4000K/6000K, on/off switch, with microprism filter (fly eye lens) for uniform illumination in entire FOV.
        RXR4L3WL6C Uniform colour, blue LED 3W life 25000 hrs., lumens equivalent 6V-20W, intensity control, flicker free illumination, colour temperature 3200K.
        RXR4L3WL6i Built-in uniform colour, (Warm) White LED 3W life 65000 hrs., lumens equivalent 6V-20W, intensity control, flicker free illumination, colour temperature 6000K, on/off switch, with micro prism filter (fly eye lens) for uniform illumination in entire FOV. Inbuilt battery backup.
        RXR4L3WL8 Uniform colour LED 3W life 82000 hrs., lumens equivalent 6V-20W
        RXR4L3.6WL8 Uniform colour, white LED 3.6W life 85000 hrs., lumens equivalent 6V-30W, colour temperature 6300k
        RXR4L4WL6 Built-in uniform colour, White LED 4W life 65000 hrs., lumens equivalent 6V-20W, intensity control, fly eye lens, flicker free illumination, colour temperature 4000K, on/off switch.
        RXR4L5WL3 Uniform colour LED 5W, life 30000 hrs., lumens equivalent 6V-30W
        RXR4L5WL6 Uniform colour LED 5W life 65000 hrs., lumens equivalent 6V-30W
        RXR4L5WL6B Uniform colour LED 5W life 65000 hrs., lumens equivalent 6V-30W, variable intensity control. built-in rechargeable battery.
        RXR4L5WL8 Uniform colour LED 5W life 82000 hrs., Lumens equivalent 6V-30W
        RXR4L5WL10 Uniform colour LED 5W, life 30000 hrs., lumens equivalent 12V-100W, with intensity controller.
        RXR4L35WL6 White-X LED 3.6W life 65000 hrs., lumens illumination equivalent 35W, colour temperature 6300k, left/right side intensity controller
        RXR4L36WL6 White-X LED 3.6W life 100000 hrs., lumens illumination equivalent 50W, colour temperature 6300k
        RXR4L-C Extra long life LED upto 1,00,000 hrs 3W/5W
        RXR4HWL-MDUL Eco illumination, interchangeable 6V-30W Halogen or 3W uniform colour LED illumination with intensity controller Halogen life 2000 hrs./LED life 50000 hrs.
        RXR4HWL-MDUL-1 interchangeable 6V -35W Halogen or 3 uniform colour LED illumination with intensity controller, Halogen life 2000 hrs./LED life 50000 hrs.
        RXR4HWL-MDUL-2 interchangeable 12V -35W Halogen or 10W uniform colour LED illumination with intensity controller Halogen life 2000 hrs./LED life 65000 hrs.
        RXR4HWL-MDUL-3 Eco illumination, interchangeable 6V-30W Halogen or 3W uniform color LED illumination with intensity controller Halogen life 2000 hrs./LED life 50000 hrs. Auto light intensity manager, auto cut-off.
        RXR4HWL-MDUL-3LED Eco-illumination, interchangeable, 3W uniform color LED illumination or 6V-30W Halogen, colour temperature 5600k with intensity controller between objectives, LED life 50000 hrs./ Halogen life 2000 hrs. Auto light intensity manager, auto cut-off, built in blue filter, lumens controlled, inbuilt compatible power supply. Changing illuminator LED to halogen.
        RXR4EXLBB Lithium Lion Battery (2600 mAh) back up from 2-12 hours for LED (internal/external)
        RXR4SOLAR Solar power battery charger for LED
        RXR4MIRR Concave daylight mirror
        RXR4ACUT Auto-cutoff
  • Mechanical Stage
    • Mechanical Stage RXR4MS-1 Rectangular right/left hand low drive control, horizontal, hard coating, double slide holder, stage size 135×140mm, X-Y movement 50-76mm on wire, precision 0.1mm
      RXR4MS-2 Double plate, Rectangular right/left hand low drive stage control, horizontal, hard coating, double slide holder removeable, stage size 155×134mm, X-Y movement 76-40mm on wire, precision 0.1mm
      RXR4MS-2.1 Double plate, Rectangular right/left hand low drive stage control, horizontal, hard coating (PU coated), low positioned coaxial knobs, soft feel & fluid moverment with single/double slide holder removeable, Rackless, stage size 135×120mm, Side flap, anti-scratch paint, X-Y traverse movement 76-40mm on wire, precision 0.1mm.
      RXR4MS-3 Double plate, Rectangular right/left hand low drive sliding stage control, horizontal, hard ceramic coated, anti-scrach paint, Single/double slide holder removeable, stage size 150×133mm, X-Y movement 75-50mm on wire, belt driven at x direction, precision vernier scale 0.1mm
      RXR4MS-3i Double plate, Rectangular right/left hand low drive sliding stage control, horizontal, hard ceramic coated, anti-scrach paint, Single/double slide holder, stage size 150×135mm, X-Y movement 76-50mm on wire, precision vernier scale 0.1mm.
      RXR4MS-4 Square, 2-layer, super hard coated & scratch resistant, anodized, wire driven, easy slide gliding control with spring in left lever, stainless steel dual slide holder, left/right hand low drive control, co-axial movement knob, two way linear guide, stage size-140x140, X-Y Movement - 75x45, precision 0.1mm by attached vernier, on wire with stainless steel holder, vernier marking on stage, ball bearing mechanism with friction adjustment mechanism (torque).
      RXR4MS-5 Square, 2-layer, super hard & scratch resistant, anodized, wire driven, easy slide gliding control with spring in left lever, stainless steel dual slide holder, left/right hand low drive control, co-axial movement knob, two way linear guide, stage size-140x140, X-Y Movement - 75x50mm, precision 0.1mm by attached vernier, on wire with stainless steel holder, vernier marking on stage, ball bearing mechanism with friction adjustment mechanism (torque) with micrometer.
      RXR4MS-6 Double plate, rectangular right/left hand low drive control, co-axial movement knob, horizontal, hard coating, double slide holder, stage size 140×150mm, X-Y movement 50-76mm on wire, precision 0.1mm vernier scale, with stainless steel holder, ball bearing mechanism with friction & jerk free movement. X-Y axis 88 x 55mm
      RXR4MS-7 Double plate, Rectangular right/left hand low drive stage control, horizontal, hard coating, low positioned coaxial knobs with double slide holder removable, stage size 135×120mm, anti-scratch paint, X-Y movement 76-30mm on wire, precision vernier scale 0.1mm.
      RXR4P-MS-Ce Large circular rotary stage(lockable) dia. Upto 175mm, 360° rotatable, with 1° interval, precise vernier scale of 0.1° with graduations and adjustable brake, click stop at 45° increments. provision for fixing stage clips attachable mechanical XY travel, object guide with vernier 0.1mm, centerable.
      RXR4MS-27 Rectangular right/left hand low drive control, 270° rotatable, horizontal, hard coating, double slide holder, stage size 140×150mm, X-Y movement 75-55mm on wire, precision 0.1mm.
      RXR4MS-27i Rectangular right hand low drive control, rackless/movement mechanical stage size 211×154 mm, X-Y movement 52 x 76mm on wire, precision 0.1mm. horizontal, hard coating, double slide holder.
      RXR4MS-C Double plate, Rectangular/square, 2-layer, super hard & scratch resistant, refocusing mechanism, anodized, rackless, wire driven, easy slide gliding control with spring in left lever, stainless steel dual slide holder, left/right hand low drive control, co-axial movement knob, reckless, horizontal, hard coated scratch resistance, wear resistant stage with silver (Ag) treated, two way linear guide, stage size-customized as per requirement, X-Y Movement - customized as per requirement, precision 0.1mm by attached vernier, on wire with stainless steel holder, vernier marking on stage, ball bearing mechanism with friction adjustment mechanism (torque).
      RXR4MS-LS Double plate Mechanical stage, Rectangular, 2-layer, super hard coated surface for scratch resistant, Rackless, wire driven, easy slide gliding control with spring in left lever, stainless steel dual slide holder, left/right hand low drive control, co-axial movement knob, two way linear guide, stage Size: 200X160mm, X-Y Movement: 78x54mm, precision 0.1mm by attached vernier, on wire with stainless steel holder, vernier marking on stage, ball bearing mechanism with friction adjustment mechanism (torque).
        RXR4MS-RK Rectangular/square, rackless, super hard coated & scratch resistant, easy slide gliding control with spring in left lever, stainless steel dual slide holder, left/right hand low drive control, horizontal, wire driven, hard coating, double slide holder, co-axial movement knob, stage focus lock, two way linear guide, stage size-customized as per requirement, X-Y movement-customized as per requirement on wire, standard stage size-200x160mm, standard X-Y movement-75x54 on wire, precision 0.1mm by attached vernier, tension adjustable
        RXR4MS-RK1 Rectangular/square, rackless, hard coated & scratch resistant, easy slide gliding control with spring in left lever, stainless steel dual slide holder, left/right hand low drive control, horizontal, wire driven, hard Coating, double slide holder, co-axial movement knob, stage focus lock, two way linear guide, stage size 187x140 mm with integrated 79x52mm stage, precision 0.1mm by attached vernier, tension adjustable
        RXR4MS-RK1.1 Rectangular/square, double layer, rackless, hard coated & scratch Stage resistant, easy slide gliding control with spring in left lever, stainless steel dual slide holder, left/right hand low drive control, horizontal, wire driven, hard Coating, double slide holder, co-axial movement knob, stage focus lock, two-way linear guide, stage size 185x145mm with integrated 75x50mm stage, precision 0.1mm by attached vernier, tension adjustable.
        RXR4MS-RK2 Square, rackless, super hard coated & scratch resistant, easy slide gliding control with spring in left lever, stainless steel dual slide holder, left/right hand low drive control, horizontal, wire driven, hard coating, double slide holder, co-axial movement knob, stage focus lock, two way linear guide, stage size-140x140 mm, X-Y movement-75x40 on wire, precision 0.1mm by attached vernier, tension adjustable.
        RXR4MS-RK7 Double plate, rectangular right/left hand low drive control, co-axial movement knob, Wear resistant stage with silver (Ag) treated, reckless, horizontal, hard coating, double slide holder, stage size 100×140mm, X-Y movement 30-70mm on wire, precision 0.1mm vernier scale, with stainless steel holder, ball bearing mechanism with friction & jerk free movement.
        Rectangular right/left hand low drive control, hard coating, spring loaded, steel single/double slide holder, stage size 145x125mm, X-Y movement 75-50mm(graduated with vernier min. accuracy 0.1mm) on stainless steel ball bearing, with graduated Scale
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • Nosepiece
    • Nosepiece RXR4-4N Backward/Inward tilted, precise quadruple revolving (with an rubber for easy rotation/metallic ring grip) on multiple ball bearing, for smooth & accurate alignment, click stop mechanism, par-centered & parfocal. Extra port is fitted with dust & fungal proof metallic/ebonite cap.
      RXR4-4NBH outward tilt, precise quadruple revolving (with an rubber/metallic ring grip) on multiple ball bearing
        RXR4-4NLCD Inward tilted, precise quadruple revolving (with an rubber/metallic ring grip) on multiple ball bearing, with light intensity memory function, LCD display on body for light intensity in percentage, colour temperature, colour temperature correction knob & objective in use
        RXR4-5RA Reverse angle quintuple nosepiece, revolving on multiple ball bearings, with click stop and rubber grip.
        RXR4-5RAB Reverse angle quintuple nosepiece, revolving on multiple ball bearings, slot for ANA/POL, click stop and rubber grip.
        RXR4-5NBH Outward tilt, precise quintuple revolving (with a rubber/metallic ring grip) on multiple ball bearing
        RXR4-5NLCD Inward tilted, precise quintuple revolving (with an rubber/metallic ring grip) on multiple ball bearing, with light intensity memory function, LCD display on body for light intensity in percentage, colour temperature, colour temperature correction knob & objective in use
  • Objectives
    • Objectives RXR4PL02i 2X, N.A. 0.06, W.D. 7.50mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR404LW 4X, N.A 0.10, W.D 17.8mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR404LWc 4X, N.A 0.10, W.D 27.8mm, plan achromatic, unbreakable container for storage
        RXR404LWe 4X, N.A 0.10, W.D 25mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR404LWF 4X, N.A 0.10, W.D 20mm, plan achromatic, infinite, unbreakable container for storage
        RXR404LWi 4X, N.A 0.10, W.D 16.8mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX4R10LW 10X, N.A 0.25, W.D 17.96mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX4R10LCF 10X, N.A 0.25, W.D 8mm, plan achromatic, unbreakable container for storage
        RX4R10LWB 10X, N.A 0.25, W.D 17.96mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX4R10LWC 10X, N.A 0.25, W.D 10.6mm, plan achromatic, unbreakable container for storage
        RX4R10LWe 10X, N.A 0.25, W.D 6.00mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX4R10LWF 10X, N.A 0.25, W.D 7.8mm, plan achromatic, infinite, unbreakable container for storage
        RX4R10LWi 10X, N.A 0.25, W.D 5.8mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RX4R20LW 20X, N.A 0.35, W.D 4.9mm, plan achromatic, infinite
        RX4R20LWi 20X, N.A 0.40, W.D 2.1mm, plan achromatic, infinite, parfocal & pre-centered
        RXR440LW 40X, N.A 0.65, W.D 4.5mm, plan achromatic, infinite, parfocal & precentered, spring loaded, unbreakable container for storage
        RXR440LWC 40X, N.A 0.65, W.D 0.36mm, plan achromatic, infinite, parfocal & precentered, spring loaded, unbreakable container for storage
        RXR440LWe 40X, N.A 0.65, W.D 0.60mm, plan achromatic, infinite, parfocal & precentered, spring loaded, unbreakable container for storage
        RXR440LWF 40X, N.A 0.65, W.D 0.31mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR440LWi 40X, N.A 0.65, W.D 0.43mm, plan achromatic, infinite, parfocal & precentered, spring loaded, unbreakable container for storage
        RXR4020i 20X, N.A 0.40, W.D 2.1mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR4PL60i 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
        RXR4PL63i 63X, N.A. 0.84, W.D. 0.28mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
        RXR4PL63i 63X, N.A.0.95, W.D.0.15mm, plan achromatic, infinite, parfocal & precentered, dry, spring loaded, unbreakable container for storage
        RXR4100LW 100X, N.A 1.25, W.D 1.81mm, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4100LWe 100X, N.A 1.25, W.D 0.10mm, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4100LWF 100X, N.A 1.25, W.D 0.10mm, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4100LWi 100X, N.A 1.25, W.D 0.13mm, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4100LWiD 100X, N.A 0.80, W.D 0.3mm, plan achromatic, infinite, dry, spring loaded, unbreakable container for storage
        RXR4P-100iDF 100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, infinite, oil immersed, spring loaded, darkfield, unbreakable container for storage
      Phase objectives RXR4P-PH04i PH4X, N.A. 0.10, W.D. 30mm, phase, plan achromatic, infinite, unbreakable container for storage
        RXR4P-PH10i PH10X, N.A. 0.25, W.D. 10.5mm, phase, plan achromatic, infinite, unbreakable container for storage
        RXR4P-PH20i PH20X, N.A. 0.45, W.D. 2.10mm, phase, plan achromatic, infinite, unbreakable container for storage
        RXR4P-PH40i PH40X, N.A. 0.65, W.D. 0.65mm, phase, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR4P-PH60i PH60X, N.A. 0.80, W.D. 0.30mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4P-PH63i PH63X, N.A. 0.84, W.D. 0.28mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4P-PH100i PH100X, N.A. 1.25, W.D. 0.18mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
      DIN Plan Achromatic Objectives RXR404iDIN 4X, N.A 0.10, W.D 30mm, plan achromatic DIN, Infinite, unbreakable container for storage
        RXR410iDIN 10X, N.A 0.25, W.D 6.1mm, plan achromatic, DIN, Infinite, unbreakable container for storage
        RXR420iDIN 20X, N.A 0.40, W.D 2.1mm, plan achromatic, DIN, unbreakable container for storage
        RXR440iDIN 40X, N.A 0.65, W.D 0.65mm, plan achromatic, DIN, Infinite, spring loaded, unbreakable container for storage
        RXR450iDIN 50X, N.A. 0.9, W.D. 0.35mm, plan achromatic, DIN, spring loaded, oil, unbreakable container for storage
        RXR4100iDIN 100X, N.A 1.25, W.D 0.18mm, plan achromatic DIN, Infinite, oil immersed, spring loaded, unbreakable container for storage
      Semi Plan Objectives RXR4SP04 4X, N.A. 0.10, W.D. 30mm, semi plan, infinite, wide field, parfocal & precentered, unbreakable container for storage
      RXR4SP10 10X, N.A. 0.25, W.D. 6.1mm, semi plan, infinite, wide field, parfocal & precentered, unbreakable container for storage
      RXR4SP40 40X, N.A. 0.65, W.D. 0.65mm, semi plan, infinite, wide field, parfocal & precentered, spring loaded, unbreakable container for storage
      RXR4SP100 100X, N.A. 1.25, W.D. 0.18mm, semi plan, infinite, wide field, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
      SEMI APO/Flotar/Fluor Objectives RXR4P-SAPO04i 4X, N.A. 0.13, W.D. 17.1mm, SAPO, infinite, unbreakable container for storage
        RXR4P-SAPO10i 10X, N.A. 0.3, W.D. 16mm, SAPO, infinite, unbreakable container for storage
        RXR4P-SAPO20i 20X, N.A. 0.5, W.D. 2.1mm, SAPO, infinite, unbreakable container for storage
        RXR4P-SAPO40i 40X, N.A. 0.75, W.D. 0.72mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RXR4P-SAPO60i 60X, N.A. 0.80, W.D. 0.3mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4P-SAPO63i 63X, N.A. 0.85, W.D. 0.28mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4P-SAPO100i 100X, N.A. 1.3, W.D. 0.20mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage.
          Please click for More Objectives...
  • Power Supply
    • Power Supply RSMPS620C Integrated SMPS based, wide voltage operating range, 100V-265V, 50/60Hz.
      RSMPS620i Integrated SMPS based, wide voltage operating range, 90V-265V, 50/60Hz with multi plug.
      RSMPS621 Integrated SMPS based, wide voltage operating range, 90V-240V, 50/60Hz, output 5Vdc 1A. Max required power 7W
      RSMPS621i Integrated SMPS based, wide voltage operating range, 90V- 240V, 50/60Hz, output 5Vdc 3Amp.
      RSMPS621w Wide voltage operating range, 90V-240V, 50/60Hz, output 6Vdc 1A Max required power 7W, External DC adaptor to illuminator LED
      RTF630 Integrated 6V-30W transformer based, wide voltage range, 90V-240V, 50/60Hz,
         RSMPS630 Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz
         RPSLED SMPS based, LED power supply, wide voltage range, 90V-240V, 50/60Hz
         RPSLED-E External SMPS based, LED power supply, wide voltage range, 90V-240V, 50/60Hz
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
        RSTYRO Standard Styrofoam packing
  • Slider
    • Slider RXR4PH20-SL Phase slider ring for 20X
        RXR4PH40-SL Phase slider ring for 40X
        RXR4PH1040-SL Phase slider ring for 10x/40X
        RXR4PHM-SL Phase slider ring for 10/20, 40X & 100X
        RXR4PHM-SL-4 4 position Phase slider for 10/20, 40X & 100X
        RXR4DF-SL Darkfield slider
  • Viewing Head
    • Viewing Head RXR4B30e Binocular inclined at 30°, swivelling siedentopf head, rotatable through 360°, IPD-from 50-75, fixed diopter, adjustable viewing height, FOV upto 22mm.
      RXR4B30C Binocular inclined at 30°, swivelling siedentopf headrotatable through 360°, IPD-from 48-75, fixed diopter, adjustable viewing height, locking mechanism, FOV 20mm.
      RXR4B30D Binocular inclined at 30°, swivelling siedentopf Ergonomic head rotatable through 360°, IPD-from 48-75, dioptric adjustment on ocular tube (±5mm), adjustable viewing height, FOV. 22mm.
      RXR4B30i Binocular inclined at 30°,swivelling siedentopf/Sliding Head, rotatable through 360°, IPD-from 48-76, fixed diopter, upto 50mm adjustable viewing height.
      RXR4B30T Binocular inclined at 30°, swivelling siedentopf (0-25°tilting head,) rotatable through 360°, IPD-from 47-76, fixed dioptre, up to 50mm adjustable viewing height, FOV upto 25mm.
      RXR4B35i Binocular inclined at 35°,swivelling siedentopf, rotatable through 360°, IPD-from 48-76, fixed diopter, upto 50mm adjustable viewing height.
      RXR4B45SD Binocular Sliding head at 45° inclined, rotatable through 360°, IPD-from 48-76, fixed diopter, upto 50mm adjustable viewing height.
      RXR4B45i Binocular inclined at 45°, swivelling siedentopf/sliding head, rotatable through 360°, IPD-from 48-76, fixed dioptre, upto 50mm adjustable viewing height.
      RXR4PHB3021 Trinocular 30°, inclined at 360°, polarization tube with eyepiece locking mechanism and orientation key in one eye tube for the cross hair reticule eyepiece, IPD from 48-76mm.
      RXR4TST-C45 Trinocular inclined at 45°, sliding head, rotatable through 360°, IPD - from 50-75, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 50(EP):50(camera), upto 50mm adjustable viewing height.
      RXR4T45i Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD-from 48-76, fixed dioptre, upto 50mm adjustable viewing height
        RXR4TST-C50 Trinocular inclined at 30°, swivelling siedentopf head, rotatable through 360°, IPD - from 45-76, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 50:50/70:30, upto 50mm adjustable viewing height.
        RXR4TST-C50B Trinocular inclined at 30°, swivelling siedentopf head, rotatable through 360°, IPD - from 54-75, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 100:0, 50:50, upto 50mm adjustable viewing height.
        RXR4TST-C50Bi Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD-from 48-75, with eyepoint adjustable upto 375-427.9 having F.O.V upto 20mm
        RXR4TST-C50i Trinocular inclined at 30°, swivelling siedentopf head, rotatable through 360°, IPD - from 45-76, diopter adjustment on both eyepieces, port for camera attachment, splitting ratio 50(EP):50(camera) having 2,56,190, upto 50mm adjustable viewing height.
        RXR4TST25-C50 Trinocular inclined at 25°, swivelling siedentopf head, rotatable through 360°, IPD - from 45-76, diopter adjustment on both eyepieces, port for camera attachment, splitting ratio 50(EP):50(camera), upto 50mm adjustable viewing height.
        RXR4TST25-C50A Trinocular inclined at 25°, swivelling siedentopf head, rotatable through 360°, IPD - from 48-75, dioptre adjustment on both eyepieces, port for camera attachment, splitting ratio 50(EP):50(camera), upto 50mm adjustable viewing height.
        RXR4TST25-C50i Trinocular inclined at 25°, swivelling siedentopf head, rotatable through 360°, IPD - from 45-76, diopter adjustment on both eyepieces, port for camera attachment, splitting ratio 50(EP):50(camera) having upto 50mm adjustable viewing height.
        RXR4TST-C80 Trinocular inclined at 30°, swivelling siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, port for camera attachment, splitting ratio 100:0, 20(EP):80(camera), upto 50mm adjustable viewing height.
        RXR4TST-C100 Trinocular inclined at 30°, swivelling siedentopf head, rotatable through 360°, IPD from 48-76, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 100:0/0:100 upto 50mm adjustable viewing height, FOV upto-25mm.
        RXR4TST-CLED LCD Screen integrated camera Trinocular head inclined at 30°, swivelling siedentopf head, rotatable through 360°, IPD - from 45-76, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 50(EP):50(camera), upto 50mm adjustable viewing height.
        RXR4TST-IPD Binocular/Trinocular head inclined at 30°, head swivelling siedentopf head, rotatable through 360°, IPD – from 45-76, locking mechanism, light distribution 50:50, dioptre adjustment on both eyepiece, up to 50mm adjustable viewing height with integrated 5MP colour camera, pixel size 2.0µmx 2.0µm, exposure time 10µs-2s, fps 20fs (full field of view), USB, WiFi, SD Card, software included for pc
        RXR4TST-CiOS Integrated iOS tablet 11” display & integrated camera Trinocular head inclined at 30°, swivelling siedentopf head, rotatable through 360°, IPD - from 45-76, diopter adjustment on both eyepieces, port for camera attachment, splitting ratio 50(EP):50(camera), upto 50mm adjustable viewing height with integrated 16MP multiport camera, Resolution 3840x2160, pixel size 2.4µm x 2.4µm, exposure time 0.04ms~2000ms, 60 fps (full field of view), Capture field of view upto 5mm, USB, WiFi, HDMI, SD Card, software included for pc
Fly-Eye Lens RXR4-FFEL Built-in fly eye lens for uniform illumination to entire FOV.
Analyzer/Polarizer RXR4POLANA Set of analyzer and polarizer
Heating Stage RHS50 Biotherm heating stage more...
Filters  RGF Green plane or frosted
Immersion oil RIO100 High quality immersion oil 100ml
Anti Mould Anti-mould tablet for protection against fungal growth
Standard Accessories UV Protection Shield (orange color)
Cleaning Kit RCLEAN Anti-static cleaning brush, cleaning tissue paper, Lens cleaning solution
Carrying Case for Storage, Microscope Mat/Pad
OBJM Object Marker

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures

Educational Microscopes

Laboratory Clinical Microscopes

Medical Research Microscopes

Microscope Cameras

Industrial Microscopes

Advanced Microscopy System

Camera Control Software

Material Science Software

Life Sciences Software

Infrared Thermography

Metrology & Metallurgy

About Radical

Support

Contact Info
