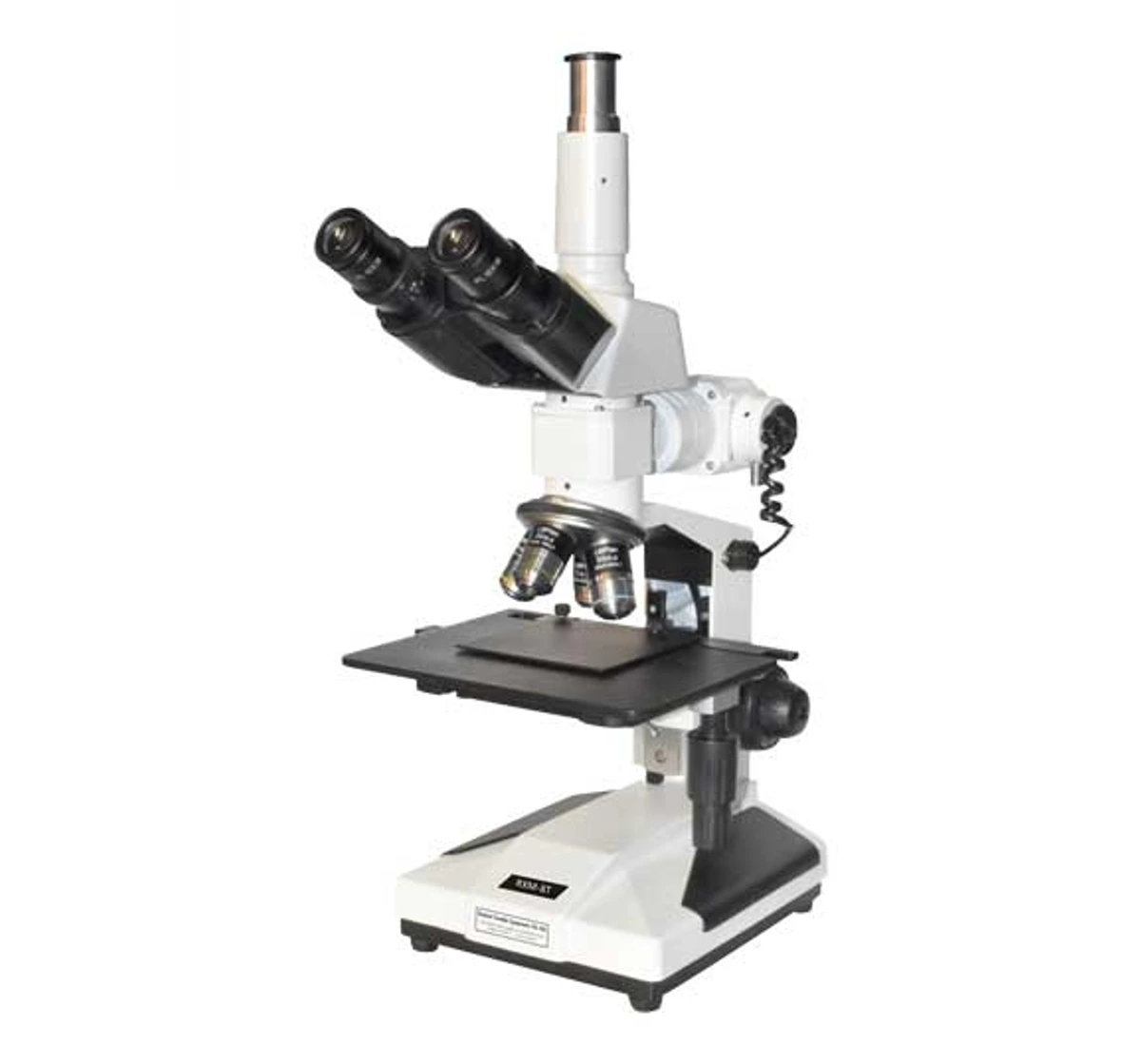

Trinocular Upright Metallurgical Microscope
RXM-8T
Trinocular upright metallurgical microscope with a die-cast rectangular heavy stable base, 360° rotatable Siedentopf head and quadruple revolving nosepiece on precision ball bearing mechanism.
| Stand | Fabricated from die-cast having large size rectangular heavy stable base with concealed transformer & electrical fitting |
|---|---|
| Observation Head | Trinocular Siedentopf head 30° inclined and rotatable through 360°, which can be fixed in any direction, having IPD from 48mm to 74mm with dioptre adjustments, single position splitting ratio 100:0 or 0:100 for digital viewing |
| Nosepiece | Quadruple revolving nosepiece with positive click stops with ribbed grip for easy rotation and mounted on precision ball bearing mechanism |
| Eyepiece | WF 10X/18mm (paired) |
| Objectives | Plan Achromatic M5x, M10x, M20x, M50x (Optional M100x Oil) |
| Standard Magnification | 50x to 500x |
| Mechanical Stage | Stage size 135mm x 140mm having X-Y movement through low-coaxial drive and cross movement of 50mm x 70mm, fully graduated vernier scales |
| Focusing | Low mounted concentric coarse and graduated fine focusing control knobs |
| Illumination | Through LED or Halogen bulb |
| Power Supply | Input voltage 110/220 Volt |
| Standard Accessories | Vinyl Cover, Operating Manual & Warranty Card |
| Model | RXM-8T |
|---|
