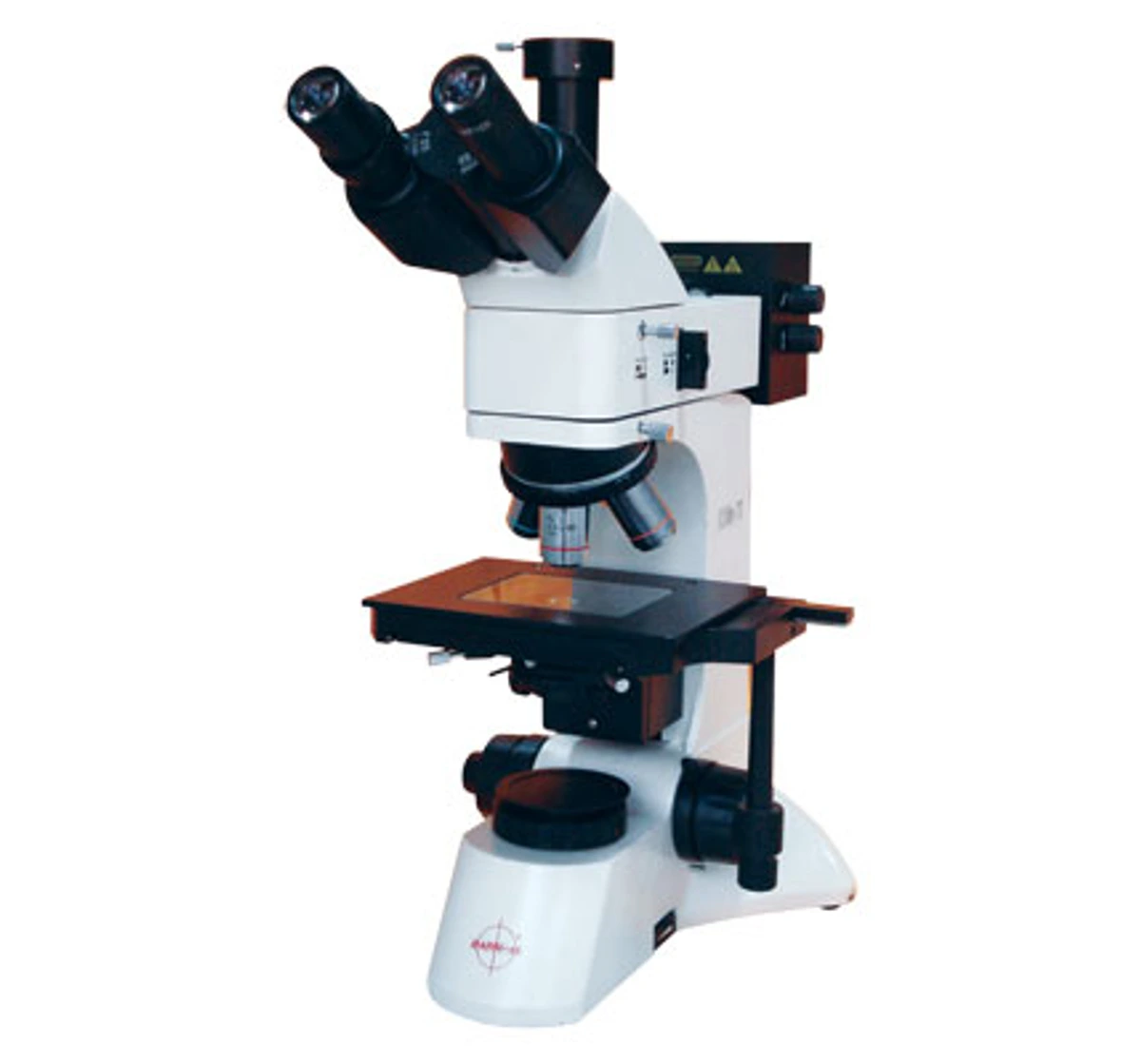

Upright Metallurgical Microscope
RXMr-7T
Metallurgical Microscope produce clear, sharp & bright field images of prepared metal samples as well as other specimen, with wide magnification range from 40x to 2000x (with different magnifications).
| Observation Method | Bright Field, Dark Field, Polarized Light (Analyzer & Polarizer) Illumination methods |
|---|---|
| Trinocular Head | Inclined at 30° & 100:0 or 0:100 Light path Mechanism |
| Focusing | Coarse & Fine Coaxial ball bearing Focusing with Torque Adjustment & Upper Limit Stopper |
| Nosepiece | Quintuple revolving nosepiece with accurate centering and positive Click stops |
| Infinity Plan Achromatic Objectives | P4x, P10x, P20x, P50x & P100x |
| Eyepieces | WF10x (F22mm) with Eye guards |
| Magnification | 40x to 1000x |
| Stage | Three Layer Mechanical Stage 210mm x 140mm |
| Moving Range | 75mm x 50mm |
| Illumination | 12V 100W Halogen Lamp for Reflected Illumination with Field & Aperture Diaphragm |
| Model | RXMr-7T |
|---|
